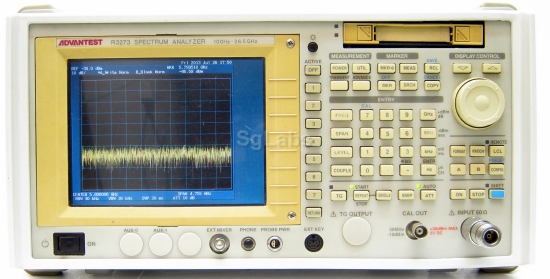

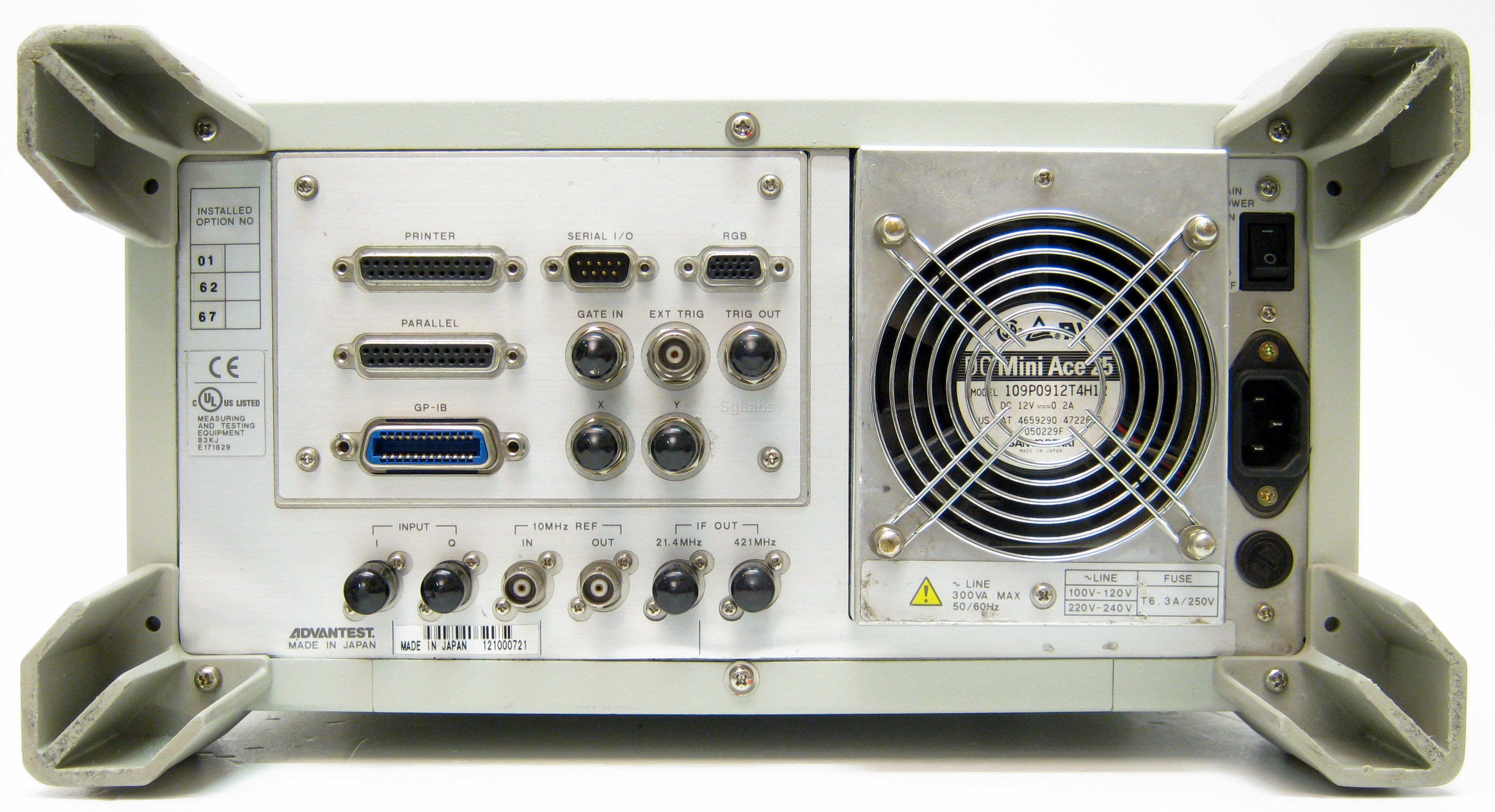

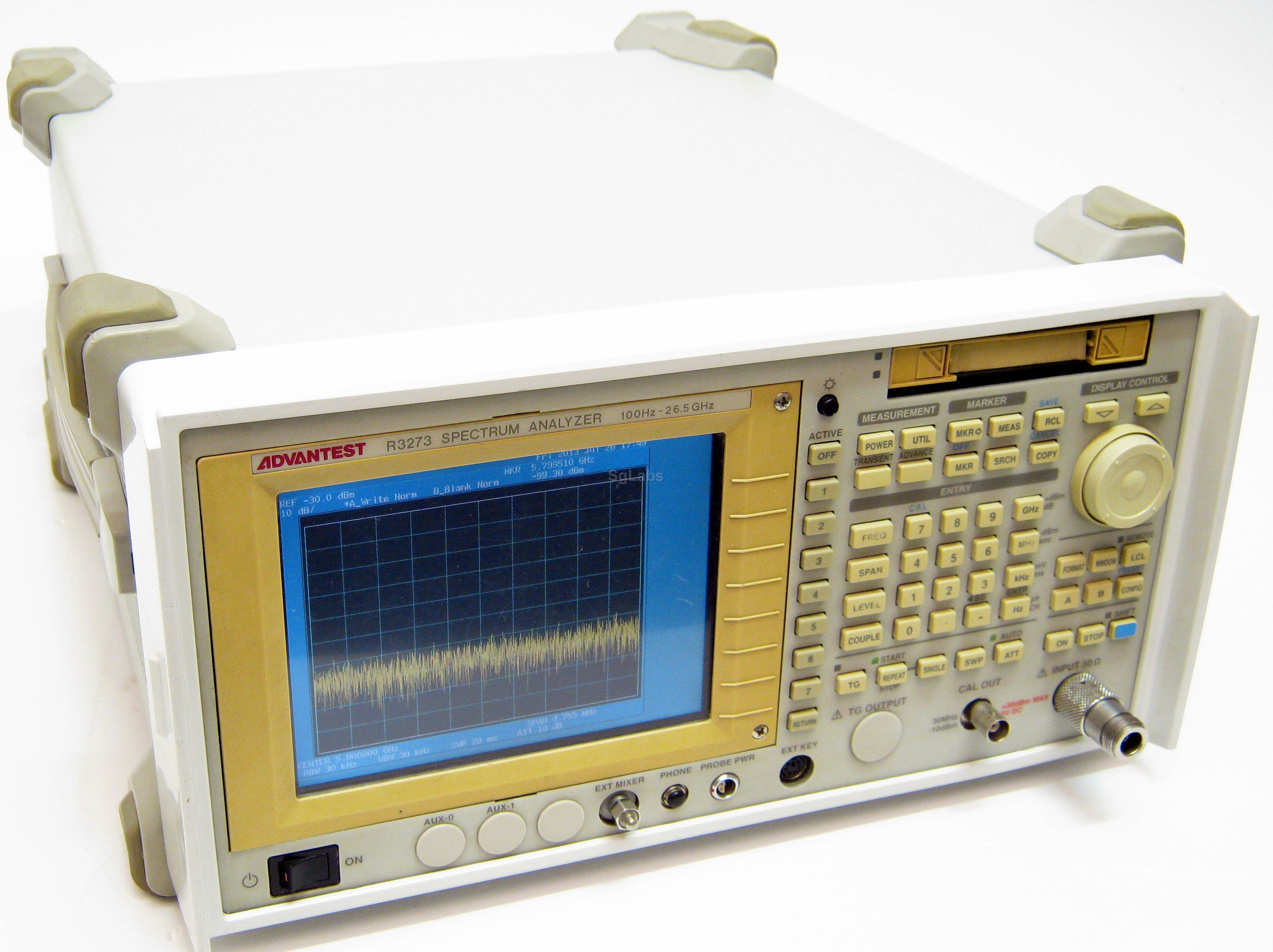

Advantest, R3273

Sei in: ANALIZZATORI DI SPETTRO » Digitale

Advantest, R3273
Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The Advantest R3273 are high-performance spectrum analyzers 100Hz to 26.5GHz designed to meet these needs. The R3273 features a frequency span accuracy +/-0.2(typ.) and a dynamic range of -145 dBc/Hz (typ.) in the 2 GHz band to allow accurate, repeatable measurements for high-quality digital signals. Its 1 Hz to 10 MHz resolution band with filter and ability to perform a 70 dB (typ., at 5 MHz offset) ACP measurement on W-CDMA makes it ideal for testing of wide band sig-nals. With a frequency range from 26.5 GHz, theR3273 allow comprehensive measure-ments of even high frequency systems.

The digital modulation analysis option offers one-button testing of modulation parameters for communication systems including PHS, PDC, IS-136, DECT, GSM, GPRS, EDGE, IS-95, cdma2000, Bluetooth as well as W-CDMA (3GPP).

The R3273 provides excellent value with its combination of spectrum and optional modulation analyzer, so that it can be used with applications ranging from research and development of communication devices and modules, to pro-duction line and deployment testing of communication infrastructure equipment. The R3273: a new family of analyzers to test today's, and tomorrow's communication systems.
- See more at: http://www.testequipmentconnection.com/36330/Advantest_R3273.php#sthash.wWiLSs0Y.dpuf
The R3273 is a high-performance multifunction spectrum analyser with the basic functions necessary to meet the demand for wider frequency range and a higher C/N ratio for next-generation digital mobile communications. - See more at: http://www.mcs-testequipment.com/product/advantest-r3273-spectrum-analyser/#sthash.5BJewupC.dpuf
The R3273 is a high-performance multifunction spectrum analyser with the basic functions necessary to meet the demand for wider frequency range and a higher C/N ratio for next-generation digital mobile communications. - See more at: http://www.mcs-testequipment.com/product/advantest-r3273-spectrum-analyser/#sthash.5BJewupC.dpuf

The Advantest R3273 is high-performance multifunction spectrum analyzers with all the basic functions necessary to meet the demand for wider frequency range and a higher C/N ratio for next-generation digital mobile communications.

The R3273 offers a Resolution bandwidth of 10MHz enabling accurate analysis of the rise and fall characteristics of high-speed amplitude modulated signals. The analog RBW extends down to 10Hz providing wide dynamic measurement.

Since the R3273 also support the digital resolution bandwidth (RBW) from 1 Hz to 100 Hz, they are suitable for high-resolution measurement.

Caratteristiche
  • Range dinamico: +30 dBm - -125 dBm
  • Range di Frequenza: 100 Hz - 26.5 GHz
  • Impedenza d'ingresso: 50 ohms
  • Resolution Bandwidth RBW 10 Hz - 10 MHz
  • Video Bandwidth 1 Hz - 10 MHz
  • Frequenza massima: 26.5 GHz
  • Frequenza minima: 100 Hz
  • Livello massimo: + 30 dBm
  • Livello minimo: - 125 dBm
  • Risoluzione minima: 10 Hz
