Yokogawa OR100 Handy Oscillographic Recorder

You are here: Data Acquisition » Datalogger

Yokogawa OR100 Handy Oscillographic Recorder
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

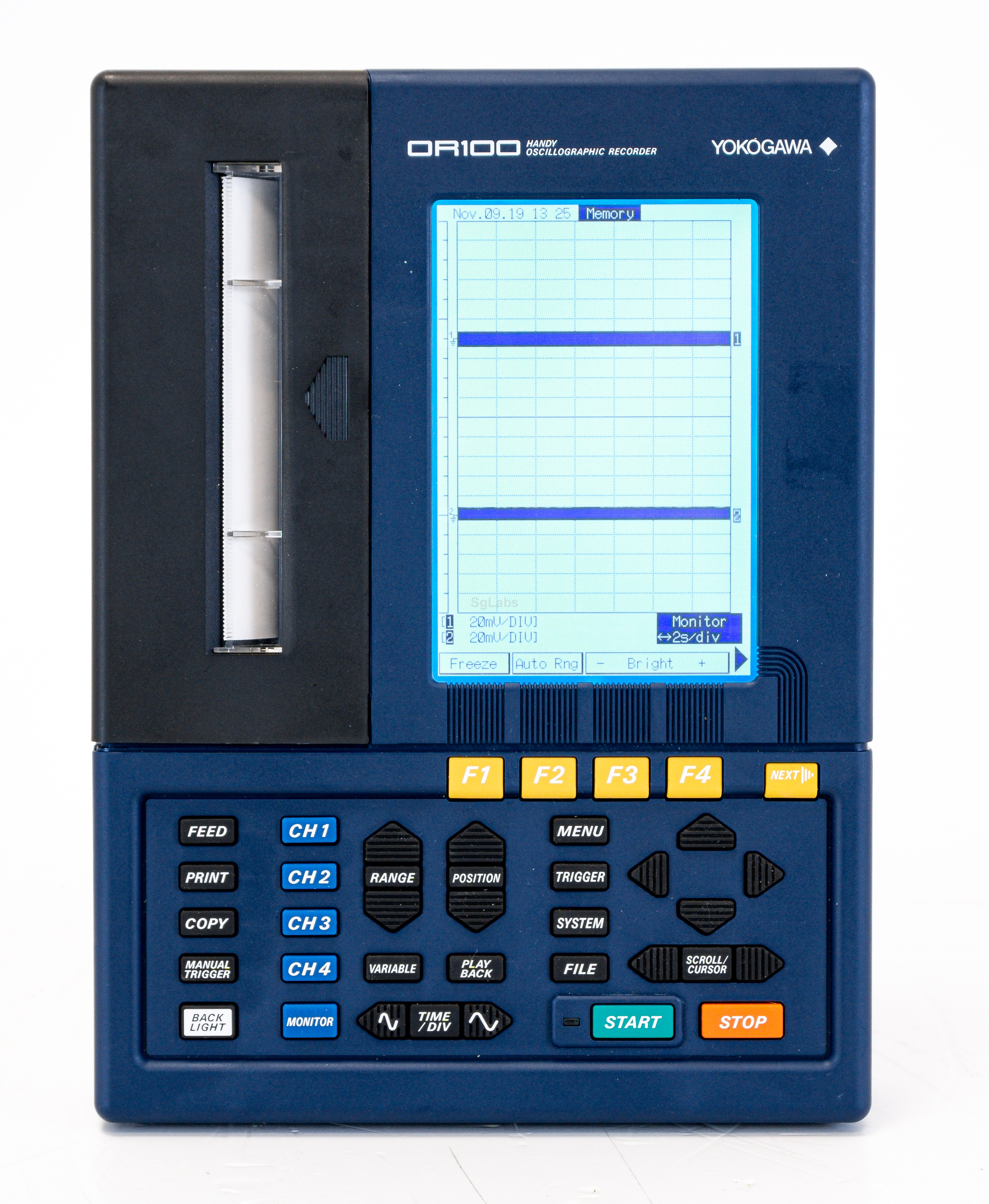

The OR100E/OR300E series of Handy Oscillographic Recorders are complete multi-purpose recorders featuring up to four isolated analog input channels, fax/modem capability using a PC card, four-mode power supply and powerful trigger functions. The OR300E also has a harmonic analysis function. These recorders are small in size, with a footprint equivalent to a sheet of B5 paper, and weigh only 1.4 kg.* They can be used standalone for a wide range of applications, from low-speed/long-term continuous recording to high-speed recording of transient  conditions.
  • Compact, lightweight and slim. Notebook size (B5) 4-channel isolated recorder
  • Fax/modem capability using a PC card
  • Powerful trigger functions

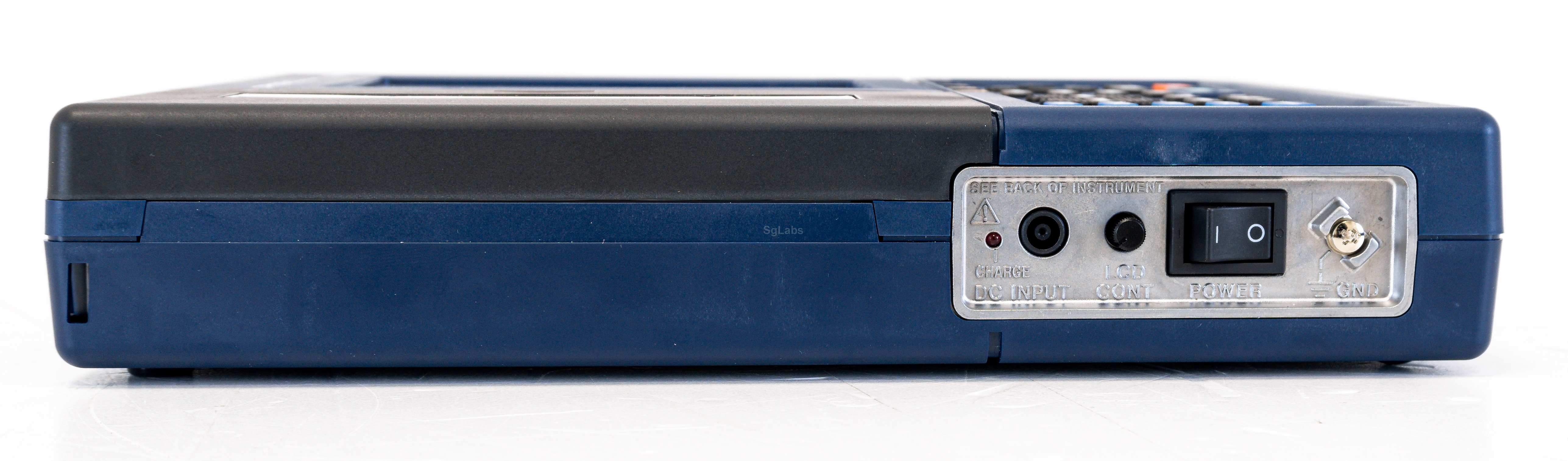

  • Four-mode power supply for field use

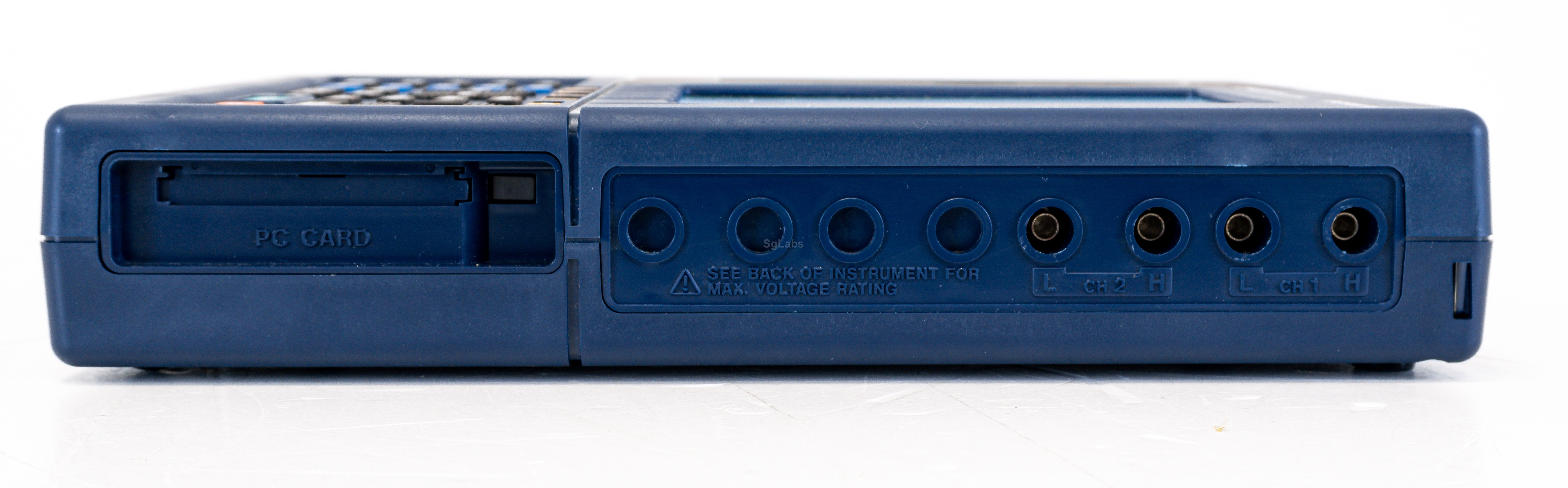

  • Standard external interfaces for flash ATA memory card and RS-232 communication
  • Channels: 4
  • Display: Matrix

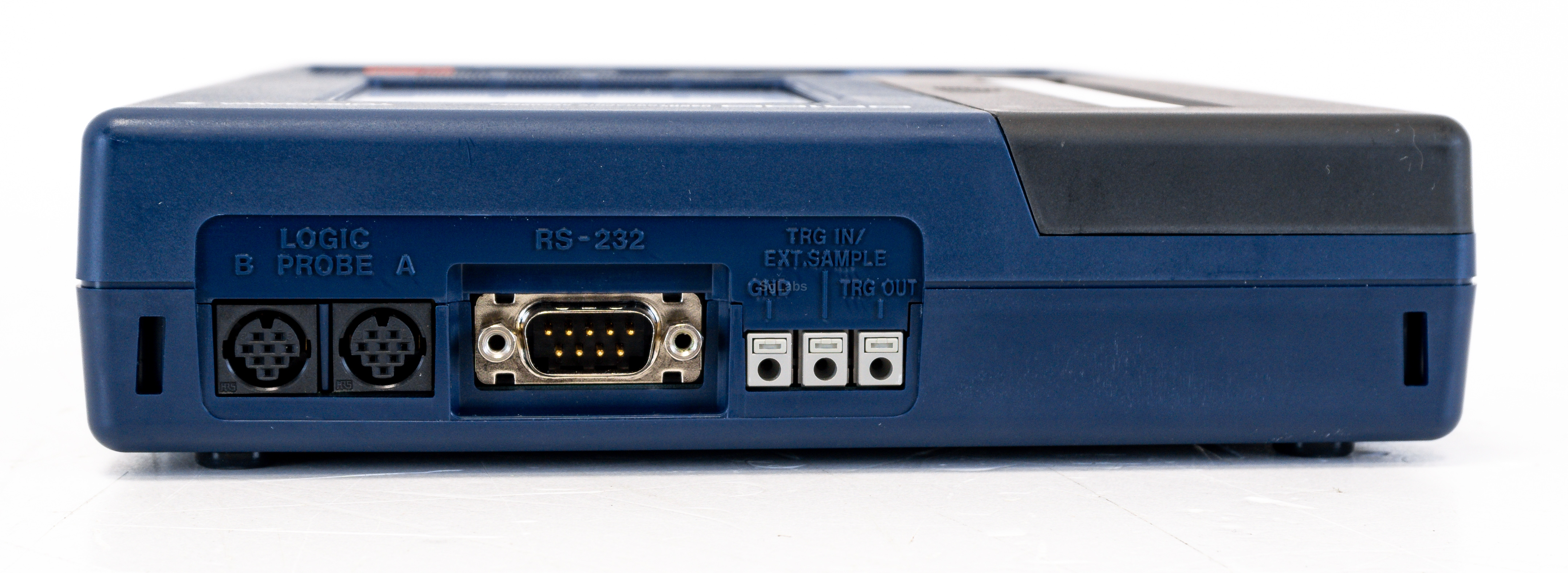

  • Interface: RS232
  • Sampling: 400 kS/s - 11 bit AD
