Tektronix, 2465

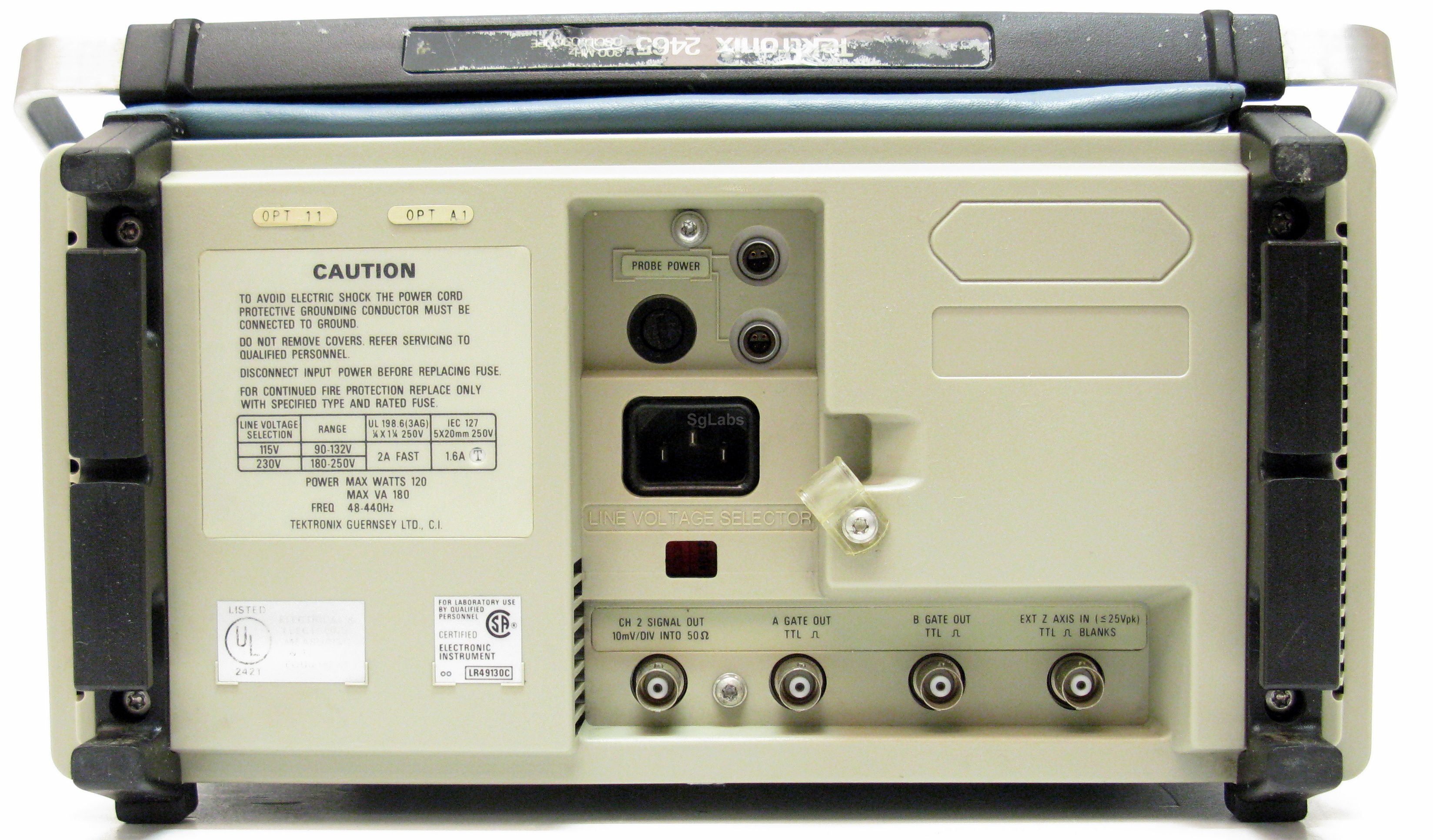

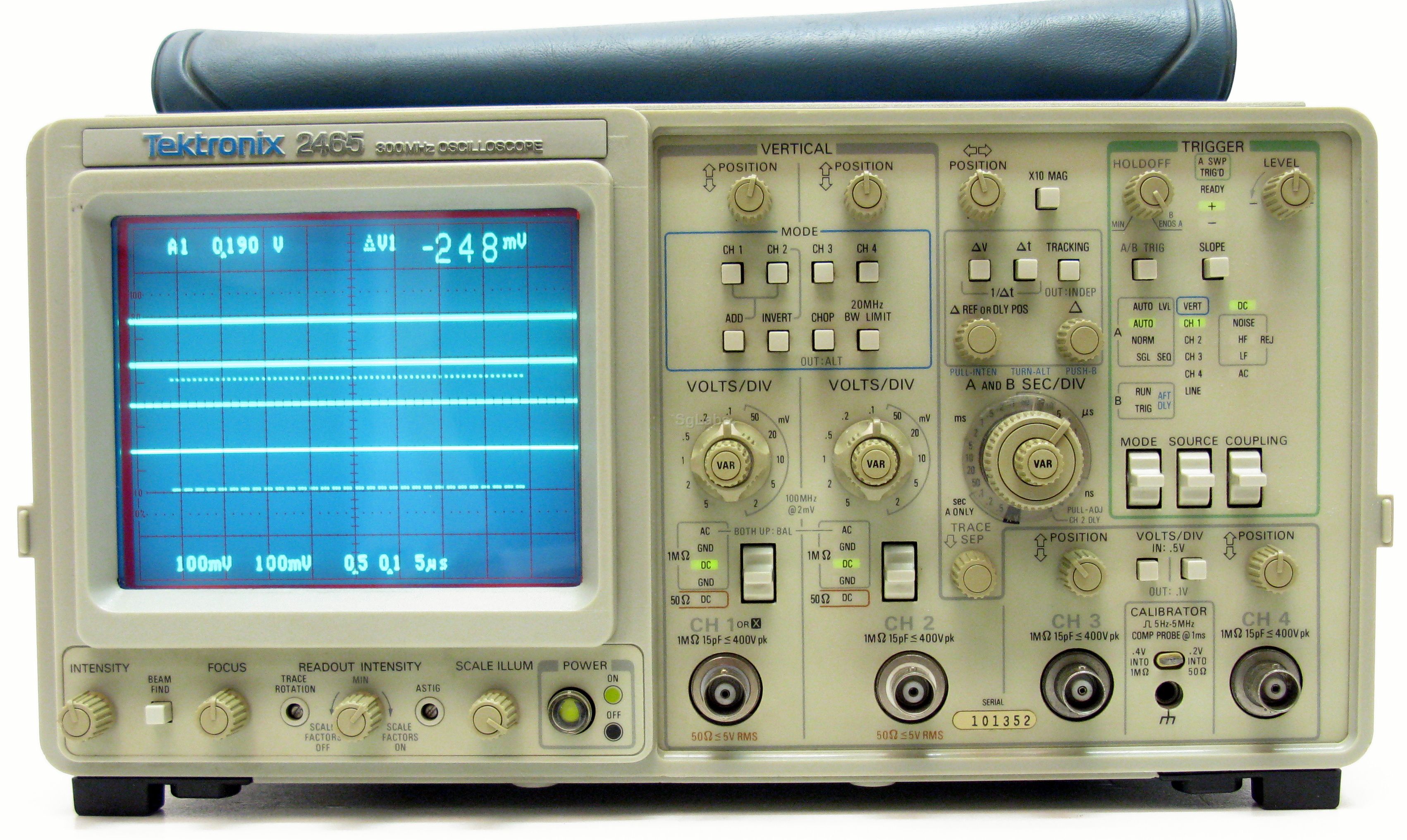

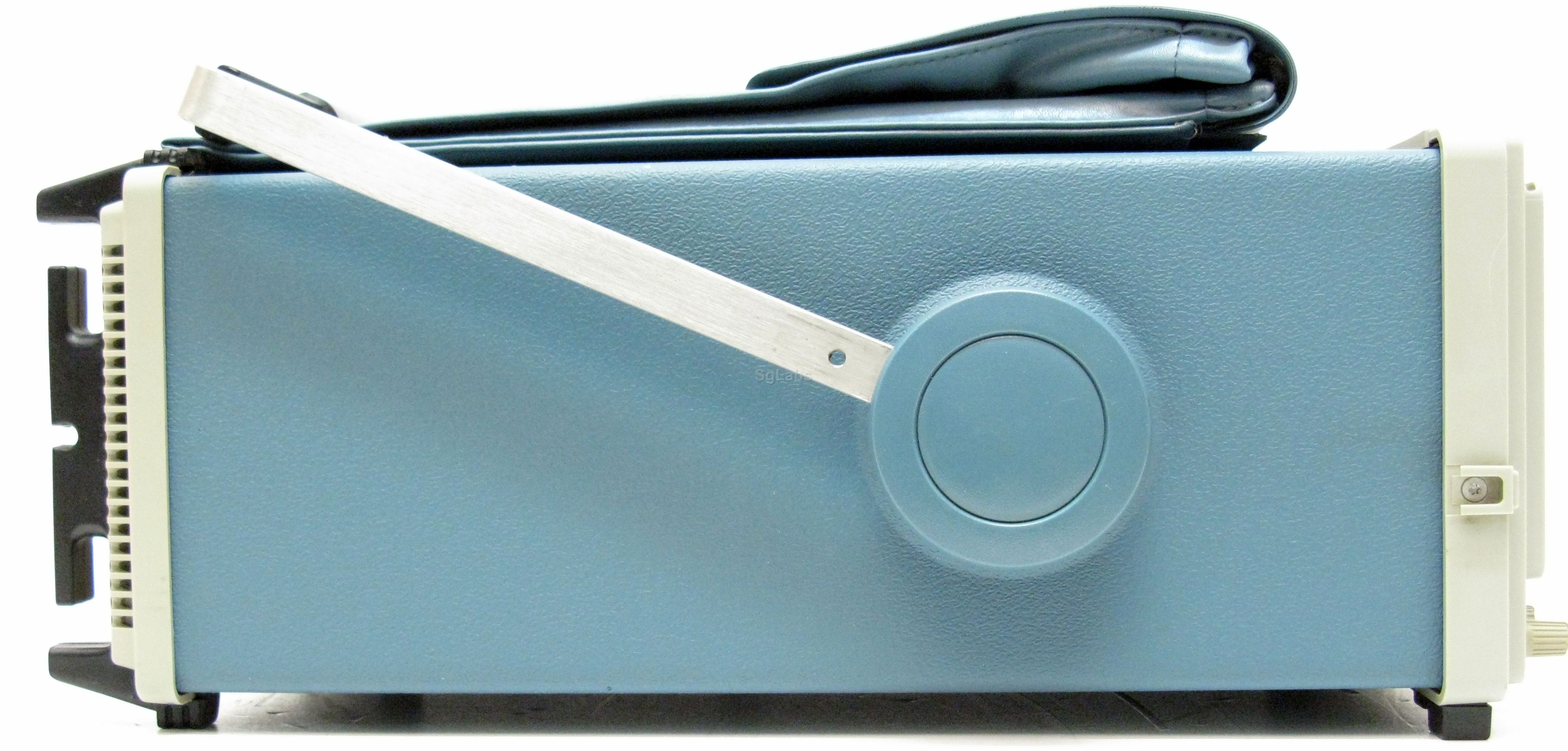

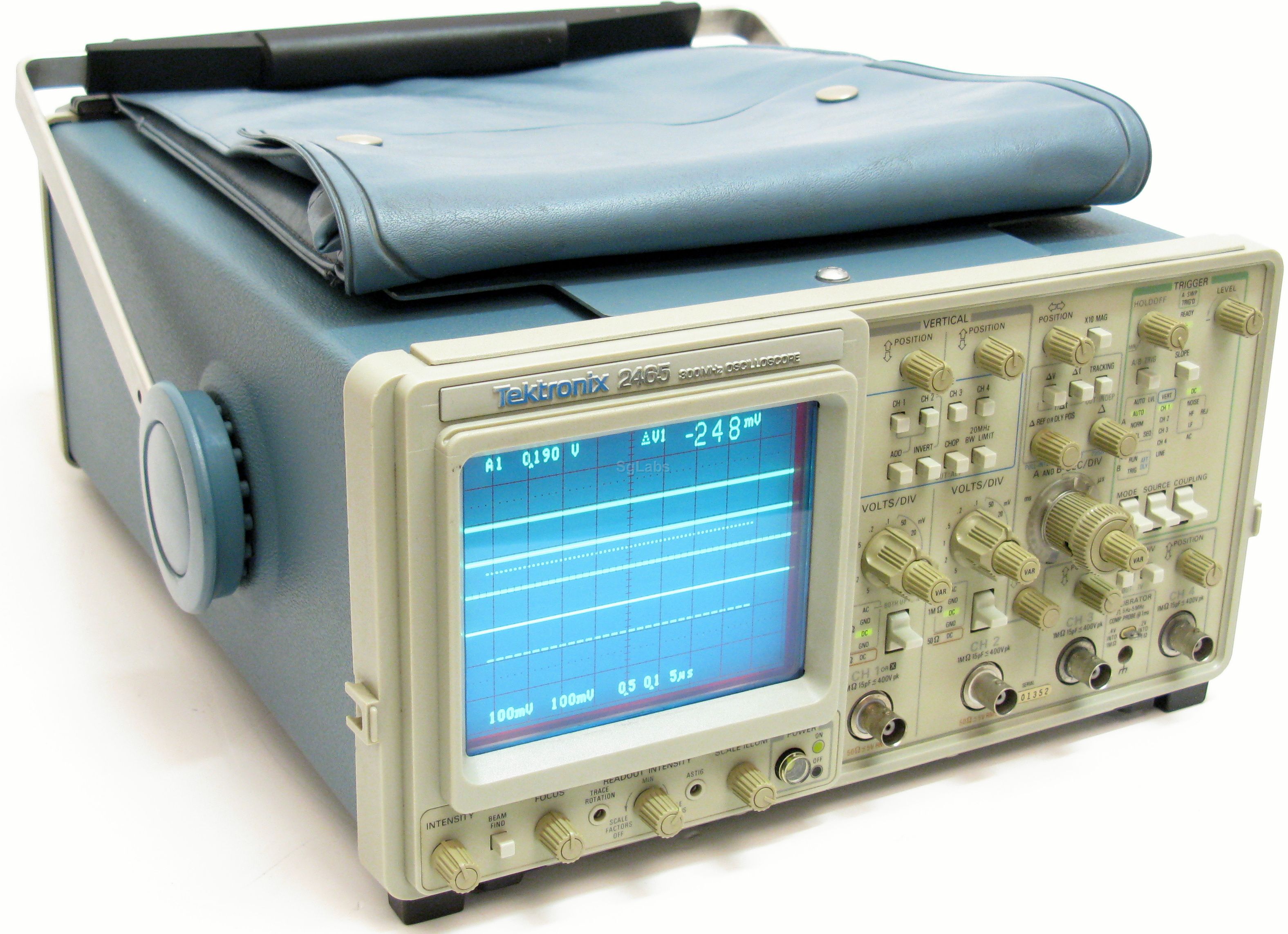

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Tektronix 2465 Oscilloscope, Analog: 300MHz,4ch (Stand alone)

The Tektronix 2465 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Tektronix 2465 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

  • Frequency Range/ Bandwith: 300 MHz
  • Rise Time 1.17 ns
  • Vertical Sensitivity: from 2mV/div up to 5 V/div
  • Time Base: 5 ns/div up to 500 ms/div
  • Input Impedance: 1 MOhm or 50 Ohm (alternate)
  • Trigger Source: Internal and External
  • CRT Display
  • Number of Channels: 4 CH
  • Channels: 4
  • Display: CRT
  • BandWidth: 300 MHz
