R&S Rohde & Schwarz SMU200A Victor Signal Generator

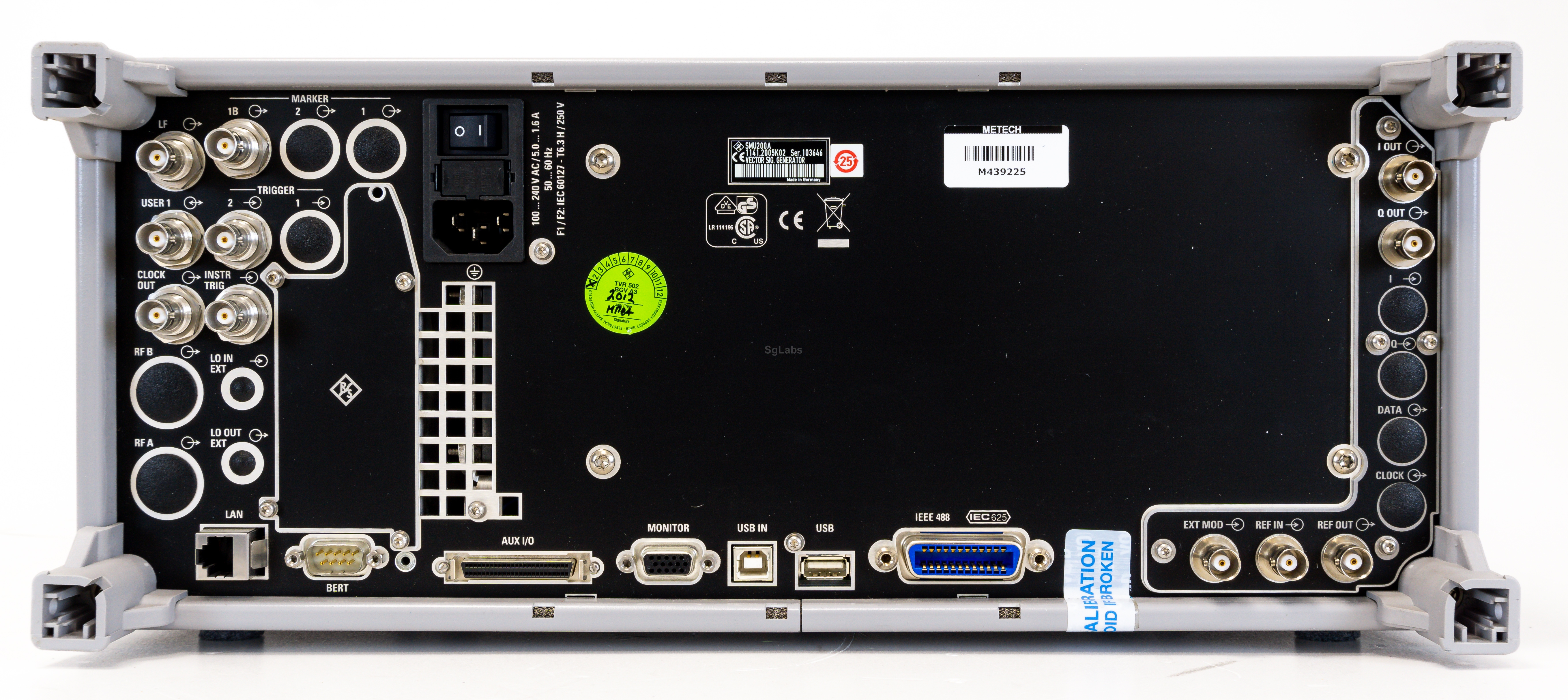

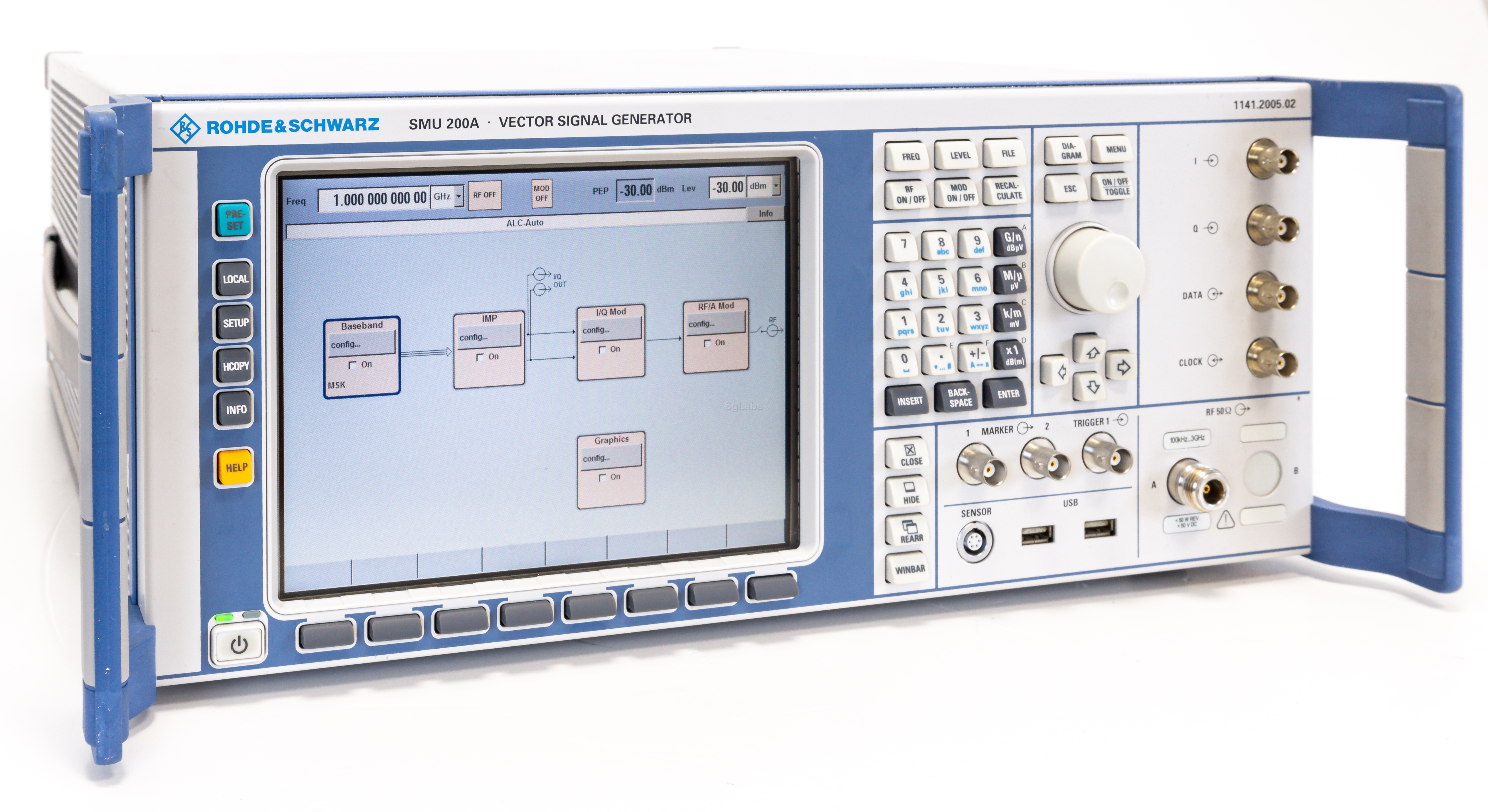

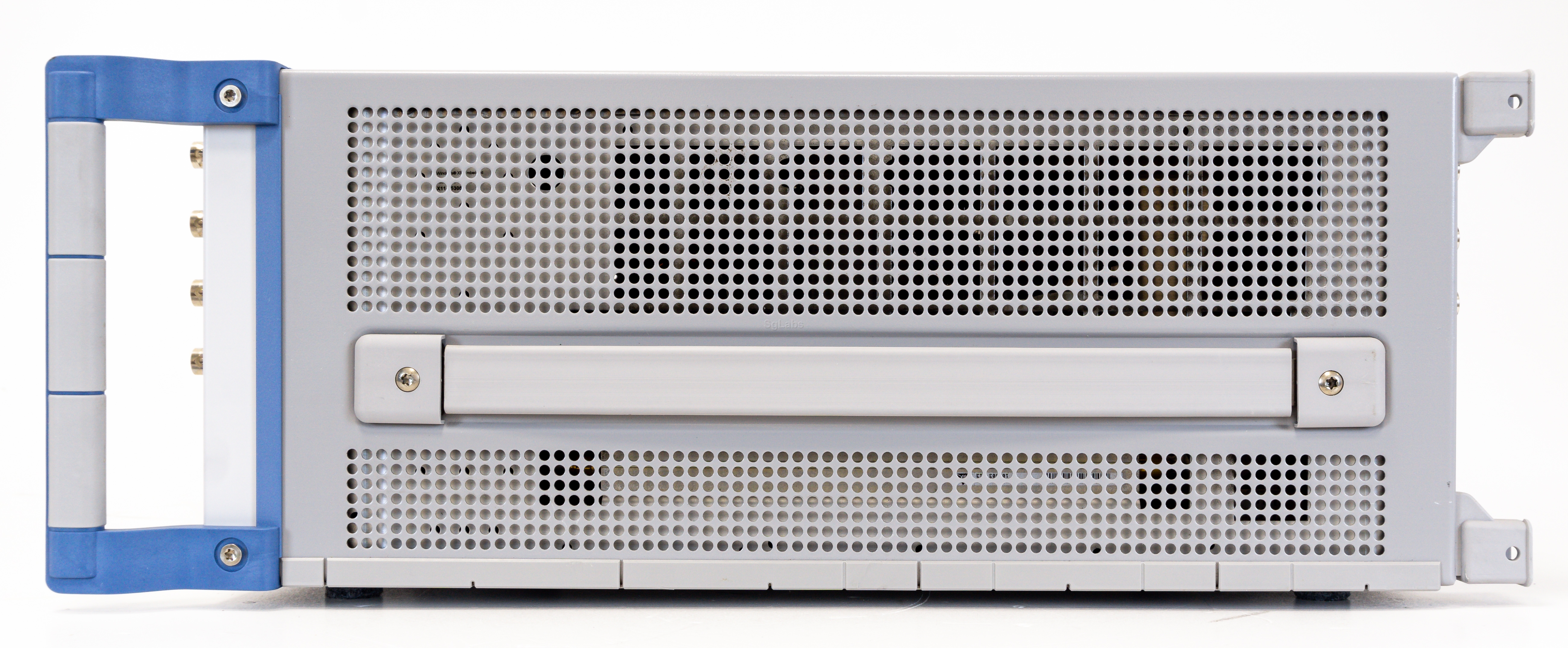

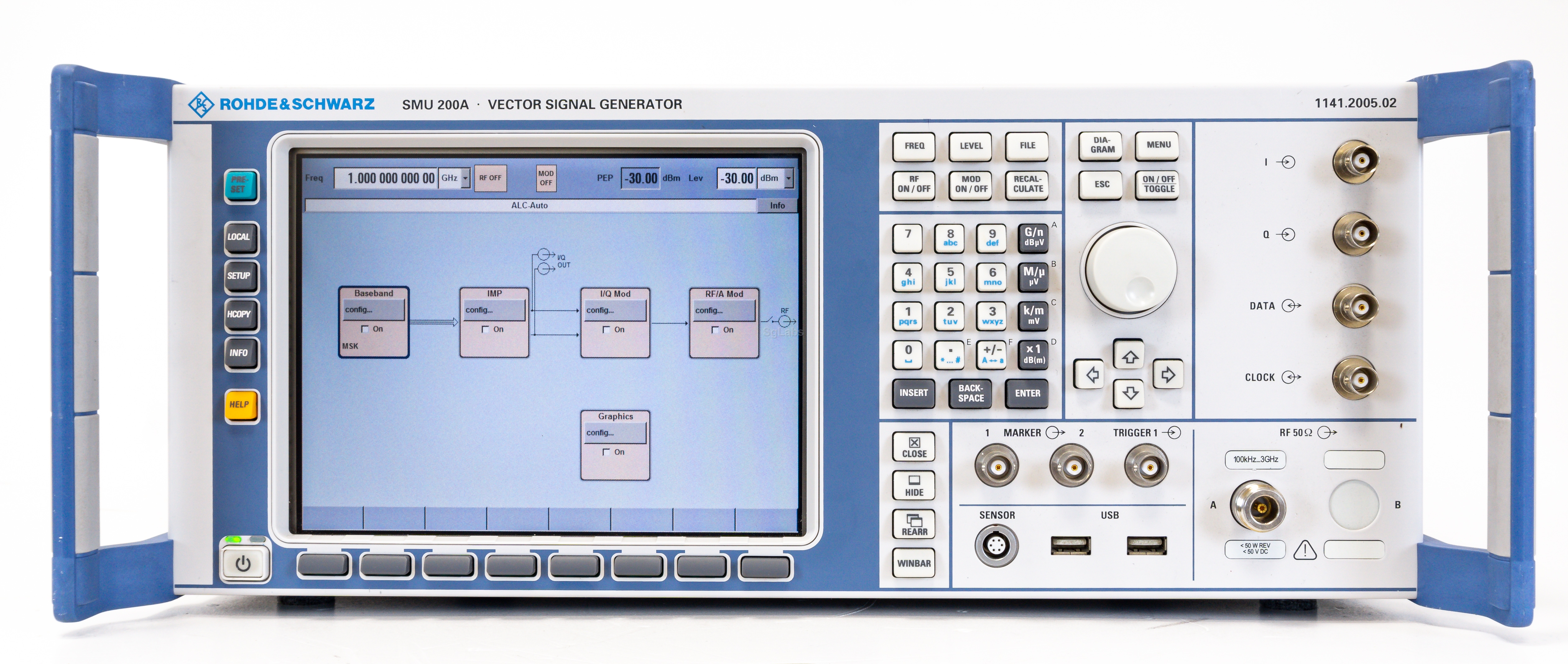

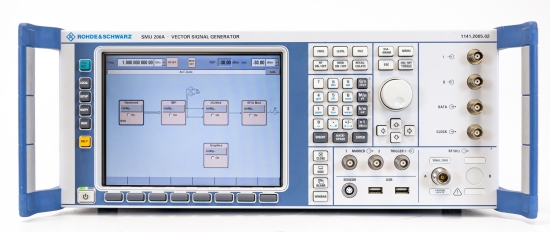

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The R&S®SMU200A Vector Signal Generator not only combines up to two independent signal generators in one cabinet of only four height units, it also offers unrivalled RF and baseband characteristics. The generator has been designed to meet all requirements encountered in research and development of modern communication systems as well as in their production.

Due to its modular design, the R&S®SMU200A can be optimally adapted to the requirements of different applications. The first RF path can be equipped with one of the four available frequency options. The upper frequency limit of 2.2 GHz / 3 GHz / 4 GHz or 6 GHz is user-selectable. In addition, a second RF path can be installed with upper frequency limits of 2.2 GHz and 3 GHz. The lower frequency limit of all frequency options is 100 kHz.

  • I/Q modulator with 200 MHz RF bandwidth
  • Very low SSB phase noise of typ. -135 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth), typ. -139 dBc with the enhanced phase noise performance option
  • Wideband noise of typ. -153 dBc (CW, f = 1 GHz, >10 MHz carrier offset, 1 Hz measurement bandwidth)
  • Excellent ACLR of typically +70 dB for 3GPP FDD
  • Very high level repeatability of 0.05 dB
  • High-stability reference oscillator as standard
  • High output power up to +19 dBm (PEP), overrange + 26 dBm
  • Max frequency: 3 GHz
  • Minimum Frequency: 100 kHz
  • Modulation: I/Q
  • Max. power: 13 dBm
  • Min. output level: -145 bDm
 € 4.200,00
