The Keysight 11852B is an instrument-grade, 50-ohm type-N female to 75-ohm type-N male adapter. This product is also available in a 50-ohm type-N male to 75-ohm type-N female configuration. The 11852B Option 004 has a 50 Ohm Type-N (m) and 75 Ohm Type-N (f) connector.

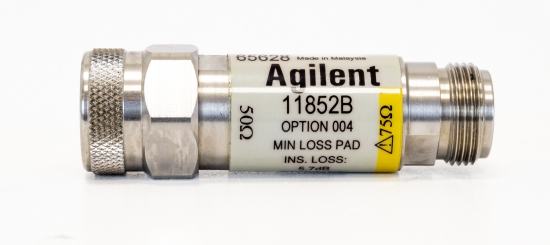

Hp Agilent Keysight 11852B Min Loss Pad
You are here: RF Component » Adapters
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Insertion Loss: 5.7 dB, typical
- Return Loss: > 27 dB
- Electrical Length: 50.2 mm (1.98 in)
- Overall Length: 60.1 mm (2.37 in)
- Diameter: 22.0 mm (0.87 in)
- Reference Plane to Reference Plane Length (nominal): 50.2 mm (1.98 in)
- Attenuation: 5.7 dB
- Connector: Nm or Nf
- Connector: Nm or Nf
- Max. Frequency: 3 GHz
- Min. Frequency: DC
- VSWR / RL: > 27 dB
Price
€ 95,00
