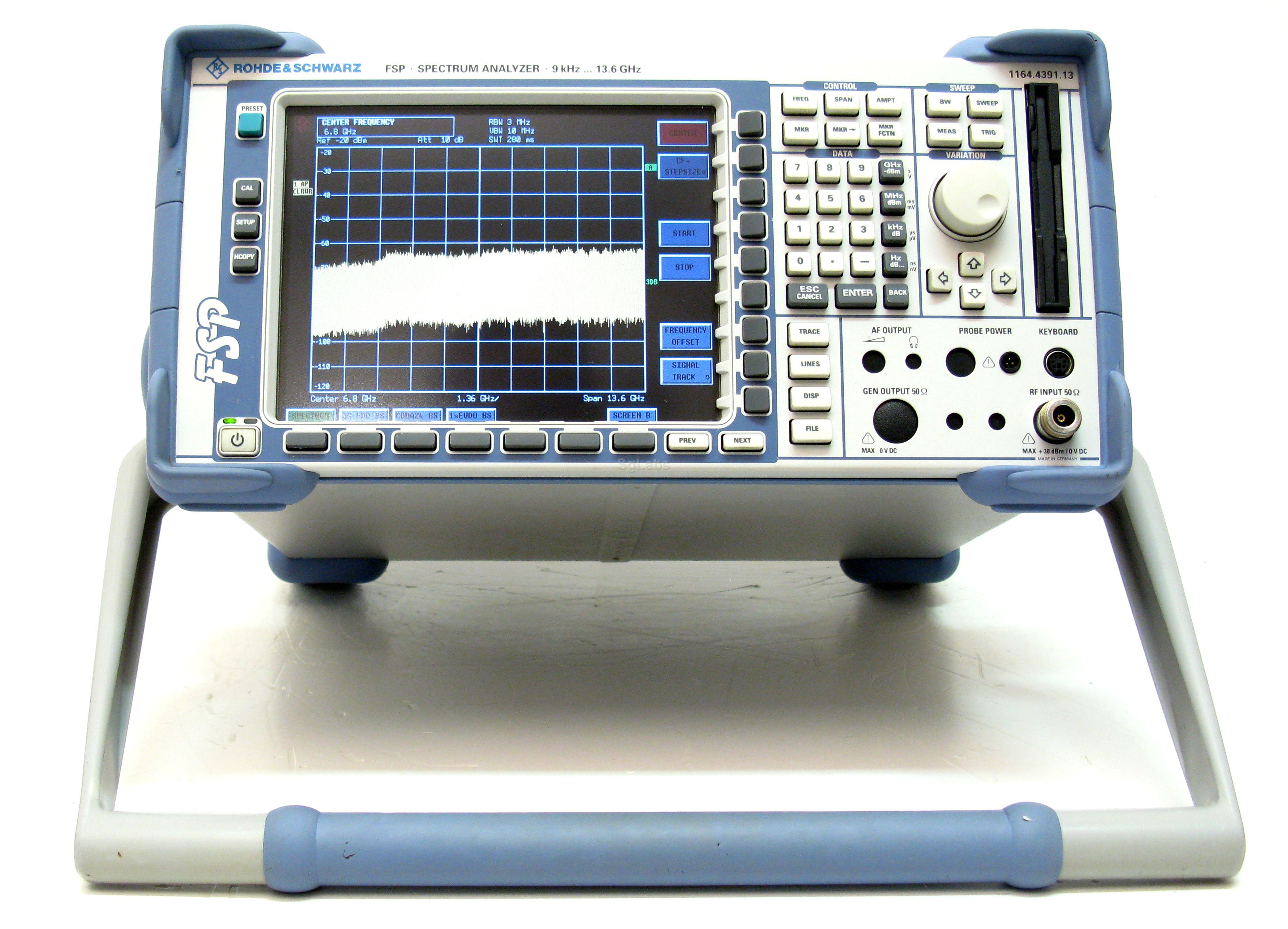

R&S (Rohde & Schwarz), FSP13

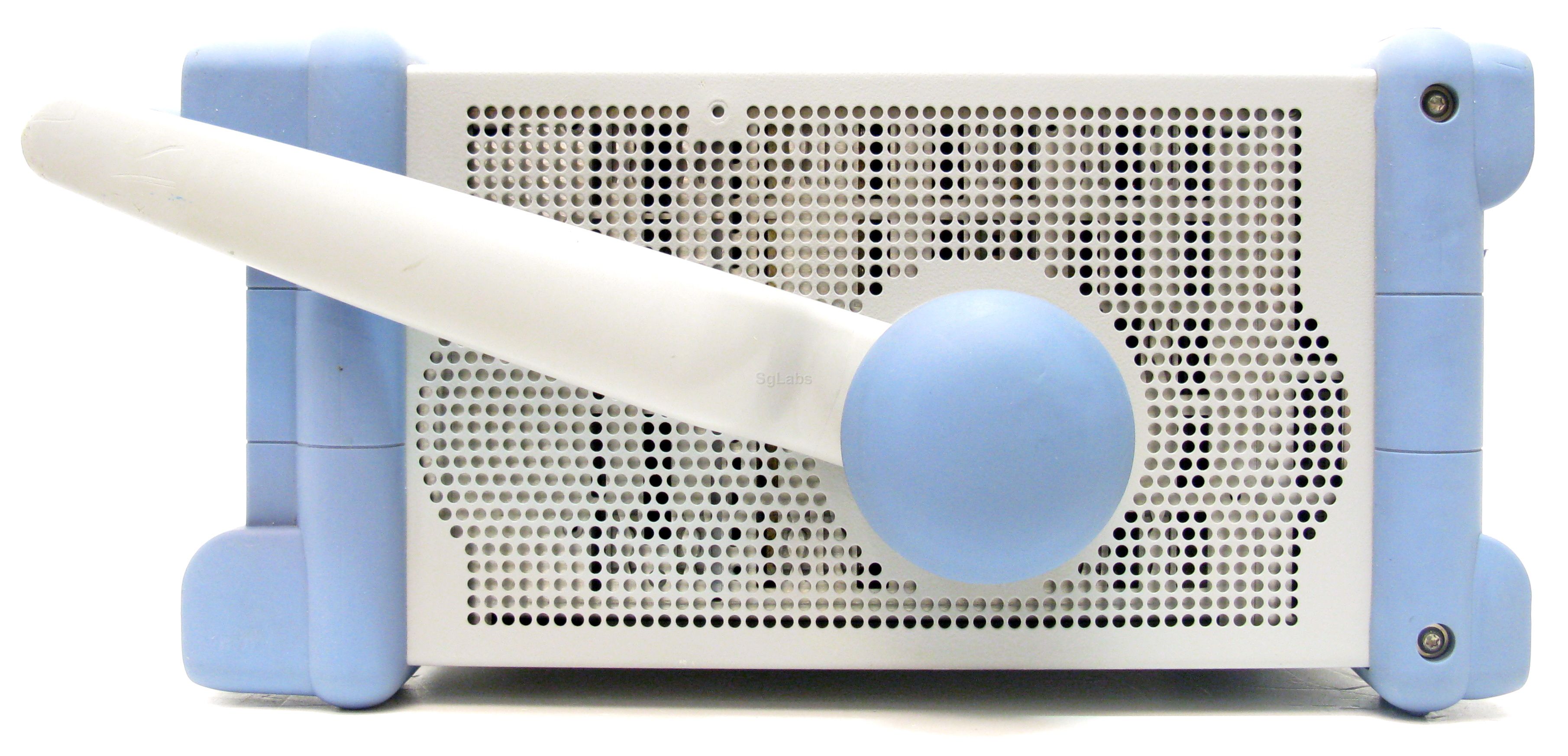

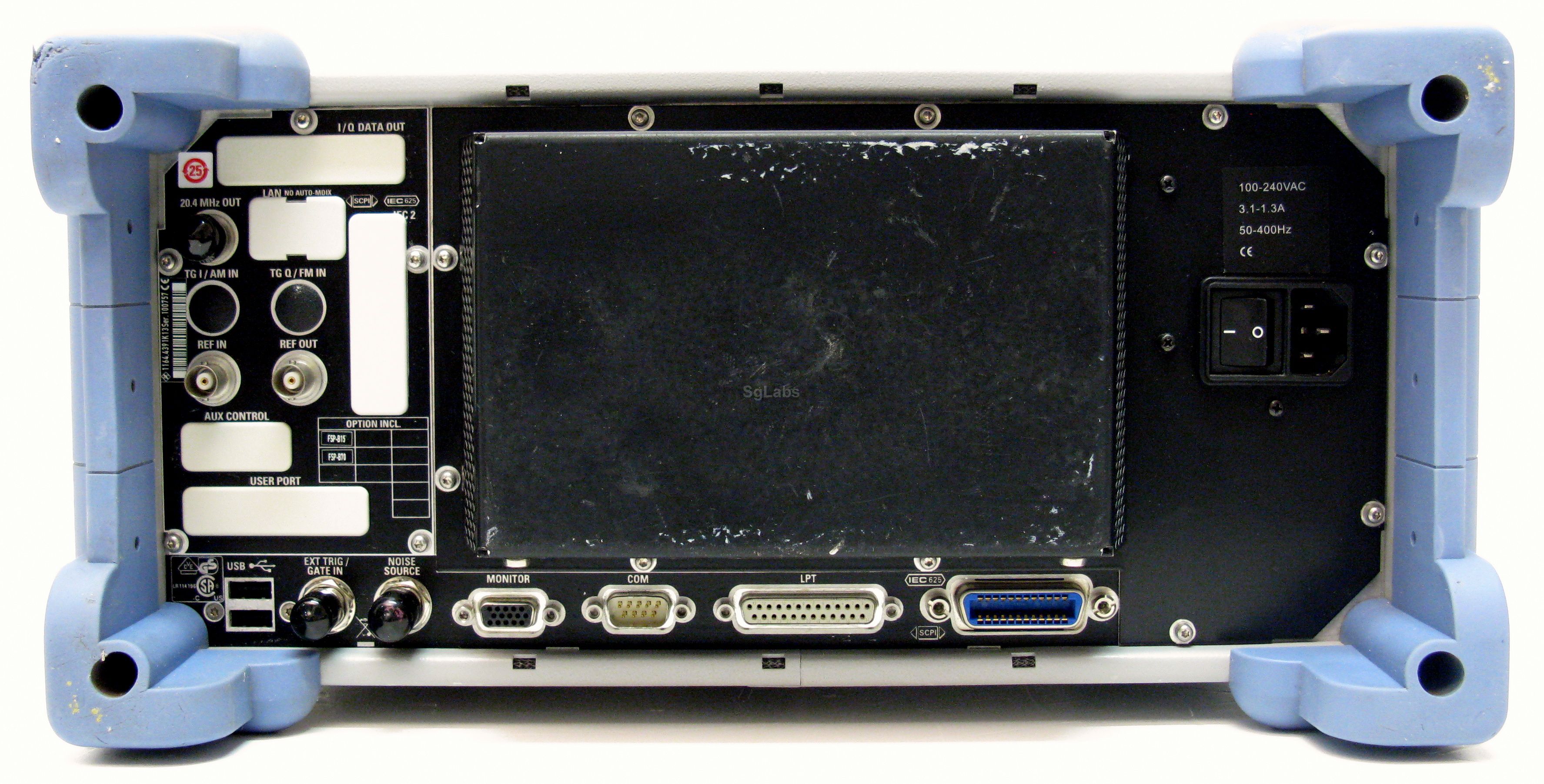

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Rohde & Schwarz

FSP is the ideal partner for both development and production, featuring the smallest level measurement uncertainty in its class, as well as excellent RF characteristics. The FSP is outstanding for its innovative measurement functions and incorporates proven technology with an all new hardware design to enable revolutionary performance, reliability and ease of service.

  • Frequency range 9kHz to 13.6GHz
  • Resolution bandwidth 1 Hz to 10 MHz
  • Displayed average noise level -155 dBm (1 Hz)
  • Phase-noise typ. -113 dBc/Hz @ 10 kHz offset, CF 500 MHz
  • Phase-noise typ - 145 dBc/Hz @ 10 MHz offset, CF 500 MHz
  • Electronic attenuator (opt.B25)
  • Application firmware available for GSM/EDGE, Bluetooth, WCDMA/HSDPA/TD-SCDMA, CDMA2000/1xEV-DV/1xEV-DO, WLAN
Description of Options

  • B15: Pulse calibrator
  • B70: Demodulation hardware memory extension
  • K72: Modulation and code domain power measurements in accordance with
           3GPP TS 24.141 on base station signals (Node B)
  • K74: HSDPA extension for ¸FS-K72
  • K82: Modulation and code domain power measurements in accordance with CDMA2000®/1xEV-DV
           on base station signals (also for measurements on IS95/cdmaOne signals)
  • K84: Modulation and code domain power measurements on 1xEV-DO base station signals
  • K93: WiBro IEEE 802.16 OFDMA Measurements Application Firmware
  • Display: Color
  • Max. Frequency: 13.6 GHz
  • Min. Frequency: 9 kHz
  • Min. Resolution: 1 Hz
  • Tracking generator: Option
