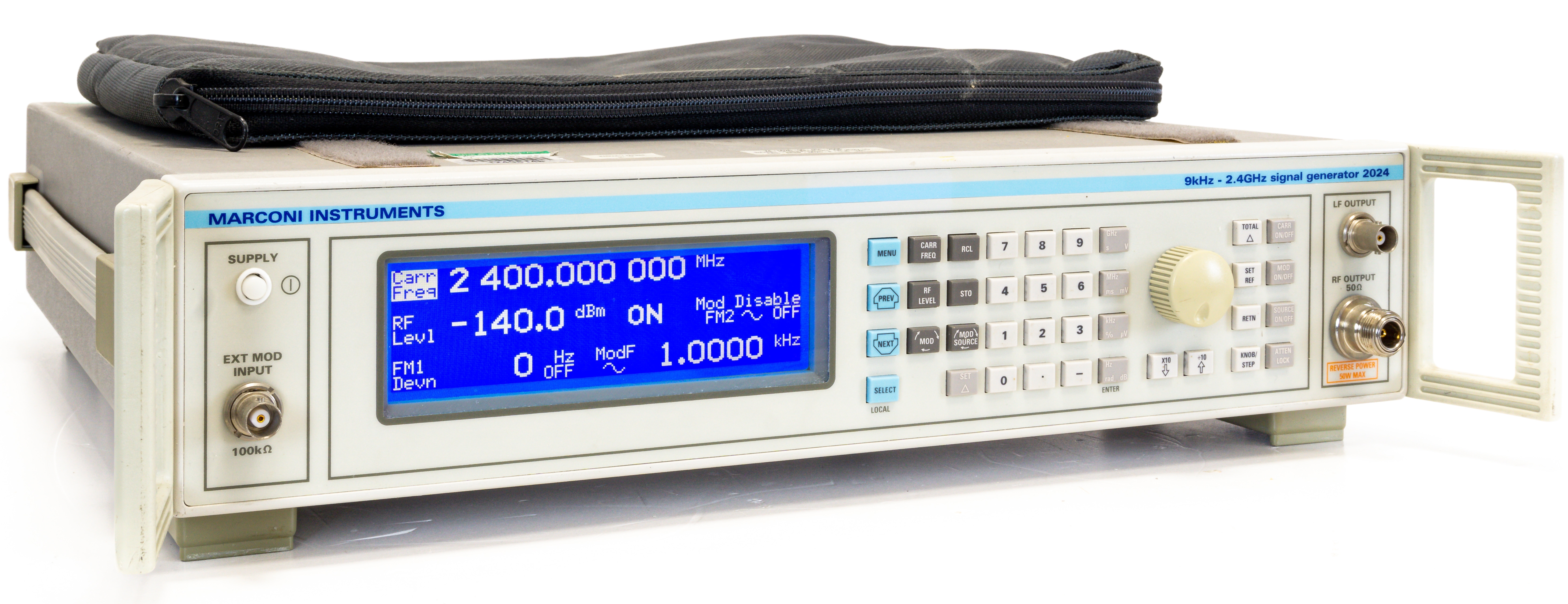

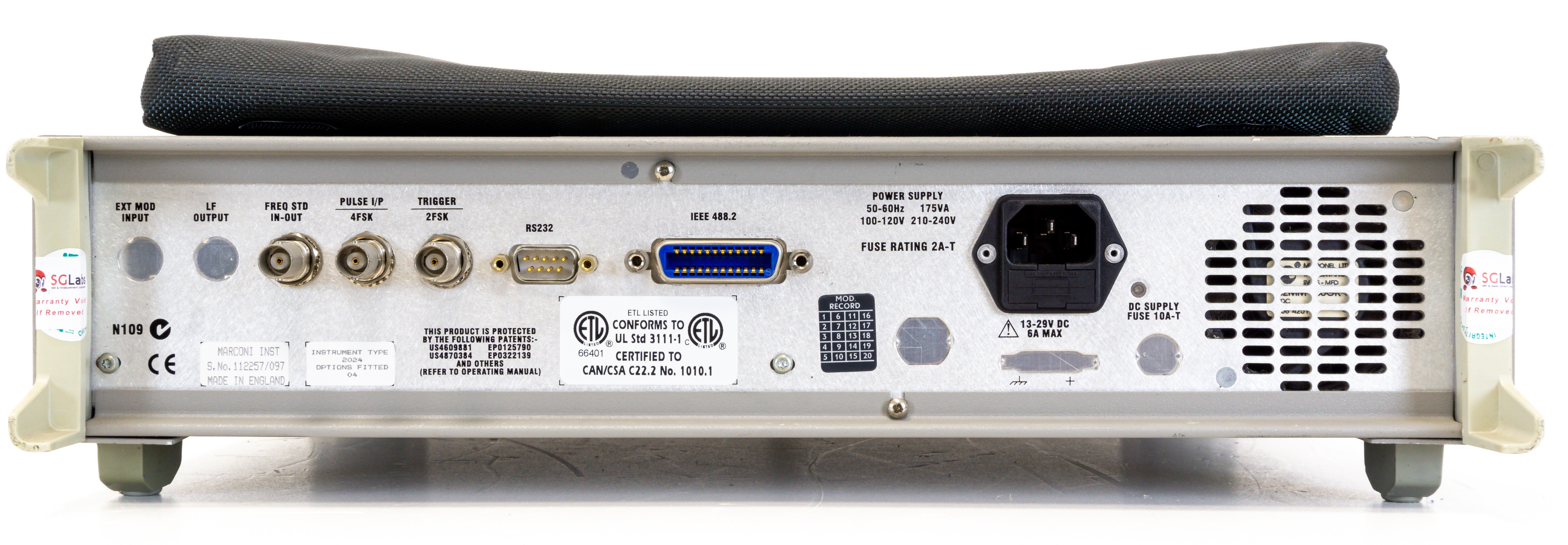

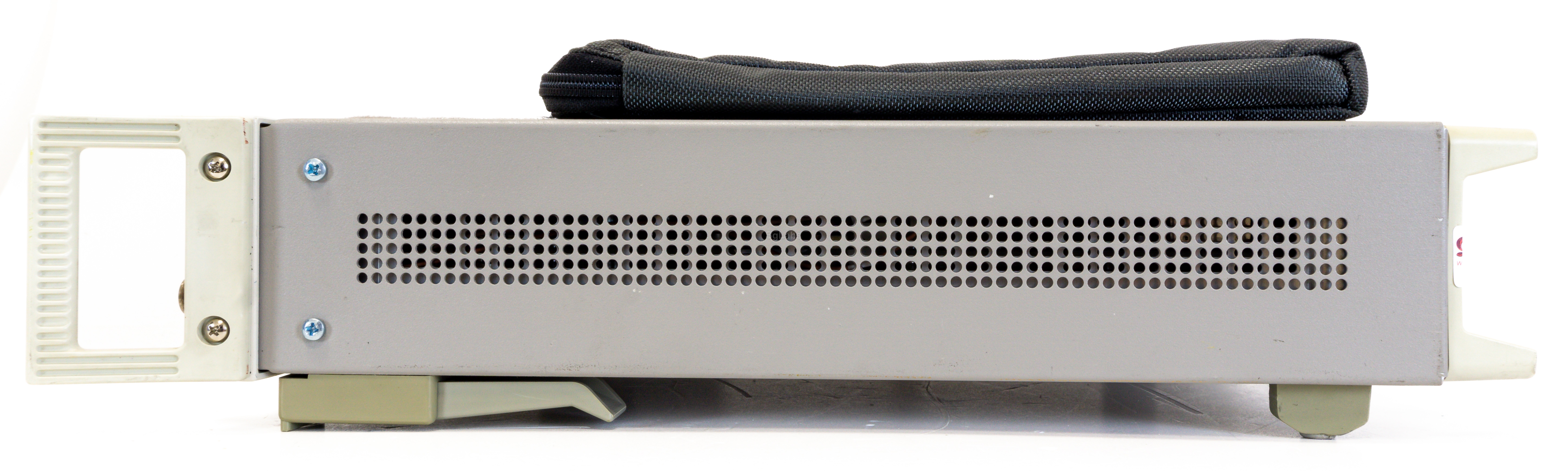

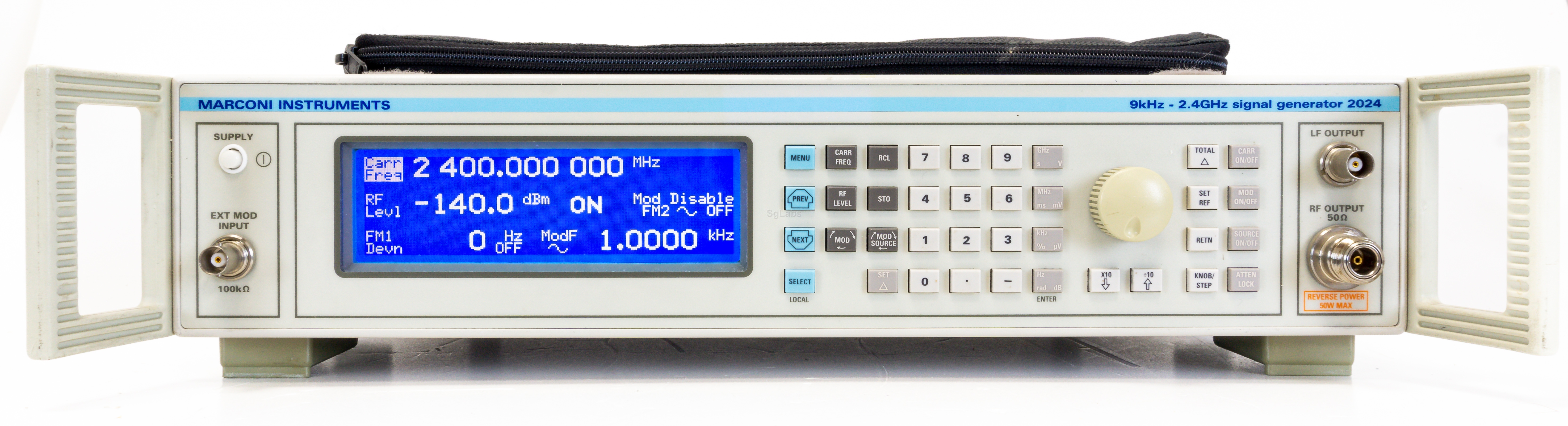

The Marconi 2024 is a portable and lightweight Synthesized Signal Generator with a frequency range of 9 kHz to 2.4 GHz with a resolution of 1 Hz across the band and a RF output up to +25 dBm with a resolution of 0.1dB. The RF output of the 2024 can be amplitude, frequency, phase or pulse modulated.
Caratteristiche tecniche:
Caratteristiche tecniche:
- Banda operativa : 9 KHz - 2.4 GHz
- Potenza di uscita : -137 dBm a +13 dBm (+25 dBm Opt.11)
- Risoluzione : 1 Hz
- Modulazioni: AM, FM, FSK a due o quattro livelli, Fase e impulsiva.
- Protetto contro le inversioni di potenza fino a 50 W
- Dispone di un generatore interno a BF limitato in banda che va da 0.01 Hz a 20 KHz
- Sweep lineare e logaritmico.
Possibili opzioni:
- Opzione 04: High stability frequency standard
- Opzione 11: Fast pulse and high power
