HP Agilent Keysight, 83712A

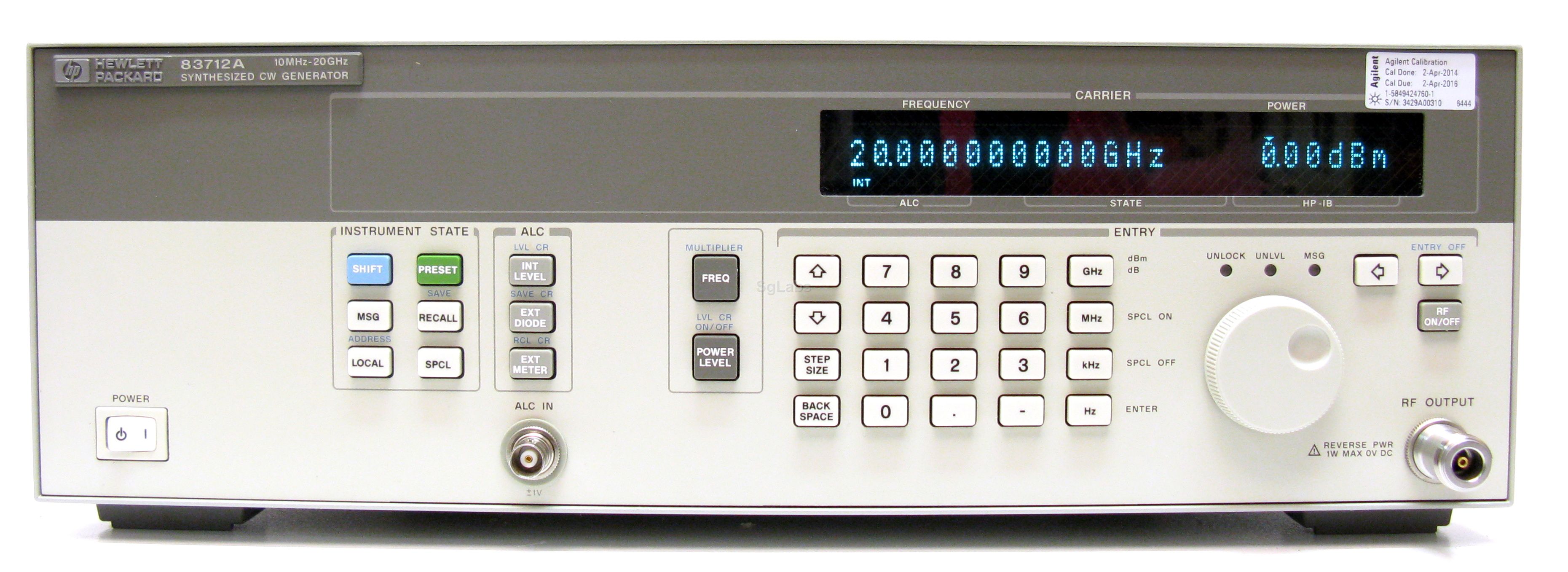

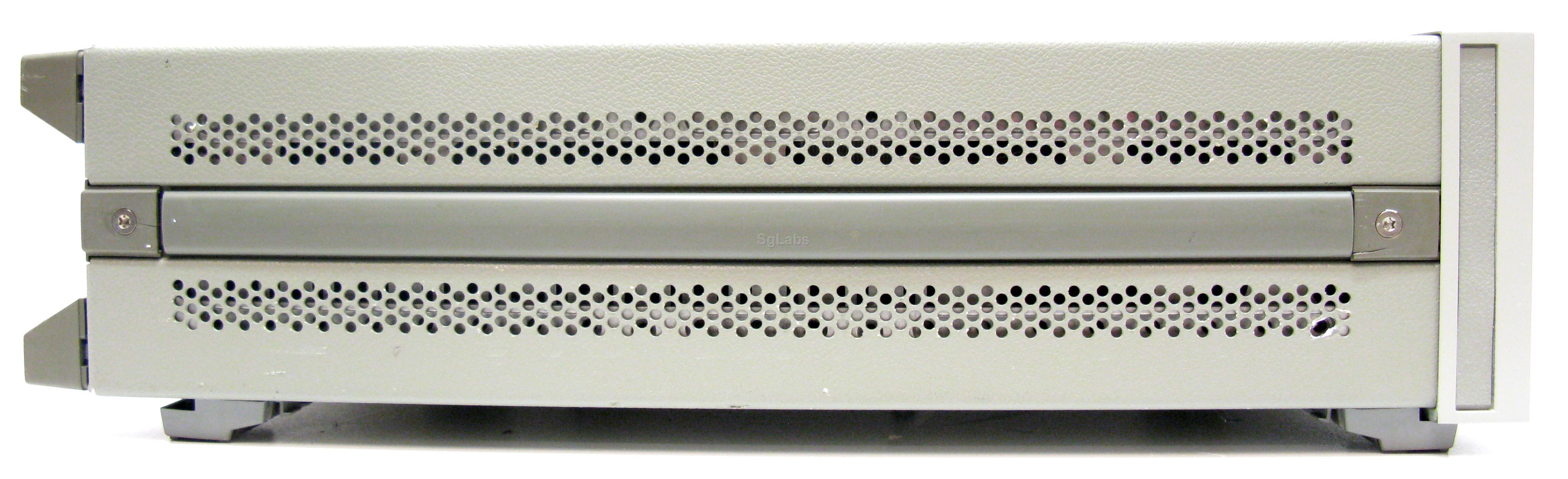

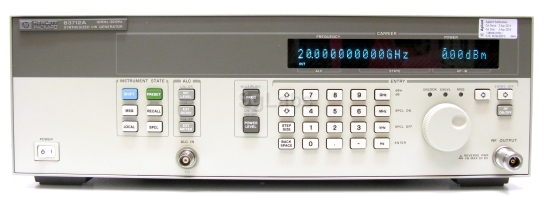

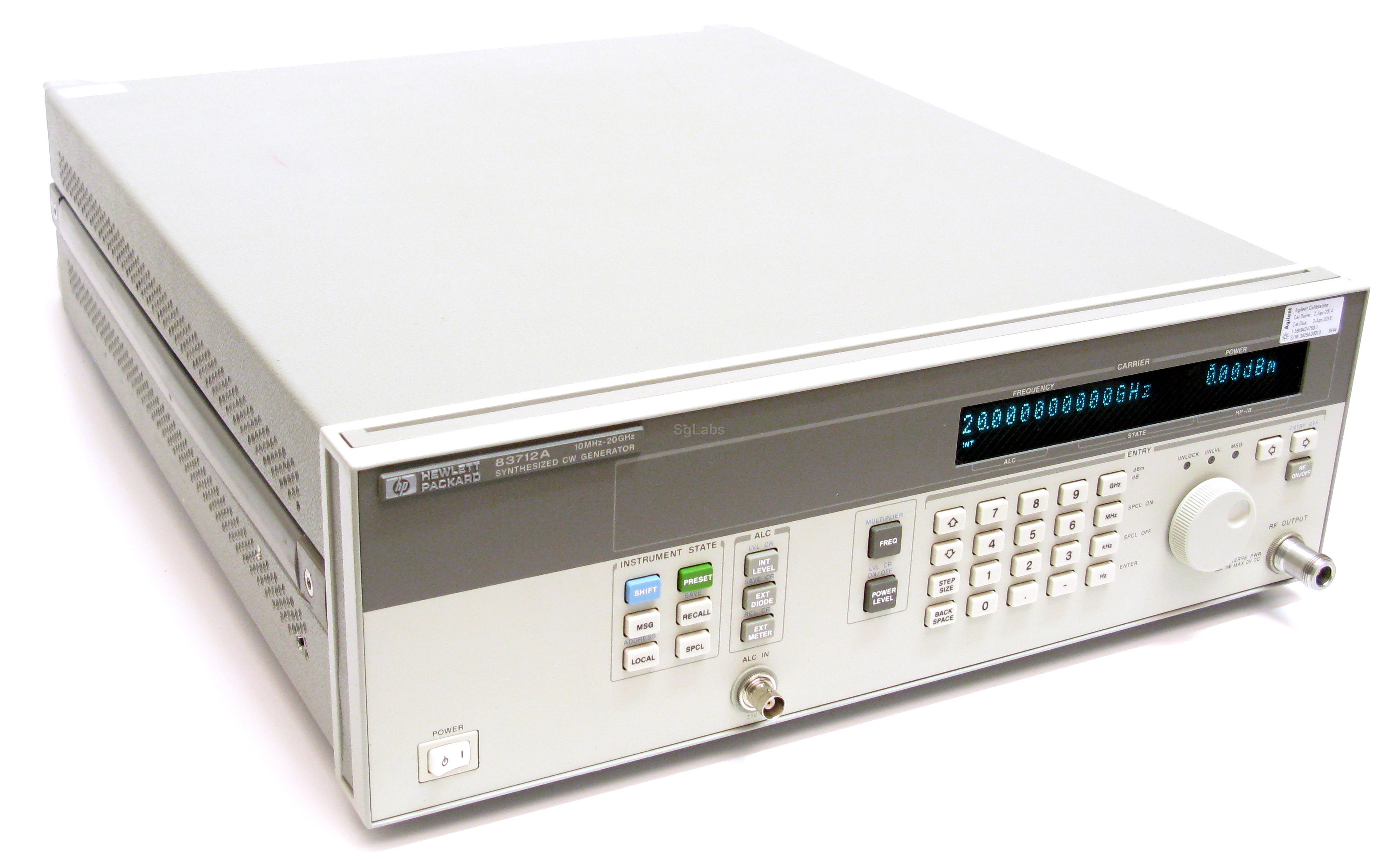

Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.
Descrizione del prodotto
The Keysight Agilent HP 83712A high output power and exceptional signal purity are combined with broad frequency coverage in these low-cost, performance-packed synthesizers. The Keysight Agilent HP 83712A has a frequency range of 10 MHz to 20 GHz.
Caratteristiche

The HP 83712A synthesized CW generator has a carrier frequency range of 10 MHz to 20 GHz.

  • Frequenza
    • Range: 0.01 to 20.0 GHz
    • Resolution: 1 kHz, 1 Hz with option
    • Aging rate:
    • Frequency switching time:
  • Uscita RF
    • Maximum leveled output power: +13 dBm at 0.01 - 1 GHz, +11 dBm at 1-20 GHz (+10 dBm with option)
    • Minimum leveled output power: 0 dBm, -90 dBm with option
    • Display resolution: 0.01 dB
    • Flatness: ±0.5 dB for power ≥-90 dBm, ±0.7 dB for power
    • Level switching time:
    • Output SWR:
  • Harmonics:
  • Non-harmonic spurious:
  • Residual FM: At 1 GHz,
  • AM noise floor: (at 0 dBm and offsets greater than 5 MHz from carrier)
  • Connettori Frontali
    • RF Output: The standard front panel RF Output connector is a Type-N precision connector. When Option 1E9 is installed, this front panel connector is a 3.5 mm precision connector. The nominal source impedance is 50 Ω
    • ALC In: This front panel BNC connector allows the synthesizer to be externally leveled. It is used with external power meter leveling or external diode leveling. The leveling signal at this input must be in the ±1 V range. The nominal input impdeance is 150 Ω. The damage level is ≥+12 V or≤-12 V

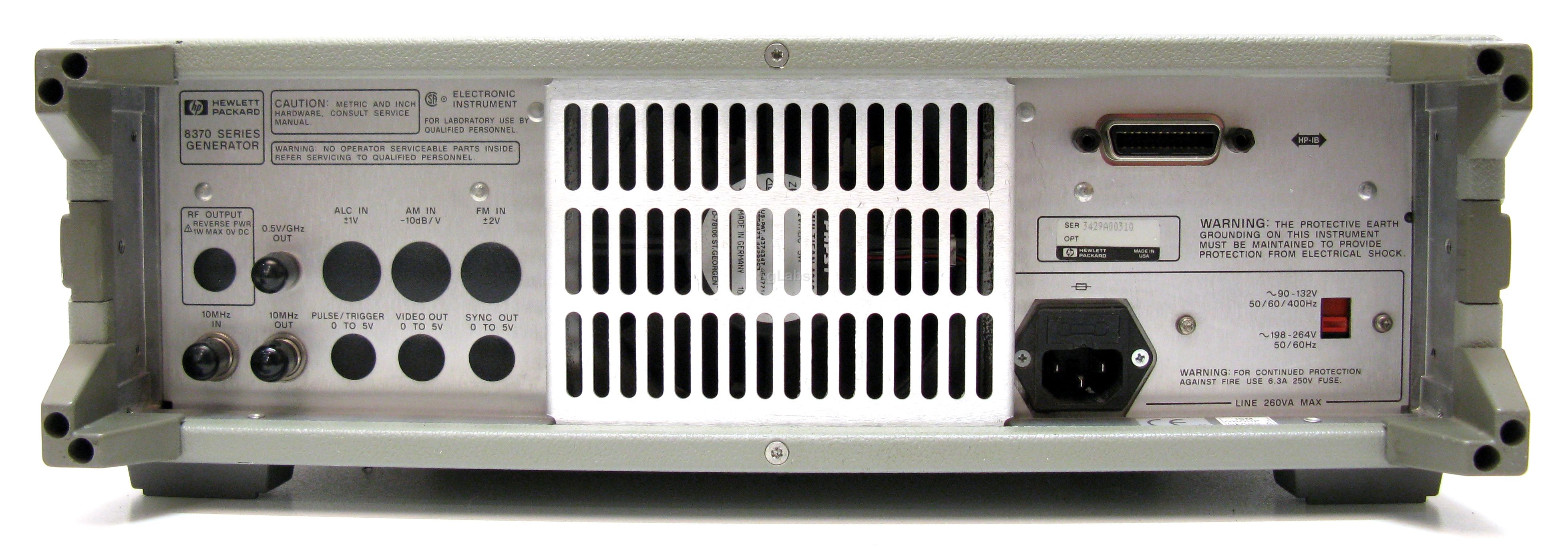

  • Connettori posteriori
    • 10 MHz Input: Accepts a 10 MHz ±100 Hz, 0 to +10 dBm, external reference signal for operation from an external high stability timebase. Nominal input impedance is 50 Ω
    • 10 MHz Output: Outputs the 10 MHz reference signal, nominally at +3 dBm, for use as an external reference signal. Nominal source impedance is 50 Ω
    • 0.5 V/GHz Output: Supplies a voltage proportional to output frequency for use with mm-wave frequency multipliers, including the 83550 Series Millimeter Wave Source Modules
  • Opzioni (contattateci per l'effettiva disponibilità)
    • 1E1: Output Step Attenuator
    • 1E2: Internal AM and FM/ΦM sources
    • 1E5: High stability timebase
    • 1E8: 1 Hz frequency resolution
    • 1E9: 3.5 mm RF output connector (male APC-3.5)
  • Frequenza massima: 20 GHz
  • Frequenza minima: 10 MHz
  • Potenza uscita massima: +13 dBm at 0.01 - 1 GHz, +11 dBm at 1-20 GHz (+10 dBm with option 1E1)
  • Potenza uscita minima: 0 dBm, -90 dBm with option 1E1
