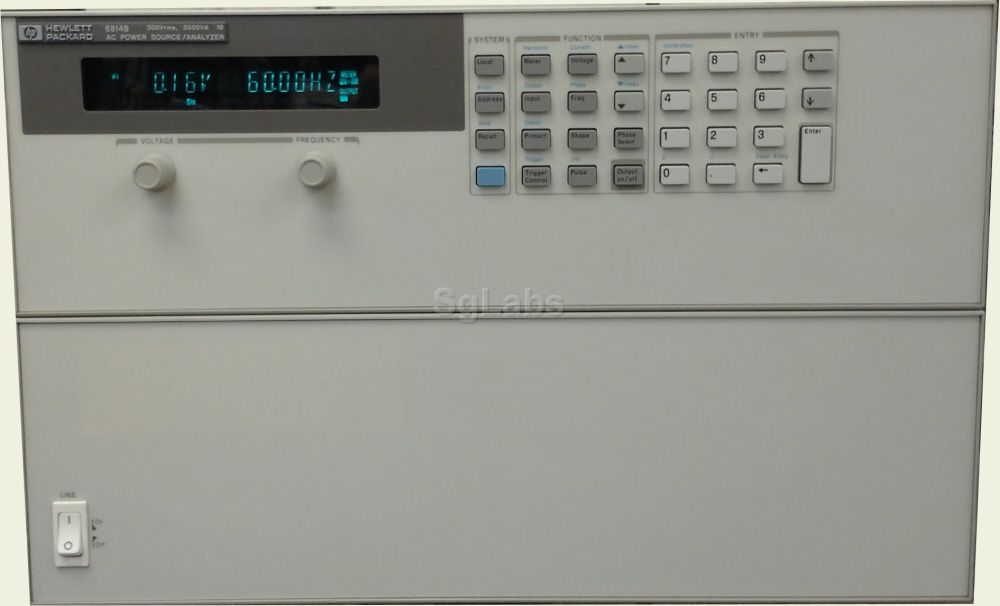

HP Agilent Keysight, 6843A

Sei in: ALIMENTATORI AC » Monofase

Le foto sono di repertorio e potrebbero non corrispondere all'oggetto realmente venduto, come pure le opzioni installate. Su richiesta verranno fornite foto in alta risoluzione e opzioni reali dell'oggetto in vendita.

Descrizione del prodotto

The Agilent 6843A Regulatory Test Solution is specifically designed for testing products for compliance to the IEC low-frequency emissions and immunity.

One-box solution tests products for compliance to existing and standards for: IEC 555-2, IEC 555-3, EN 60555-2, EN 60555-3, IEC 1000-3-2, IEC 10003-3, EN 61000-3-2, and EN 61000-3-3
Full 1 phase coverage at 230 Vrms and 16 Arms
Measurement and generation implementation compliant with IEC 868, IEC 1000-7-4, and IEC 725
Compliant-level current harmonic measurements for the fundamental through the 40th harmonic
Includes Windows® graphical user interface for Harmonic and Flicker Emissions Tests
Real-time and off-line test data review and analysis
Test report generation
Advanced diagnostic capabilities for failure analysis
Free Graphical User Interface to operate as a standard ac source in normal mode

This unit includes option 400 which requires input power of 360 to 440 Vac, 3-phase, 47 to 63 Hz input. It does not operate using 480V 3P input which is more common in the U.S.
