The RF installation tester FIT 400 measures the power output by the transmitters and the power reflected by the antenna installation. The indication can be in either Watt or dBm. It is also possible to indicate VSWR instead of reflected power.
The FIT 400 includes a digital voltmeter with a conversion time that is so short that even dips in the supply voltage during the transmitted pulses can be detected. The maximum and minimum values that occur during the measurement are saved.

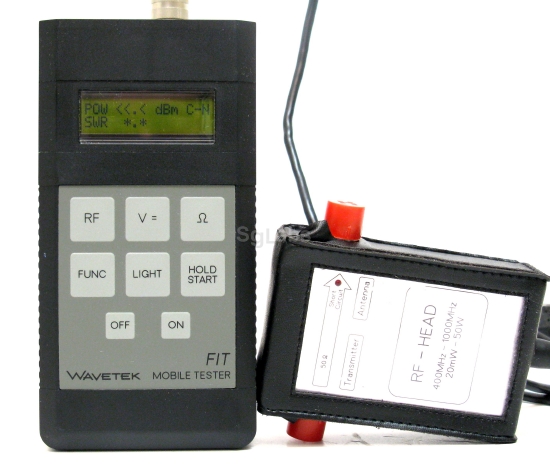

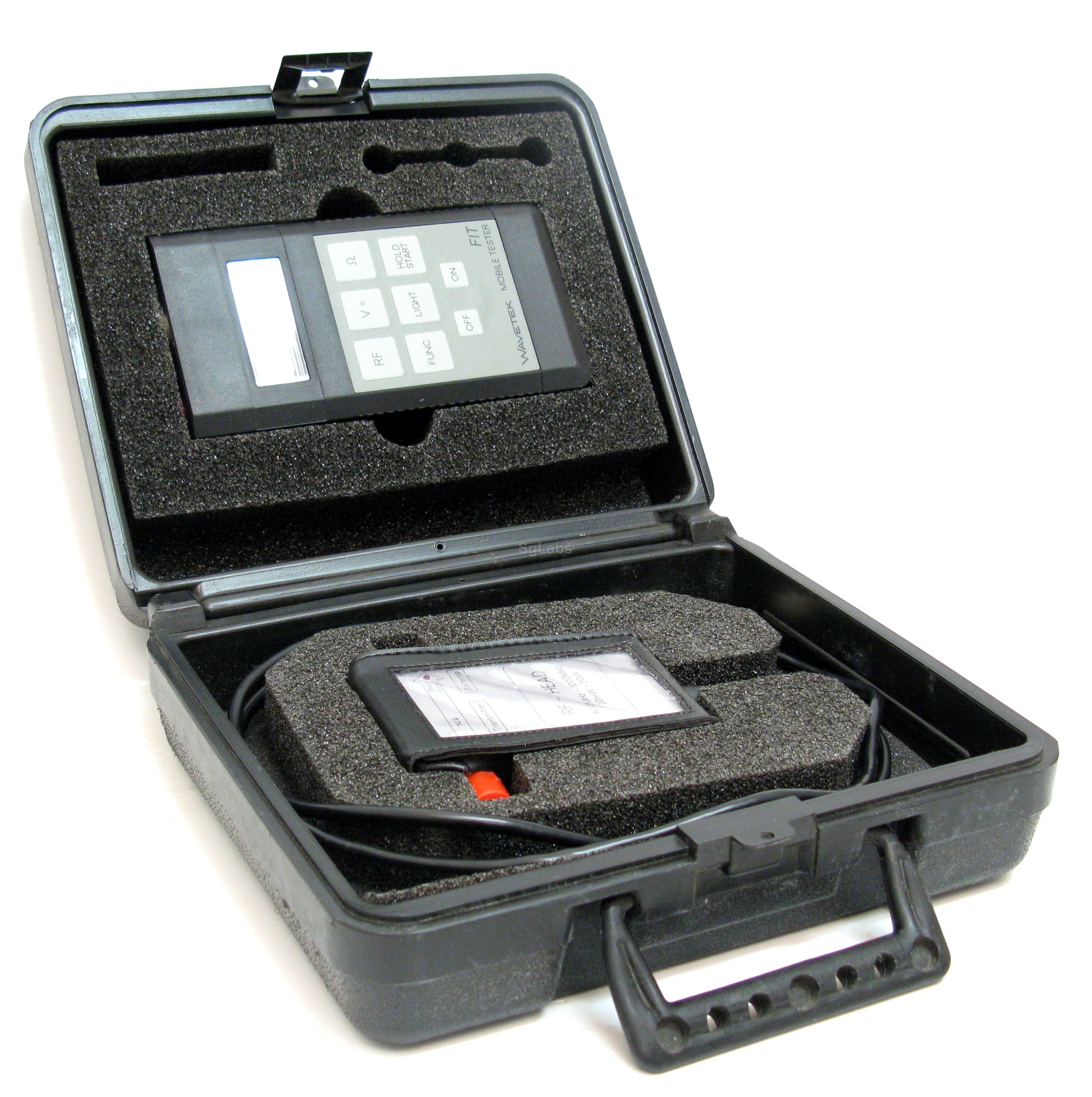

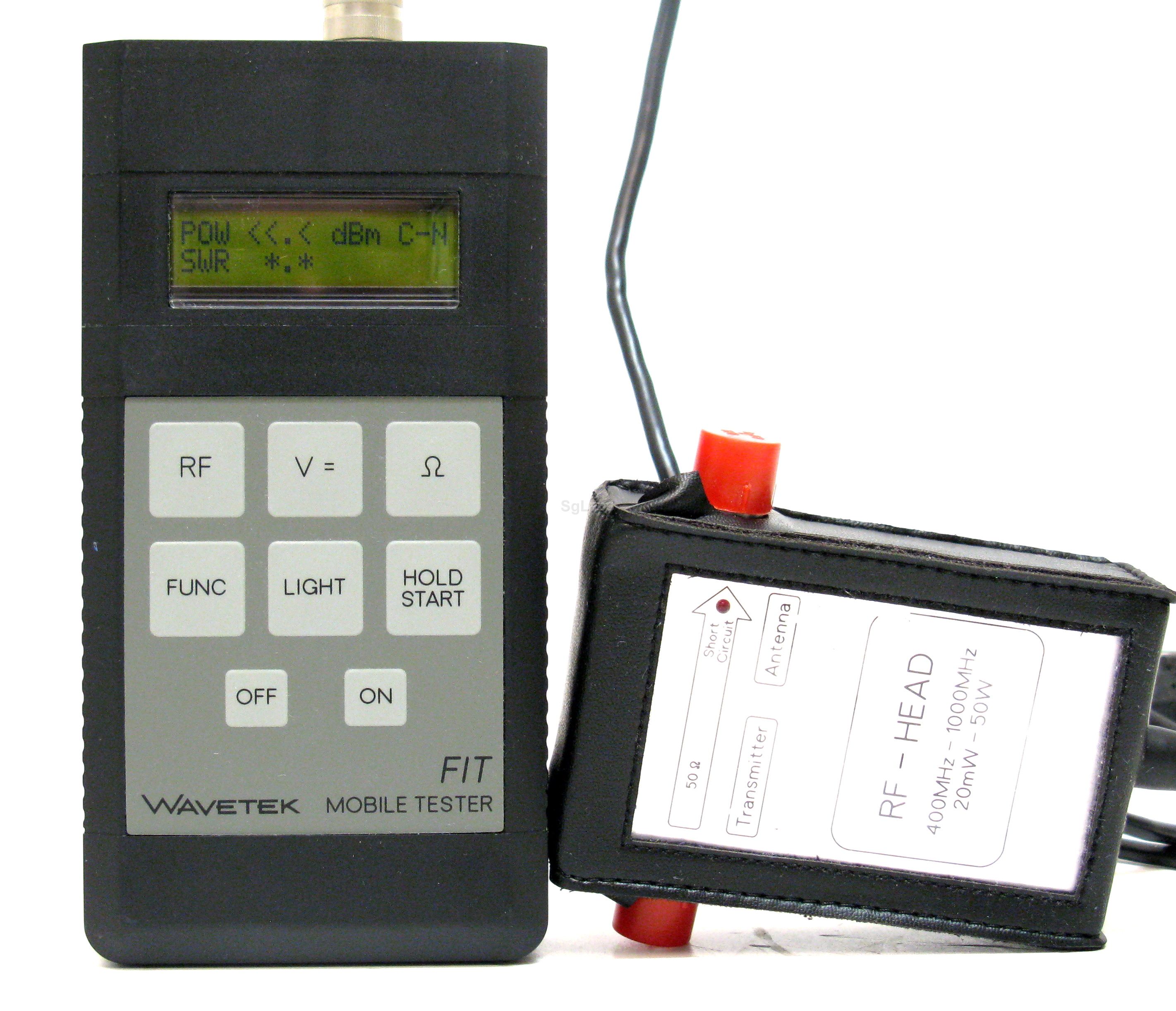

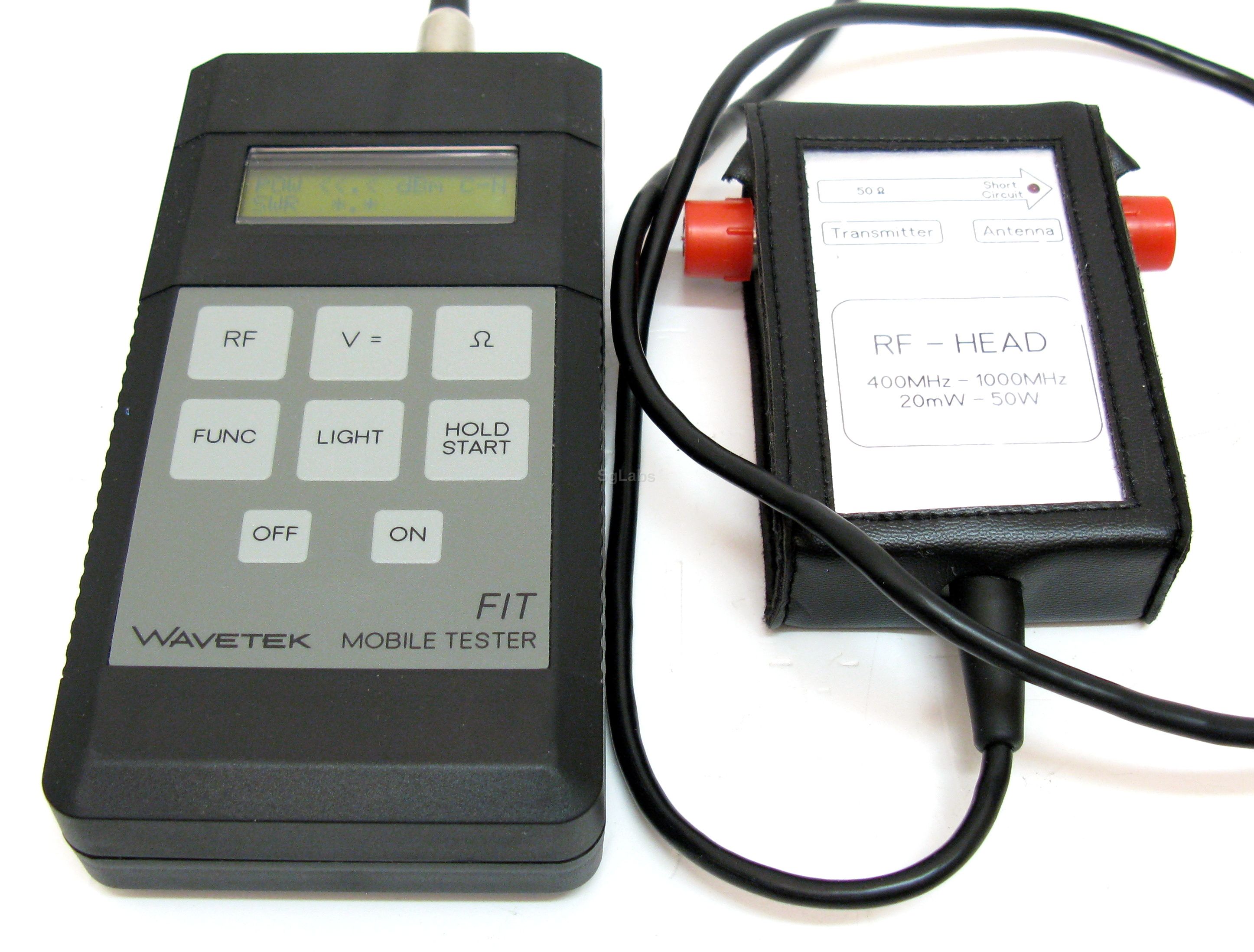

Wavetek (Schomandl),FIT-400
You are here: Power Meter / Sensor (RF) » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features

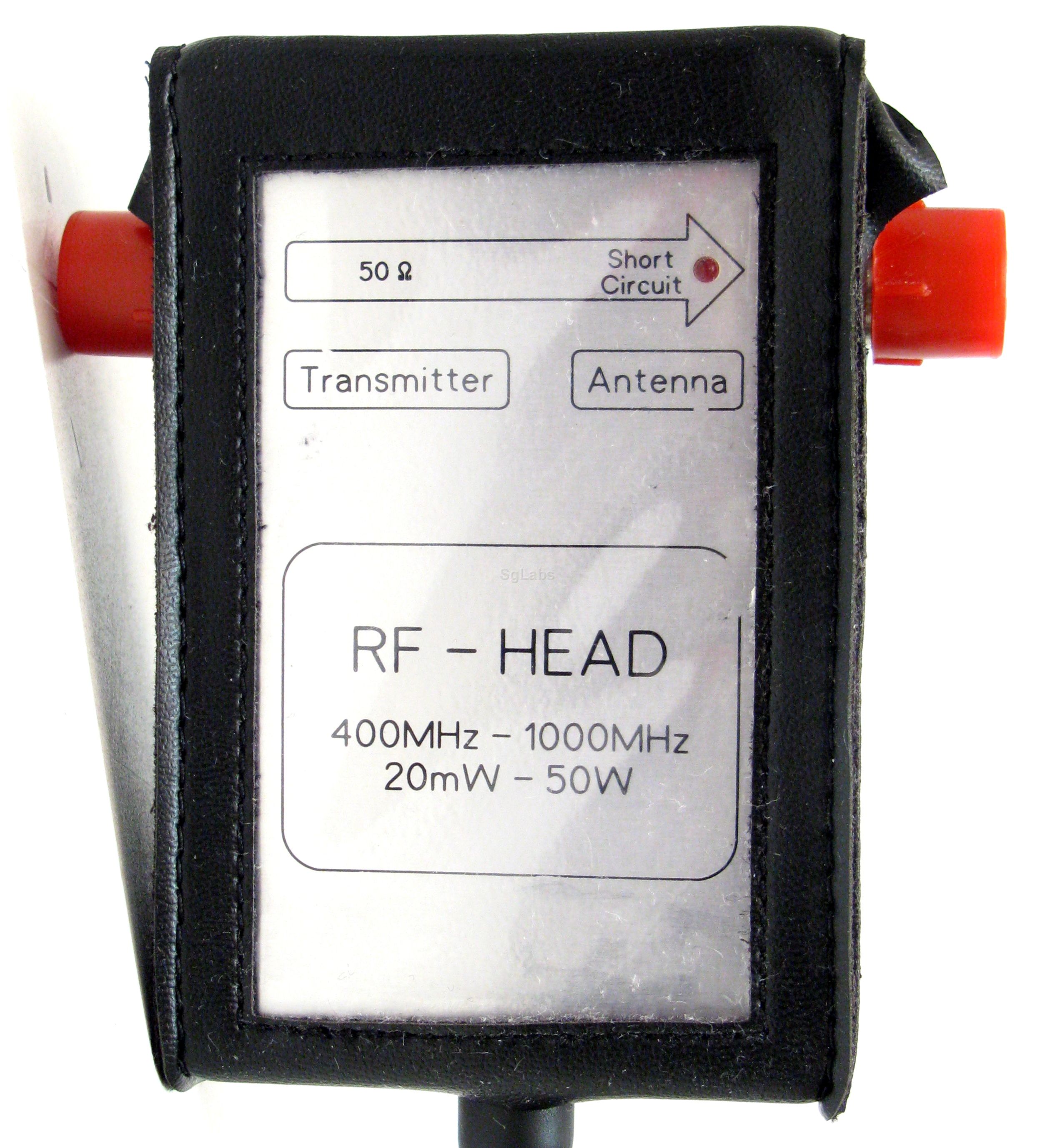

- Frequency Range 400 MHz … 1000 MHz
- Forward and reverse power
- Accurate VSWR
- Auto detect of pulse transmission
- Storage of min/max values
- Ohmmeter for fault finding
- Fast converting DC voltmeter
- Easy to use and to read
- Max. Frequency: 1000 MHz
- Min. Frequency: 400 MHz
- Max. power: 50 W
- Min. Power: 20 mW
- Measure: VSWR
Price
€ 300,00
