Tektronix, TDS544A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

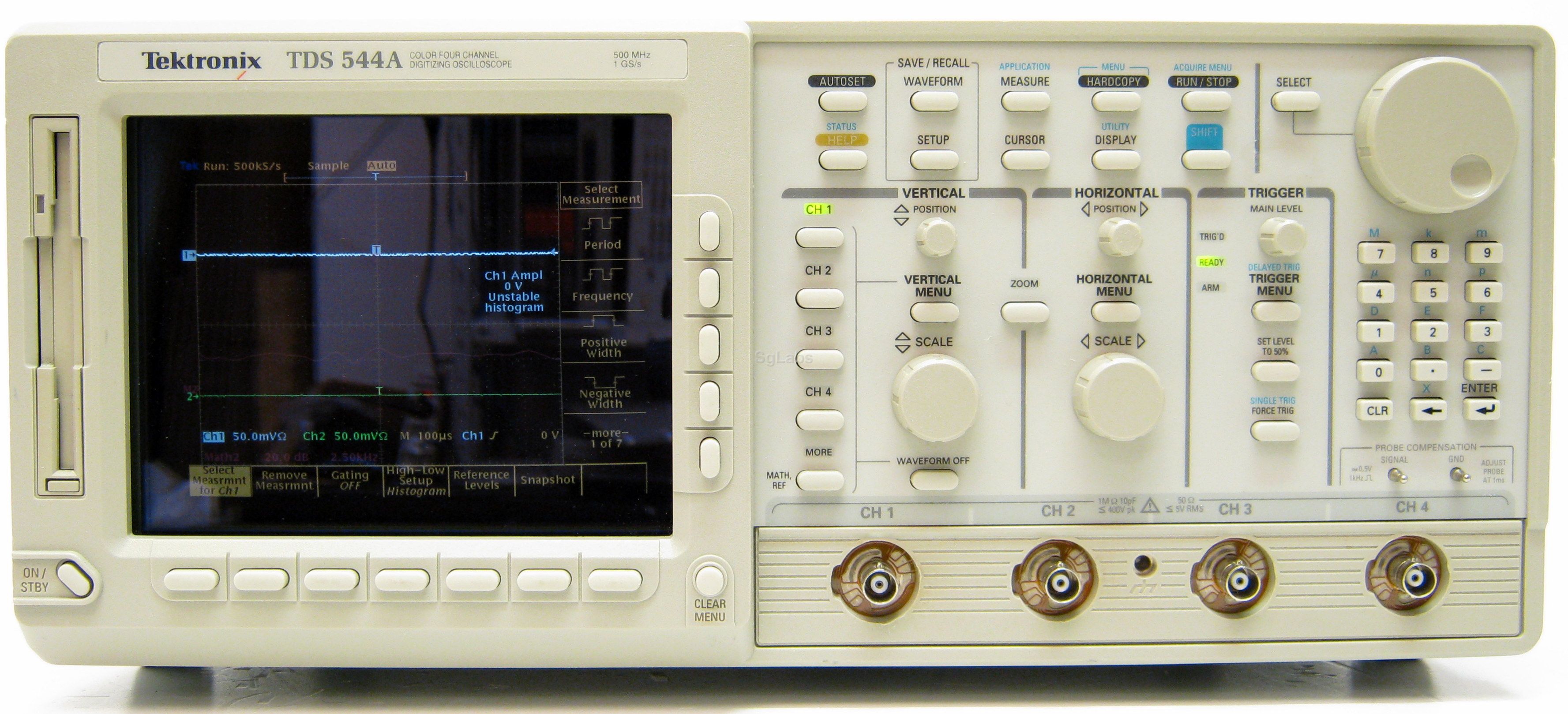

The Tektronix TDS544A Digitizing Oscilloscope has a 500MHz bandwidth and features a color CRT, sample rates to 1 GSa/s, 25 automatic measurements, 4 input channels, a 3.5" floppy drive, sensitivity of 1 mV to 10 V per division, time base range of 500 ps to 10 s/div, waveform Pass/Fail testing, and record lengths of up to 50,000 points.
Features
  • Bandwidth: 500 MHz
  • Channels: 4
  • Sample Rate: 1Gs/s
  • Display: Color


Options
  • 05 - Video Trigger
  • 13 - RS-232/CENTRONICS HARDCOPY INTERFACE. standard on TDS524A-TDS544A.
  • 1F - FILE SYSTEM, standard on TDS524A-TDS544A.
  • 1K - K420 Oscilloscope Cart without power strip
  • 1M - 50k Memory Length
  • 1P - HC100 Four Color Pen Plotter
  • 1Q - TDS Tutorial with Quickstart III, U.S. Version
  • 1R - Rackmount
  • 23 - Add two each P6205 Active Probes
  • 25 - Add P6563A, four SMD probes
  • 2F - ADVANCED DSP MATH
  • 2P - Textronix Phaser 200e Thermal Wax Transfer Color Printer
  • 2Q - TDS Tutorial with Quickstart III, European Version
  • 4D - Delete four each standard oscilloscope probes
  • 4P - HC220 Canon BJ-10ex Bubble Jet Printer
  • 9C - NIST and MIL-STD-45662A Calibration Certificate
  • A1 - Universal European Line power, 220 V 50 Hz
  • A2 - UK Line power, 240V 50 Hz
  • A3 - Australian Line power, 240 V 50 Hz
  • A4 - North American Line power, 240 V 60 Hz
  • A5 - Swiss Line Power, 220 V 50 Hz
  • B1 - Service Manual
  • Channels: 4
  • Display: CRT
  • BandWidth: 500 MHz
  • Sampling: 1 GS/s
