Tektronix, P2220

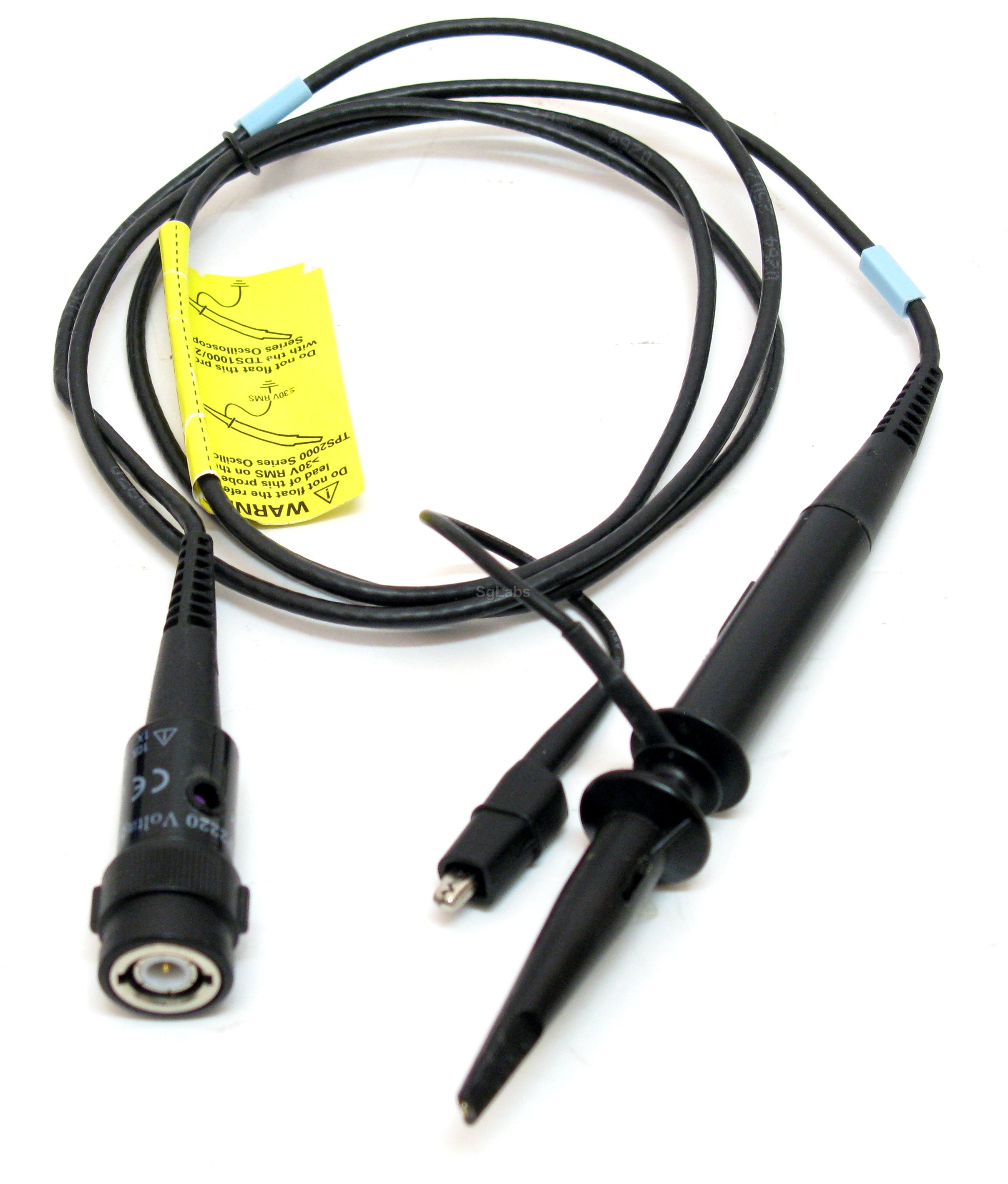

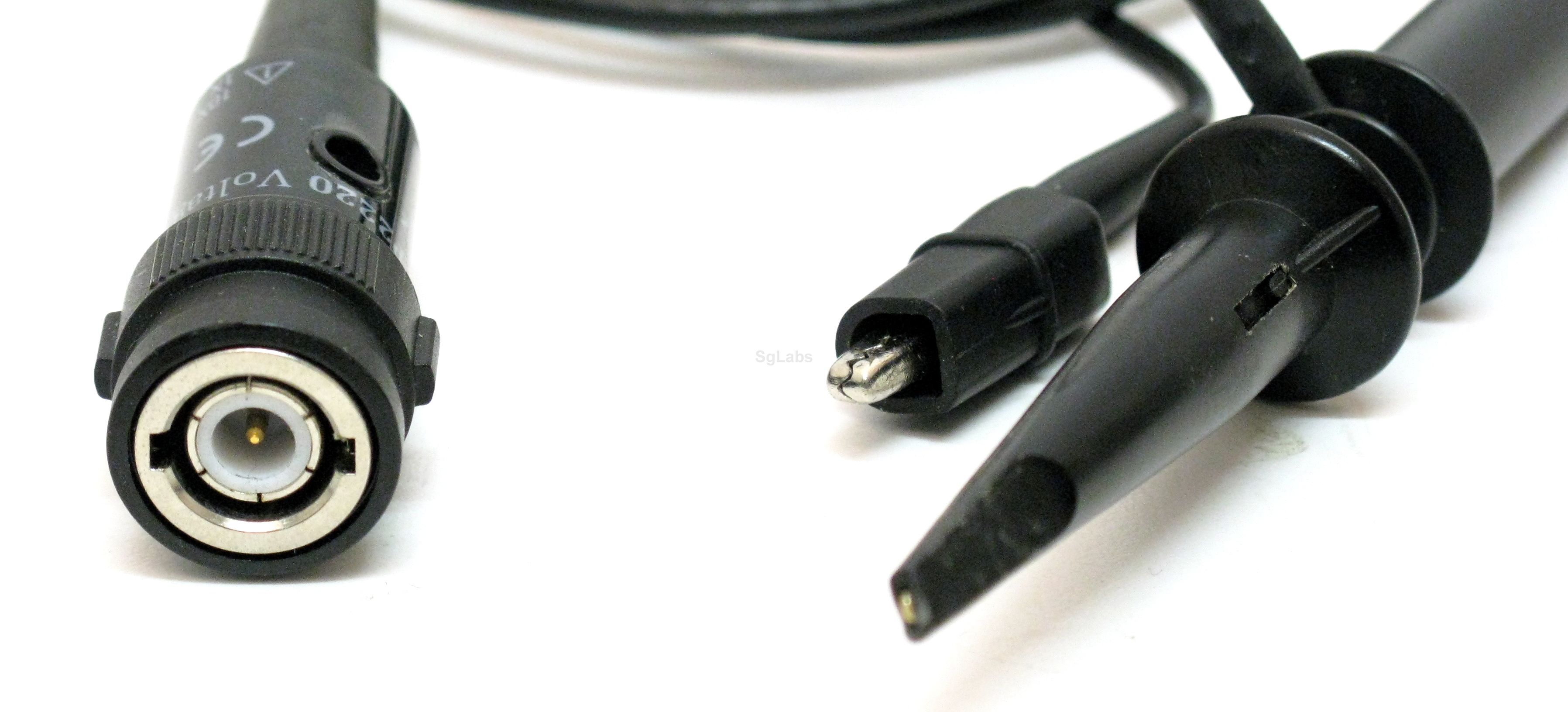

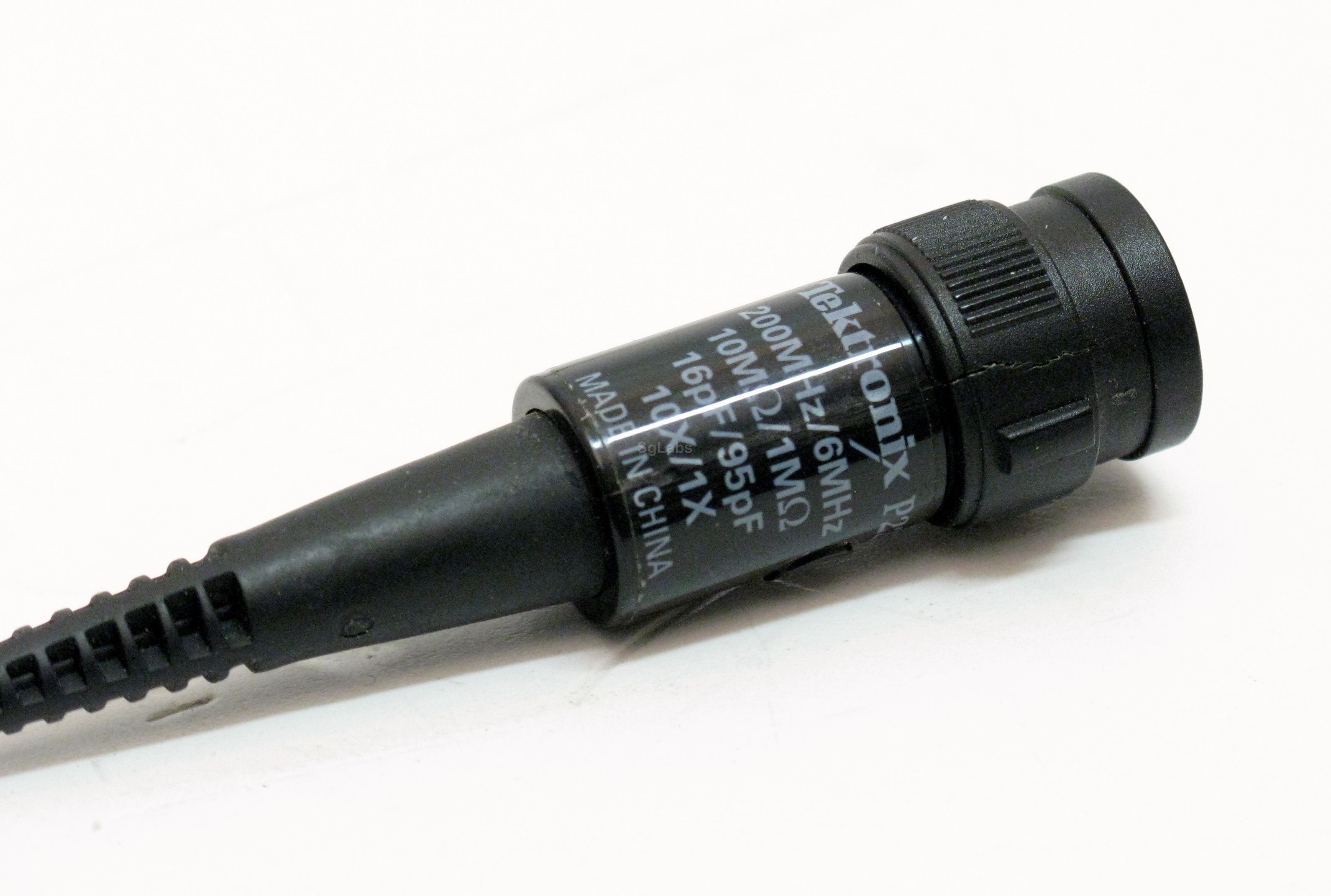

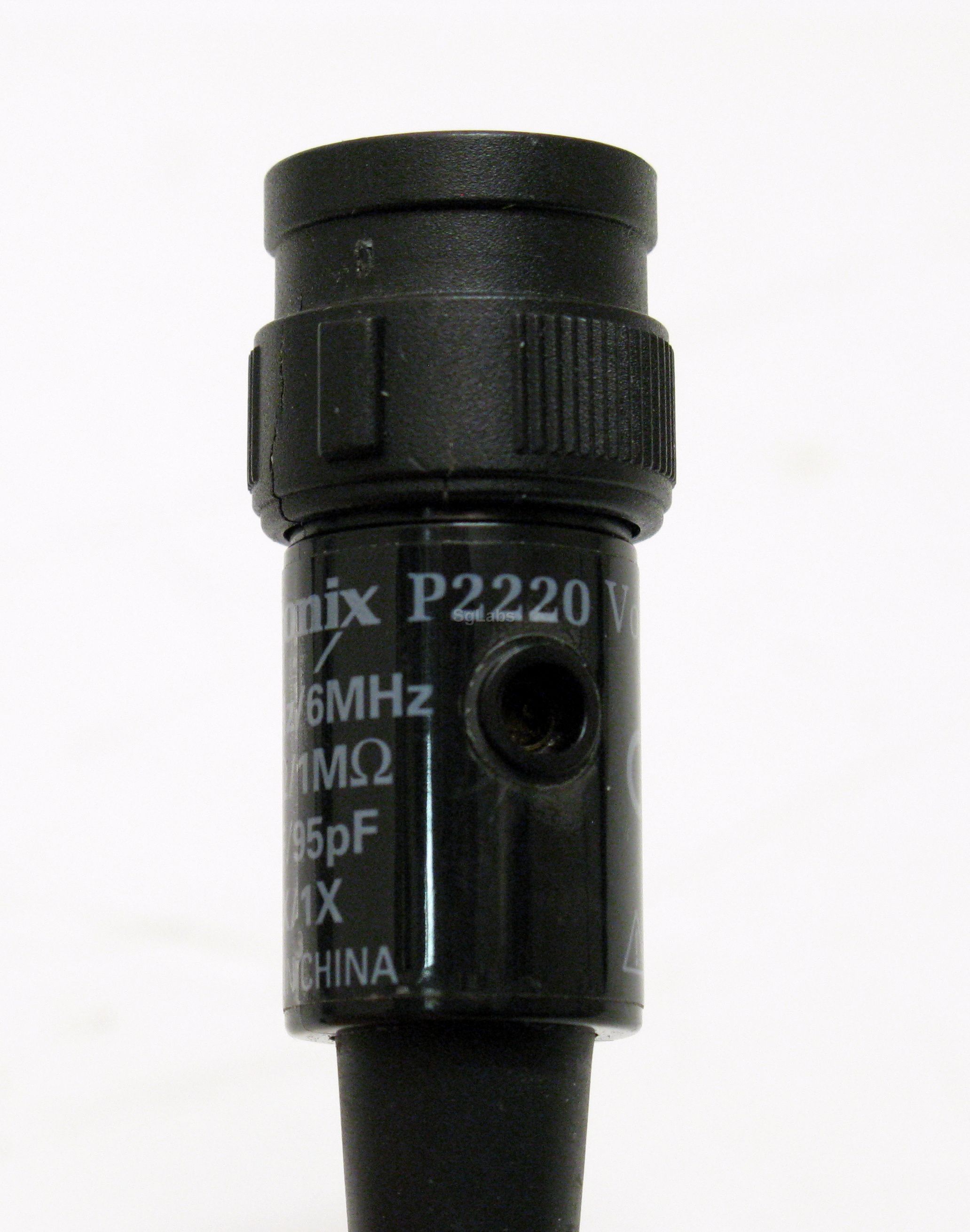

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The P2220, 200 MHz passive voltage probes permit selection of 1x or 10x attenuation, using a switch located on the probe head.
The P2220 probe is compatible with TDS200, TDS1000, TDS1000B,TDS2000, TDS2000B, and TPS2000 Series oscilloscopes. The  P2220 probe also provides floating measurement capability up to 30 VRMS with TPS2000 Series oscilloscopes only. (Note: Do not float with TDS2000, TDS2000B, TDS1000, TDS1000B, or TDS200 Series oscilloscopes.)
  • Bandwidth: DC to 200 MHz (10x); DC to 6 MHz (1x)
  • Probe length 1.5 m
  • Attentuation ratio 10:1/1:1
  • Compensation range:
  • 10x: 15 to 25 pF
  • 1x: All oscilloscopes with 1 MΩ input

  • Input capacitance: 17.0 pF (10x); 110 pF (1x)
  • Input resistance: 10 MΩ (10x); 1 MΩ (1x)
  • Max. Frequency: 200 MHz (10x)
  • Min. Frequency: DC
