Tektronix, 2232

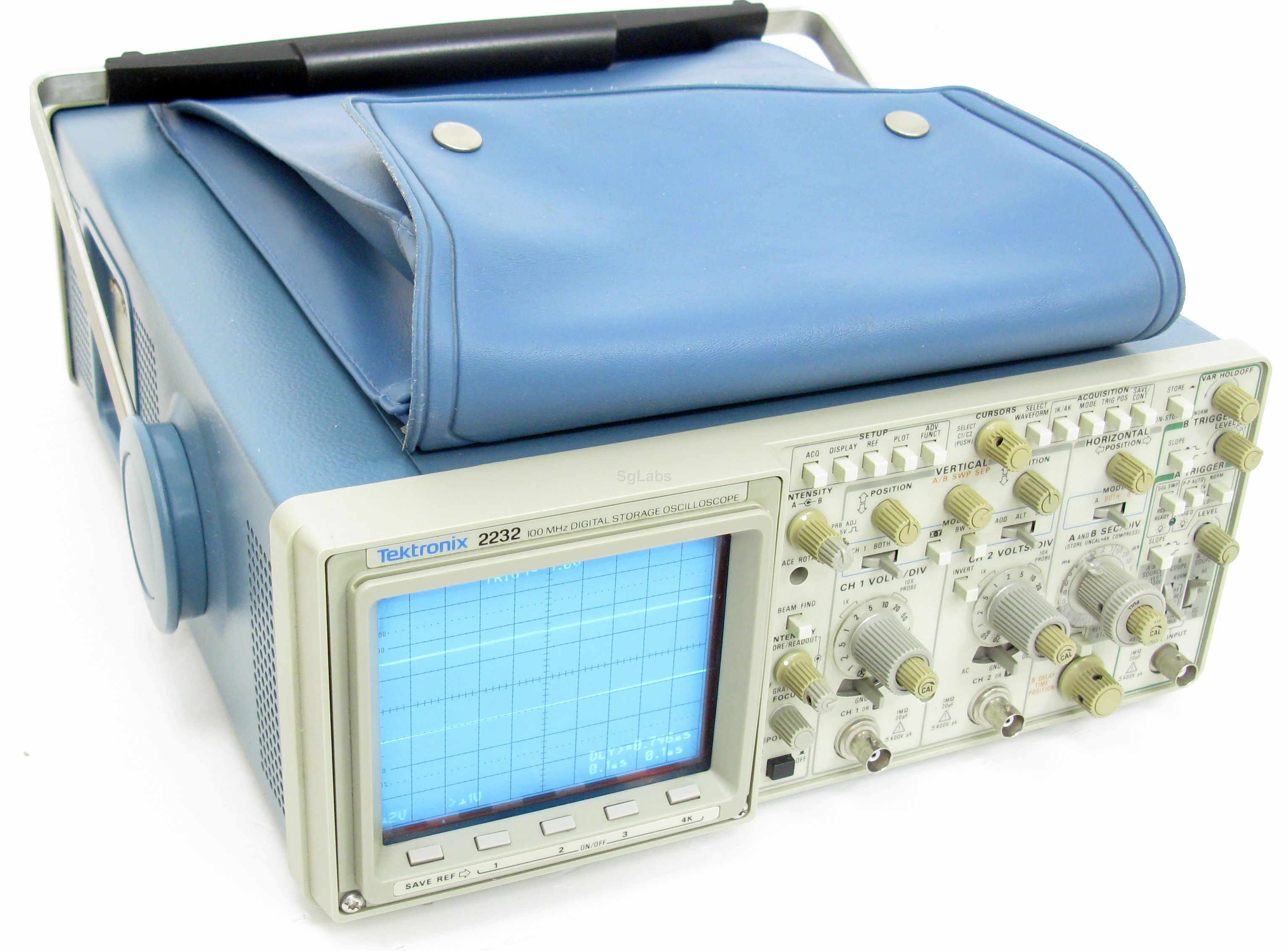

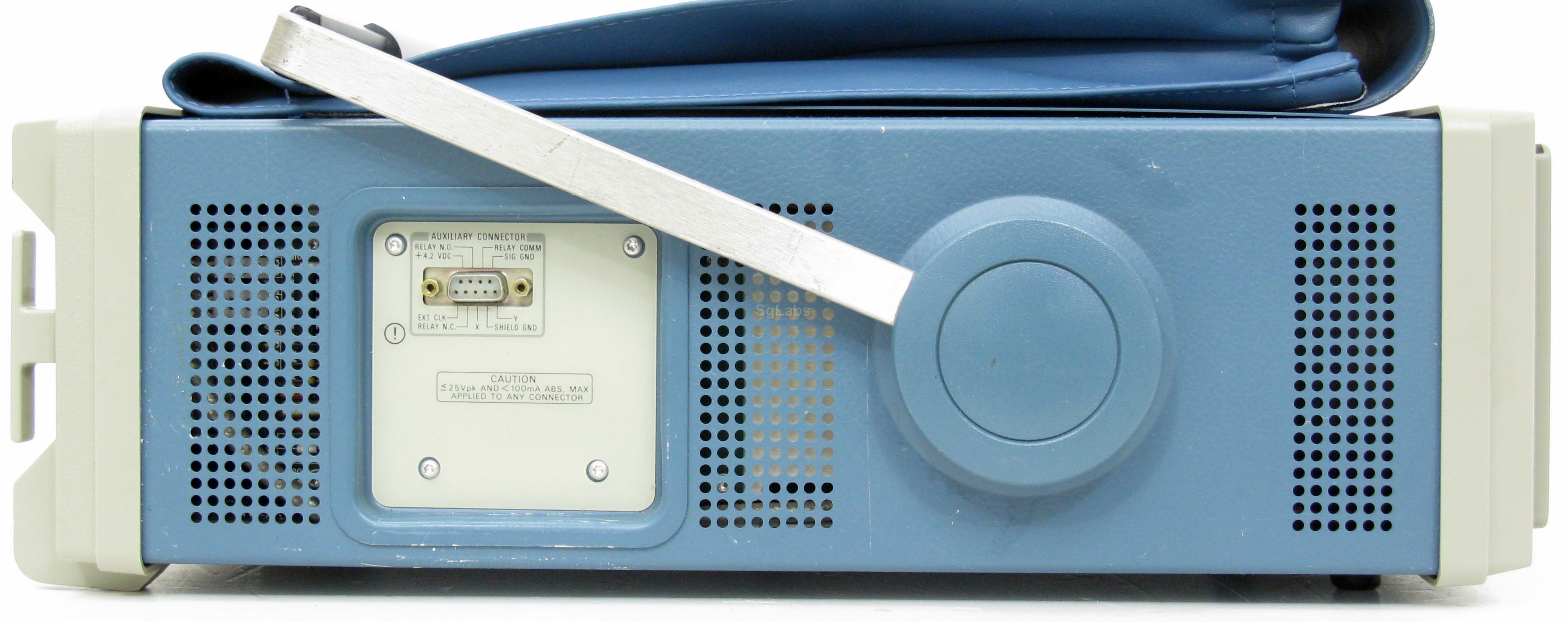

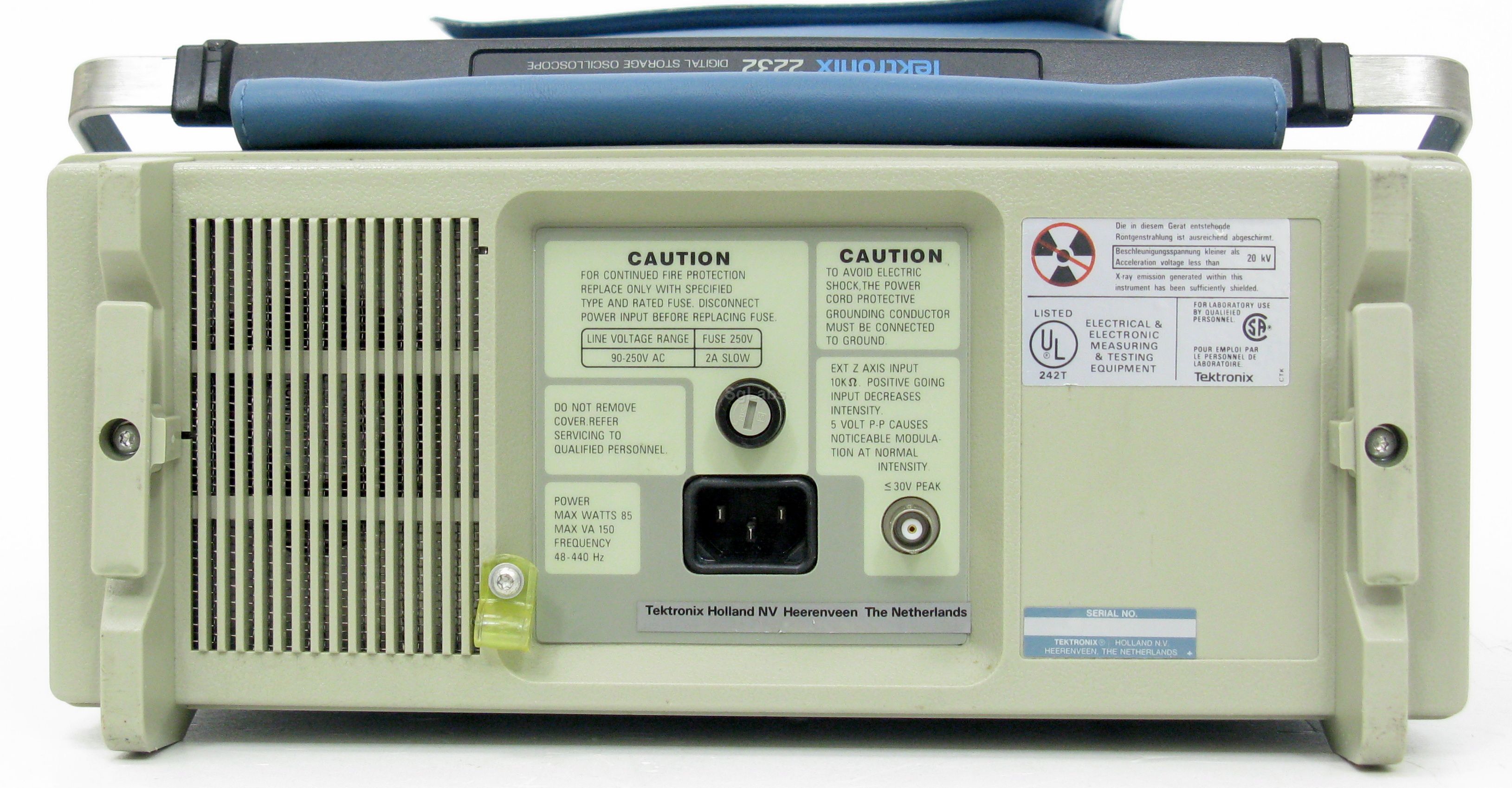

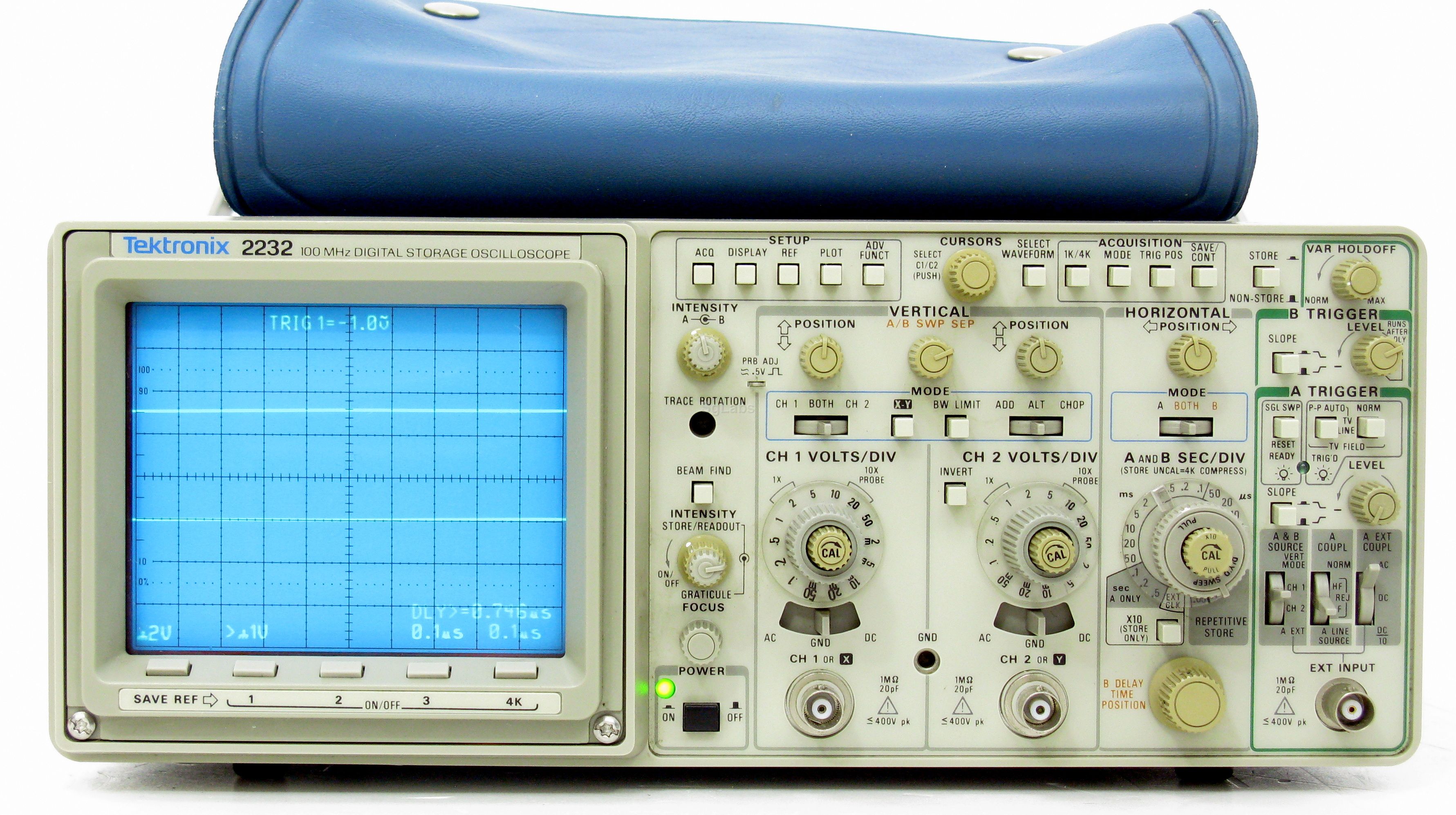

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Tektronix 2232 / 2221A 100 MHz, 100 MS/s Digital Storage Plus Analog Oscilloscopes deliver high-end performance at the lowest price in their class. These 100 MHz oscilloscopes have advanced capabilities not found in compatible scopes. For single-shot and low repetition-rate signals, they offer simultaneous 100 MS/s sampling on each channel, 10 ns glitch capture, 1 K and 4K record length, and battery-backed memory. When your signal is best viewed in real-time, a single push of a button makes each operate as familiar analog oscilloscope. This dual performance capabilities assures you the right solution is always at your fingertips.

The 2221A is an improved version of the the popular 2221, offering the same digitizing performace as the 2232 in a single time base oscilloscope. The fast sample rate and long 4 K record length provide plenty of signal caputuring capability; its horizontal and vertical expansion of stopped waveforms facilitate the signal analysis.
  • 100 MHz Analog and Digital Storage Bandwidth
  • 100 MS/s Per Channel Sampling Rate
  • Selectable 1K or 4K Record Length
  • 8-Bit Vertical Resolution
  • Time base: double
  • Channels: 2
  • Display: CRT
  • BandWidth: 100 MHz
  • Sampling: 100 MS/s
