The Symmetricom 6502B Distribution Amplifier provides a means to divide and deliver a 100 kHz to 10 MHz sine wave signal to 10 locations with high channel-to-channel isolation and low added phase noise. The unit is housed in a convenient, 1U-high, rack mounted case, providing greater than 100 dB of isolation between outputs.
In a typical application, the 6502B takes the signal output from a cesium frequency standard and provides 10 additional buffered outputs per shelf per shelf to other equipment. This type of scenario occurs frequently in calibration laboratories, engineering facilities and production test operations.

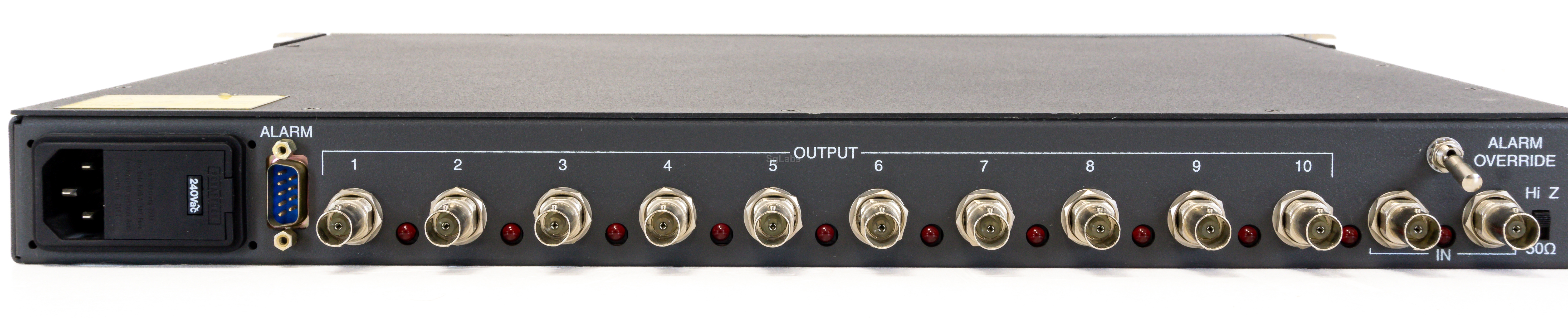

The 6052B Distribution Amplifier is housed in a 10.00 X 19.00 X 1.75Tone case with BNC RF input and output mating connectors on the rear panel. The entire assembly weighs less than 5 lb.
Symmetricom 6502B 10 MHz amplifier distribution 10 outputs
You are here: Calibrator » Reference standard

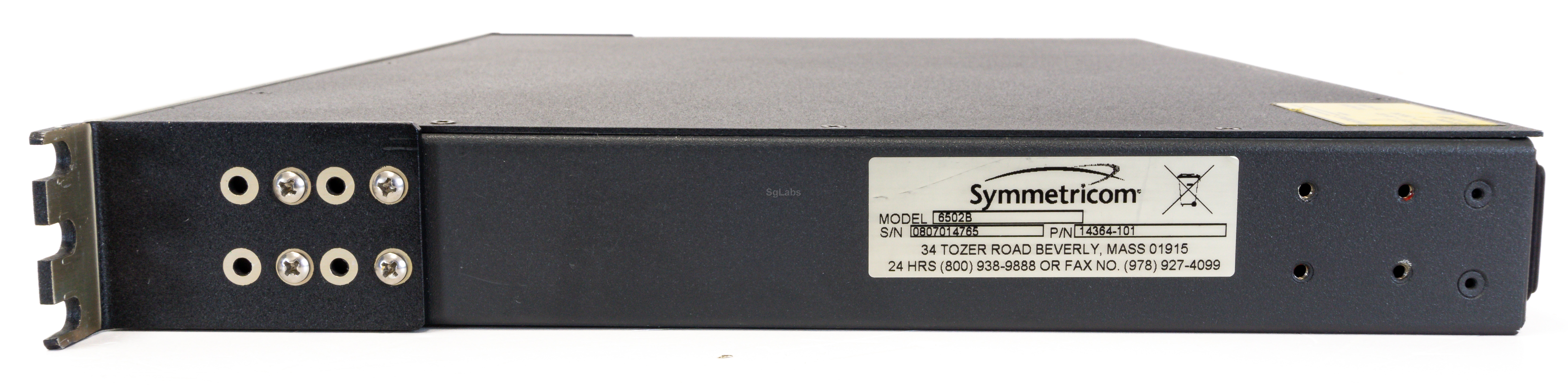

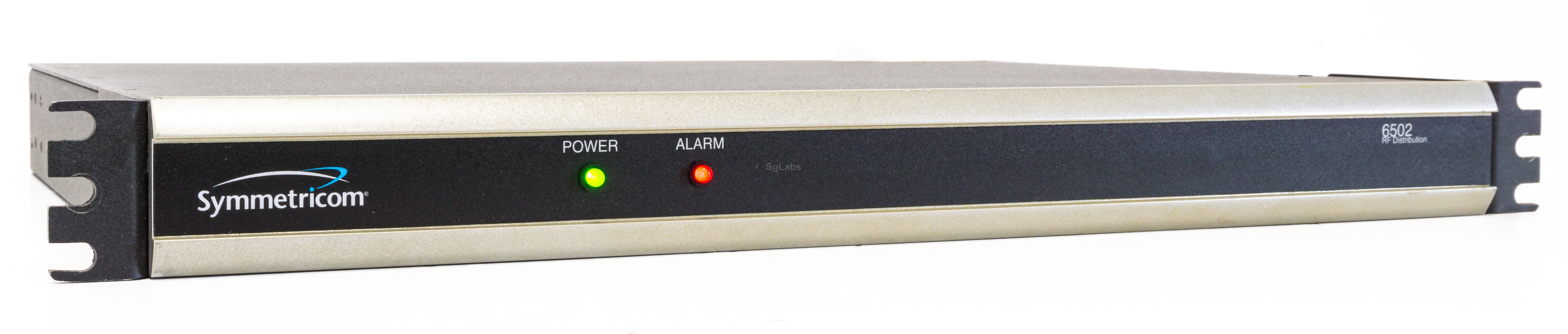

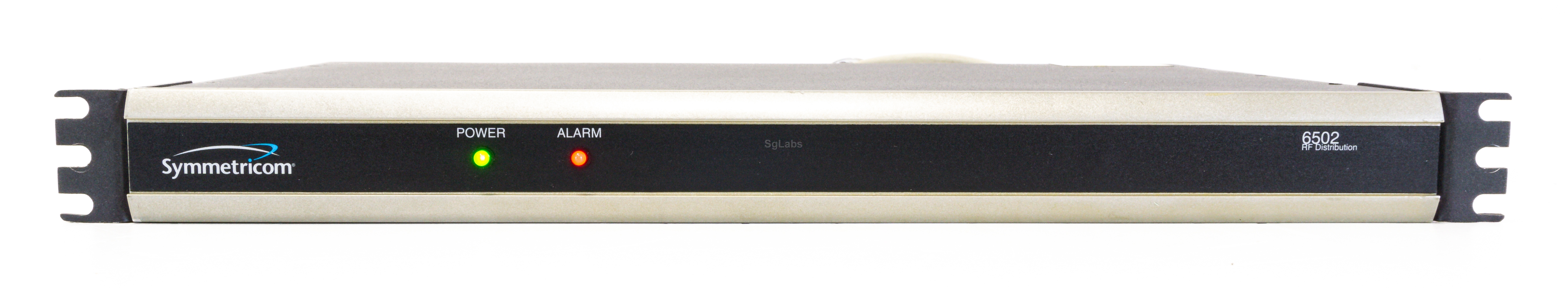

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Low phase noise
- High channel isolation
- 10-channel output distribution
- Daisy chain for more than 100 outputs
- Frequency: 0.1 to 10 MHz
- Level: 1 Vrms (nominal)
- Gain: 1 (nominal)
- Harmonic distortion:
- Non-harmonic signals:
- Load impedance: 50Ω
- Isolation: >100 dB
- Connectors: BNC
Price
€ 450,00
