SGLabs, HP6351R

You are here: Probe » Oscilloscope

SGLabs, HP6351R

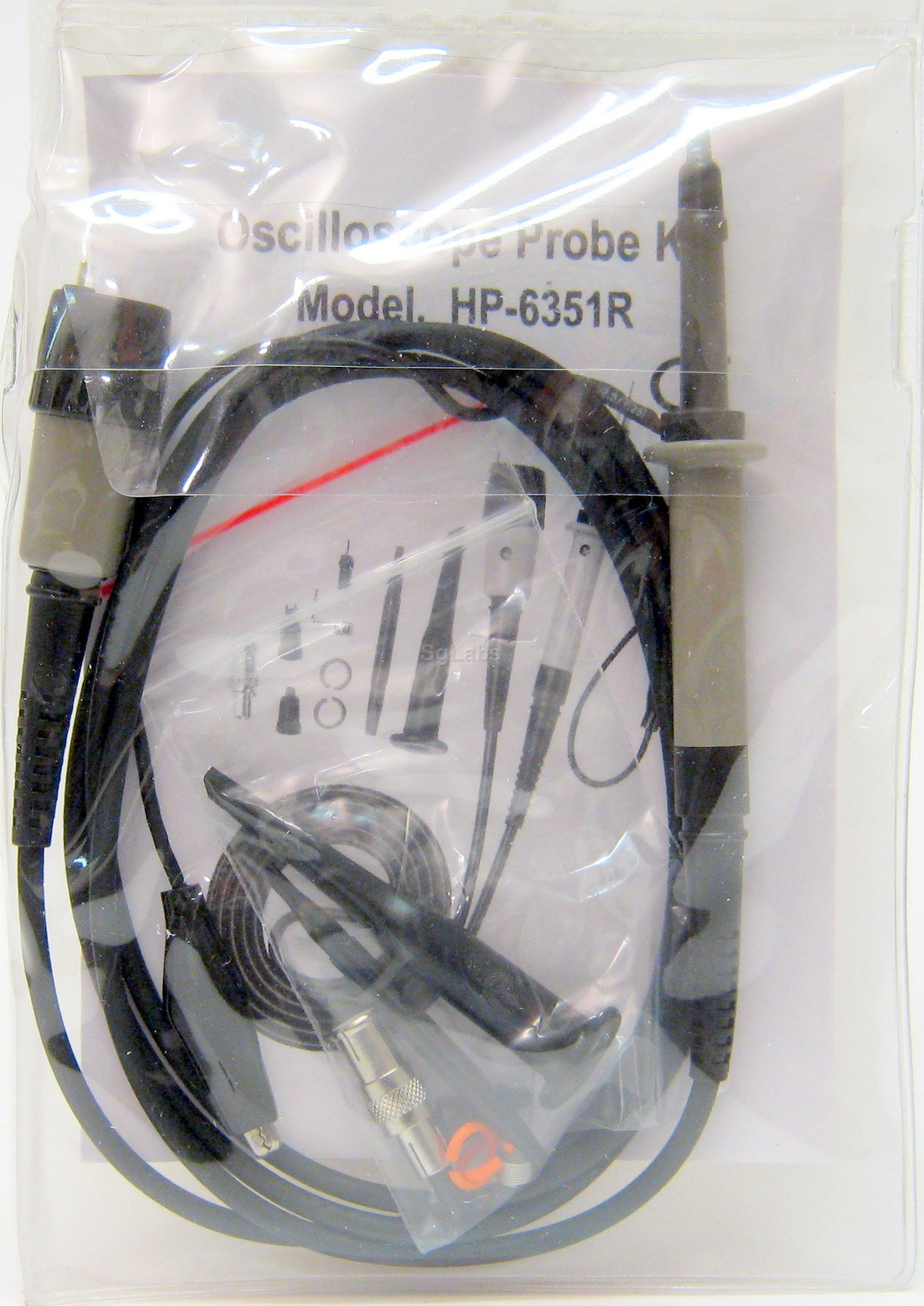

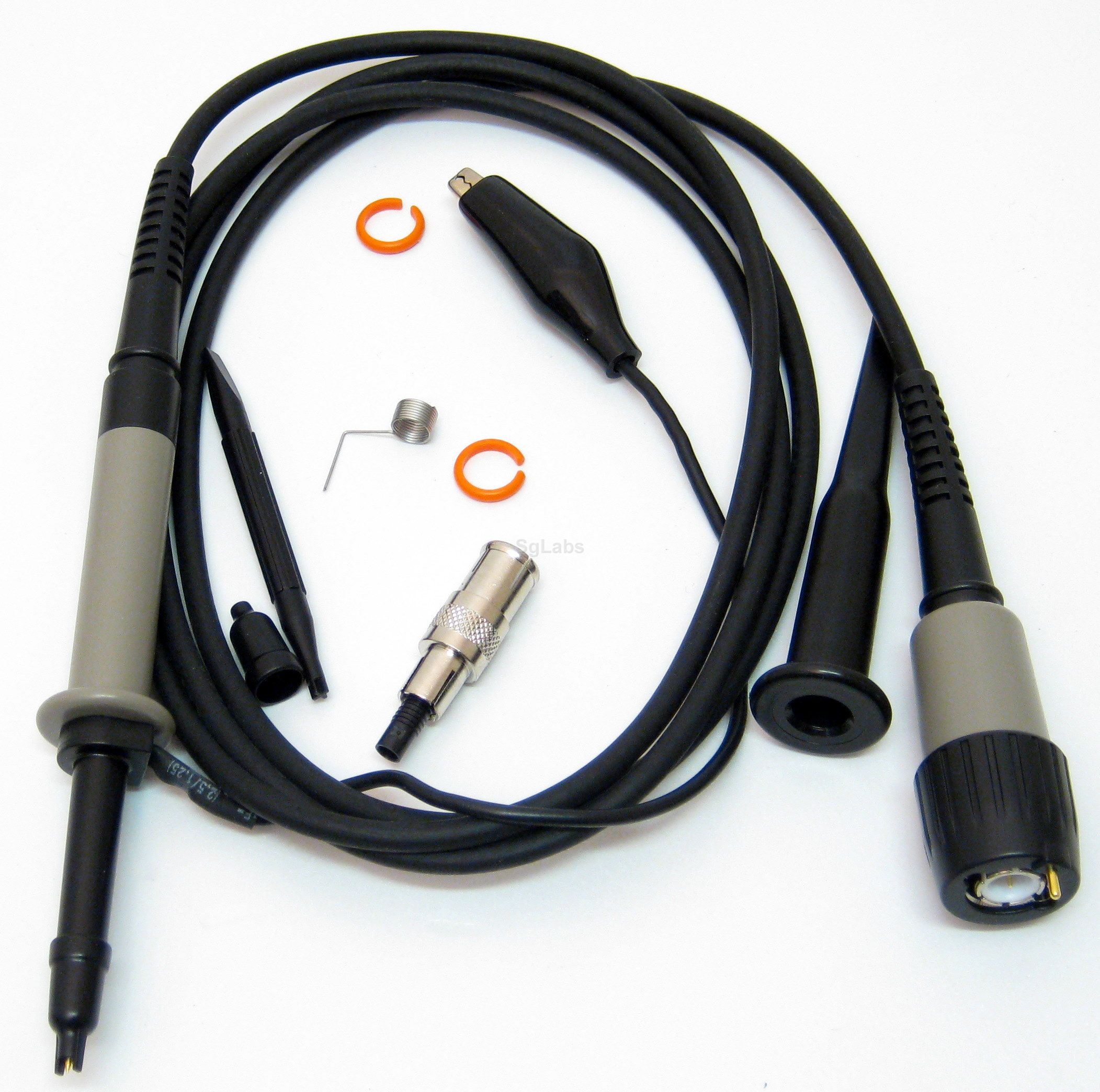

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP-6351R is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impeddance of 1 Mohm shunted by 16 pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 35 pF. The HP-6351R is also compatible with readout function oscilloscopes that automatically detect probe attenuation and adjust the scale readout accordingly.
Features
Attenuation: X10
Frequency: 350MHz
Input impedance: 10MOhm
Input capacitance: 16pF
Cable length: 1.2 meters
Readout: Sì
  • Max. Frequency: 350MHz
