SGLabs, HP-9250

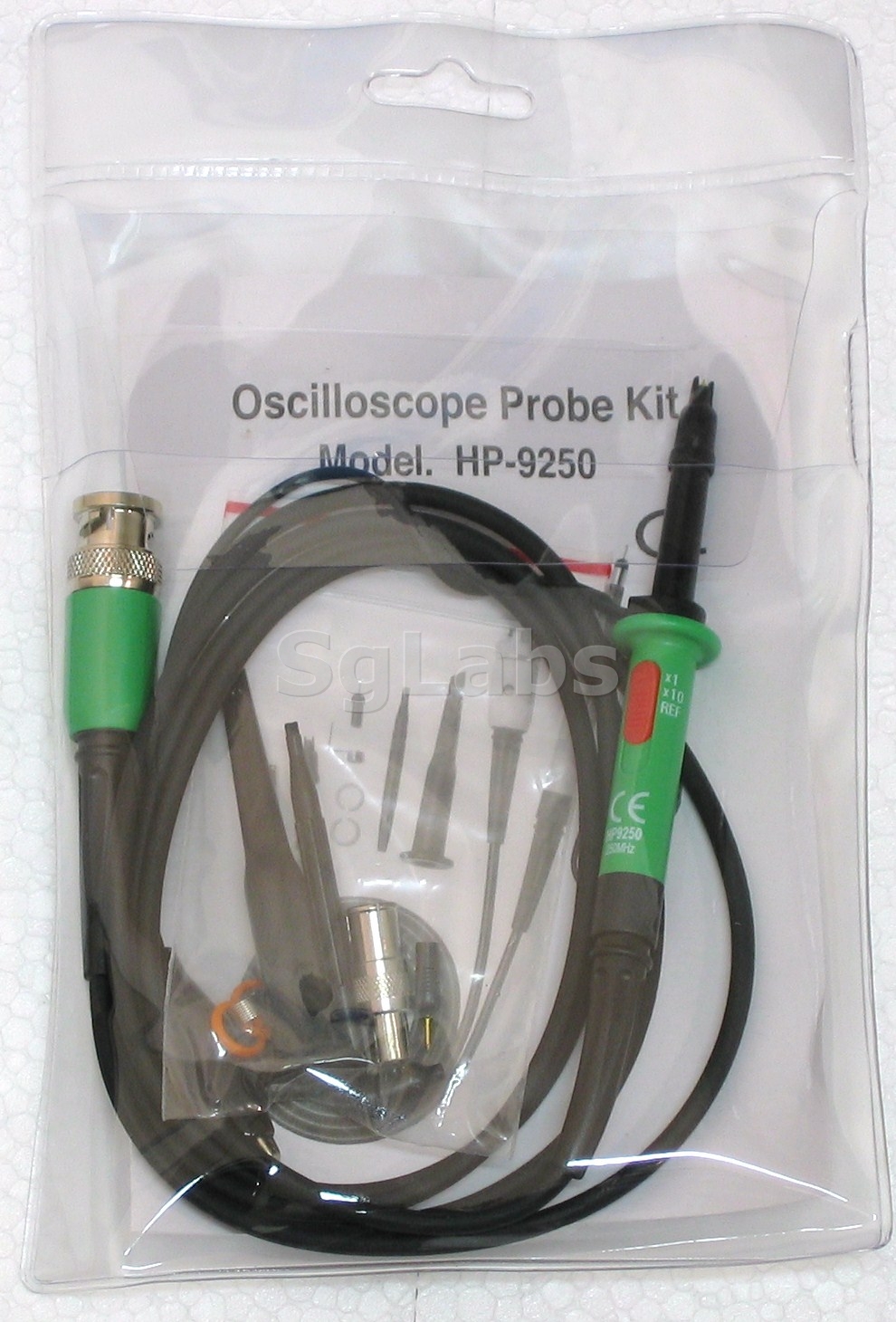

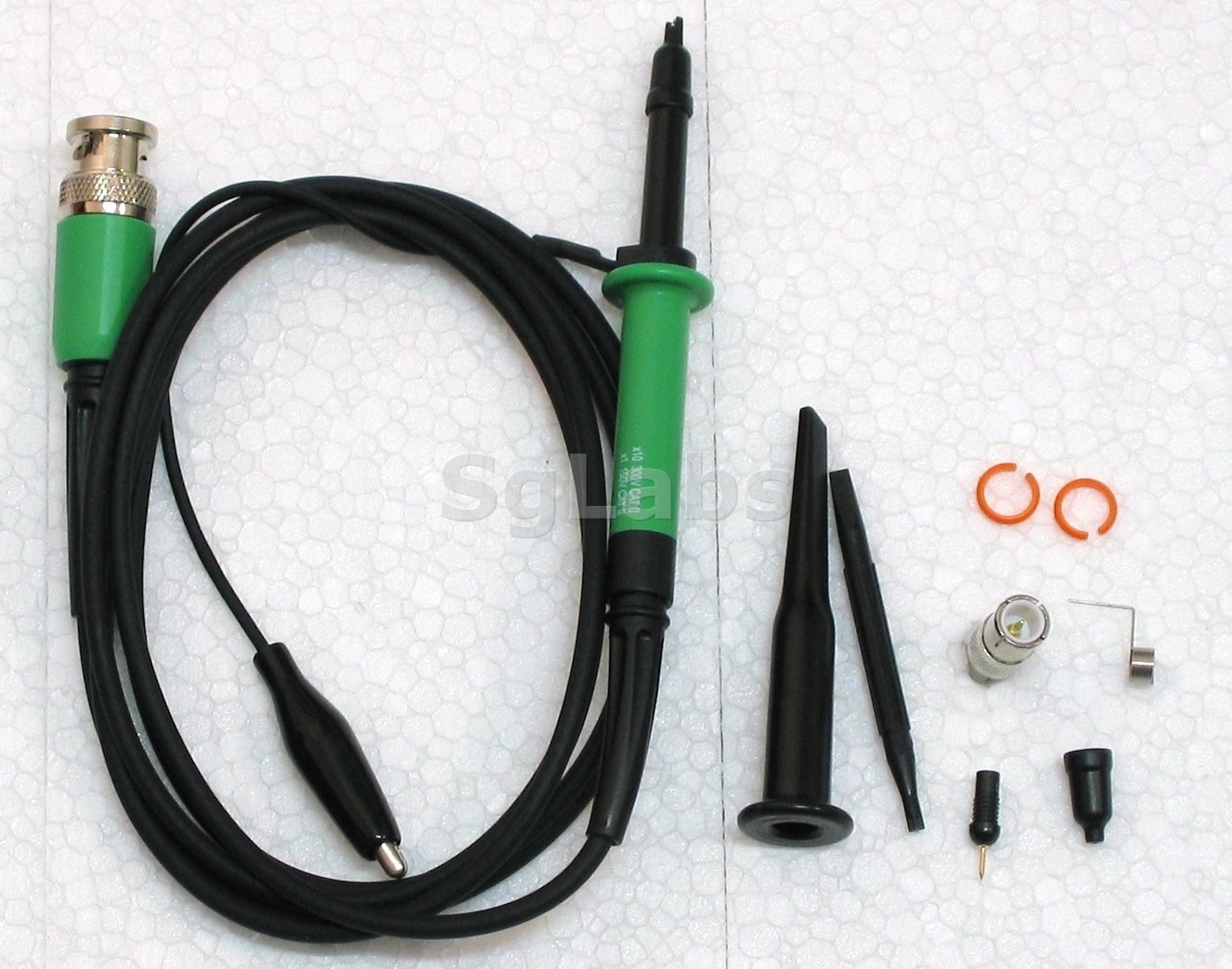

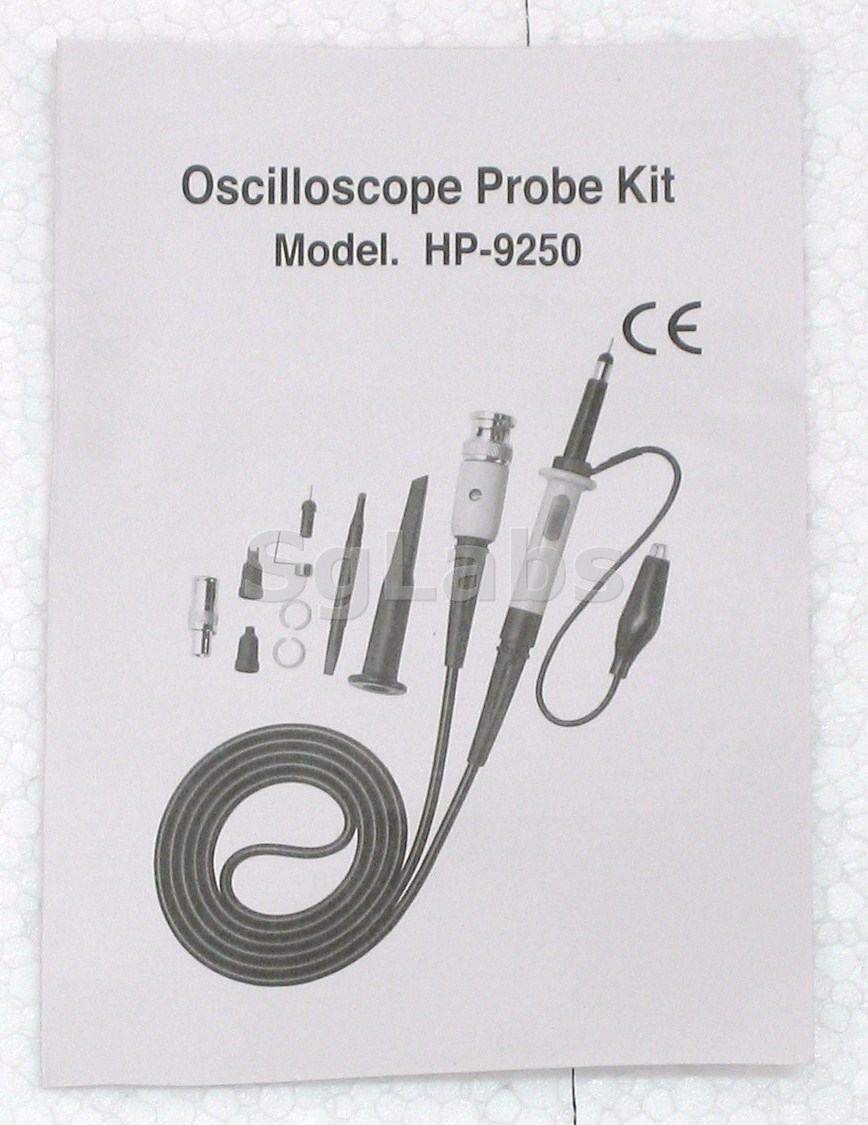

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Position X 1
Attenuation Ratio 1:1
Bandwidth DC to 6MHz
Rise Time 58ns
Input Resistance 1MOhm (Oscilloscope input)
Input Capacitance 90 pF Plus Oscilloscope Capacitance
Working Voltage 600V DC incl. peal AC derating with frequency
Position Ref Probe tip disconnected, oscilloscope input grounded
Position X 10
Attenuation Ratio 10:1
Bandwidth DC to 250MHz
Rise Time 1.4ns
Input Resistance 10MOhm when used with oscilloscopes with 1MOhm input.
Input Capacitance Approx. 14 pF
Compensation Range 10 to 35 pF
Working Voltage 600V DC incl. peak AC derating with frequency
Cable Length 1.4 Meters
  • Max. Frequency: 250 MHz
  • Min. Frequency: DC
