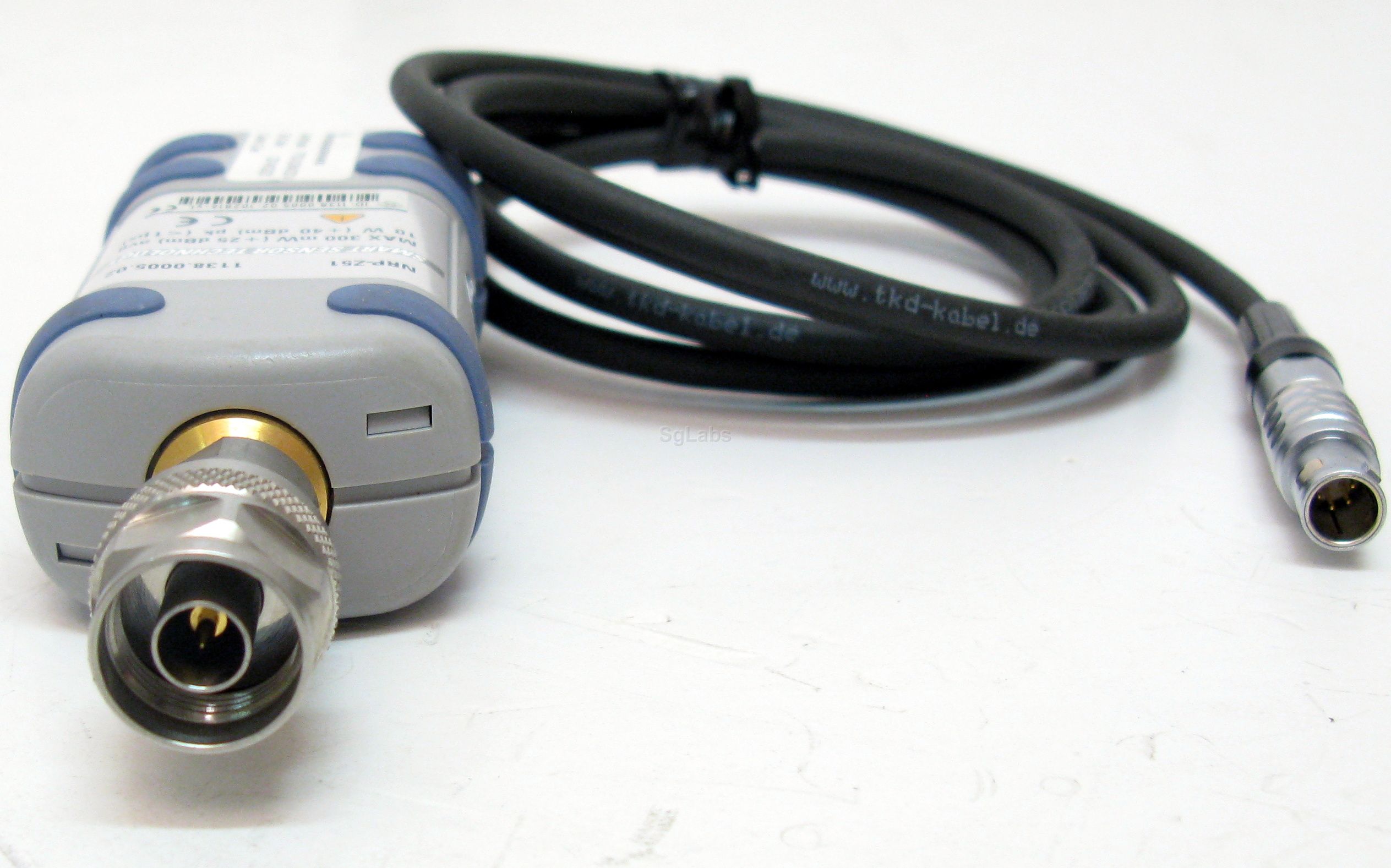

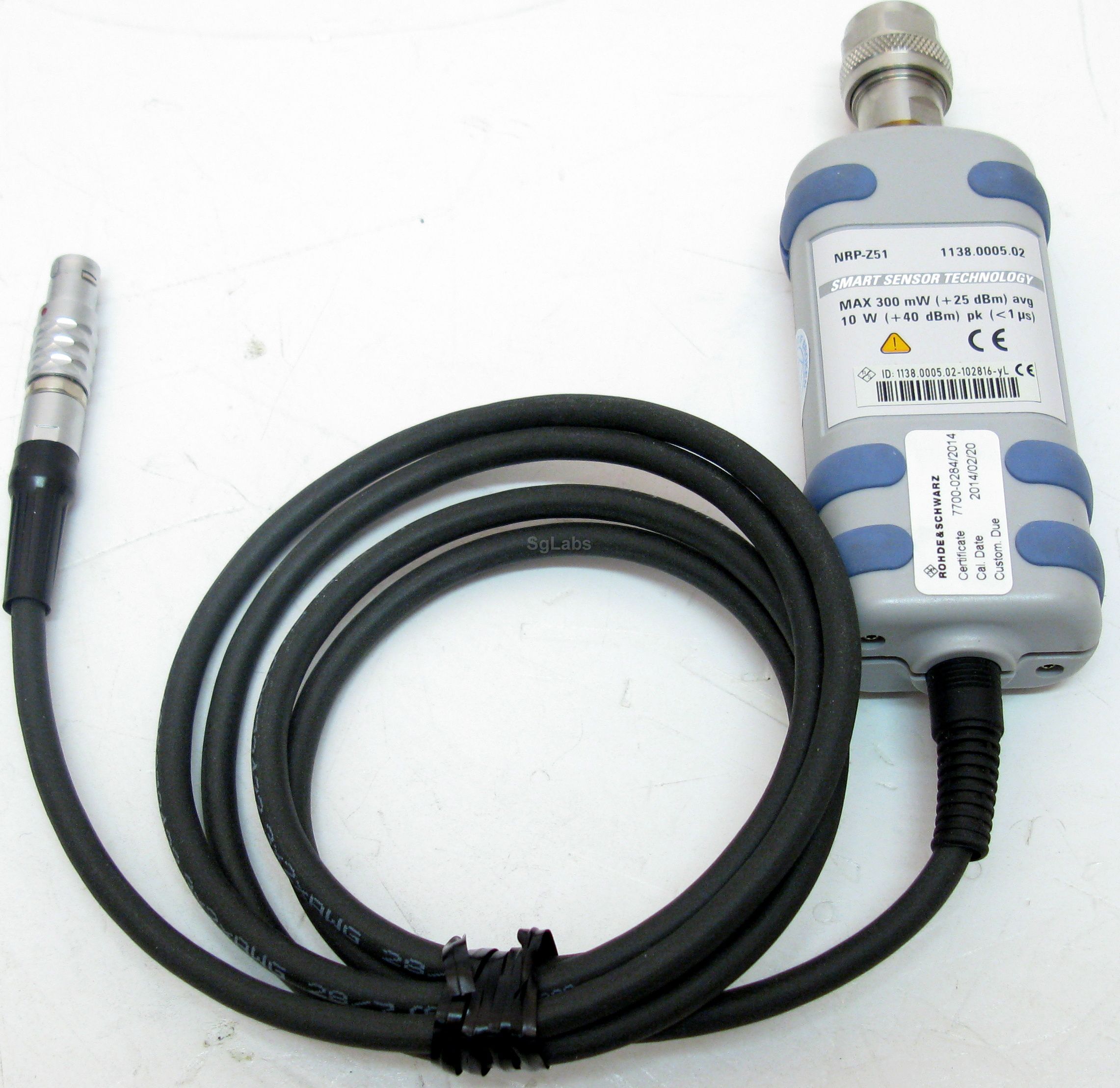

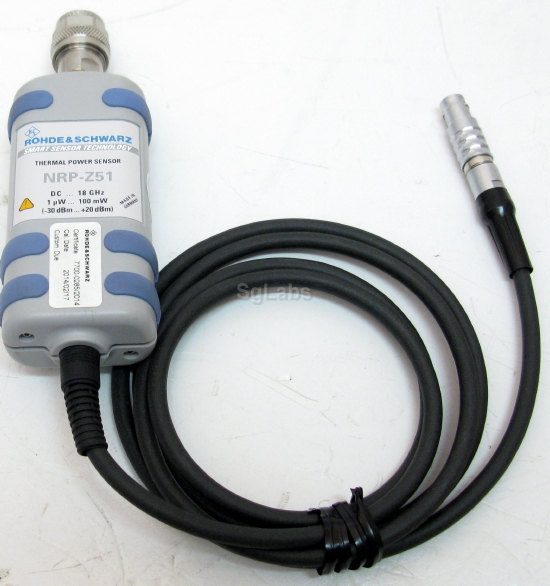

R&S Rohde & Schwarz, NRP-Z51

You are here: Power Meter / Sensor (RF) » Power sensor

ZOOM

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

Thermal Power Sensor DC-18 GHz -30/+20 dBm

It can be use with

• NRP power meters
• Signal Generator;

1. SMU200A (direct)
2. SMATE200A (via ¸NRP-Z4)
3. SMJ100A (direct)
4. SMA100A (direct)
5. SMB100A (via ¸NRP-Z4)
6. SMF100A (direct)

• Signal/spectrum analyzers:

1. FSQ (via ¸NRP-Z4)
2. FSU (via ¸NRP-Z4)
3. FSG (direct)
4. FSP (via ¸NRP-Z4)
5. FSL (via ¸NRP-Z4)

• Network analyzers

1. ZVA (via ¸NRP-Z4)
2. ZVB (via ¸NRP-Z4)
3. ZVT (via ¸NRP-Z4)

• PC (Windows, Linux)

  1. Desktop PC (via ¸NRP-Z4)
  2. Laptop (via ¸NRP-Z4)

Features

• Connector: N
• Frequency Range: DC-18 GHz
• Power Range: -30 (1uW) / +20 dBm (100 mW); 300 mW (AVG), 10 W (PK, 1us)
• SWR: 1.10 up to 2.4 GHz, 1.15 from 2.4 to 12.4 GHz, 1.20 from 12.4 GHz
• Accuracy: 0.061 dB

• Max. Frequency: 18 GHz
• Min. Frequency: DC
• Max. power: +20 dBm
• Min. Power: -30 dBm
• Measure: Thermal Power Sensor

Download datasheet: R&S_NRP_brochure.pdf (979 kb)
