R&S Rohde Schwarz, ZV-Z23

You are here: RF Component » Calibration kit

R&S Rohde Schwarz, ZV-Z23

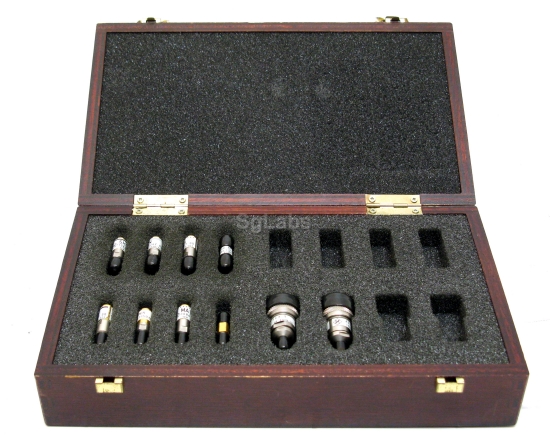

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
TOSM Calibration Kit PC 3.5 mm, 26.5 GHz
1085.7247.02
Features
With:
  • Adapter Nm PC3.5m 1060.1507.00
  • Adapter Nm PC3.5f 1086.1471.00
  • Thru PC3.5 ff
  • Thru PC3.5 mm 1086.1365.00
  • Match/Load PC 3.5 f 1086.1213.00
  • Match/Load PC 3.5 m 1086.1307.00
  • Short PC 3.5 f 1086.1188.00
  • Short PC 3.5 m 1086.1271.00
  • Open PC 3.5 f 1086.1159.00
  • Open PC 3.5 m 1086.1242.00
  • Connector: 3.5mm
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: DC
