Broadband impedance and reflection coefficient measurements
The SWR Bridge R&S®ZRB2 is used to measure the magnitude and phase of the reflection coefficient, e.g. of filters, amplifiers, mixers or antennas. The output signal a from the generator is fed via the SWR Bridge to the device under test.

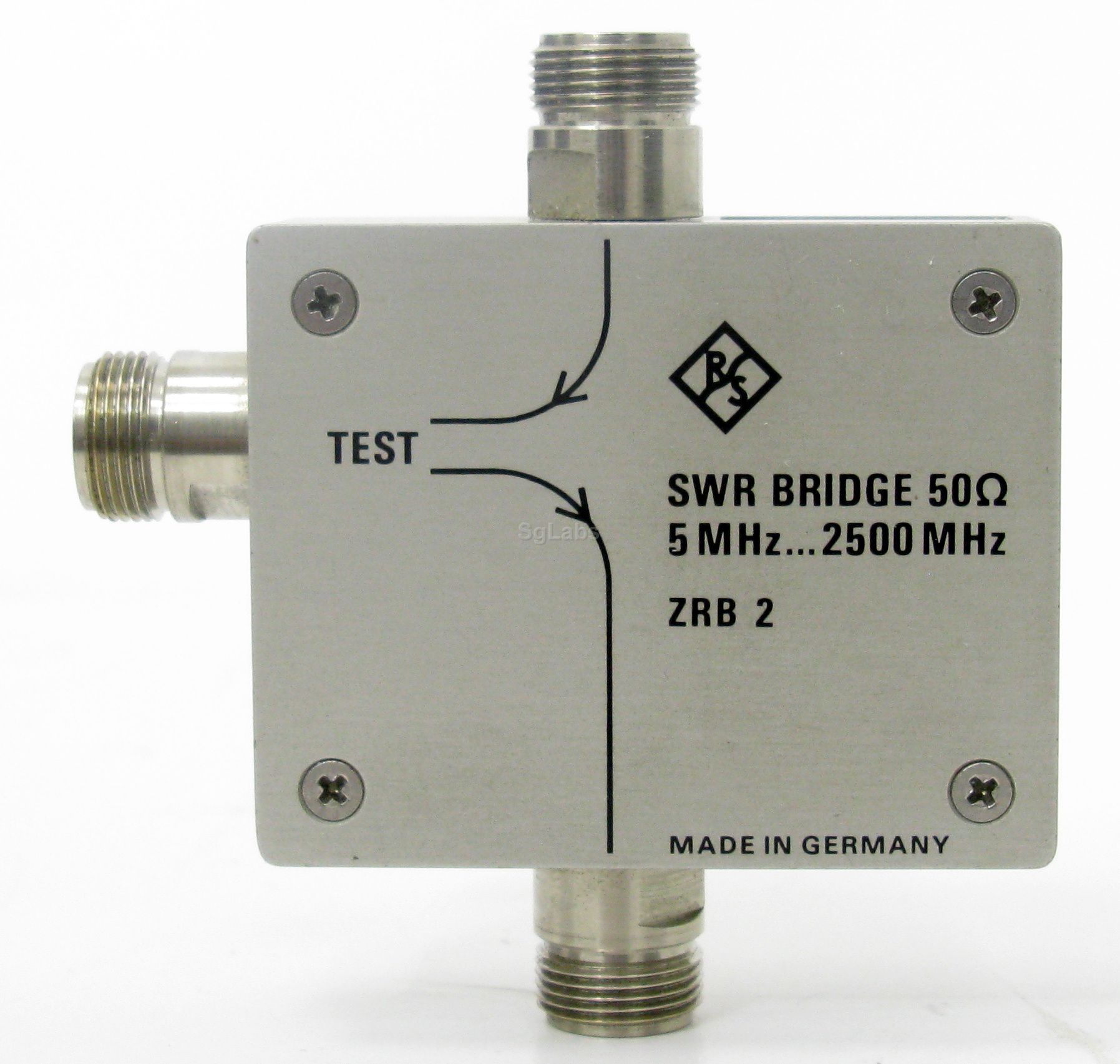

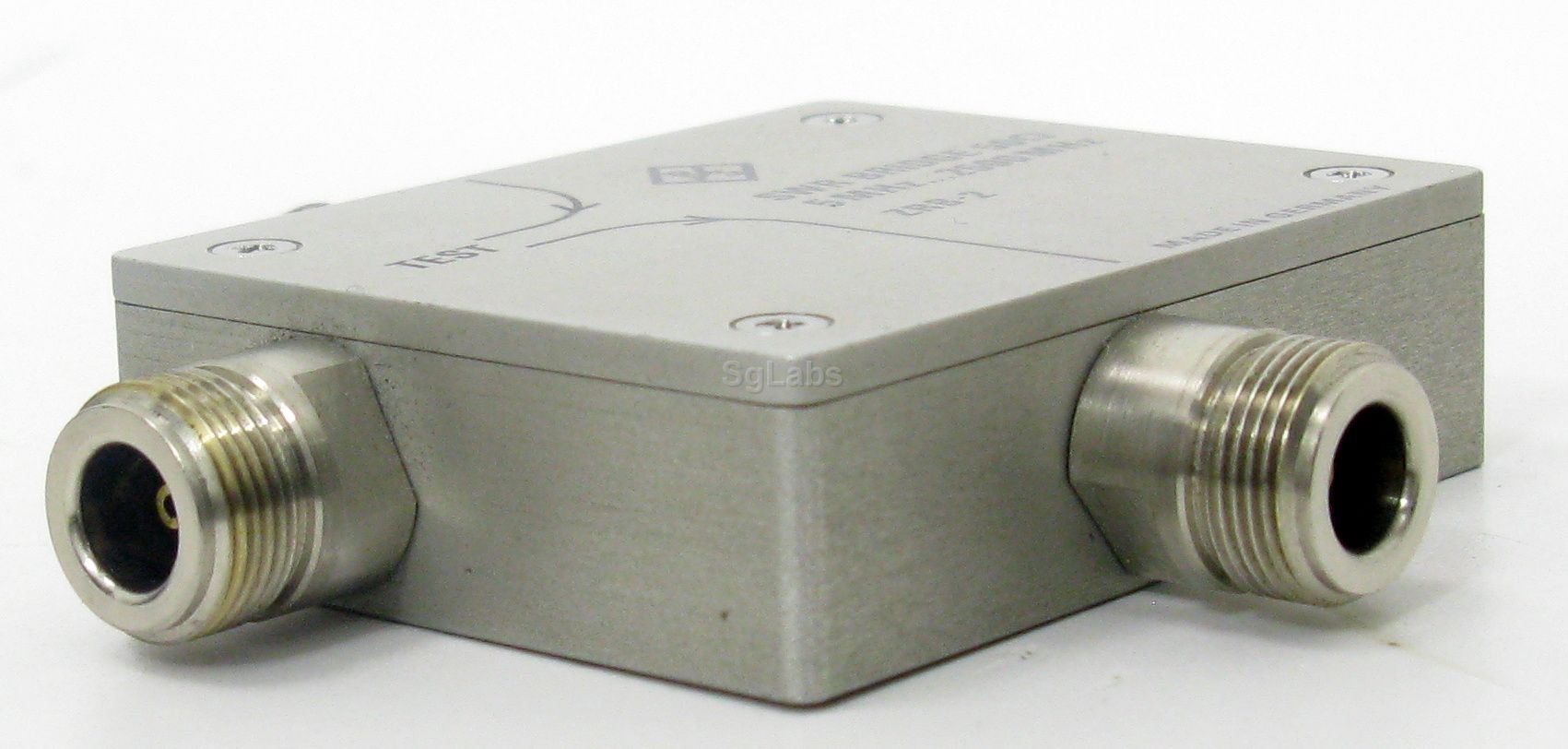

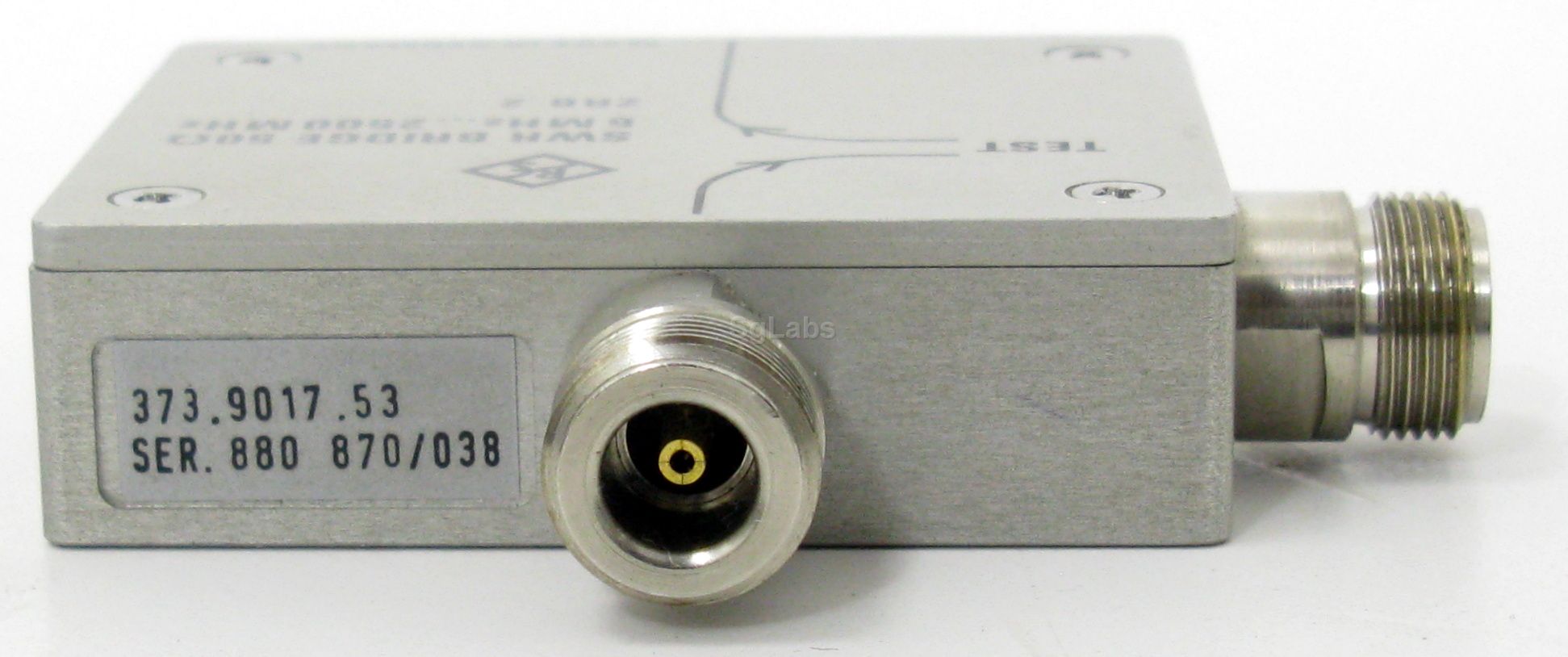

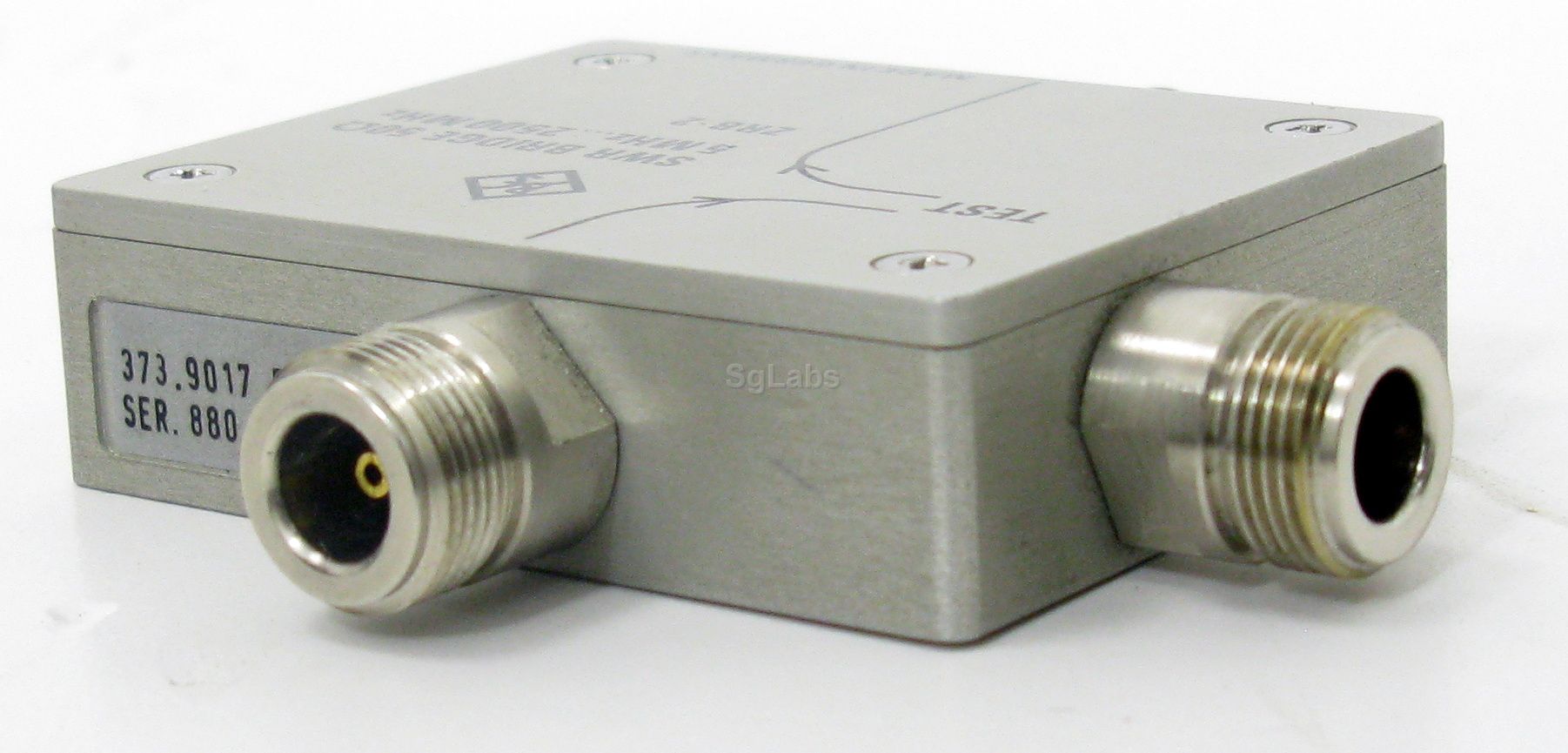

R&S Rohde & Schwarz, ZRB2
You are here: RF Component » Riflectometer bridge
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Frequency Range: 5-2500 MHz
- Impedance: 50 Ohm
- Directivity: > 46 dB up to 2 GHz, > 40 dB up to 2.5 GHz
- Return Loss at Test port: > 26 dB
- Connector: N
- Directivity: > 46 dB up to 2 GHz, > 40 dB up to 2.5 GHz
- Max. Frequency: 2500 MHz
- Min. Frequency: 5 MHz
- Max. power: 0.5 W
- VSWR / RL: > 26 dB
