Rohde & Schwarz , CMS50
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

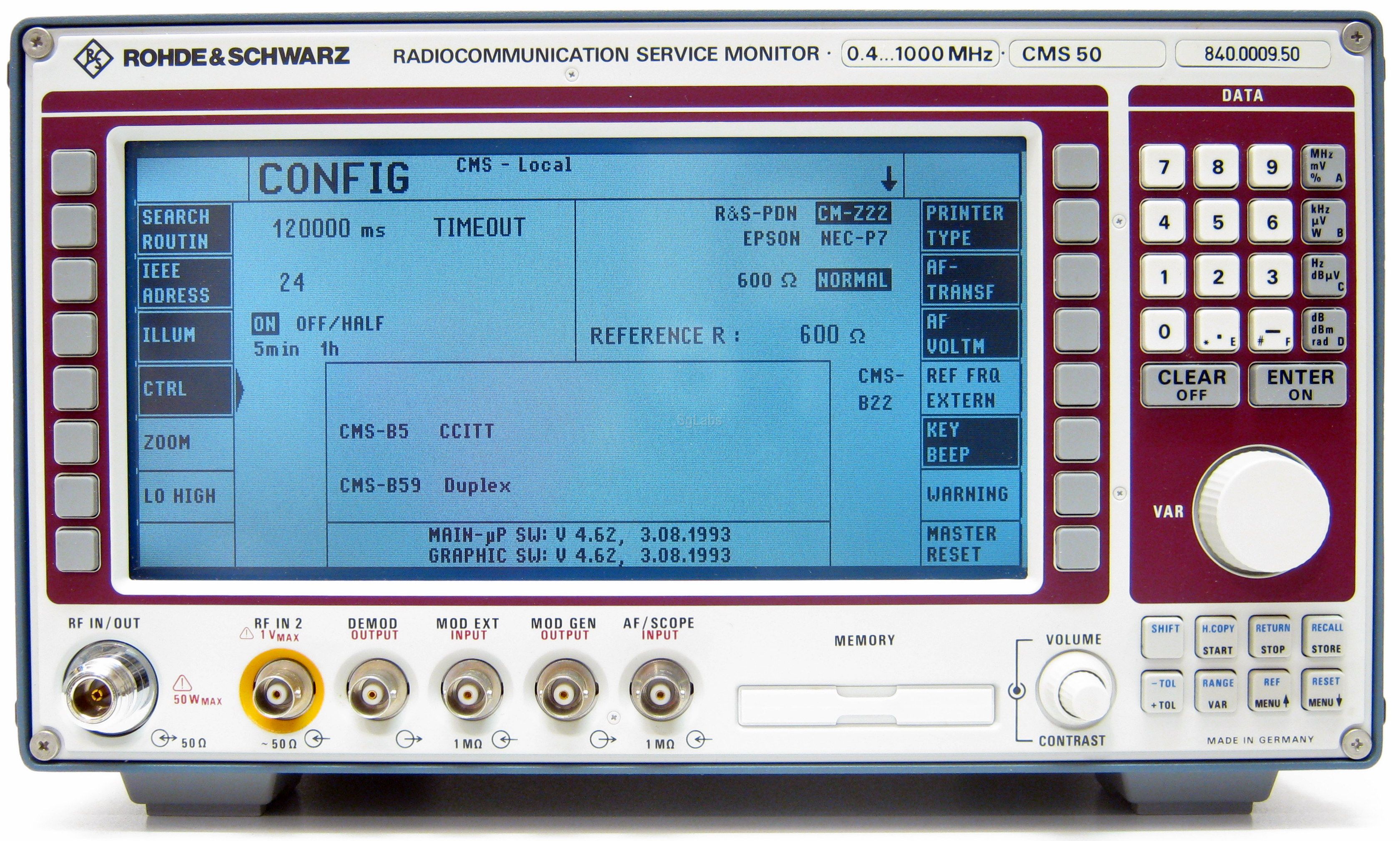

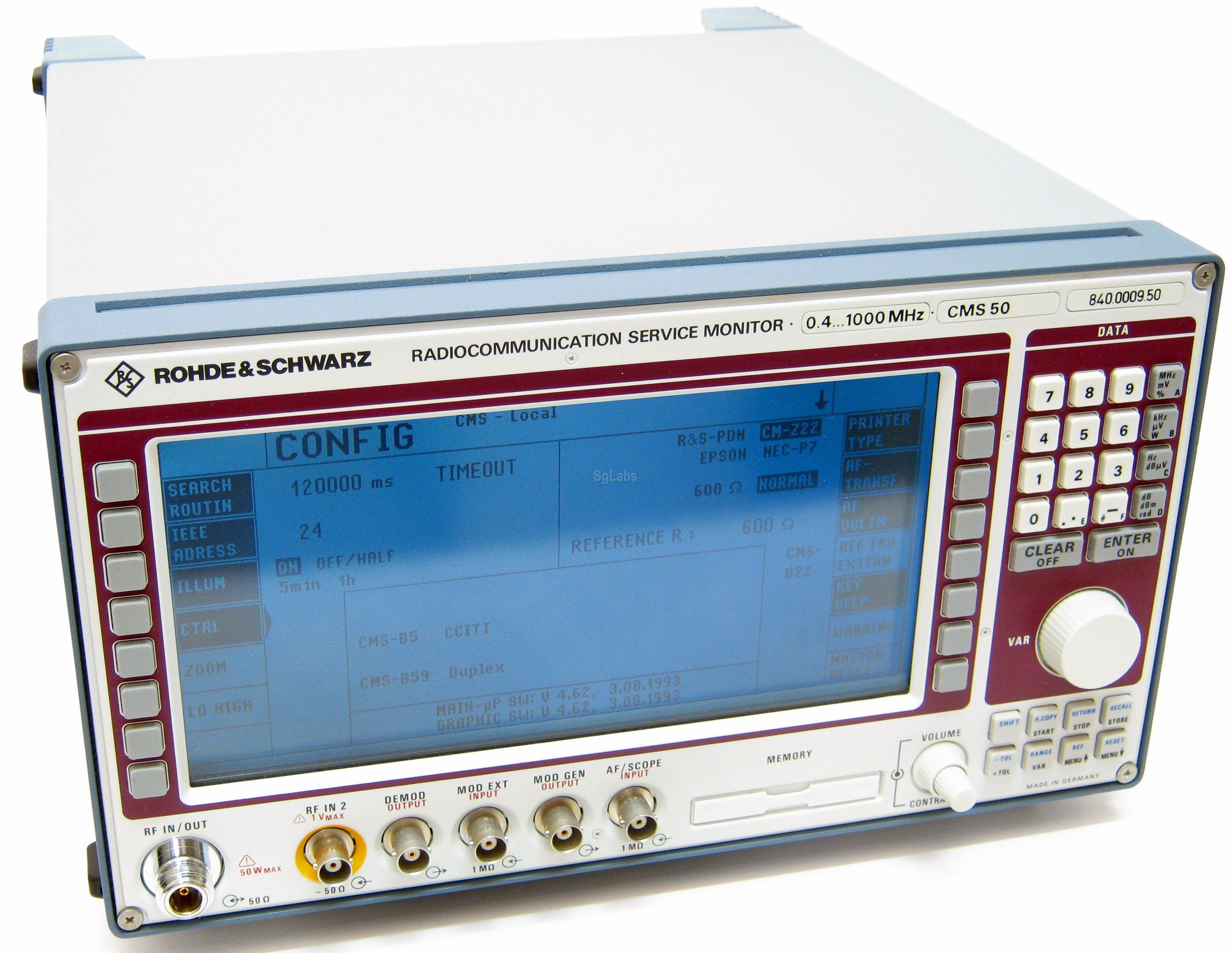

The R&S®CMS radiocommunication service monitor is the ideal radio tester for use in service, maintenance, and test departments. The tester performs transmitter, receiver and duplex measurements on mobile radios, base stations or RF modules.

Key facts:

  • Frequency range from 400 kHz to 1 GHz
  • Radio tester family including two models to cover all measurement requirements
  • Suitable for every type of radio equipment using AM, FM, φM as well as SSB
  • Transmitter, receiver and duplex measurements on mobile radio equipment, base stations and RF modules
  • Analog signaling
  • Simultaneous display of settings and results
  • Manual and automatic measurements
  • Tracking generator (opt. B59)
  • Spectrum monitor
  • Stationary and mobile use
  • Cable fault finder

  • Dynamic range spectrum analyzer: 1 MHz - 1 GHz
  • Max. Frequency: 1 GHz
  • Min. Frequency: 400 kHz
  • Power range: -134dBm - 0 dBm
  • Resolution: 0.1 dB
