Rigol DS2072A Digital Oscillooscope 70 MHz 2 channels
You are here: Oscilloscope » Digital

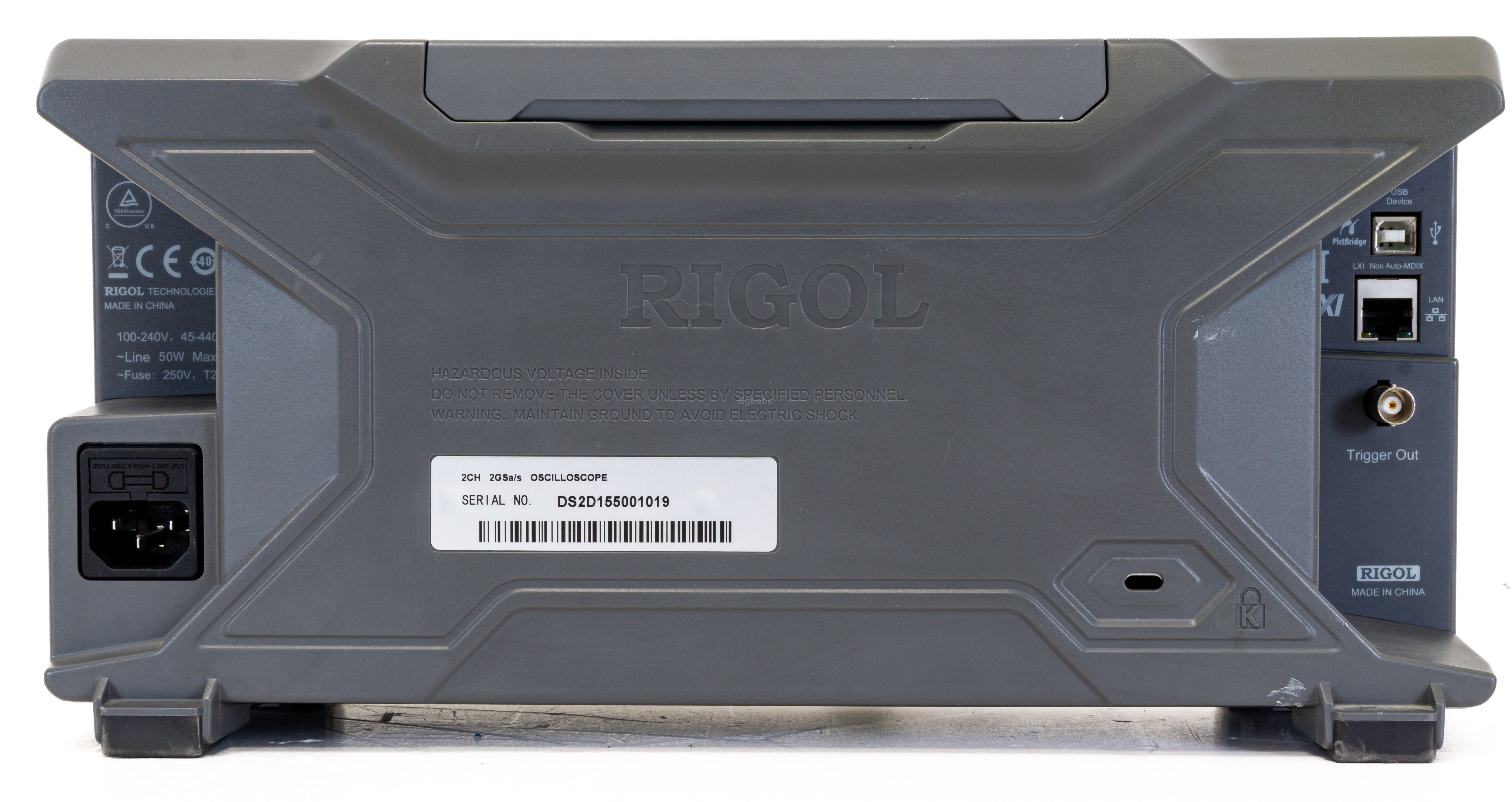

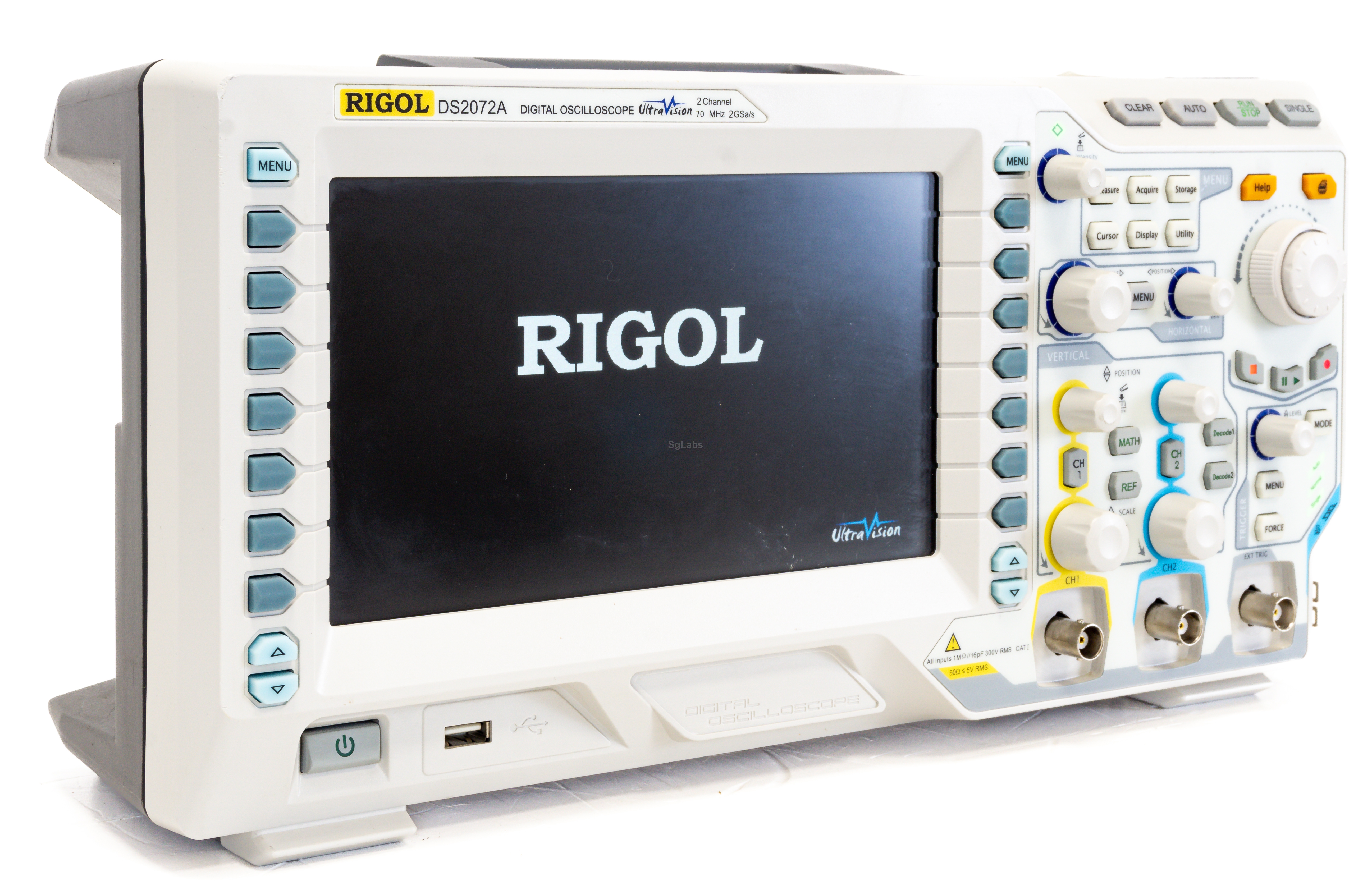

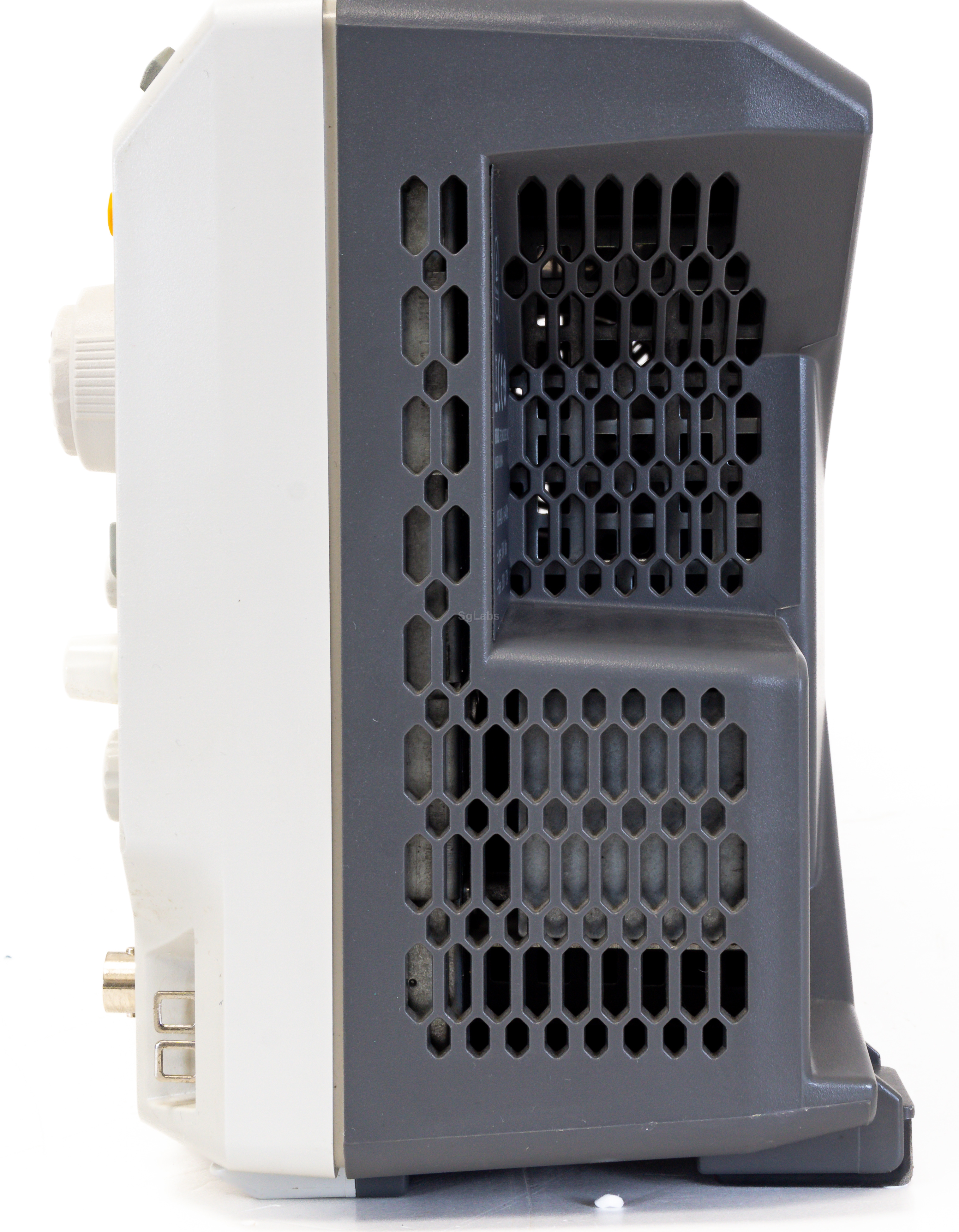

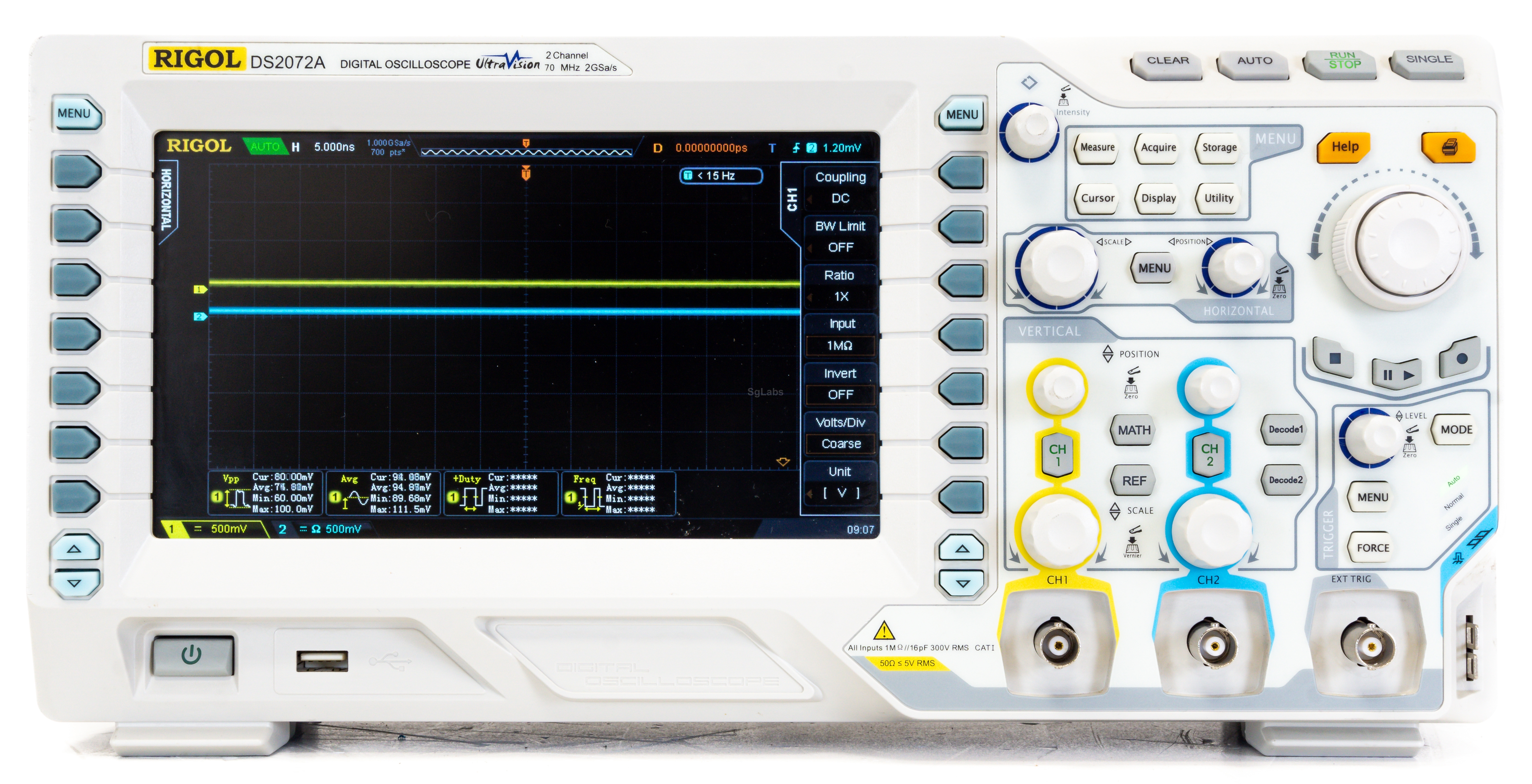

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
DS2000A Series is the new mainstream digital scope to meet the customer's needs with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities.
Features
- Feature and Benifits
- Bandwidth 70MHz, 1MΩ / 50Ω input
- Wider vertical range (500uV/div ~ 10V/div), lower noise floor
- Max. Sample Rate 2G Sa/s
- Memory Depth up to 14Mpts (Std.), 56Mpts (Opt.)
- Innovative "UltraVision" Technology
- Waveform capture rate up to 50,000 wfs/s
- Up to 256 Levels intensity grading waveform display
- Up to 65,000 frames Hardware based Real Time waveform Record,Replay and Analysis function(Std.)
- A variety of trigger and serial bus decording functions (RS232,I2C,SPI,CAN)
- Complete connectivities: USB Host, USB Device, LAN (LXI Core Device 2011), AUX
- Compact size, light weight, easy to use
- 8 inch TFT (800x480) WVGA
- Channels: 2
- Display: 8 inch TFT (800x480) WVGA
- BandWidth: 70 MHz
- Sampling: 2G Sa/s
Price
€ 350,00
