PMM 6000N Power Amplifier 10W 230 MHz

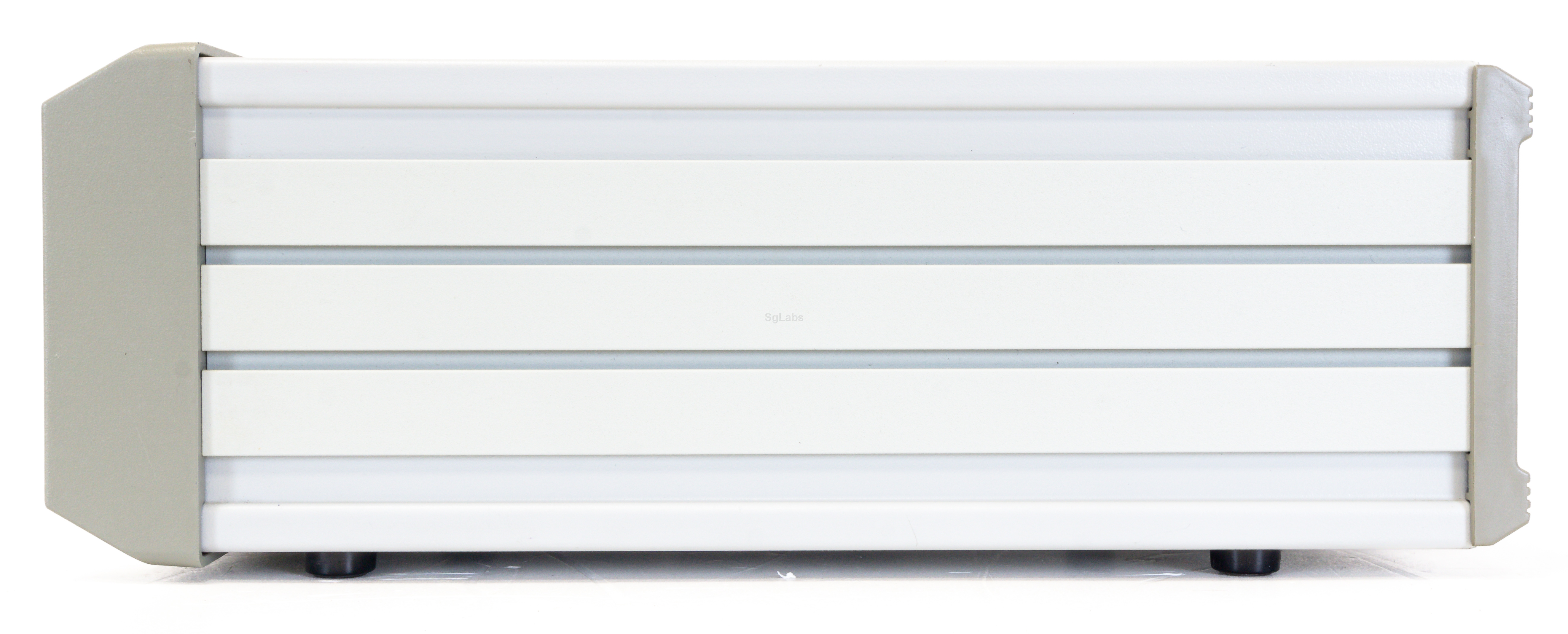

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The 6000N Wideband RF Linear Power Amplifier is highly reliable and suitable for all applications where its output power of 10 watts (15 watts) and wide frequency range (9 kHz to 230 MHz) suit the needs of the test engineer. Able to withstand even high VSWR, the 6000N is a perfect companion in any radiated and conducted measurement chain: on the product designer’s workbench, in the EMC test laboratory, for in-situ testing, etc.

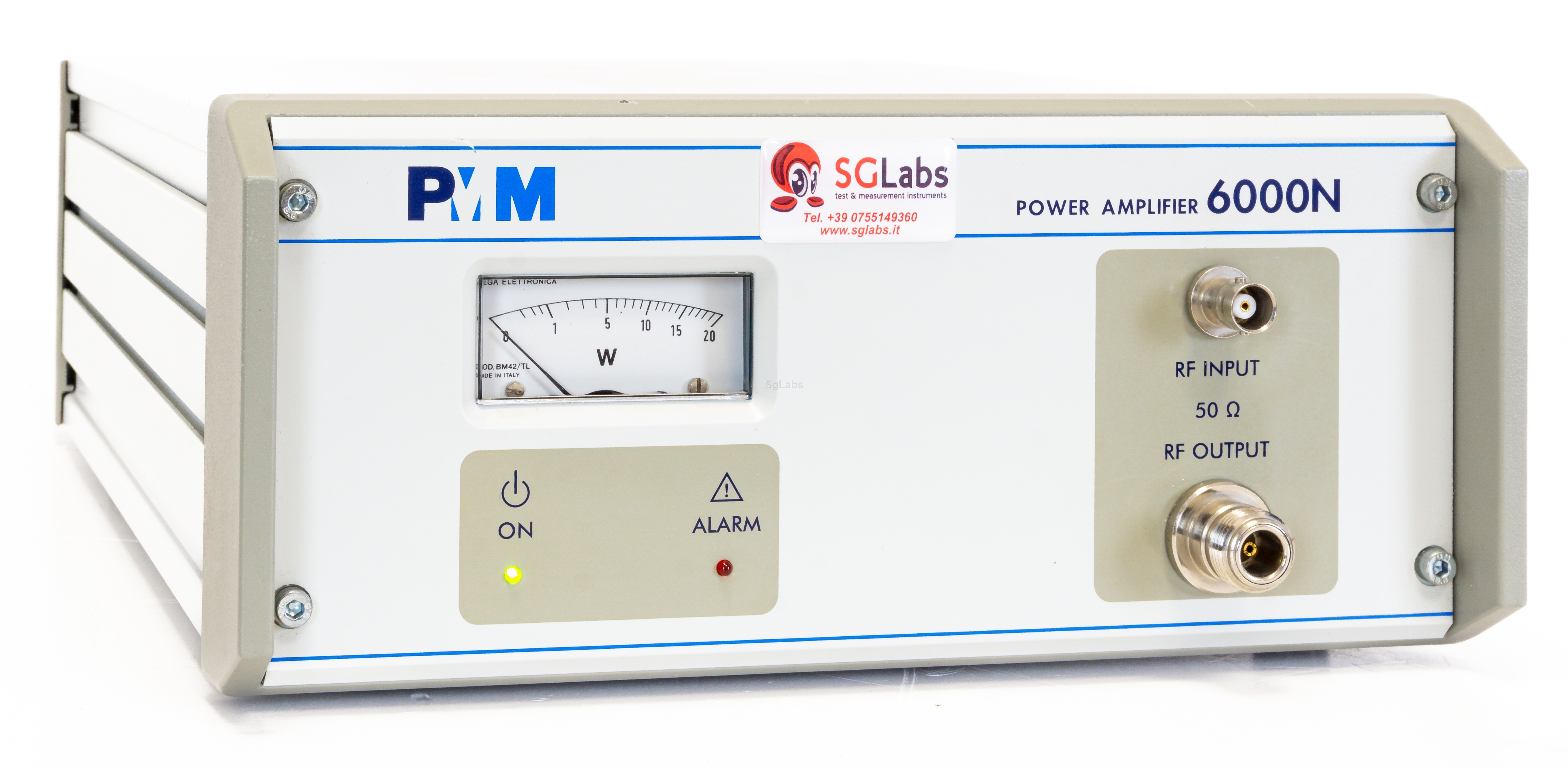

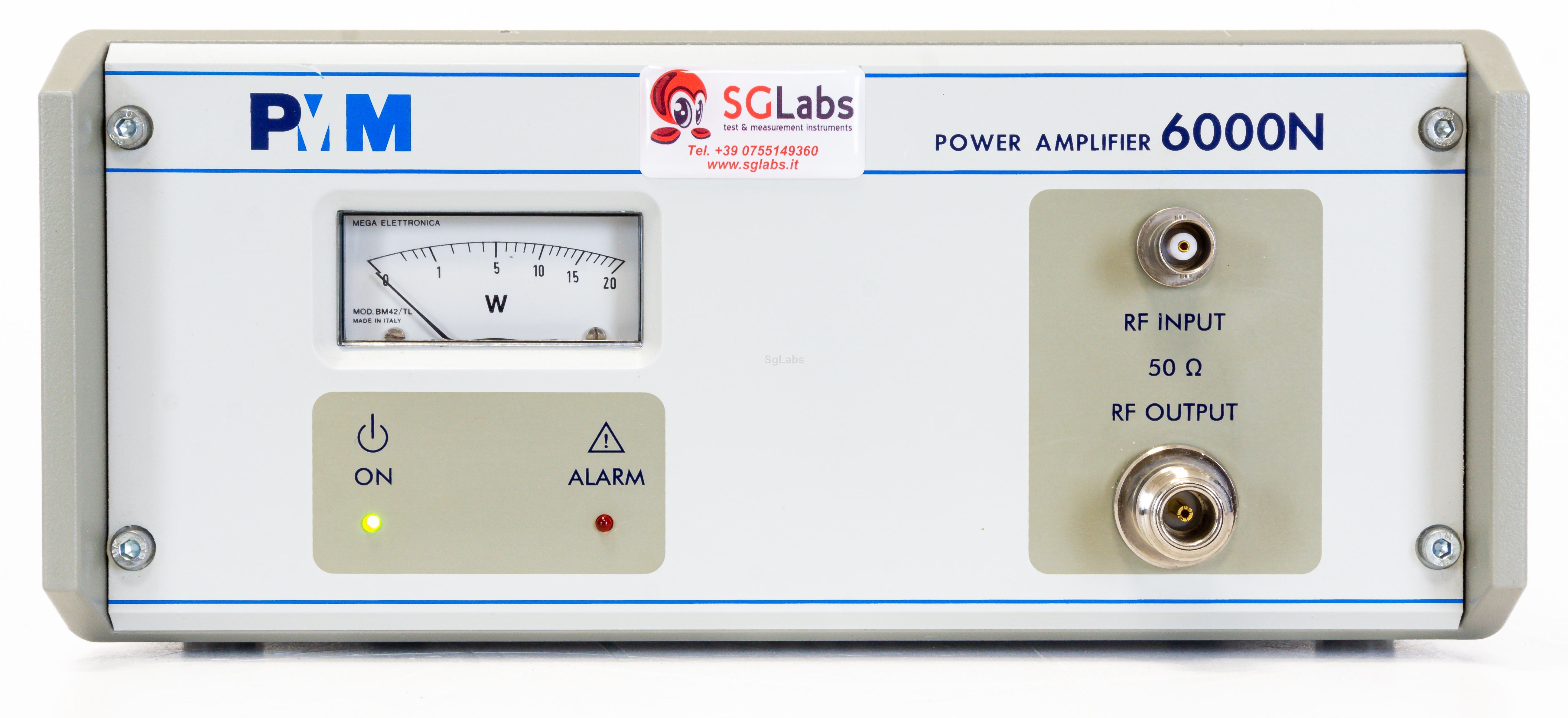

The 6000N Class A Linear Solid-State Amplifier features a compact and rugged construction, and its MOSFET technology provides high gain, low distortion, consistent performance and high reliability all across the wide frequency band. An analog meter makes it possible to monitor output signal amplitude at a glance, and an alarm LED provides a useful indication when current or temperature levels are outside specifications.

The power amplifier can be used with any EMI signal generator, power sensor, CND, EM clamp, current injections clamp and directional coupler for all conducted and radiated, civilian, military and automotive measurements.

The complimentary PMM Immunity Suite software delivered with the 6000N can be used on any PC to automatically perform simple yet complete and effective tests, as it manages all the measurement settings and functions required by the chosen immunity standard.

  • Frequency range: 9 kHz - 230 MHz
  • Power: 10 Watts; 15 Watts from 150 kHz - 80 MHz
  • Power indication by analog meter fs 20 W
  • Dimensions: 257X110X315 (WxHxD)
  • Weight: 4 Kg
  • Output connector: N (f)
  • Input connector: BNC (f)
  • Output Impedance: 50 Ohm

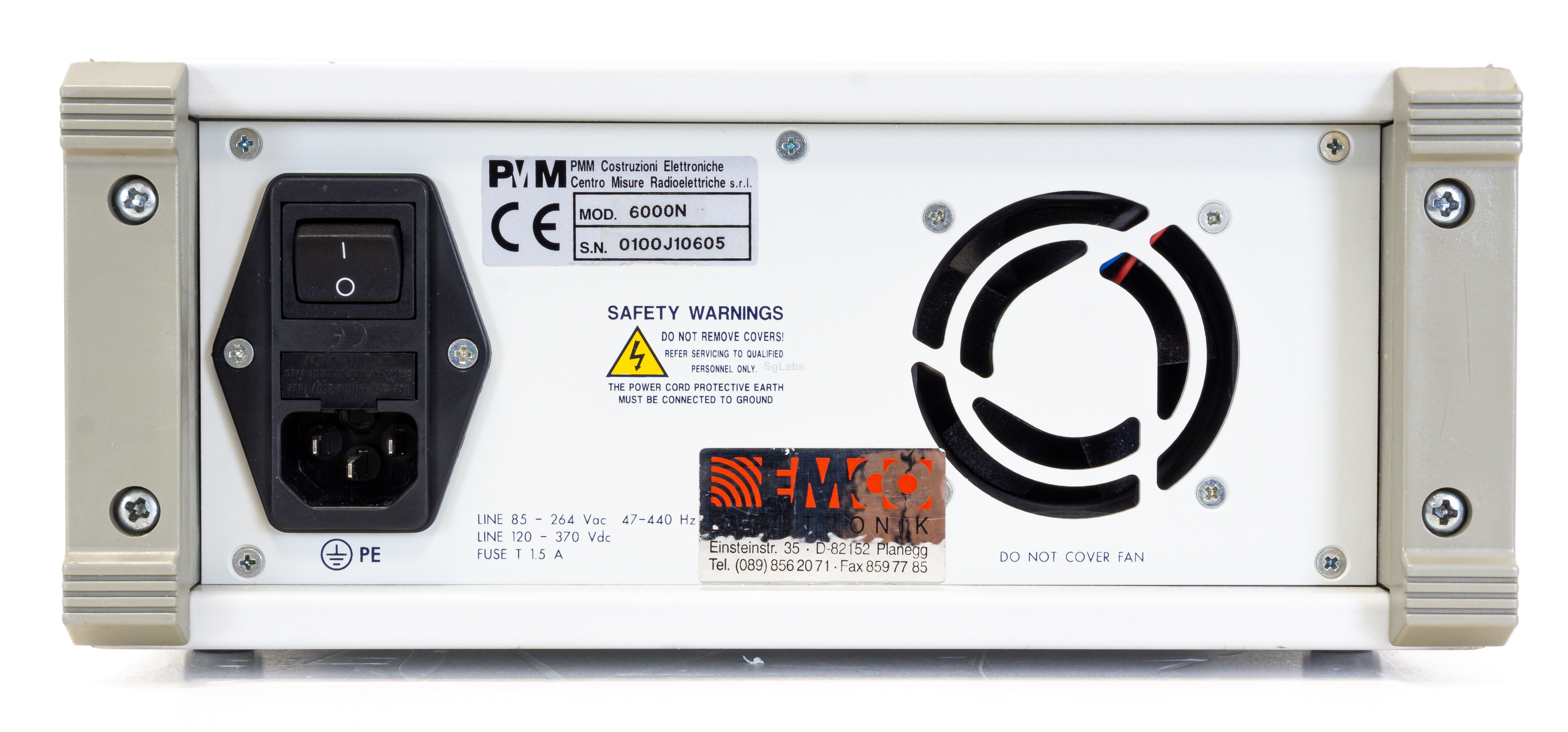

  • Absorption: 85-264 Vac, 60 W, 47 - 440 Hz
  • Max. Frequency: 230 MHz
  • Min. Frequency: 9 kHz
  • Gain: 40 dB
  • Max. power: 15 W
