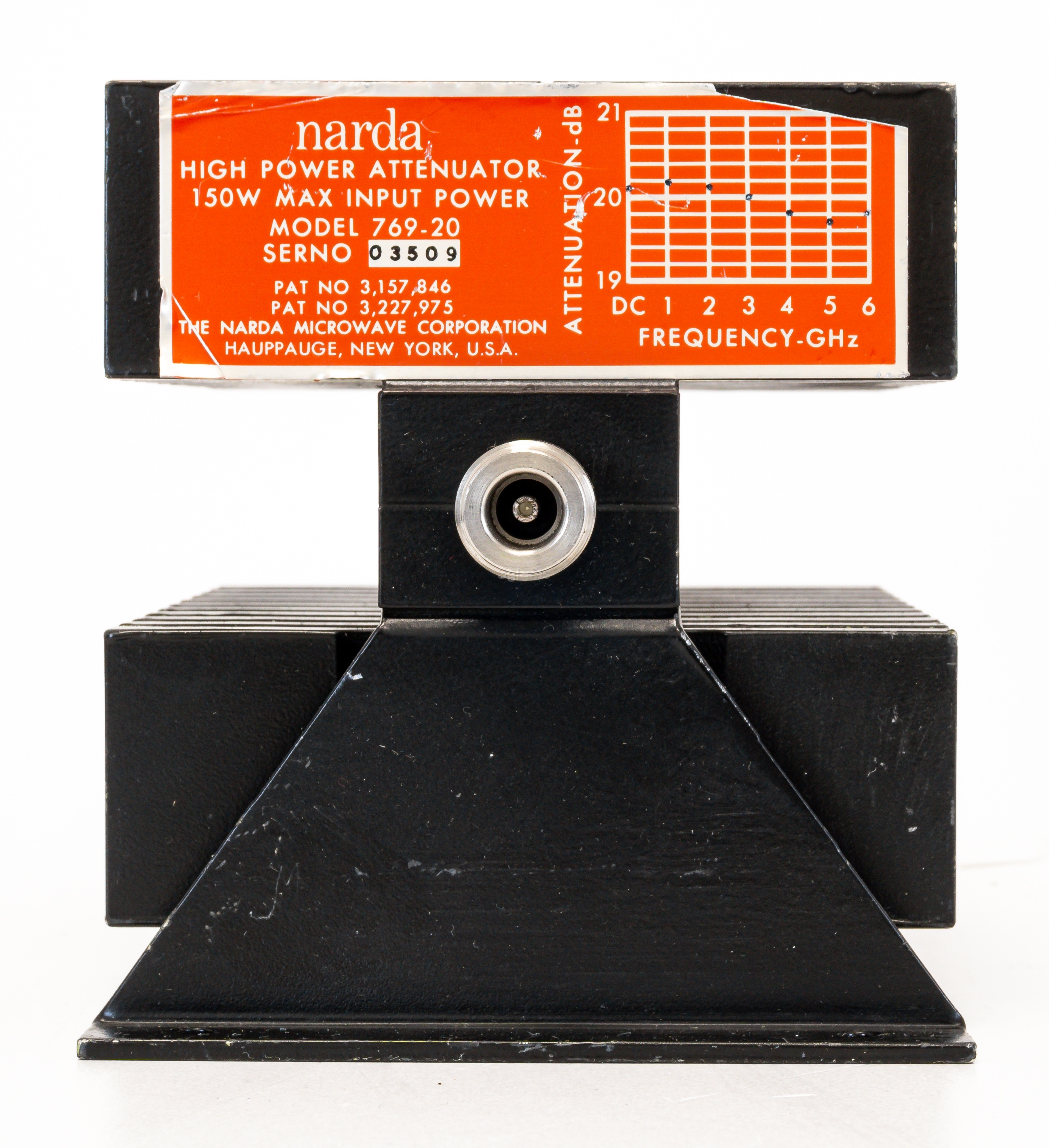

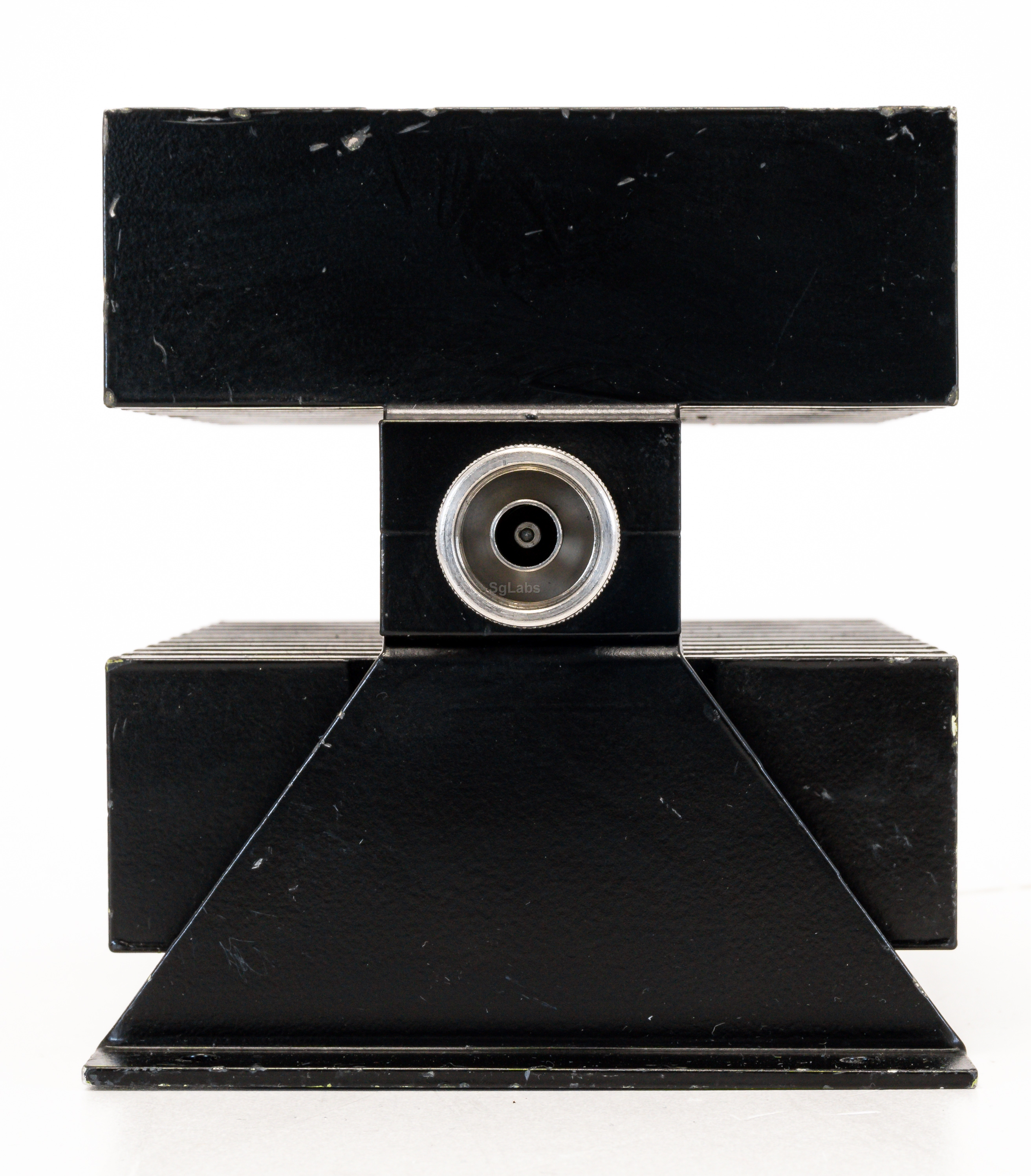

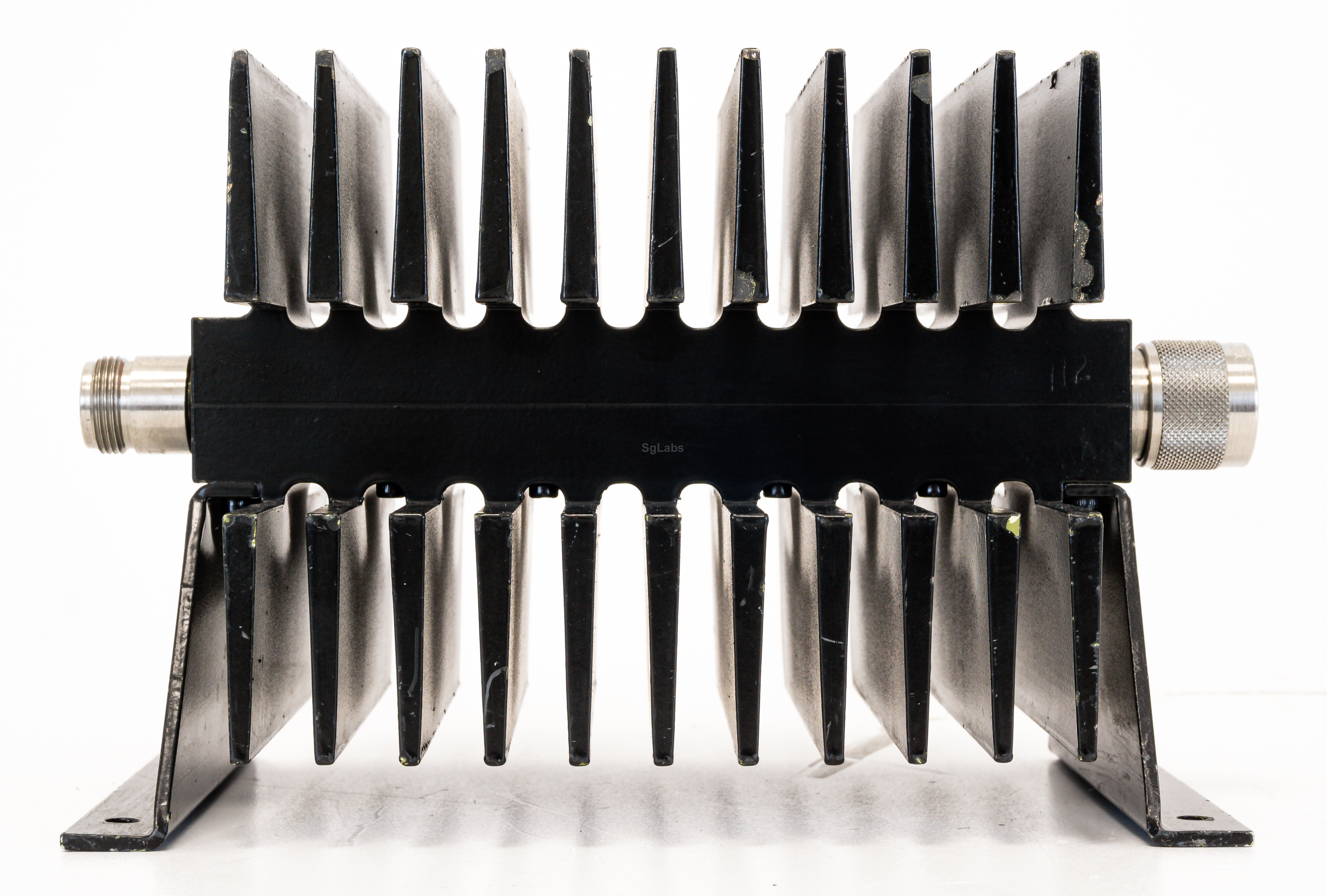

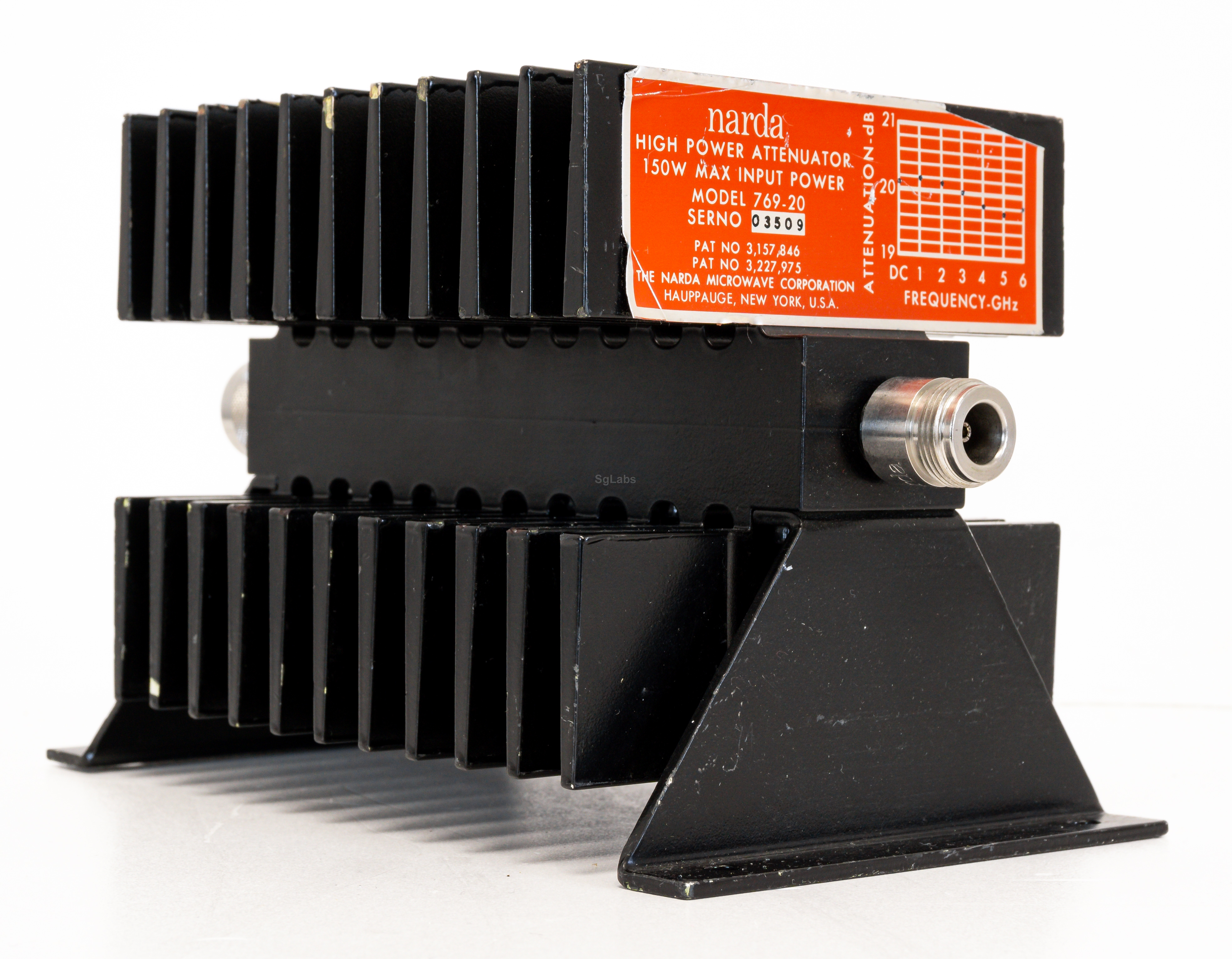

Narda 769 series Power attenuator

You are here: RF Component » Attenuator

Narda 769 series Power attenuator
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Narda 769 series
Type N High Power 150W
Bi-Directional Fixed Coaxial Attenuators
Features
  • Frequency Range: DC - 6 GHz
  • Max Power: 150W Average
  • Peak Power: 3kW
  • VSWR: 1.35 Max
  • Attenuation: 3-6-10-20-30
  • Connector: Nm
  • Max. Frequency: 6 GHz
  • Min. Frequency: DC
  • Max. power: 150
  • VSWR / RL: 1.35
Price
 € 250,00
