Narda 3022-20 Bi-Directional Coupler 1-4 GHz

You are here: RF Component » Directional coupler

Narda 3022-20 Bi-Directional Coupler 1-4 GHz

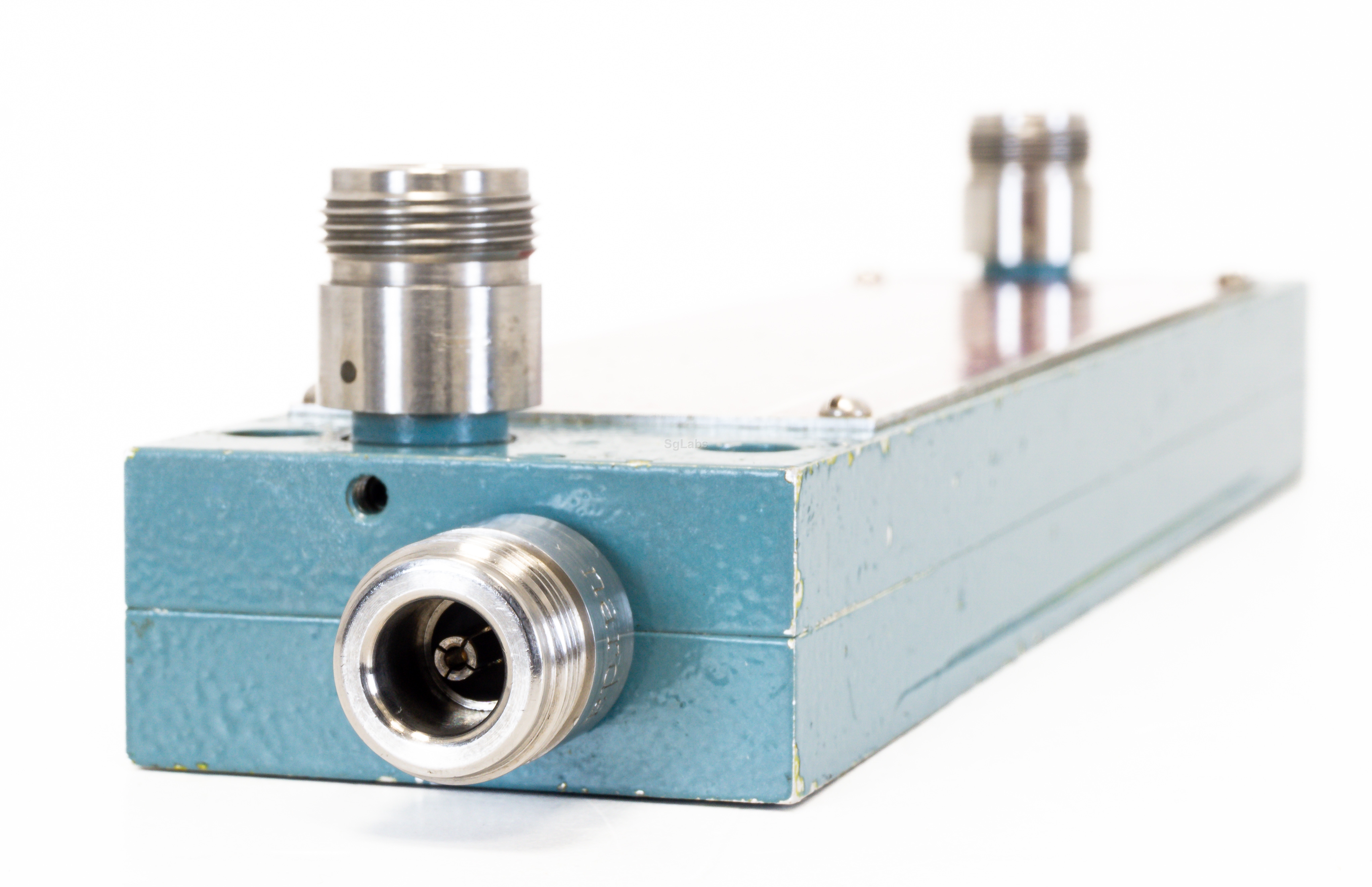

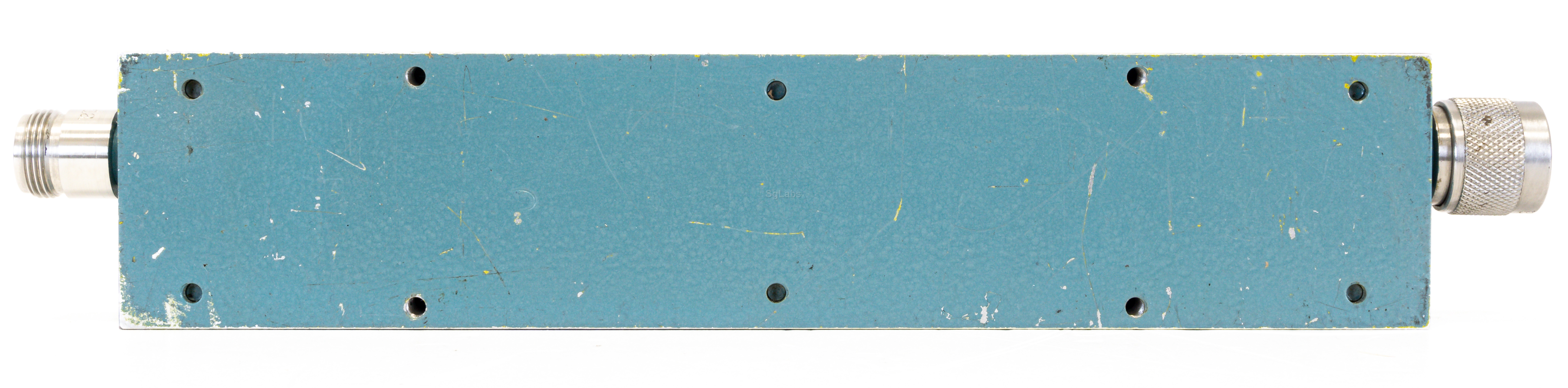

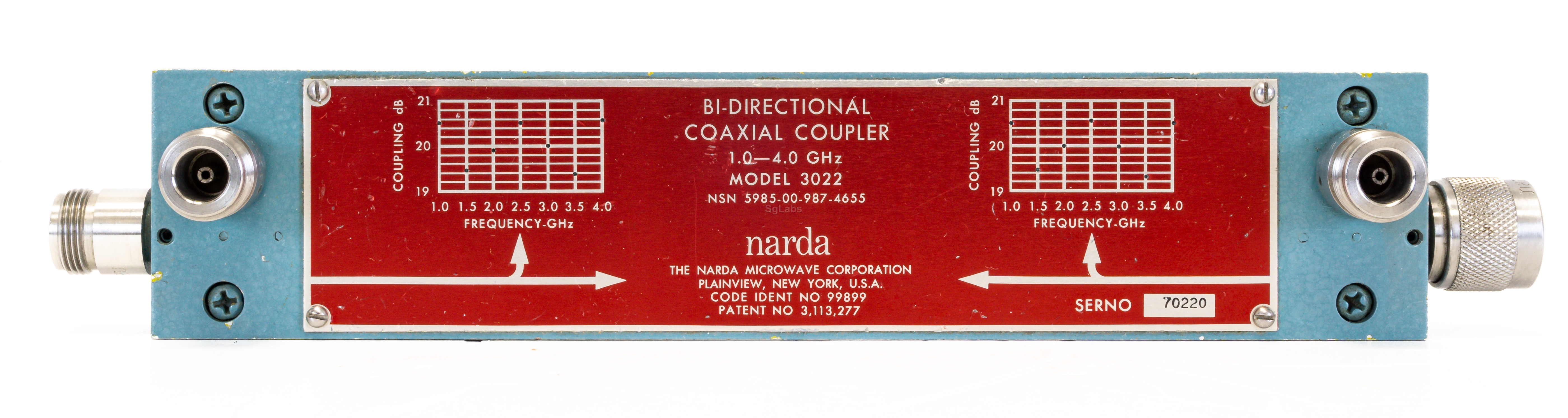

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 3022 from L3Harris Narda-MITEQ is a Bi-Directional Coupler that operates from 1 to 4 GHz. It has a coupling factor of 20 dB, an insertion loss of 0.3 dB and provides a directivity of 27 dB. The device can handle up to 500 W of average and 10 kW of peak input power. It has a VSWR of 1.15:1. The coupler is available in a module that measures 225.4 x 47.6 x 22.2 mm with N-Type Male and Female connectors.
Features
  • Frequency 1 to 4 GHz
  • Coupling 20 dB
  • Coupling Variation ±1 dB
  • Power 500 W
  • Peak Power 10 kW
  • Insertion Loss 0.3 dB
  • Directivity 27 to 30 dB
  • VSWR 1.15:1
  • Attenuation: 20 dB
  • Connector: N
  • Connector: N
  • Directivity: Da 1 a 3 GHz sono 30 dBm, da 3 a 4 GHz sono 27 dBm
  • Max. Frequency: 4 GHz
  • Min. Frequency: 1 GHz
  • VSWR / RL: 1.09
Price
 € 420,00
