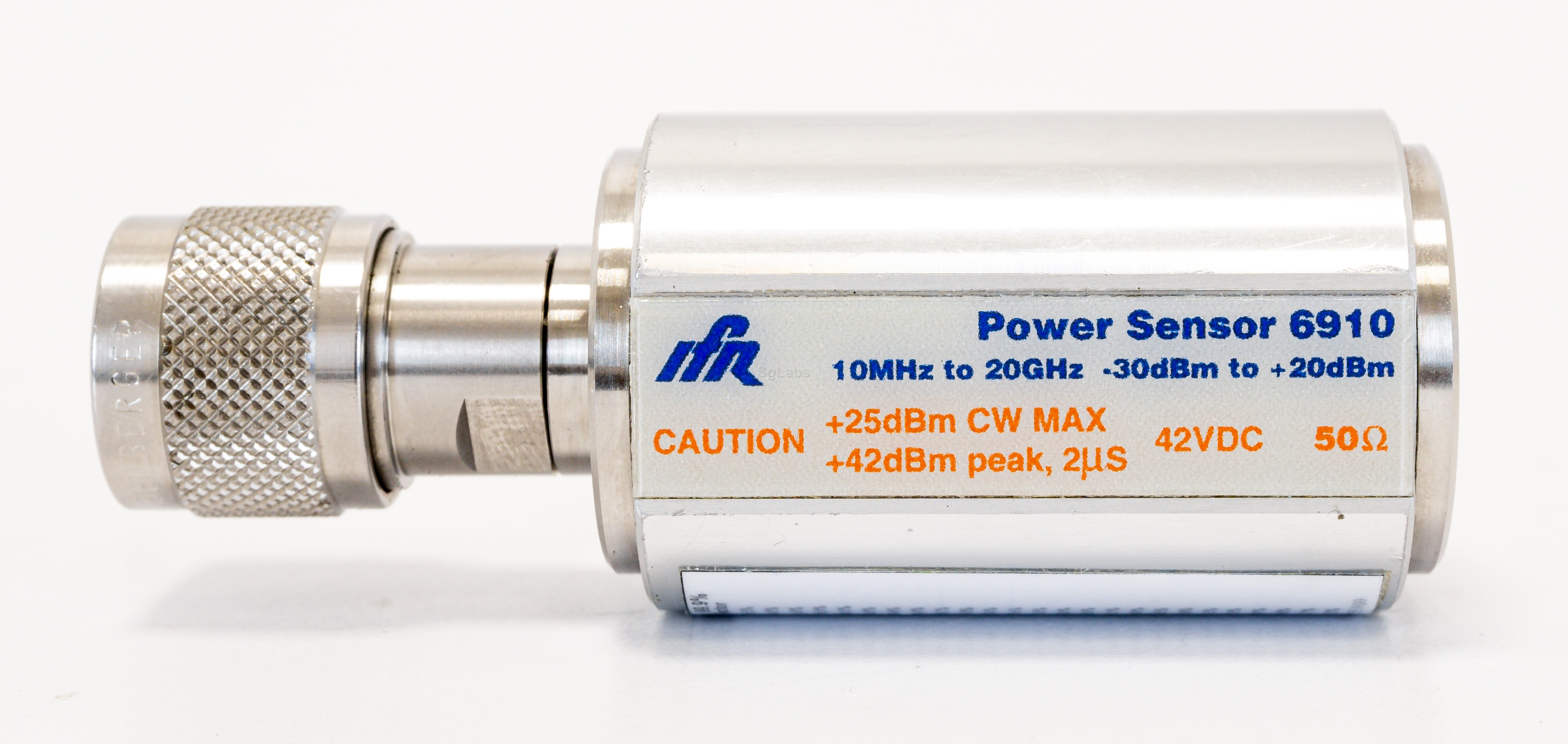

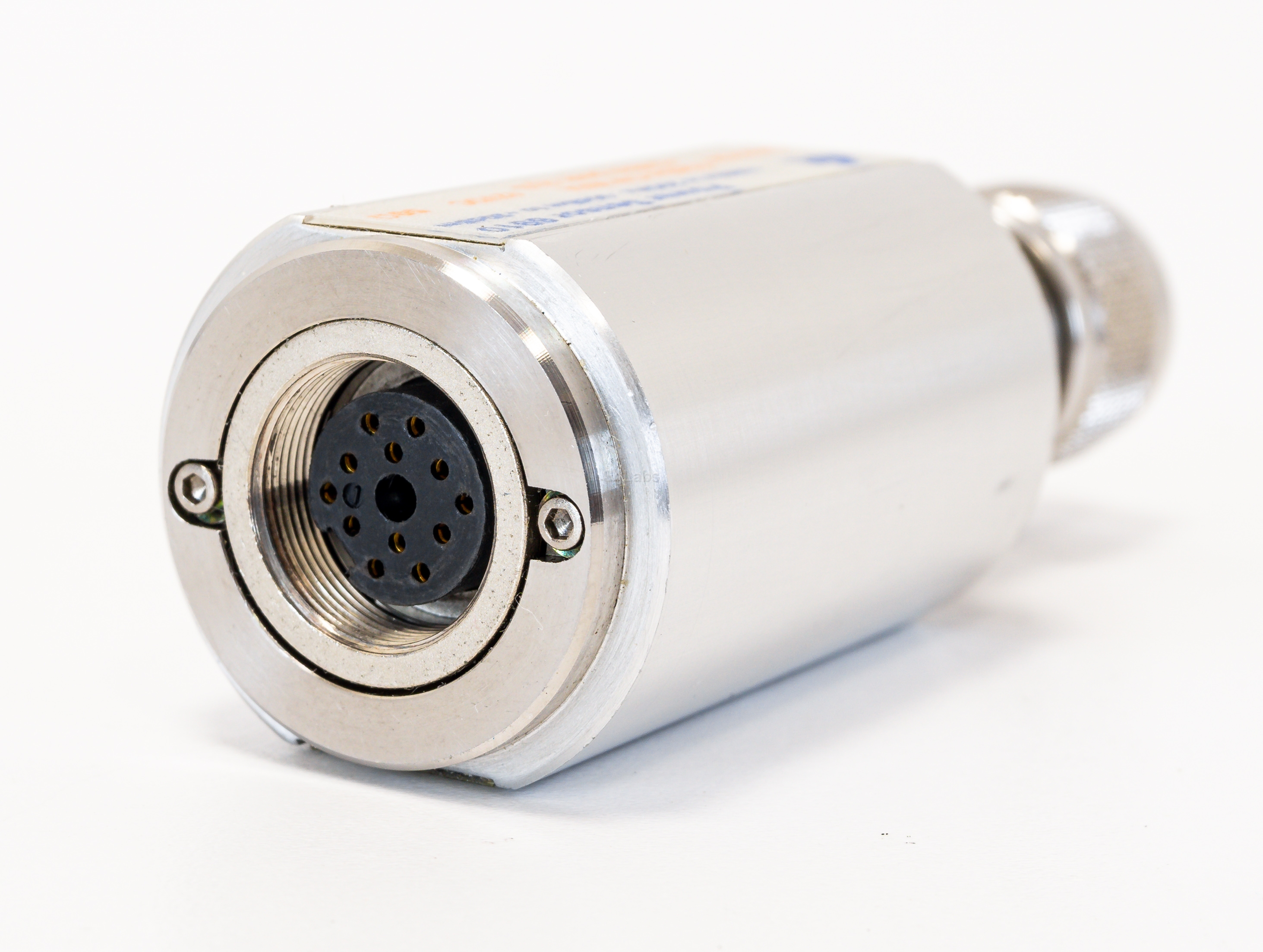

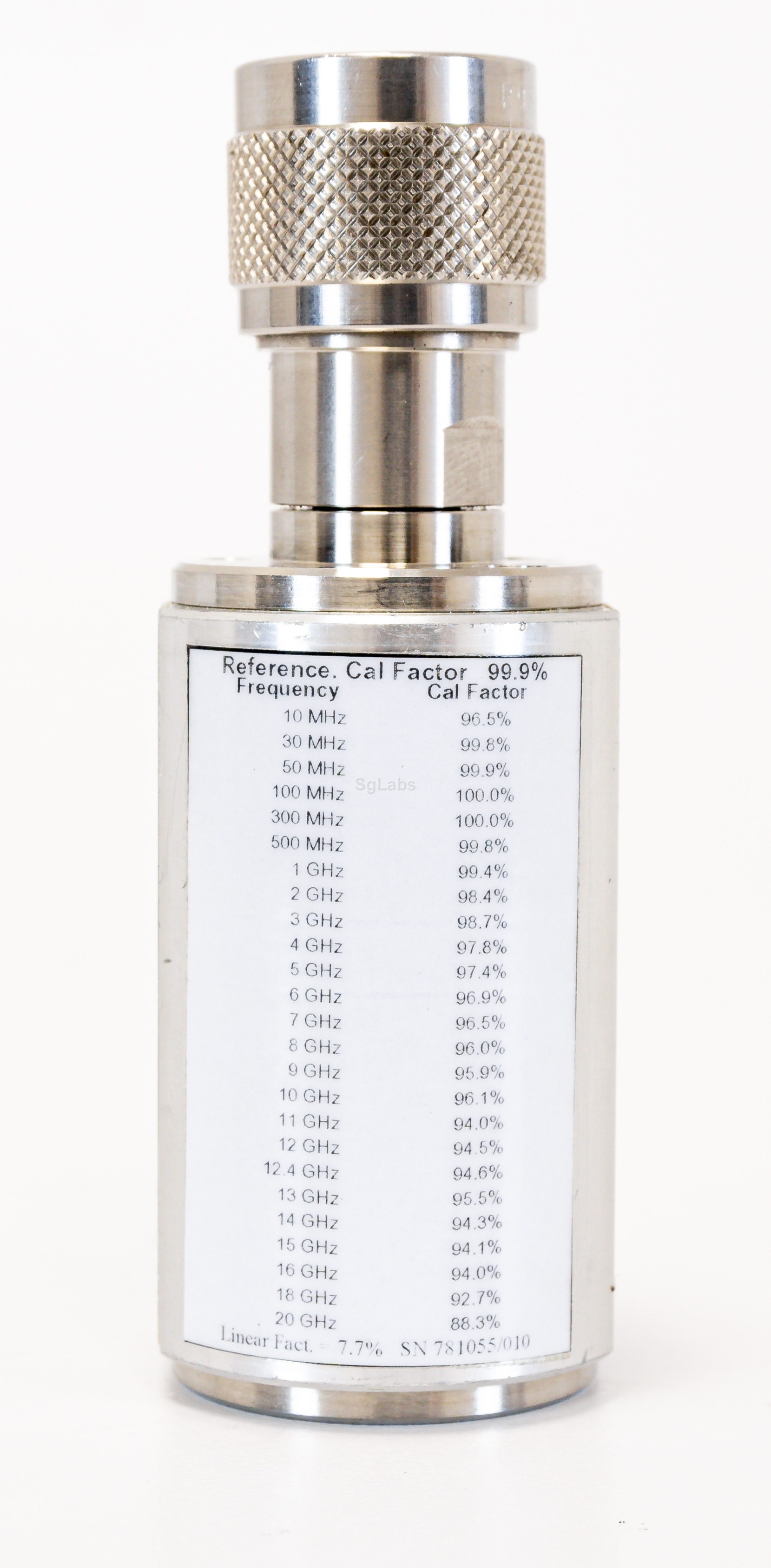

Marconi IFR Aeroflex, 6910
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Medium Power Thermocouple Power Sensors


The 6910 RF Power Sensor has a frequency range of 10 MHz to 20 GHz, an input power range of -30 dBm to +20 dBm, a VSWR of 1.8. It is designed for use with the 6950 and 6960 series Power Meters.
Features
  • Freq range: 10MHz ~ 20.0GHz
  • Power range: -30dBm to +20dBm (1 uW to 100mW)
  • Max RF i/p: +25 dBm (300 mW) CW +42 dBm (15 W) peak for 2 us
  • VSWR: 1.25 10 MHz ~ 30 MHz 1.1 30 MHz ~ 2GHz 1.18 2 GHz ~ 16 GHz 1.28 16 GHz ~ 18 GHz 1.4 typical 18 GHz ~ 20 GHz
  • Accuracy: +/-0.5% at 25 C between +10 & 20 dBm Improves by a factor of 10 for each lower rang
  • Resolution: 0.01%

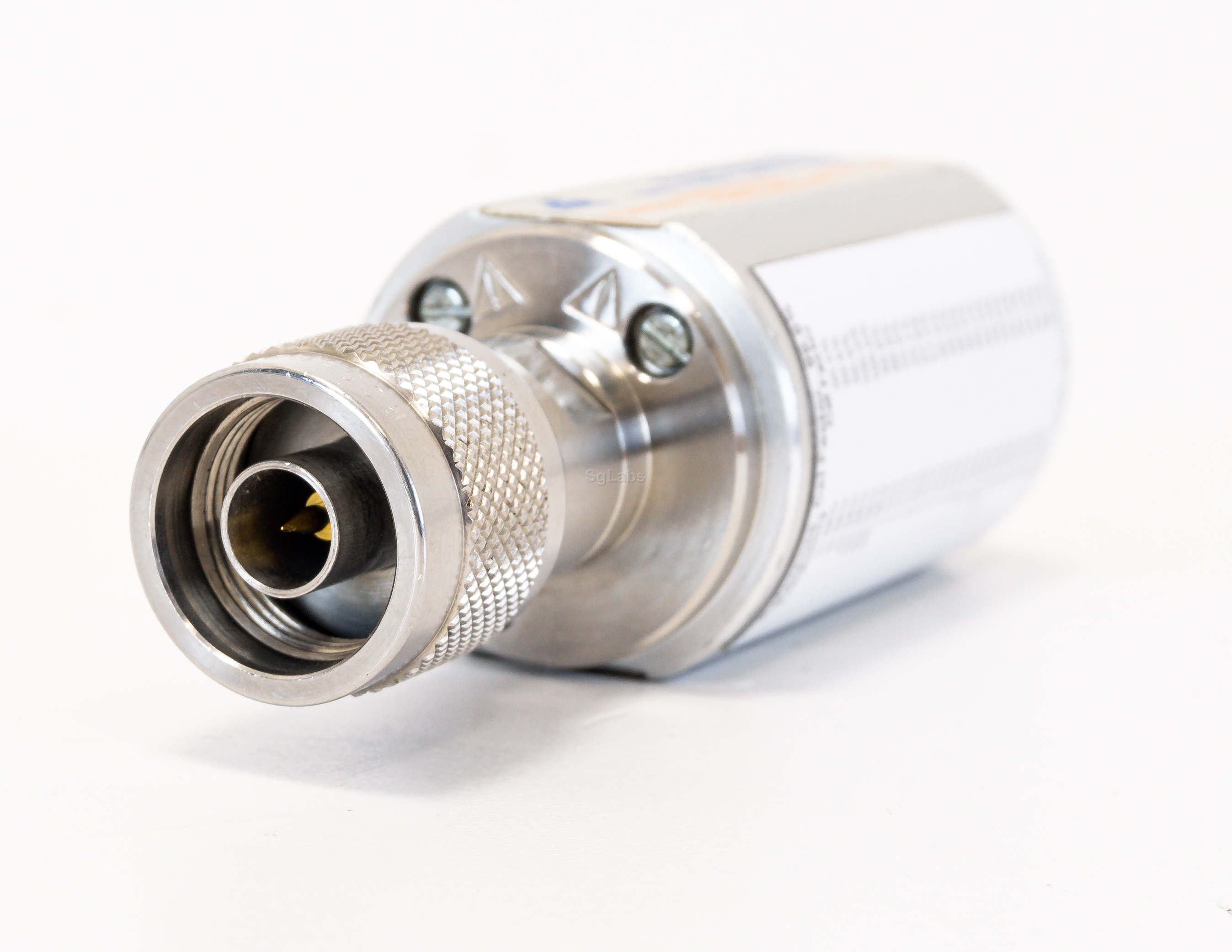

  • RF connector: Precision N-type, male 50 ohm
  • Max. Frequency: 20 GHz
  • Min. Frequency: 10 MHz
  • Max. power: +20 dBm
  • Min. Power: -30 dBm
Price
 € 320,00
