Marconi, 2305

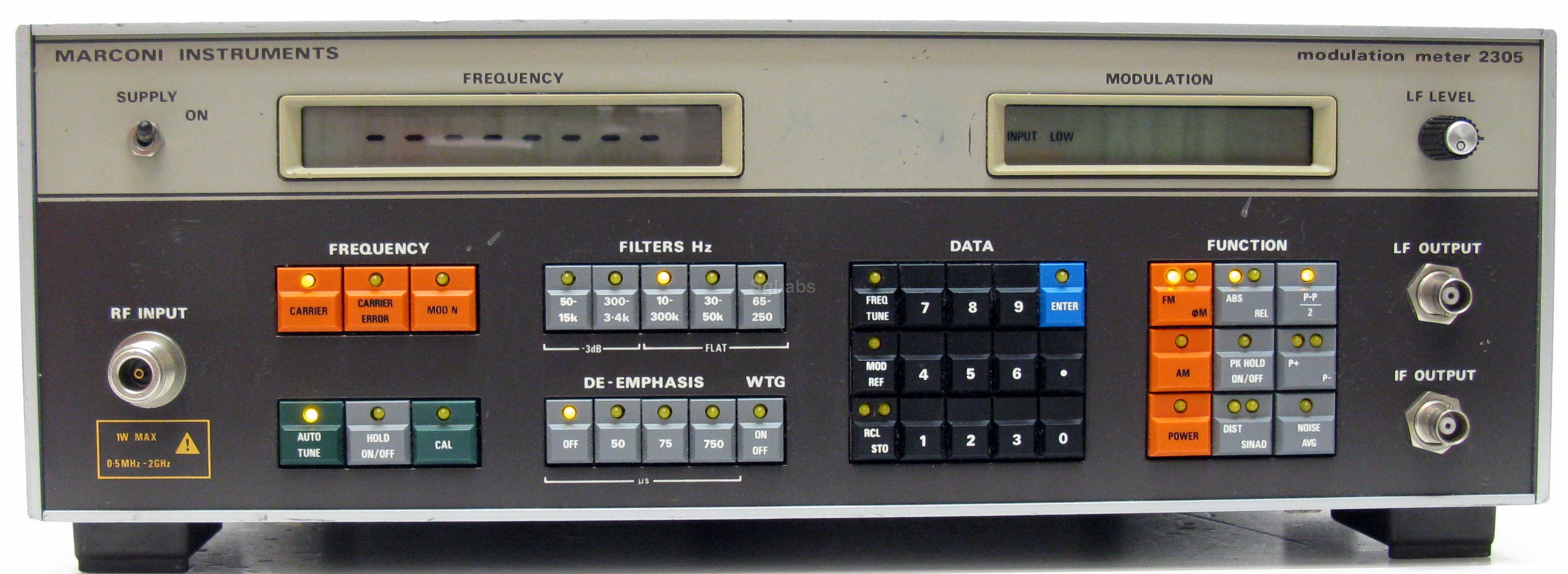

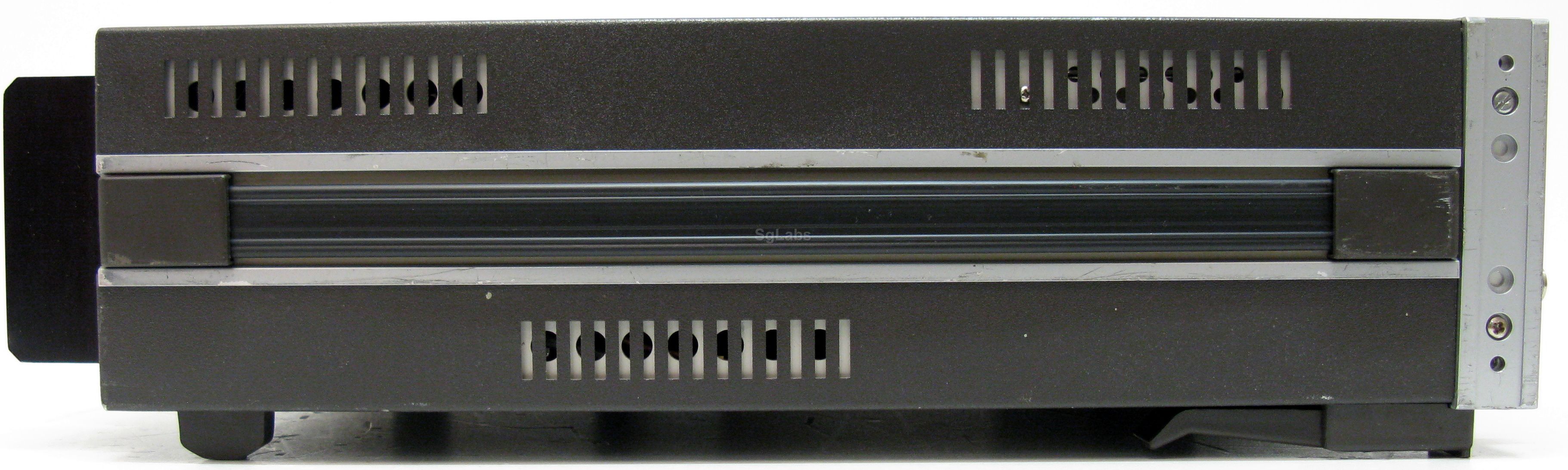

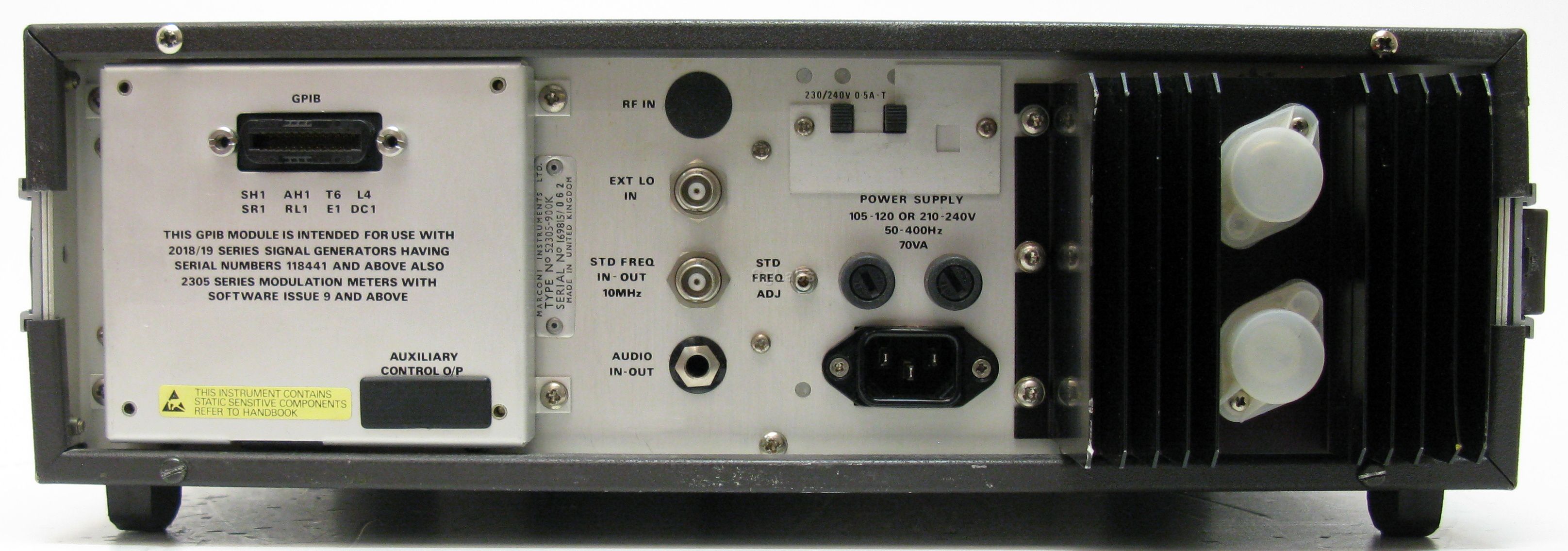

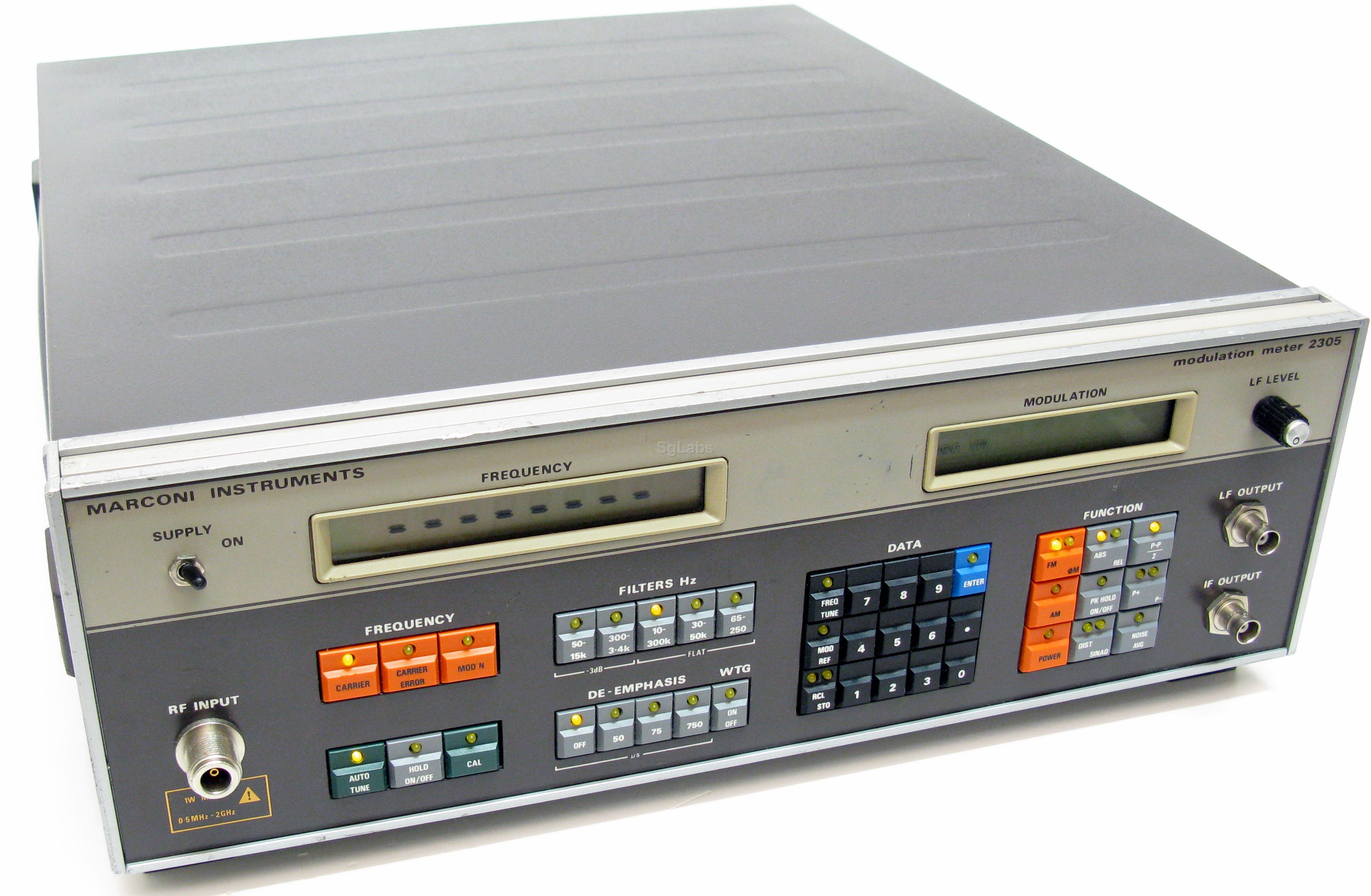

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Marconi 2305 Modulation Meter is a high performance, microprocessor controlled modulation meter with a comprehensive specification covering the carrier frequency range of 500kHz to 2GHz. Operation may be either local via the user-friendly front panel. Indication of measured quantities is provided by two LCD 7-segment displays: frequency of either the carrier or of the modulation tone and Modulation in ΦM, or radians deviation. Minimum input level of -25 dBm (500kHz to 1GHz) and -18 dBm (1GHz to 2GHz).

  • Minimum input level: -25 dBm(500kHz to 1GHz) and -18 dBm (1GHz to 2GHz)
  • Frequency range : from 500 KHz to 2 GHz
  • Internal calibrator
  • Low noise
  • Non-volatile memory
  • Frequency and power measurements
  • Modulation type: AM, FM e ΦM
  • Overload protection
  • Max. Frequency: 2 GHz
  • Min. Frequency: 500kHz
  • Min. Level: -25 dBm(500kHz to 1GHz) and -18 dBm (1GHz to 2GHz)
  • Modulation: AM, FM e ΦM
