Macom 2089-6207-00 2 Way Wilkinson Power Divider from 2 to 8 GHz

You are here: RF Component » Power splitter

Macom 2089-6207-00 2 Way Wilkinson Power Divider from 2 to 8 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

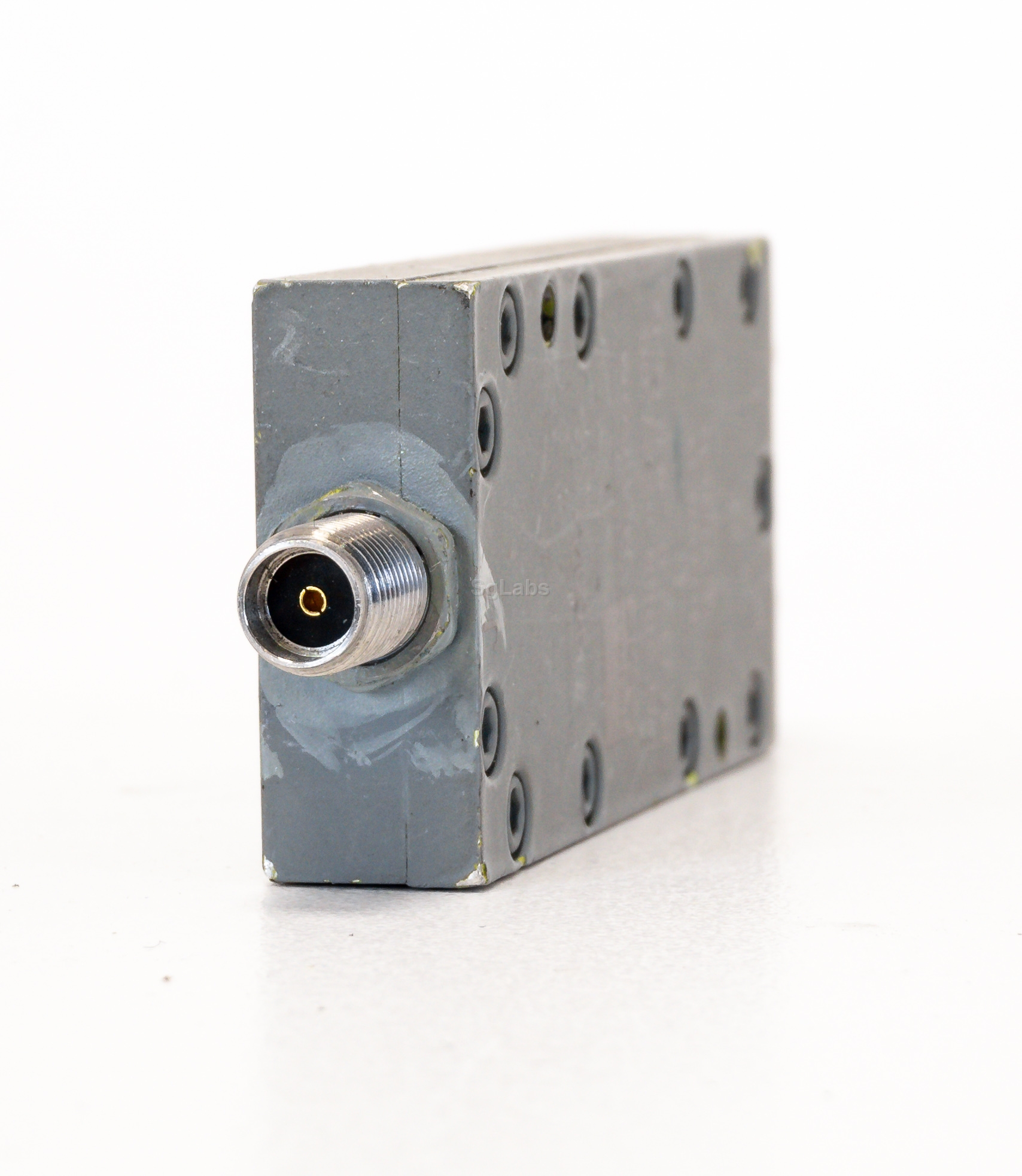

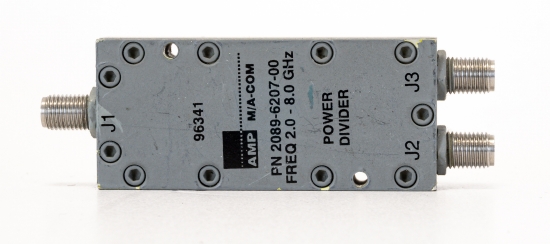

Macom 2089-6207-00 2 Way Wilkinson Power Divider from 2 to 8 GHz
Features
  • Configuration 2 Way
  • Type Wilkinson Power Divider
  • Frequency 2 to 8 GHz
  • Insertion Loss 0.4 dB
  • Isolation 18 dB
  • Input Power 4 W
  • Amplitude Balance 0.2 dB
  • Phase Balance 8 Degree
  • VSWR 1.50:1
  • Connector: SMA
  • Max. Frequency: 8 GHz
  • Min. Frequency: 2 GHz
  • Max. power: 4W
Price
 € 70,00
