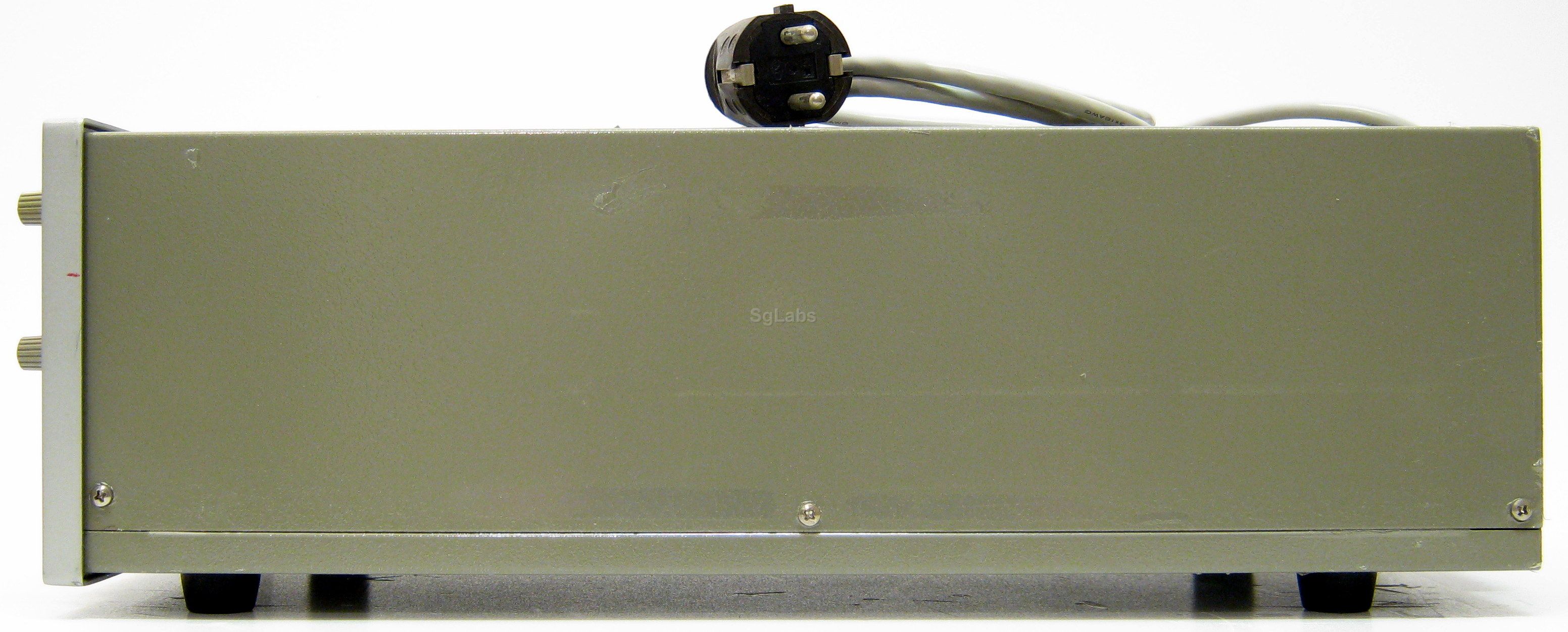

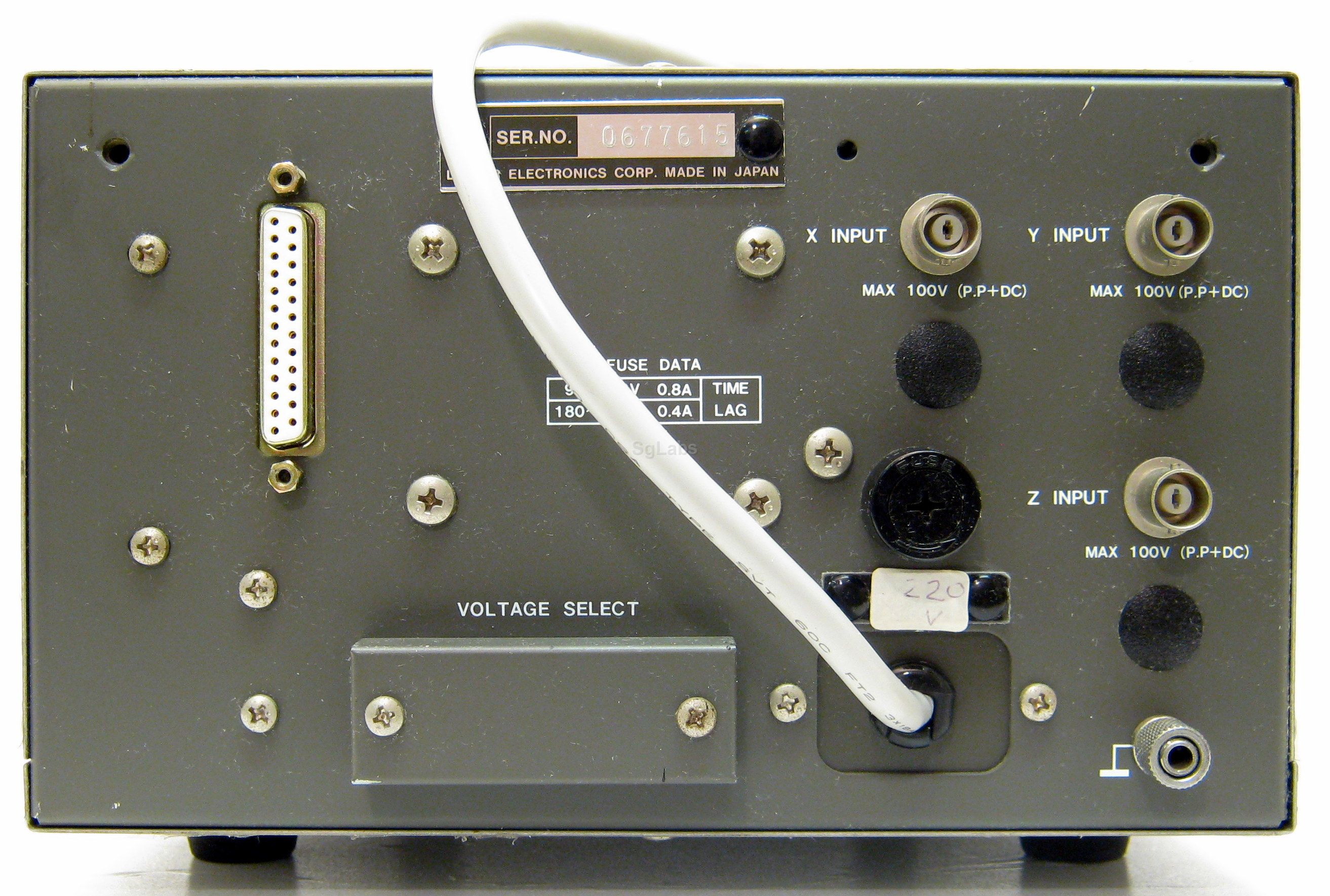

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

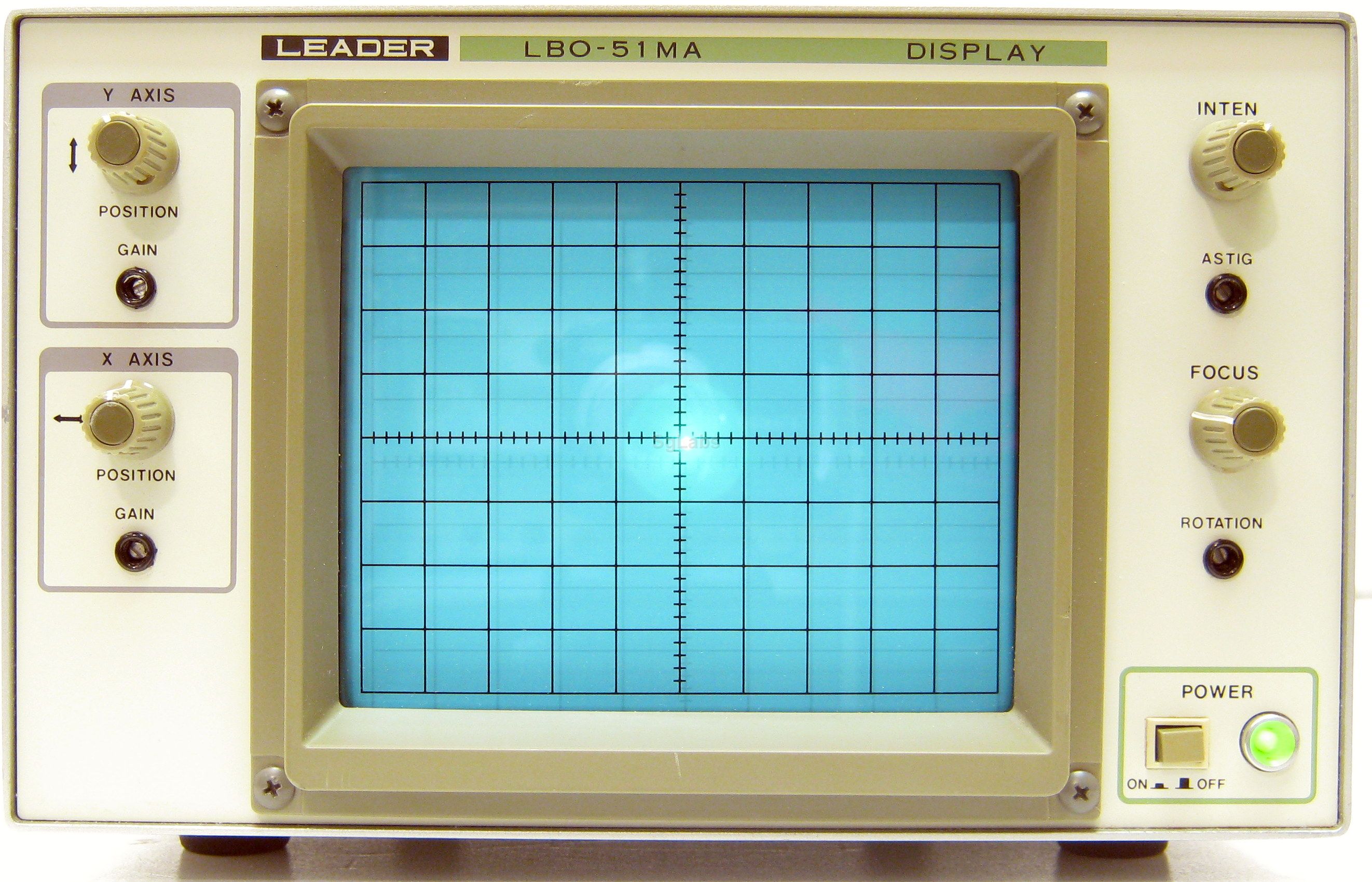

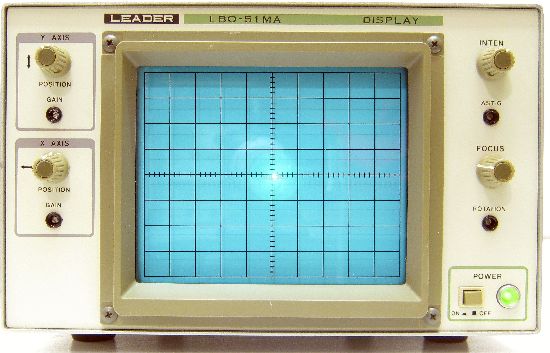

The Leader LBO-51MA is an ideal solution for those applications that require a bright, high-resolution CRT display driven from X-Y coordinate analogs and intensity (Z-axis) modulation.

The LBO-51MA is in use in a large variety of custom and OEM instrumentation applications. The CRT features small spot size over an 8 x 10 cm screen and is equipped with a removable graticule that may be overprinted with the users graphics.

Bandwidth of 3 MHz for X and Y drivers plus 4 MHz intensity modulation ensures resolution to meet demanding display needs.

Special configurations are available for use with user-supplied controls, special internally etched graticules, optional phosphors and other modifications to meet particular user requirements.

  • Designed for OEM and Custom Applications
  • Standard Half-Rack Configuration
  • 3-MHz X and Y Bandwidth
  • 4-MHz Z-Axis Bandwidth
  • P31 or Optional Phosphors
  • Removable Imprintable External Graticule
  • Custom Internal Graticules Available
  • Stereo Phase Monitoring
  • Channels: 3
  • Display: CRT
  • BandWidth: 3 MHz
