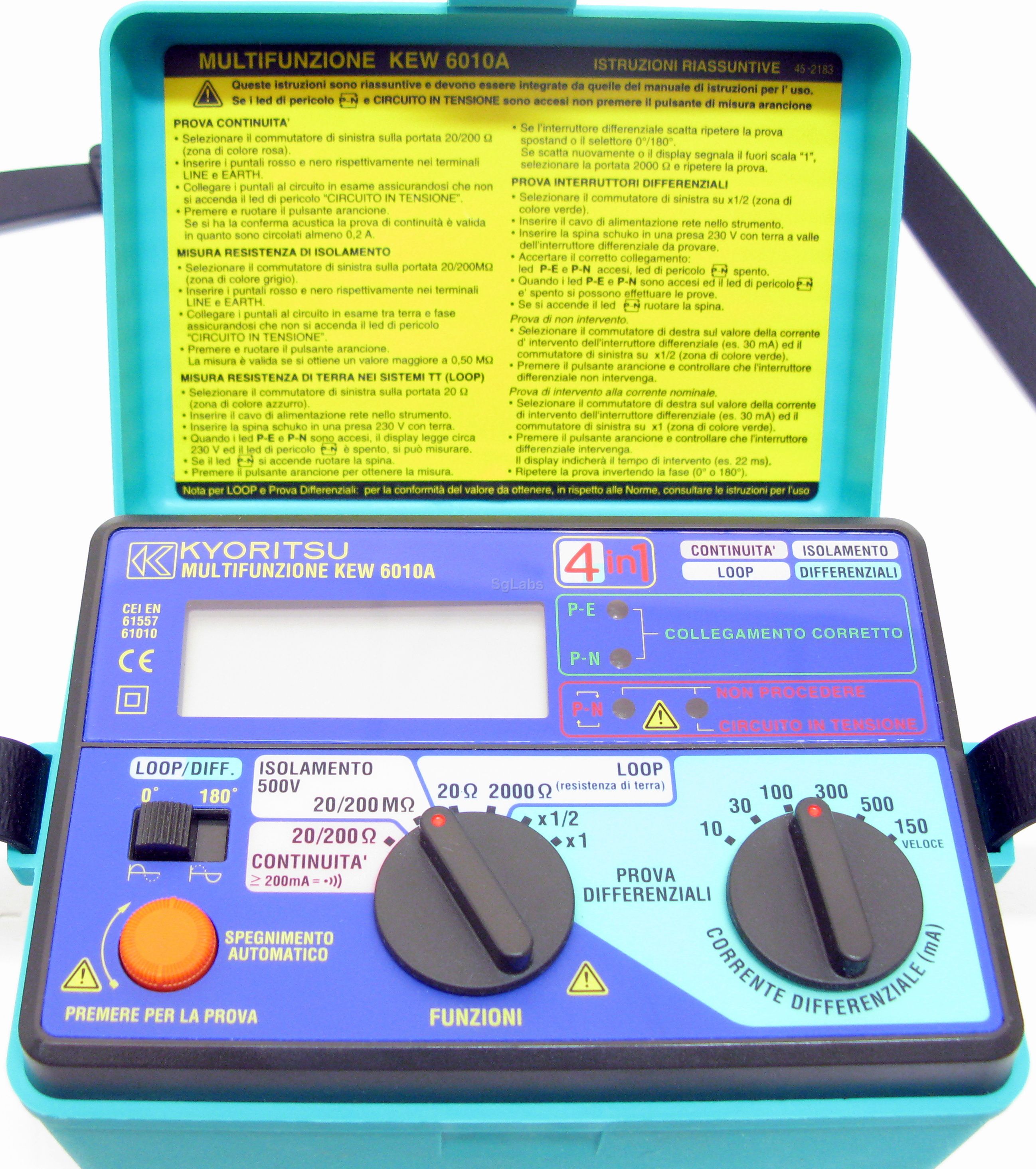

Kyoritsu, 6010A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Multi Function Testers

Continuity and Insulation Testing

  • Live circuit warning LED:
  • Immediate illumination of a warning lamp if the circuit under test is live
  • Auto Discharge:Allows fast and safe discharge of electrical energy stored in capacitive circuits following testing
  • Integral overload protection on internal continuity and insulation test circuitry
  • Autoranging
  • 500V DC test voltage for insulation tests
  • 200mA short circuit current on continuity ranges
Loop and RCD Testing
  • Wiring connection check LED’s: Immediate indication if wiring of circuit under test is correct
  • Overheat Protection: Rapid detection of overheating of internal circuitry,display of warning signal to user and automatic halting of measurement
  • Supply Voltage Indication: Can display supply voltage value in loop impedance mode
  • Low Current Loop Impedance Test: Short duration low test current will prevent tripping of many passive RCDs
  • Auto Data Hold: Retains displayed reading for set period following test
  • Phase Angle Selection: Selection of test current from +ve or -ve half cycle of waveform can prevent tripping of polarized type RCDs
Features
Continuity Testing:
  • Measuring Ranges 0~19.99 and 10.0~199.9Ω (2 auto ranges)
  • Open Circuit Voltage > 4V (as per IEC 364)
  • Short Circuit Current > 200mA DC (as per IEC 364)
  • Accuracy |±(3% + 3dgt)
Loop Impedance Testing:
  • Rated Voltage 230V AC +10%-15% (50Hz)
  • Voltage Measuring Range 100-250V AC (50Hz)
  • Impedance Range 20/2000Ω
  • Nominal Test Current 25A (20Ω range) 15mA (2000Ω range)
  • Test Period 1/2 cycle (10ms)
  • Accuracy 20Ω range : ±(3% + 8dgt)   2000Ω range : ±(3% + 8dgt)
Insulation Testing:
  • Measuring Ranges 0~19.99 and 10.0~199.9MΩ (2 auto ranges)
  • Test Voltage 500V DC
  • Output Voltage on Open Circuit 570V DC±6%
  • Rated Current > 1mA (as per IEC 364)
  • Accuracy |± (3% + 3dgt)
RCD Testing
  • Rated Voltage 230V AC +10%-15% (50Hz)
  • Trip Current Settings RCD × 1/2: 5, 15, 50, 150, 250mA RCD × 1: 10, 30, 100, 300, 500mA
  • Trip Current Duration RCD × 1/2 × 1: 2000ms
  • Fast Trip 150mA
  • Accuracy Trip current ±3% of test current at 230V.
  • Trip time ±(3% + 3dgt)
