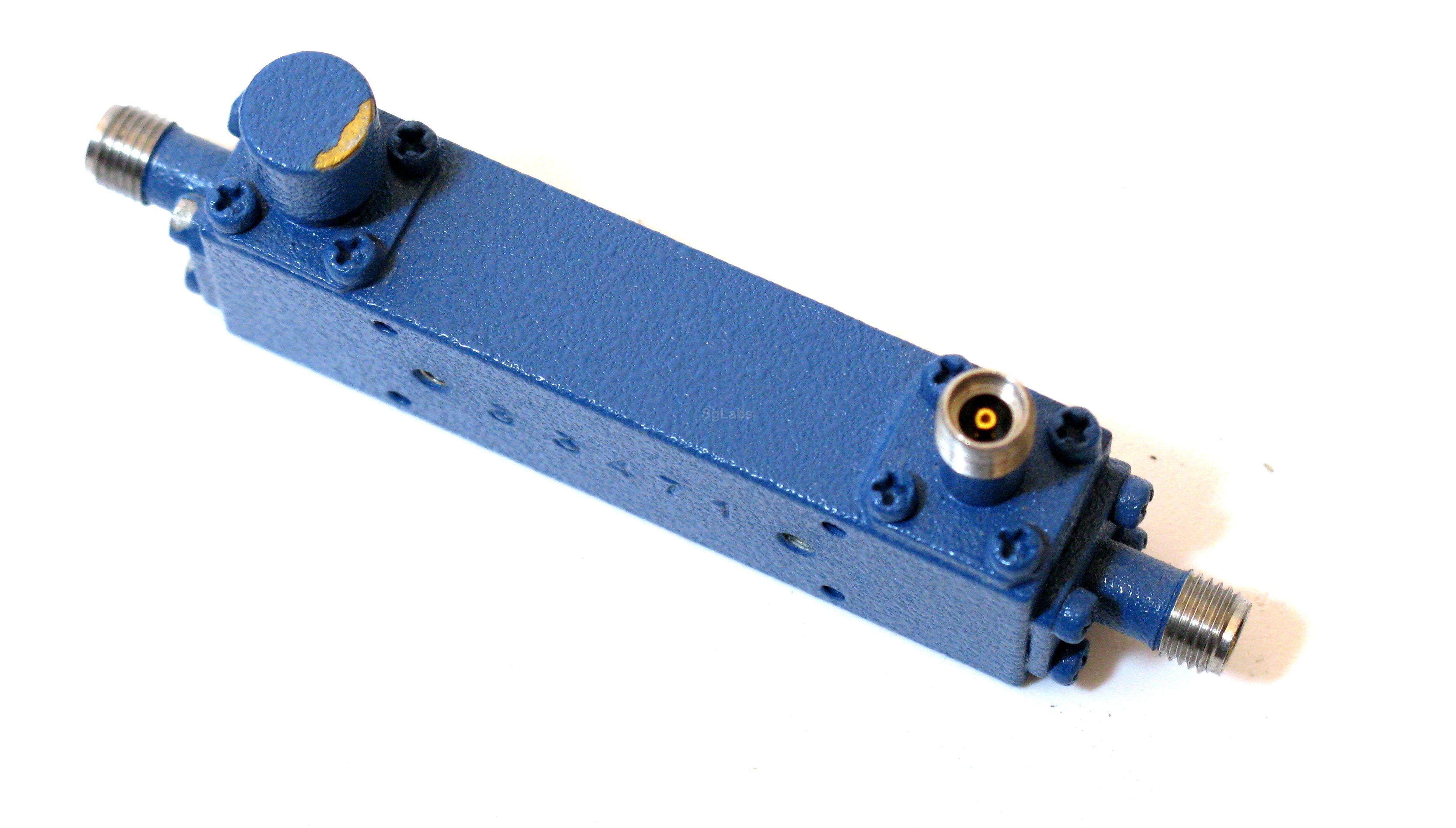

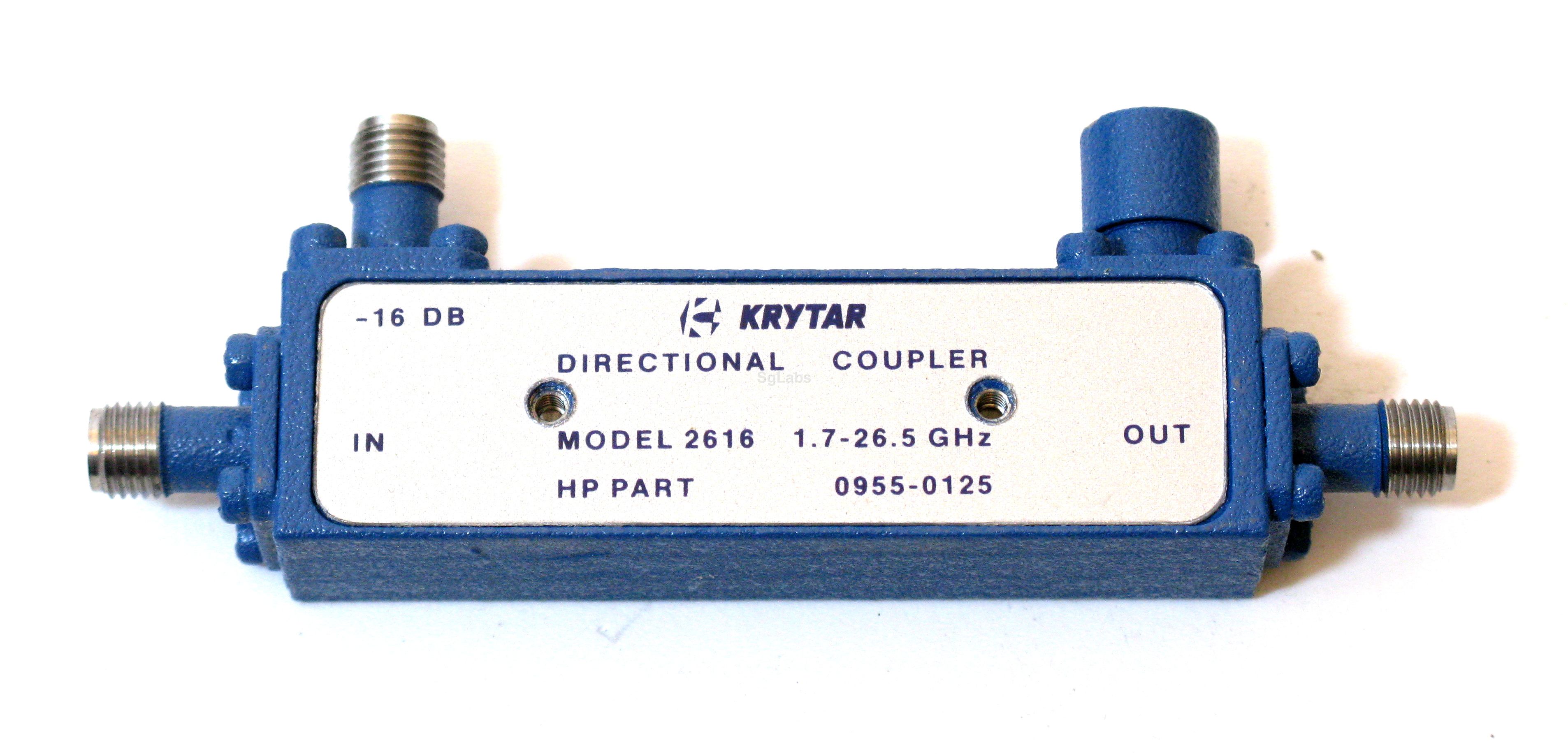

Krytar, 2616

You are here: RF Component » Directional coupler

Krytar, 2616
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Coupler like HP 0955-0125 from 8340B
Used in:
  • 11826C
  • 8340B
  • 83622A
  • 83630A
  • 83630A-H43
  • 83630A-H53
  • 83630AR
  • 83630B-H43
  • 83631A
  • 85105A
  • 85105A-K10
  • 85105A-K12
  • 85105A-K50
  • 8510C
  • 85110A
  • 85110A-H50
  • 85110A-H51
  • 85110A-H53
  • 85110A-H70
  • 85110A-H72
  • 85110A-H74
  • 85110A-H75
  • 85110A-H77
  • 85110A-H78
  • 85301A-S57
  • 8673B
  • 8673D
  • N5260A
Features
  • Frequency Range: 1.7 - 26.5 GHz
  • Coupling: 16 dB
  • Directivity: : >16dB up to 18GHz, >14dB up to 26.5GHz
  • Max VSWR: 1.35 up to 18GHz, 1.45 up to 26.5GHz
  • Connectors: SMA female
  • Attenuation: 16dB
  • Connector: SMAf
  • Directivity: >16 18GHz, >14 26.5GHz
  • Max. Frequency: 26.5GHz
  • Min. Frequency: 1.7GHz
  • Max. power: 20W
  • VSWR / RL: 1.35 18GHz, 1,45 26,5GHz
Price
 € 220,00
