Khron-Hite, 521

You are here: Calibrator » Voltage

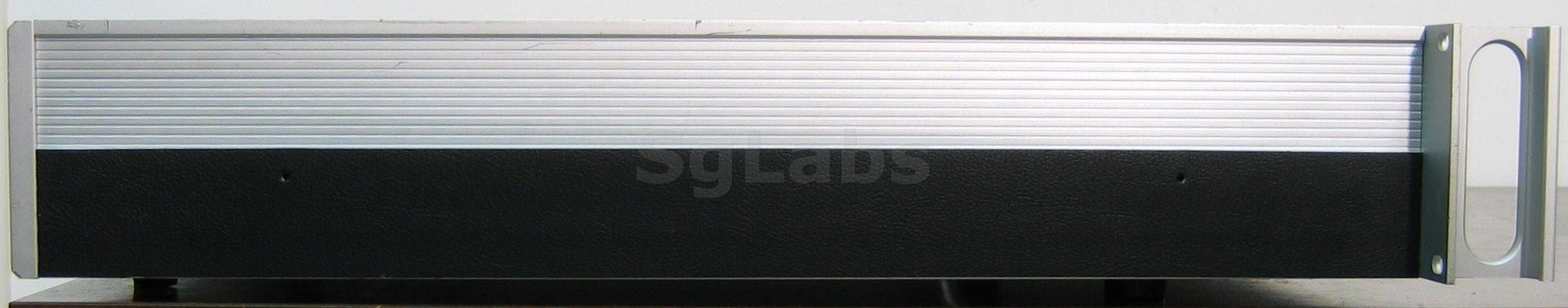

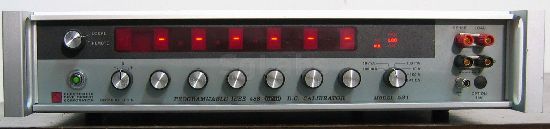

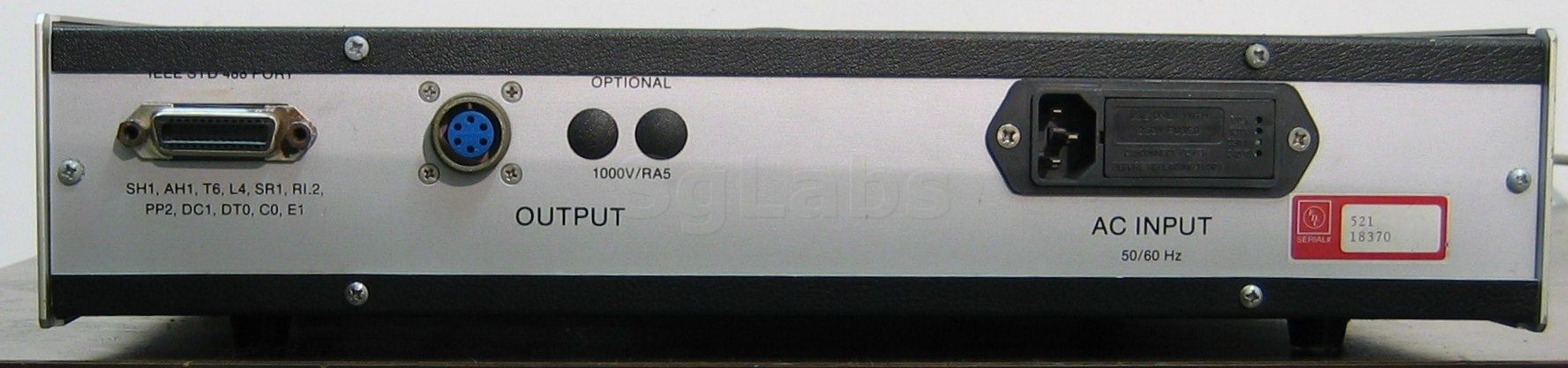

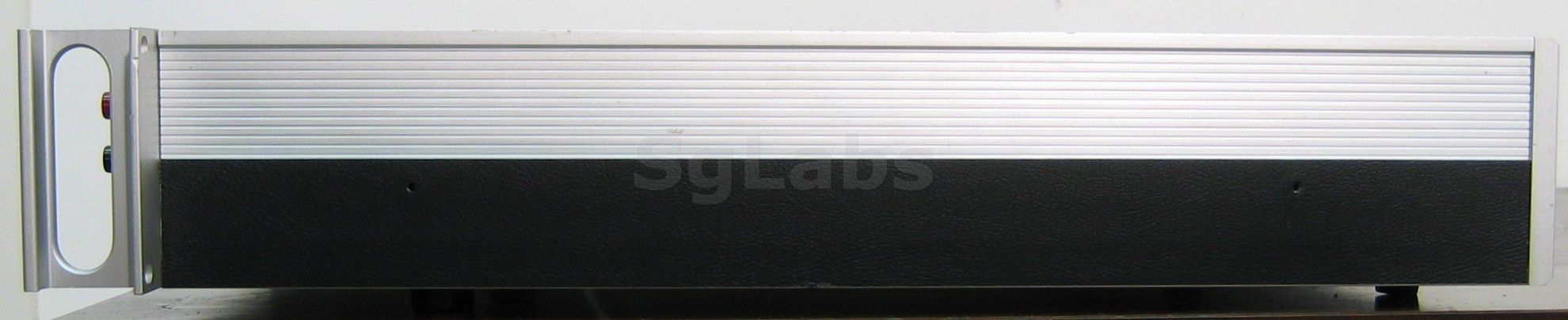

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

Technical details :

"Limit Of Error” (or Worst Case) methods.
E Mode: ±(0.002% of setting + 0.0005% of range)
I Mode: ±(0.005% of setting + 1µA) compliance with variable control)
Accuracies based on one full year calibration cycle and conservatively specified by using the "Limit-Of-Error" (or worst case methods).
3 voltages ranges:
±100Vdc resolved to 100µV
±10Vdc resolved to 10µV
±100mVdc resolved to 0.1µV
2 current ranges:
±100mAdc resolved to 0.1µA
±10mAdc resolved to 0.01µA
Programming: Integrated microprocessor, GPIB interface. Local and remote control.
The control logic is microprocessor based.
True bipolar control with balanced zero.A “crowbar” zero reference may be selected.
Resolution 6 digits or 1 ppm

VOLTAGE MODE

Range	Full Scale	Resolution	Current	Zo
100mVdc	±111.1110mVdc	100nVdc	EMF	20 ohms
10Vdc	±11.11110Vdc	10µVdc	100mAdc	10 milliohms
100Vdc	±111.1110Vdc	100µVdc	100mAdc	10 milliohms
1000Vdc	±1111.110Vdc	1mV	5mAdc

Noise and Ripple:
Range	0.1-100kHz
100mV	16µVrms
10V	50µVrms
100V	150µVrms
1000V	15mVrms

CURRENT MODE

Range	Full Scale	Resolution 1ppm	Voltage Compliance**
10mAdc	±11.111 10mAdc	10nAdc	0-±100Vdc **
100mAdc	±111.111 0mAdc	100nAdc	0-±100Vdc **
**Compliance Voltage Limit Control: The Compliance voltage may be limited via a manual control. The limits are ±100V, ±46V, ±32V, ±18V, ±4V, ±1V.

Accuracy: (See definitions under voltage mode) ±[0.005% of setting + 1µA].
Stability (*non-additive): 8 hrs, ±0.001%; 90 days, ±0.0015%;1 year, ±0.002%.
Line & Load Regulation (*non-additive): ±0.0005% for a 10% line fluctuation and from short-circuit to full compliance.

Applications:
Calibration of DVMs, DMM, meters, chart recorders, A/D converters, ATE, monitors, controllers, logging
systems, etc.
