JDSU GenComm, GC724B

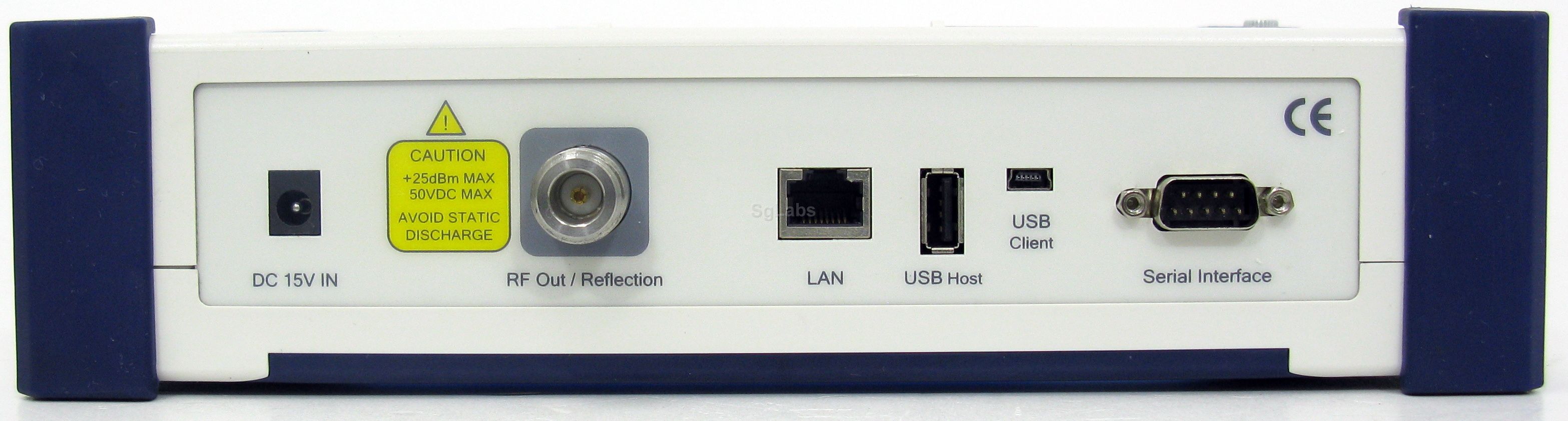

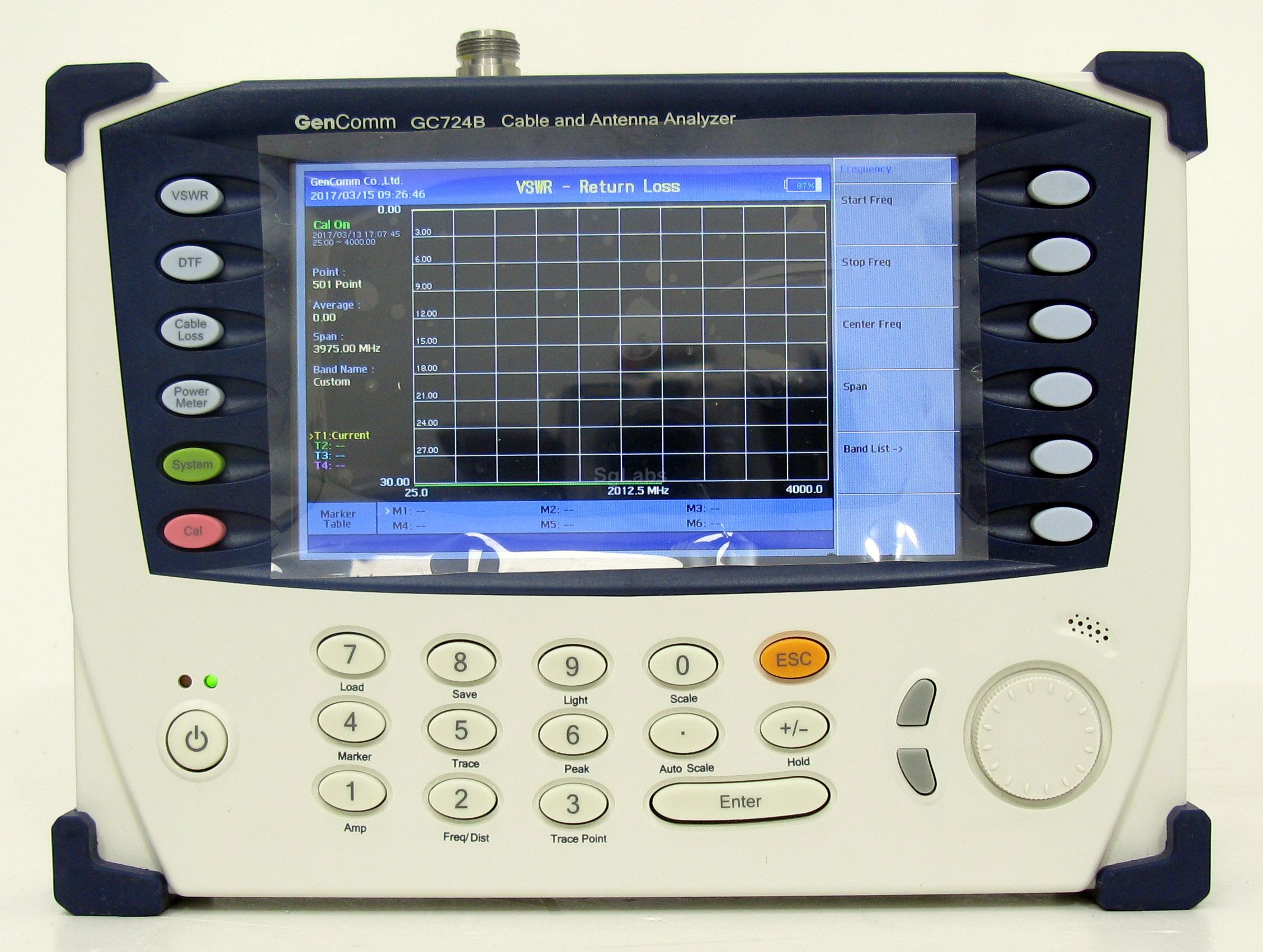

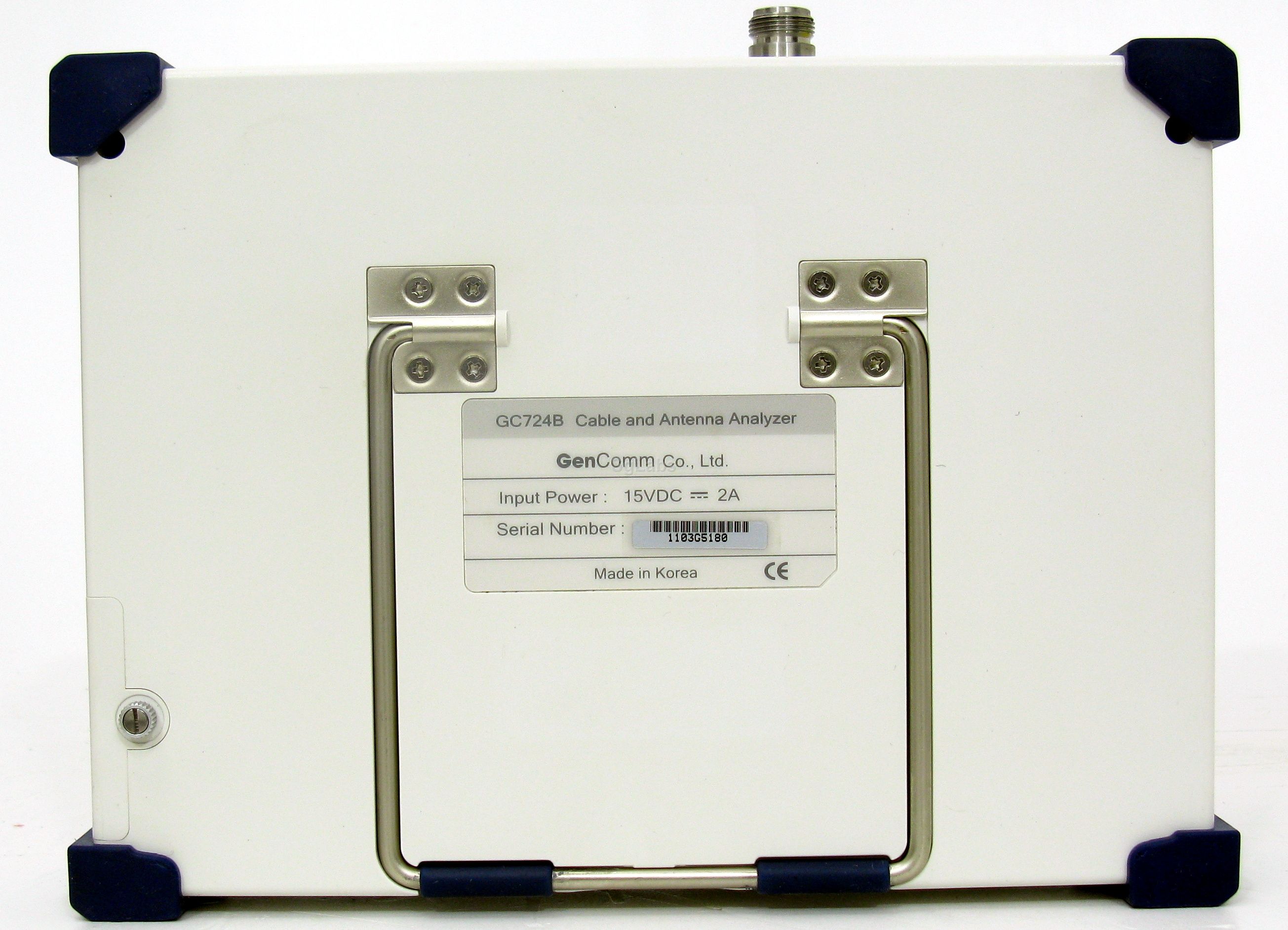

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The GC723A and GC724B Cable and Antenna Analyzers are the optimal portable diagnostic tool needed to accurately detect operational  problems in cell sites. The GC723A and GC724B have all of the measurement functions necessary to accurately verify the site’s antenna system from VSWR to power measurements. In addition, the GC723A and GC724B make distance-to-fault measurements in order to  accurately locate the fault’s location.

A touch panel operation with a 7" color display allows measurements to be easily made and displayed. Its application specific software,  GCViewer, allows the user to easily compare and analyze measurements and generate professional reports. The GC723A and GC724B  were designed for field testing operation and are equipped with a rechargeable field replaceable lithium-ion battery, which enables  continuous operation for more than three hours.
- Key Measurements:
  • VSWR
  • Cable Loss
  • DTF (Distance to fault)
  • Power Meter

- Features

  • Portable and lightweight instrument < 2.0kg (4.4lbs)
  • Handheld operation
  • Built-in worldwide RF signal standards and frequency bands
  • 7 inch TFT color display (viewable in daylight)
  • Easy to operate through touch screen
  • Superior immunity to RF interferences
  • Up to 1001 data points to locate long distance problems
  • External USB memory capability
  • Up to 6 trace markers
  • Saves up to 20 user definable setups
  • Interface with application software, GCViewer, for data management
  • Saves up to 400 measurement traces
  • Saves up to 100 measurement screens
  • Alphanumeric labeling of saved measurements
  • Automatic time stamps of saved data
  • Rechargeable and field replaceable lithium-ion battery
  • Connector: N
  • Max. Frequency: 4 GHz
  • Min. Frequency: 25 MHz
  • Interface: LAN, USB, RS232
