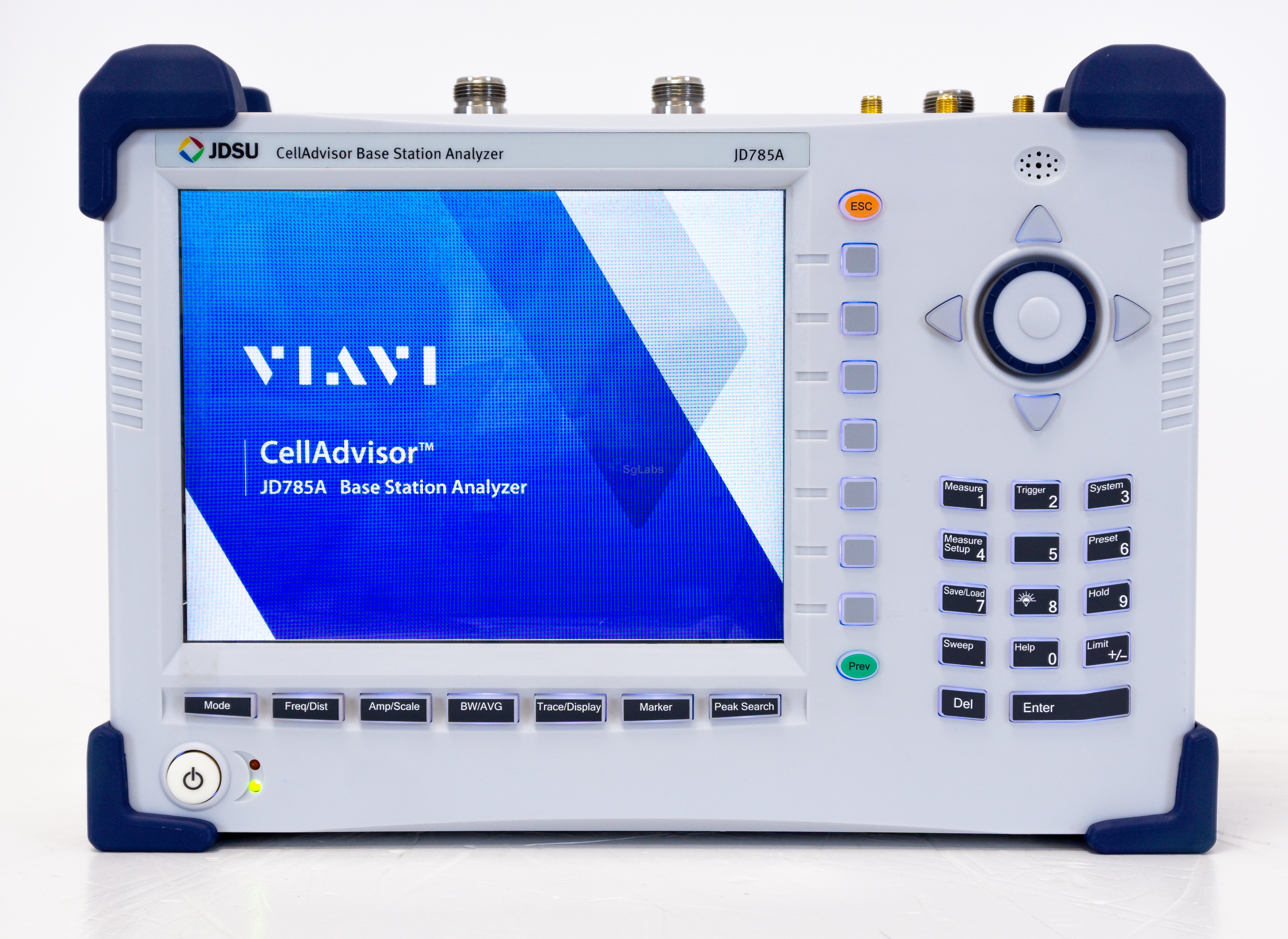

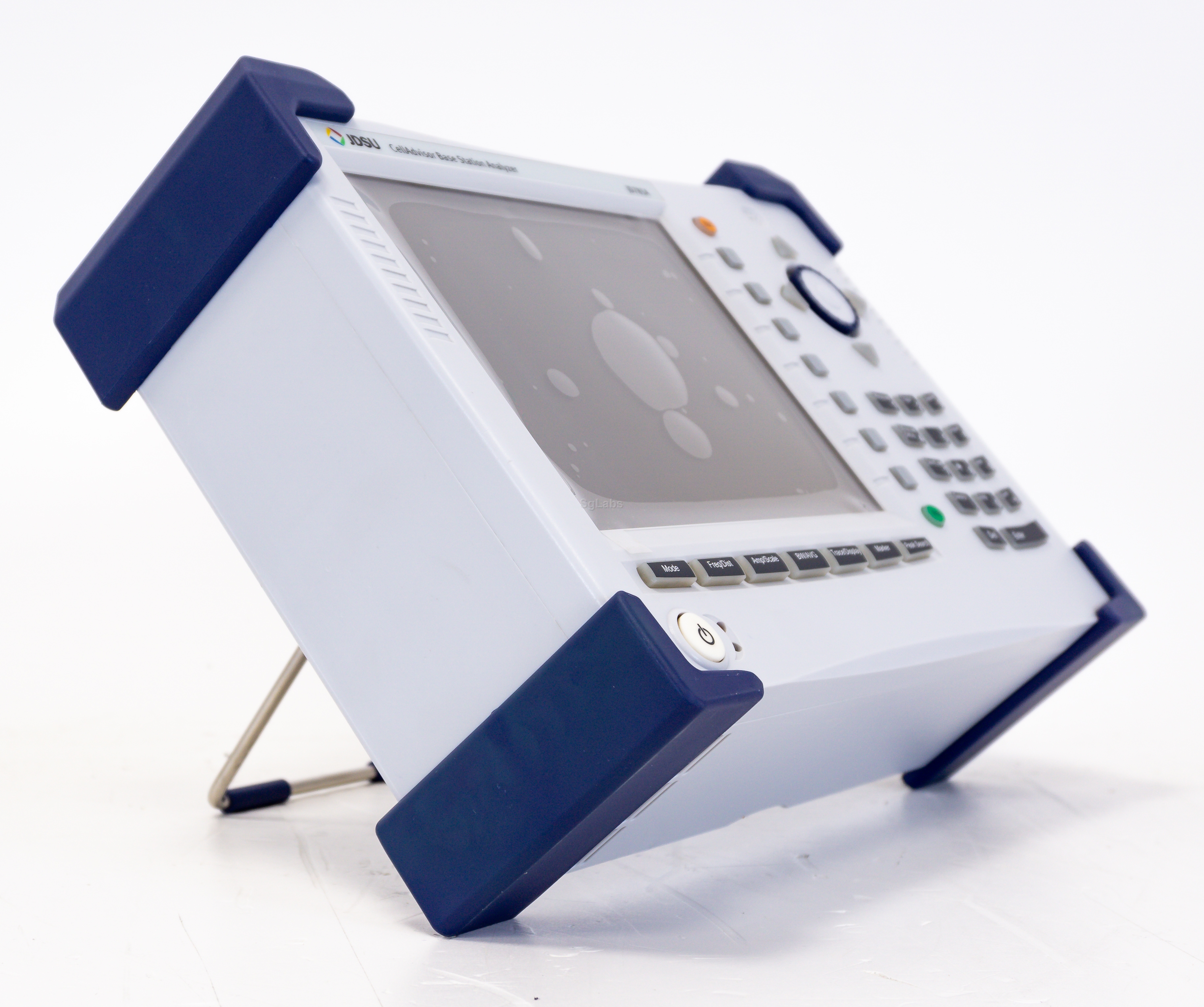

JD785A Spectrum Analyzer, VNA, CW Generator, Ros Meter 8 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

A CellAdvisor JD745B/JD785B Base Station Analyzer is the optimal test tool for installing and maintaining cell sites. It contains all the features and capabilities required for field testing cell sites for all 2G to 4G wireless technologies.

Equipped with one-button standards-based measurements for wireless signals, the analyzer offers a full scope of BTS conformance tests. Its combined functionality includes spectrum analysis, cable and antenna analysis, an RF/optical power meter, interference analysis, a channel scanner, RFoFiber™ , and signal analysis.


Standard features include:

Spectrum analyzer

Cable and antenna analyzer

RF power meter


Advanced features include:

Interference analysis

Channel scanner

2-port transmission

CW signal generator


GPS receiver

Built-in bias tee

Optical power meter

Fiber inspection with pass/fail (requires P5000i microscope)*

Cloud Enabled via StrataSync™*

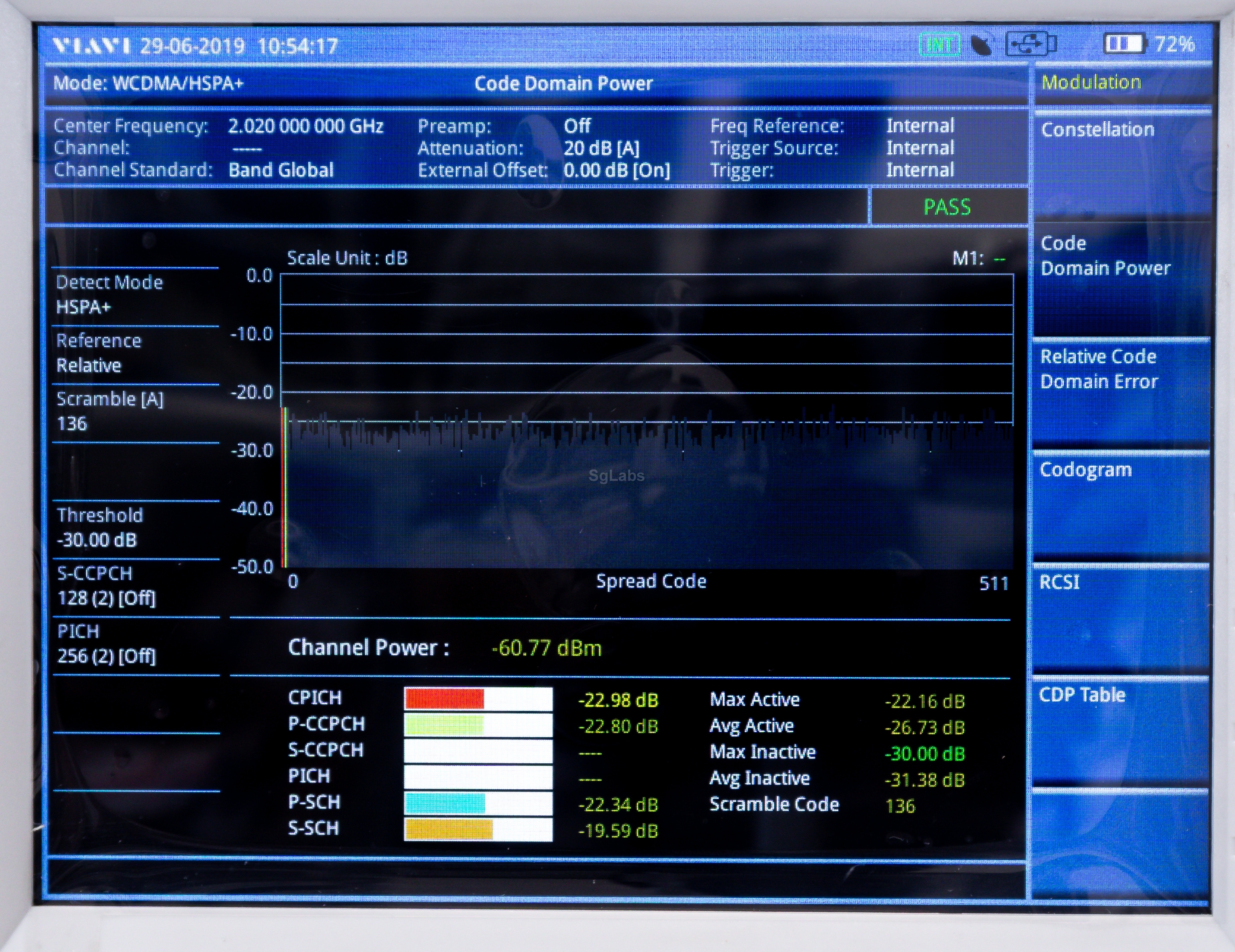

Signal analysis of cdmaOne/cdma2000, EV-DO, GSM/GPRS/EDGE,


and LTE/LTE-Advanced—TDD


Highlights and capabilities include:

Full LTE test capabilities

LTE MBMS (multimedia broadcast multicast service)

Passive intermodulation (PIM) detection

Dual spectrum

Spectrum replay

Dual spectrogram

Remote control

Coverage mapping

Remote wireless connectivity via Bluetooth®

Radar chart

BBU emulation

  • Spectrum analyzer 9 kHz to 8 GHz
  • Cable and antenna analyzer 5 MHz to 6 GHz
  • RF power meter 10 MHz to 8 GHz
  • 2-Port Transmission Measurements (option 001)
  • GPS Receiver and Antenna (option 010)
  • Interference Analyzer (option 011)

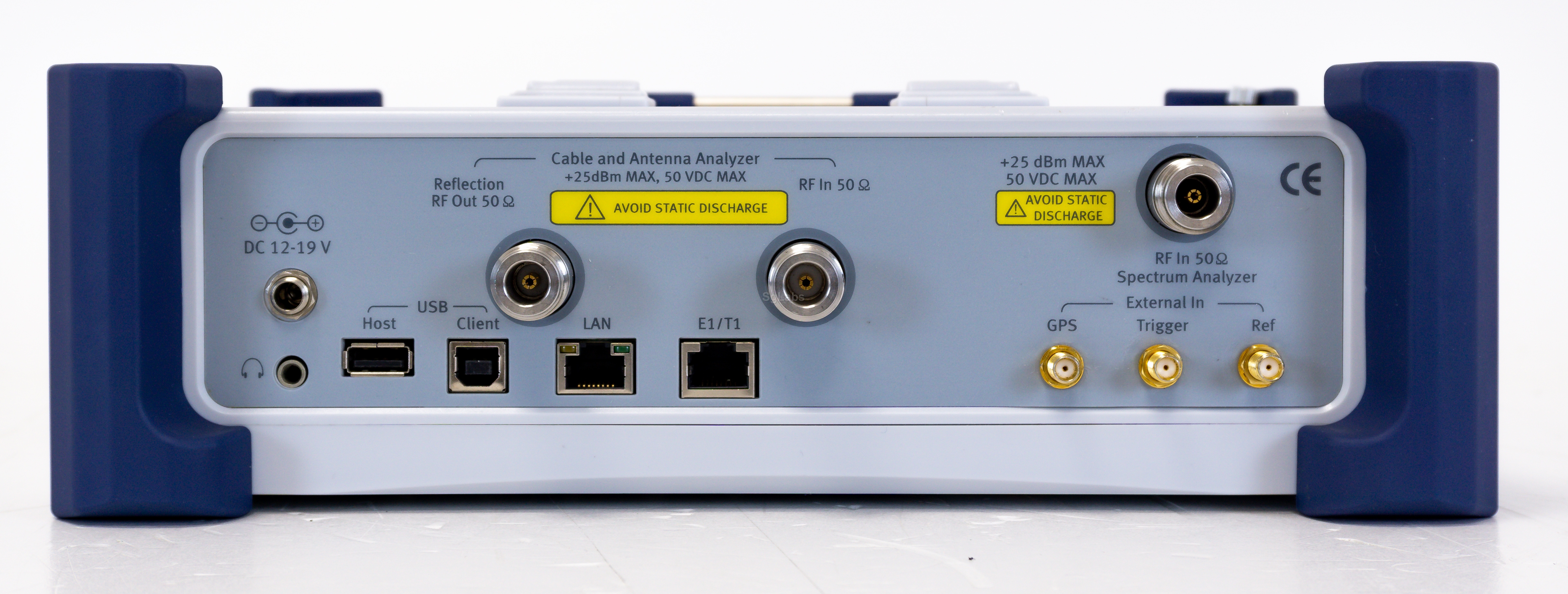

  • Connector: Nf
  • Demodulator: AM FM
  • Display: Color LCD
  • Max. Frequency: 8 GHz
  • Min. Frequency: 9 kHz
  • Max. power: +25 dBm
  • Source: Interna
  • Measure: Vector
  • Interface: USB, LAN
 € 3.800,00
