GwInstek, GDS-820C

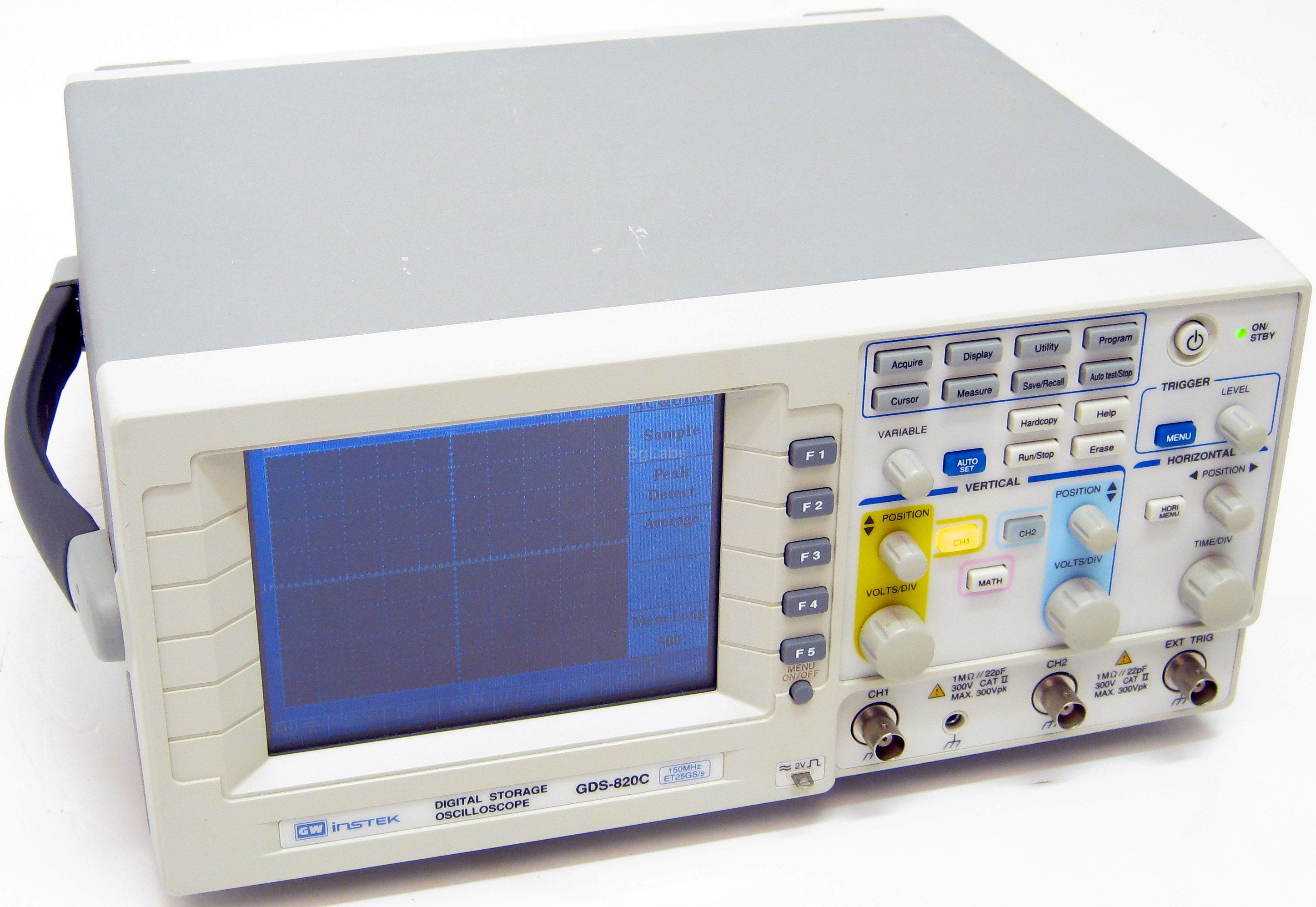

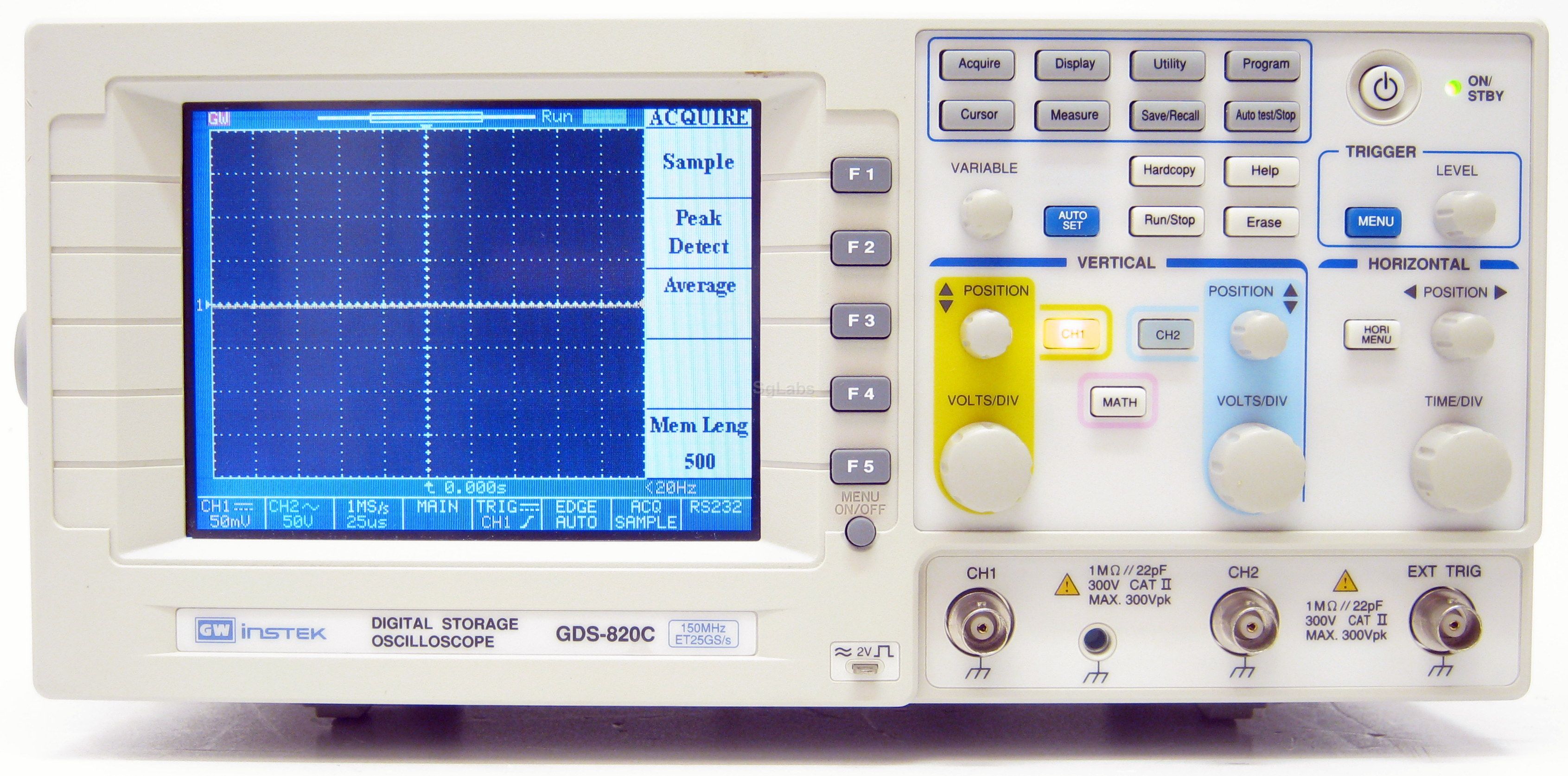

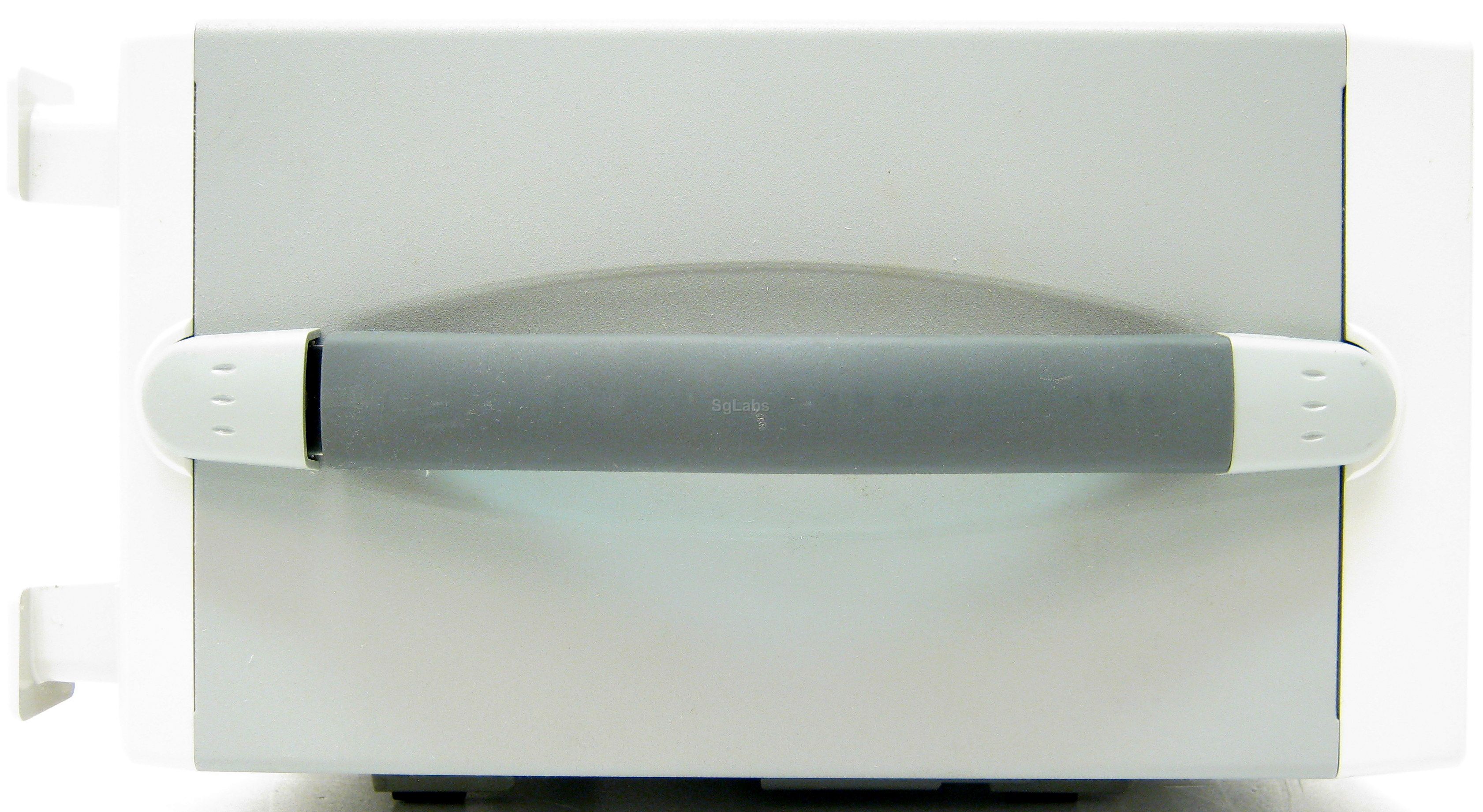

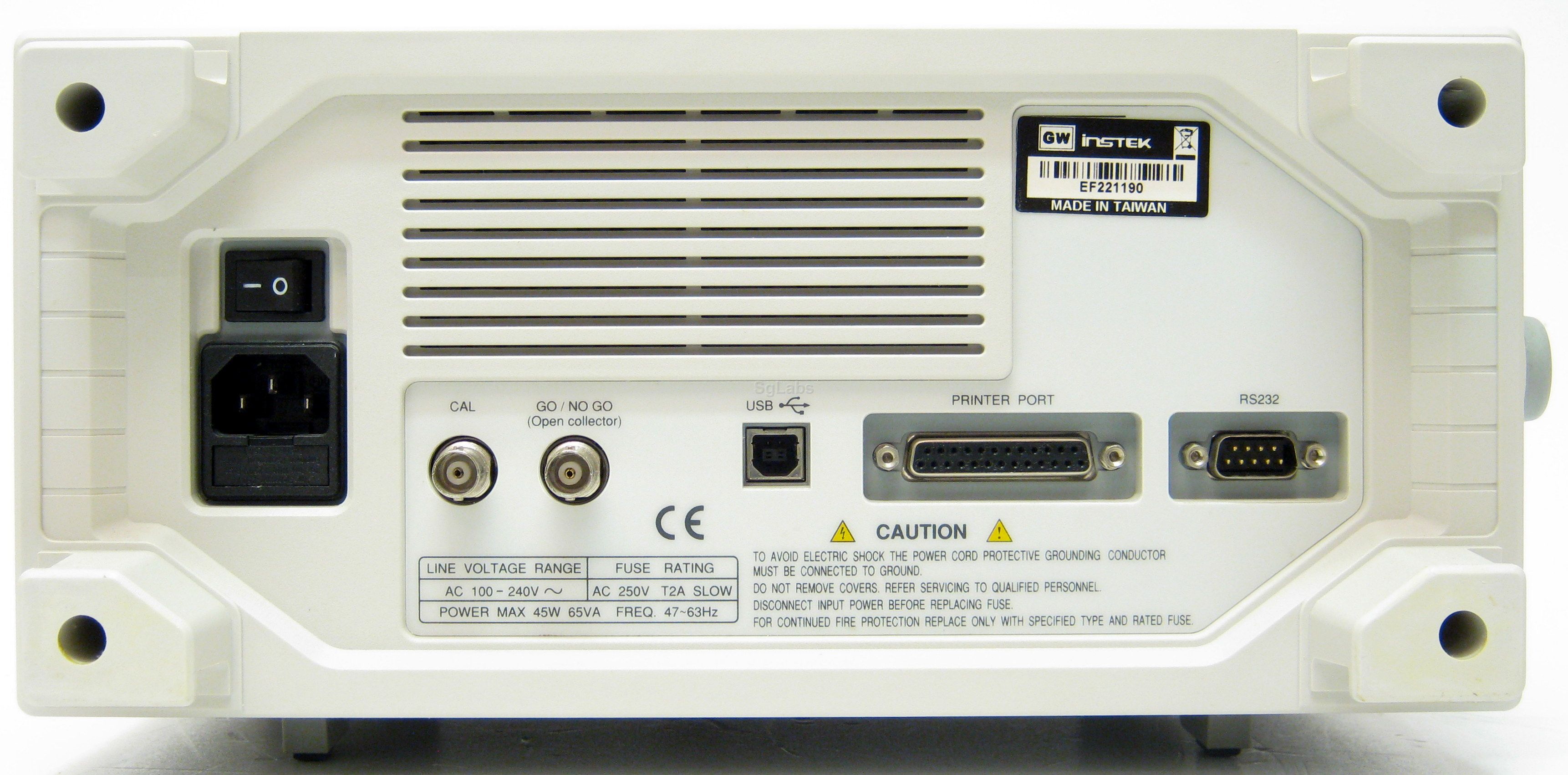

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
GDS-800 Series DSO is designed for and built to meet the demands of a modern Digital Storage Oscilloscope in today's mainstream market. Featuring color or monochrome LCD displays, 125k points of memory, and 25GSa/s equivalent-time (ET) sampling rate per channel, the GDS-800 Series provides a good balance between memory depth and sampling speed. With RS-232C, USB, Go/NoGo, standard printer port (excluding GDS-806/810), and optional GPIB interface, the GDS-800 Series is remarkably adaptable. The easy-to-remember menu tree, the analog-scope like front panel design, the advanced trigger functions including Pulse Width, TV Line, Event and Time-Delay make the general purpose GDS-800 Series able to meet the rigors of most signal measurement requirements in the market.
  • 150MHz Bandwidth With Color/Mono LCD Display
  • 125k Long Memory and 12 Division Horizontal Display
  • 25GS/s Sampling Rate for Repetitive Waveforms
  • Advanced Trigger:Pulse Width,TV Line,Event Delay And Time Delay
  • Go-NoGo and Auto Setup Sequence
  • FFT Function
  • Built-In Help Manual, Multi-Language and PC Software
  • Standard Interface: USB, RS-232C, Printer Port, Go/NoGo Output
  • Option: GPIB Interface
  • Channels: 2
  • Display: Color LCD
  • BandWidth: 150 MHz
  • Sampling: 100 MSa/s (25GSa/s ET)
