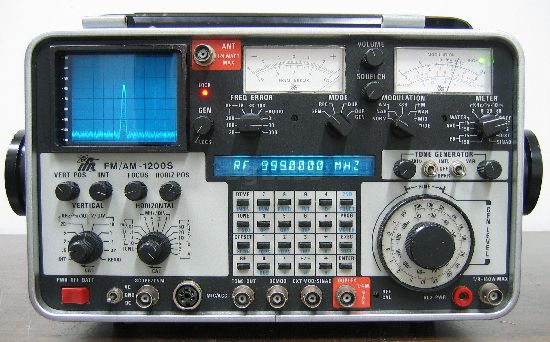

The IFR 1200S designed for land mobile professionals with demanding RF testing requirements, the 1200 Super S has a sensitive 2 μV triple conversion receiver capable of monitoring AM, FM and SSB carriers within the low band, VHF, UHF and high band ranges.Depending on your specific needs, the 1200 Super S also gives you the choice of receiving straight “off the air” or through a direct connection to a T/R port. Recognized for its versatility, the 1200 Super S supports DCS, DTMF and pulsed audio signaling formats. The 1200 Super S also meets RF measurement needs for: RF frequency error, RF power, Audio frequency error, CTCSS frequency, CTCSS modulation.
Technical details:
RF Signal Generator
Frequency range 250 kHz to 1 GHZ
Frequency resolution 100 Hz
Output level -127 to -20 dBm
Output resolution 10 dB steps with 11 dB vernier
Duplex generator
Frequency range 0 to 50 MHz from receive frequency
Frequency resolution 2.5 kHz
Output level -40 dBm (Low), -15 dBm (High) into 50 Ω
Modulation FM, AM
Audio generators
Receiver
Frequency range 250 kHz to 1 GHZ
Sensitivity 2 μV
Antenna Input Protection 0.25 W
RF Frequency Error Meter
AF Frequency Error Meter
FM Deviation Meter
AM Modulation Meter
RF Power Meter
Distortion Meter
SINAD Meter
Spectrum Analyzer
