Hughes, 8015H15F000

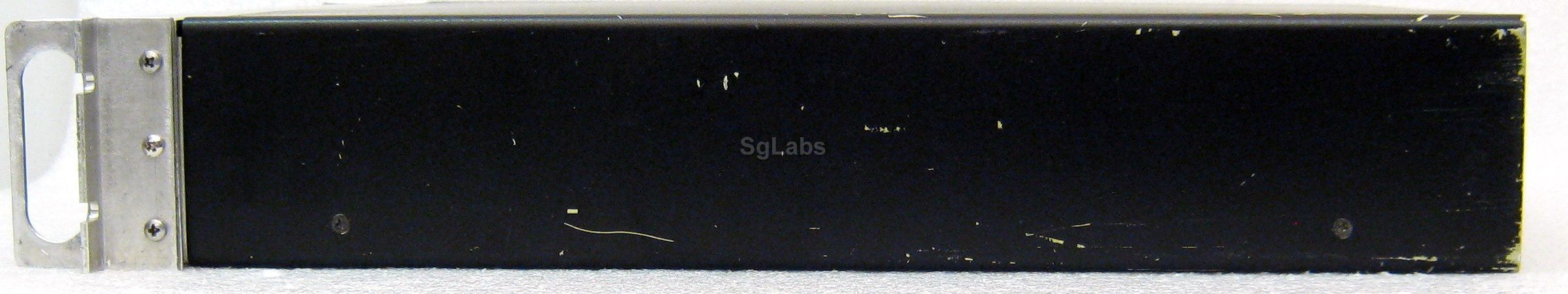

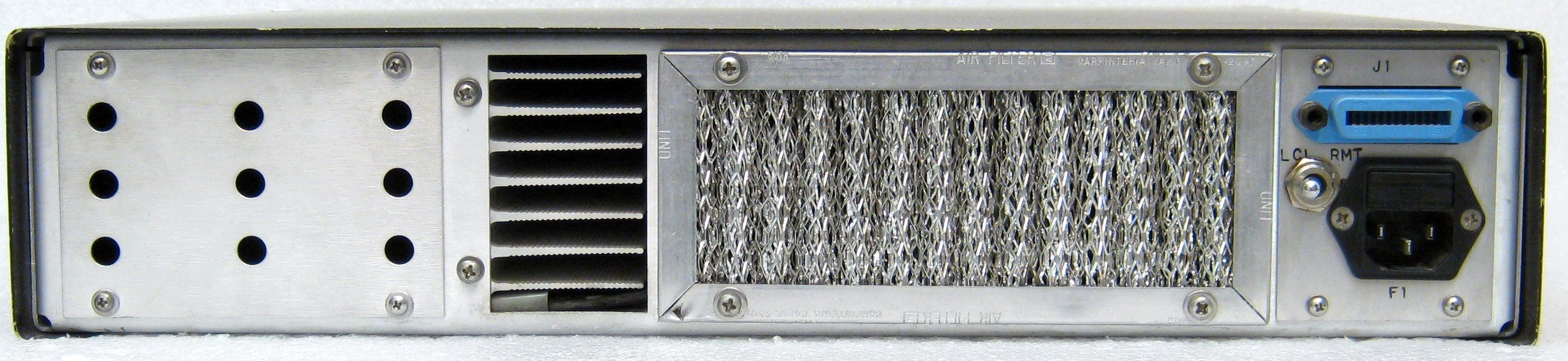

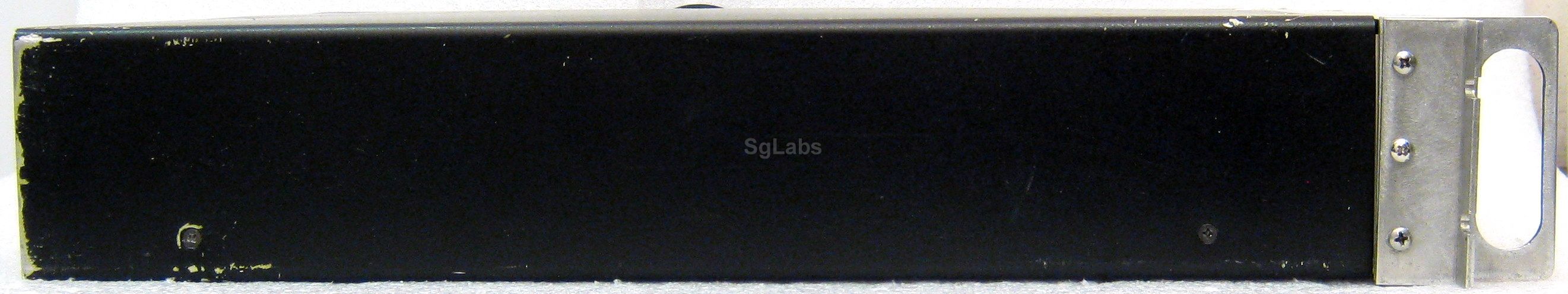

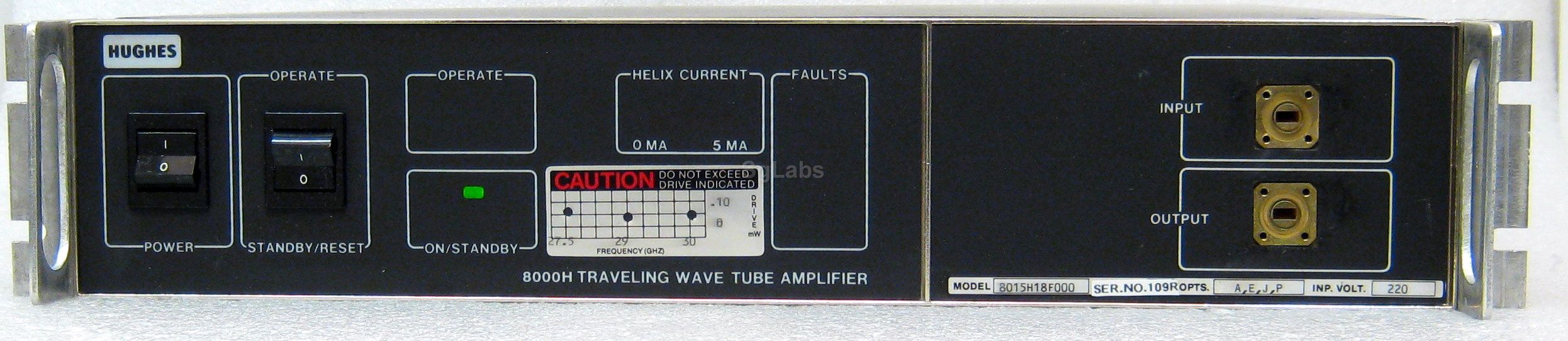

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Hughes 8000 Series of Standard Band Traveling Wave Tube Amplifiers cover the 1 to 40 GHz frequency range with a minimum power output of 10/20 watts CW. Each amplifier consists of a PPM metal-ceramic traveling-wave tube, a regulated solid state power supply and complete air cooling system assembled within a compact instrument case. The 8010/8020's light-weight compactness makes it ideal for either bench or 19-inch rack mounting. This size-weight feature is the result of the unique circuit design. The 8010/8020's have a wide variety of uses in such applications as EMI testing, antenna testing, communications, component testing, system testing and general laboratory requirements.

Technical details :

  • Frequency range 27 GHz to 30 GHz (working from 24 GHz to 40 GHz)
  • Output Power 15 W
  • Opt.J: this option protects the traveling-wave tube from varying VSWR conditions.
  • Opt.P: GPIB Interface
  • Max. Frequency: 30 GHz
  • Min. Frequency: 27 GHz
  • Max. power: 15 W
