HP Agilent 54542C Digital Oscilloscope, 4 channels 2GSa/s

You are here: Oscilloscope » Digital

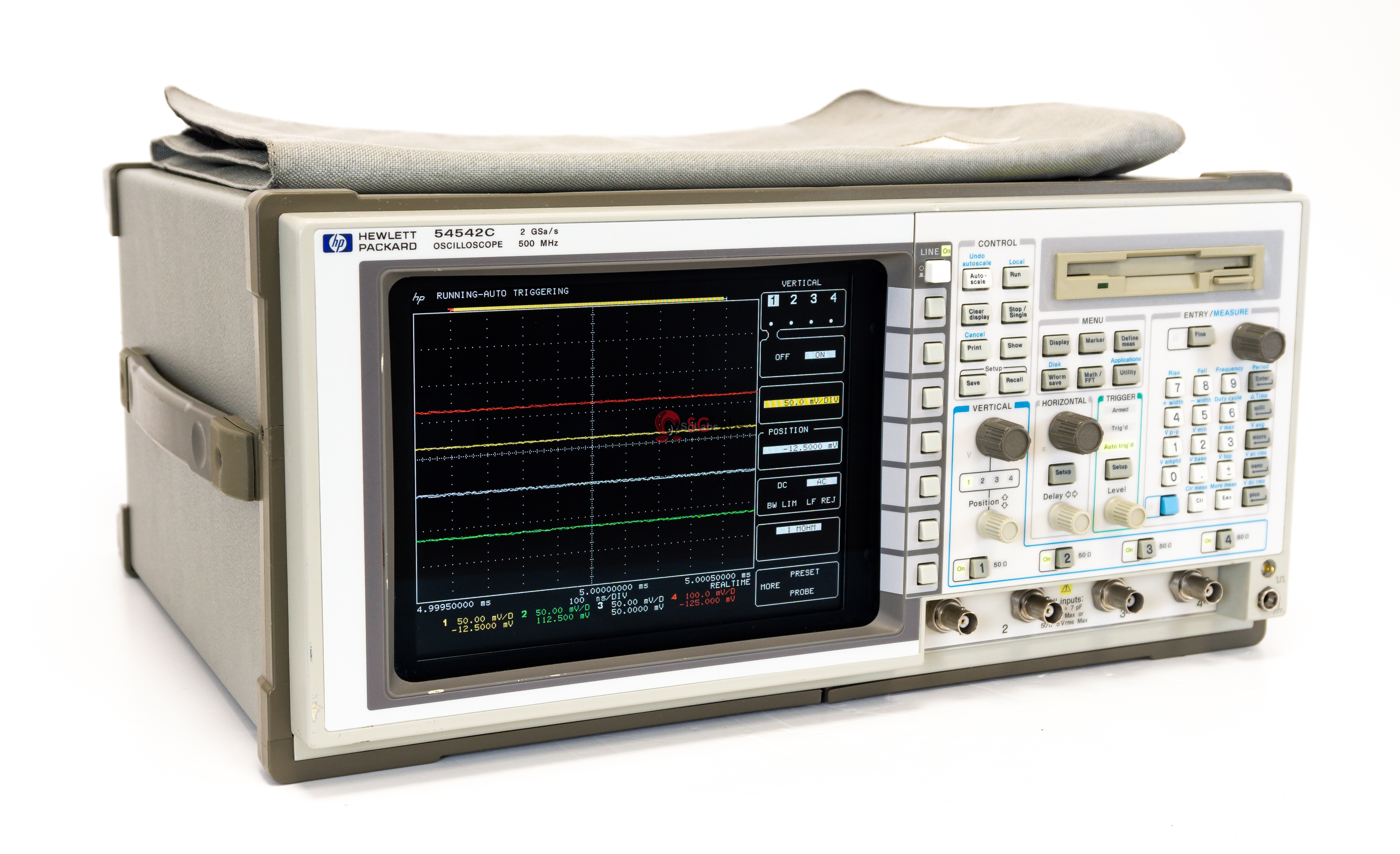

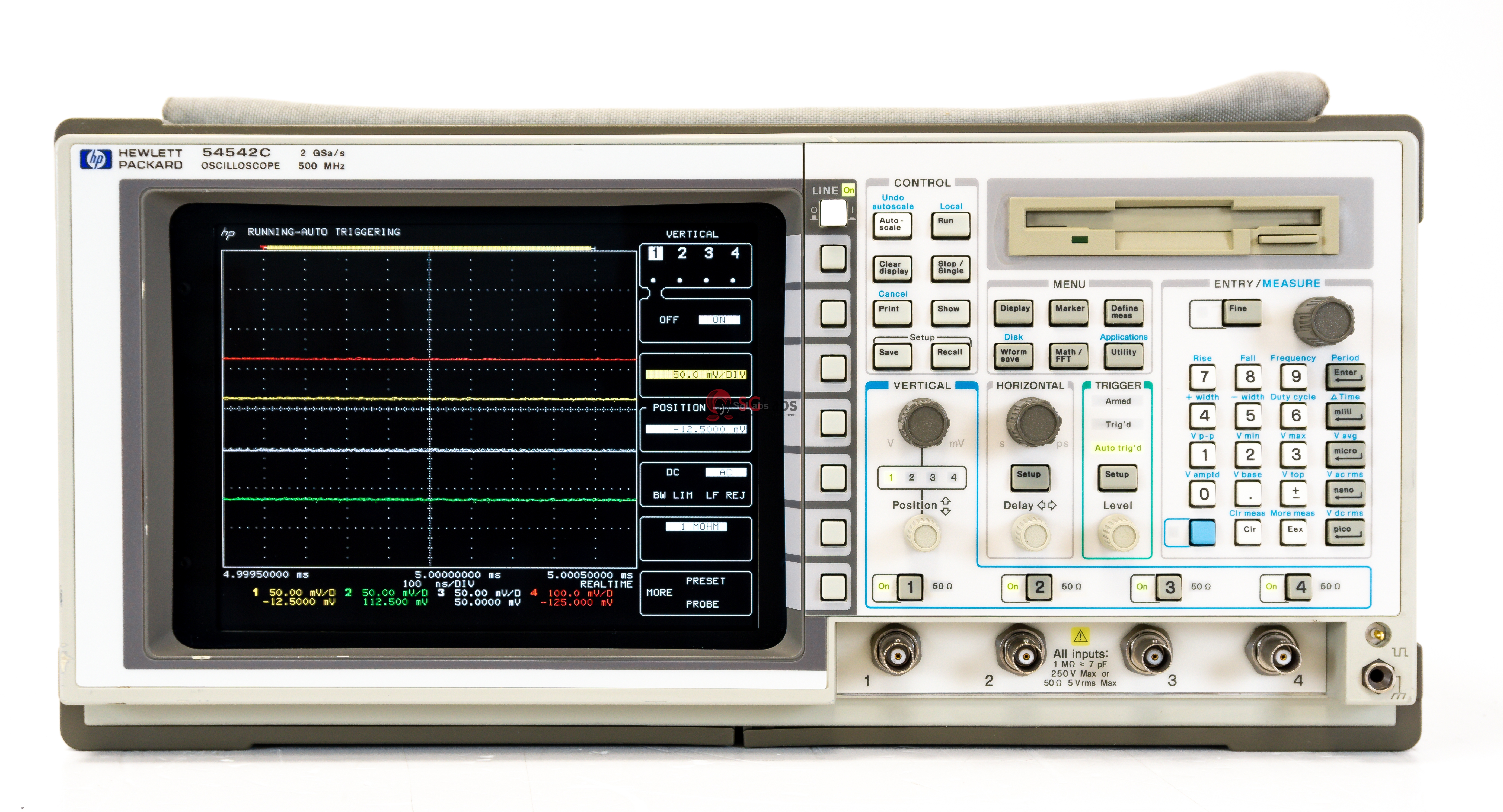

HP Agilent 54542C Digital Oscilloscope, 4 channels 2GSa/s
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
These state of the art 500 MHz realtime oscilloscopes have the extra performance and features that you need to get an accurate view of the high frequency signals you encounter, whether you do analog or digital design, R&D or manufacturing test. With 32 K memory per channel, 4 channels at up to 2 GSa/s, 1 ns peak detect, and sophisticated triggering, you can be confident that you will not miss critical signal activity. These feature rich digitizing scopes also include standard FFT, floppy disk drive, and sequential single shot acquisition for better analysis and characterization of your signals.
  • 500 MHz Analog Bandwidth
  • Channels 4
  • 2 GSa/s Sample Rate on 4 channels
  • 1 ns Peak Detect
  • Color display
  • 32 K of acquisition memory per channel
  • Sequential single shot acquisition for capturing successive events
  • Built-in, multi-format 3.5 inch disk drive
  • Channels: 4
  • Display: Color LCD
  • BandWidth: 500 MHz
  • Sampling: 2GSa/s
