HP Agilent Keysight, 8970A

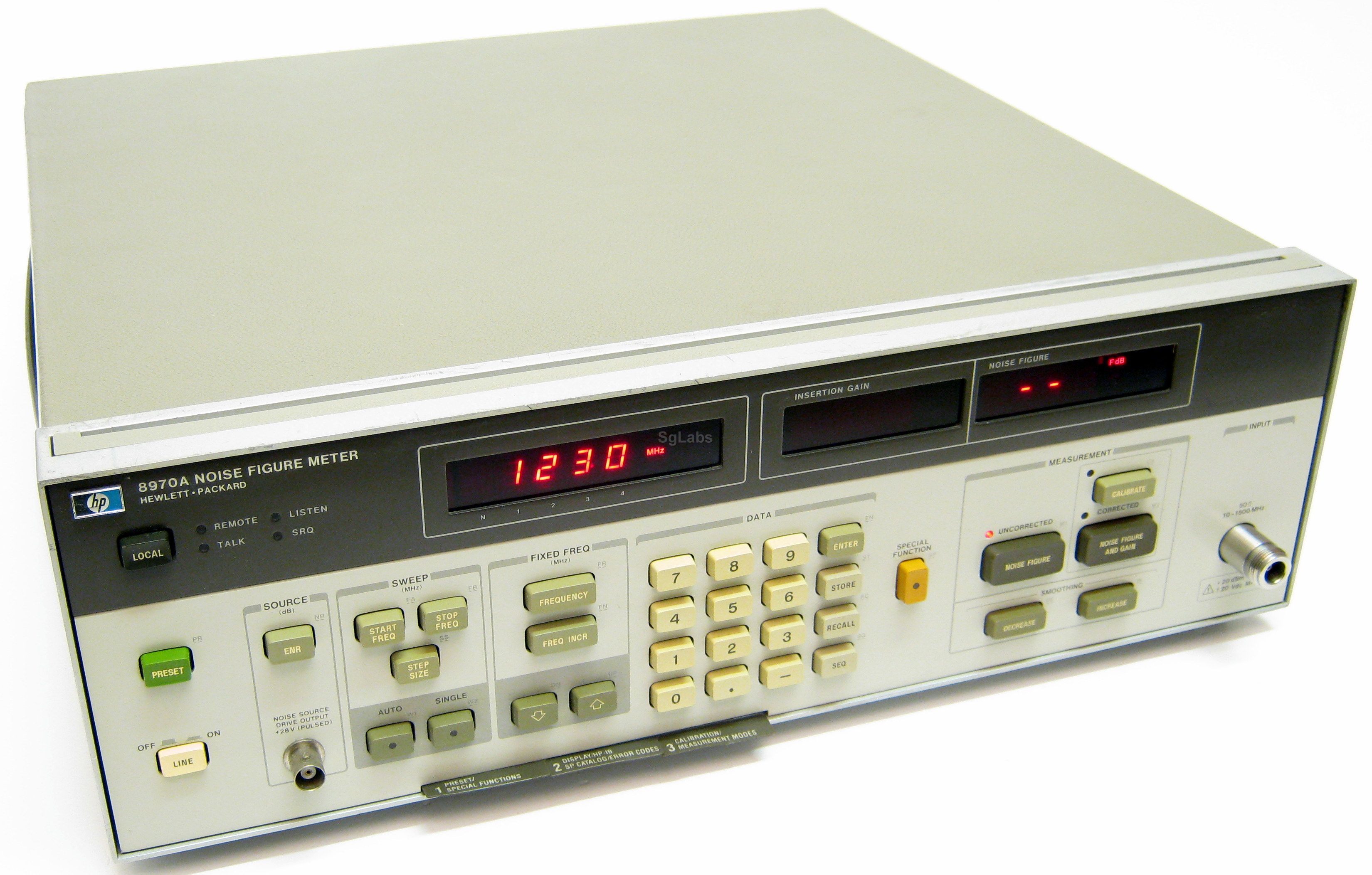

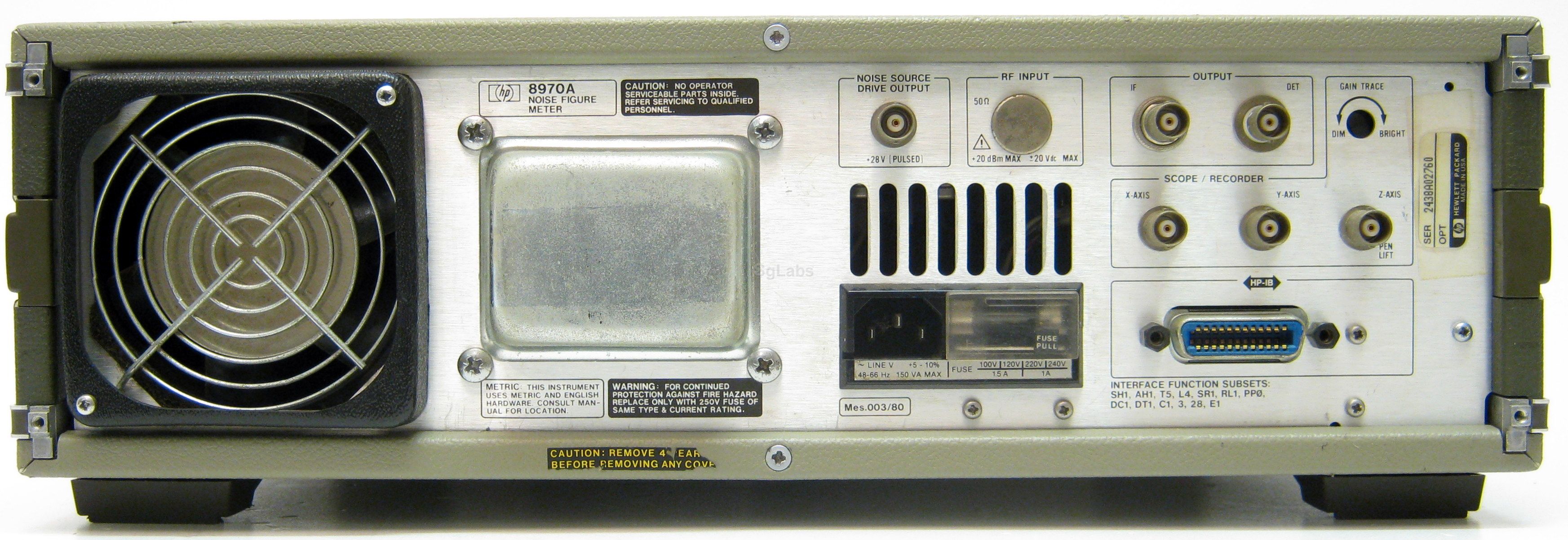

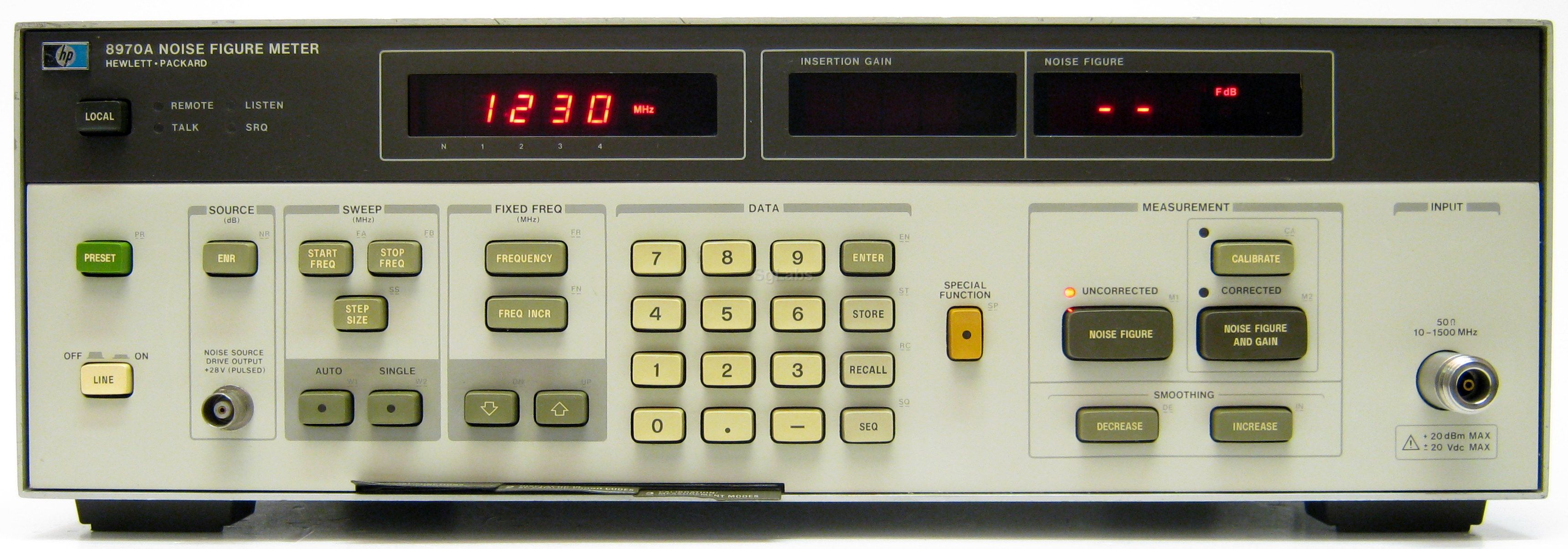

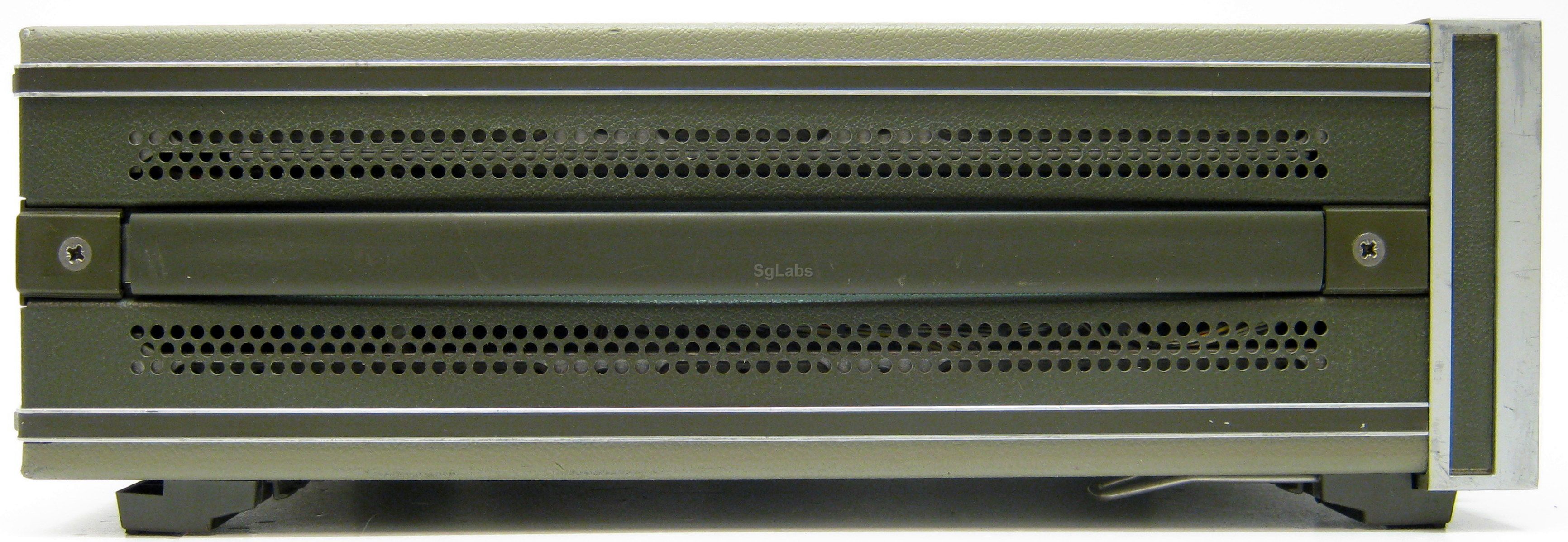

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP Agilent 8970A takes the mystery out of noise figure measurements. A microprocessor is used to make the myriad calculations and corrections necessary for truly accurate, convenient and flexible noise figure measurements.

The ENR calibration table of the noise source may be stored in the 8970A, and a properly interpolated value is automatically used at each frequency.

  • Frequency range: 10 MHz to 1.5 GHz (26.5 GHz with an external local oscillator)
  • Noise figure measurement range: 0 to 30 dB
  • Gain measurement range: -20 to 40 dB
  • Frequency resolution: 1MHz
  • Max operating input level: -10dBm
  • HP-IB
  • Connector: N
  • Max. Frequency: 26.5 GHz (with an external local oscillator)
  • Min. Frequency: 10 MHz
  • Gain Range: -20 to 40 dBm
  • NF Range: 0-30 dBm
