HP Agilent Keysight, 8754A opt.H26

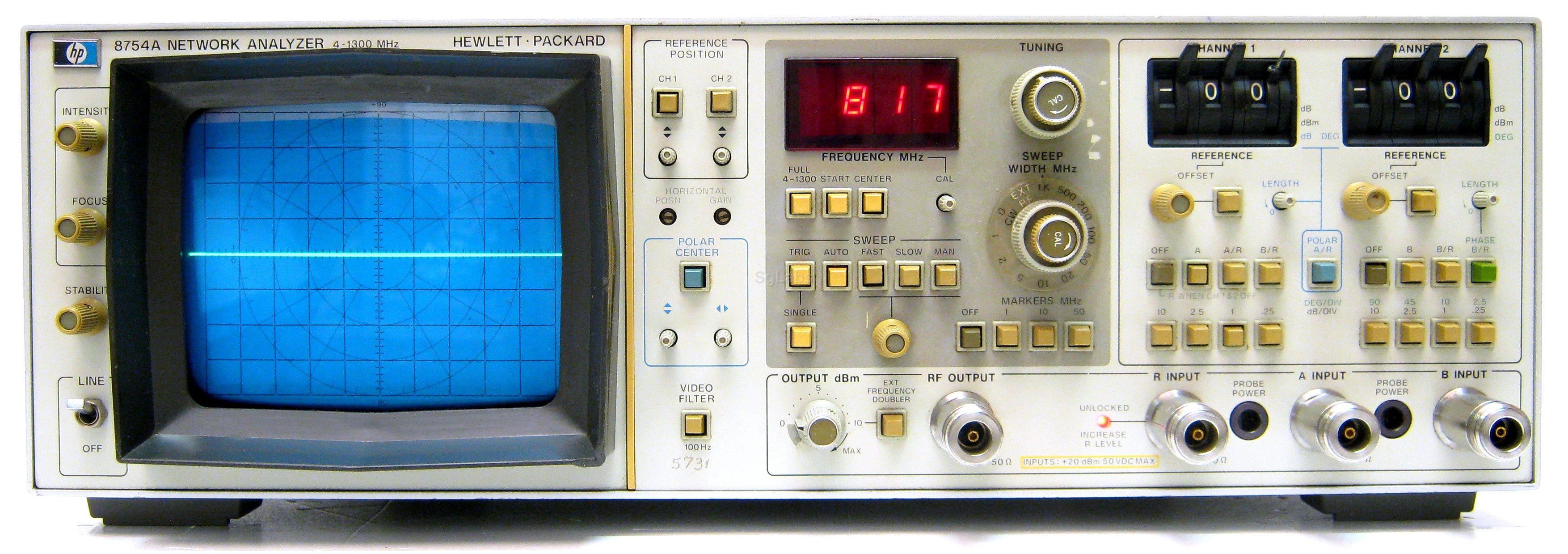

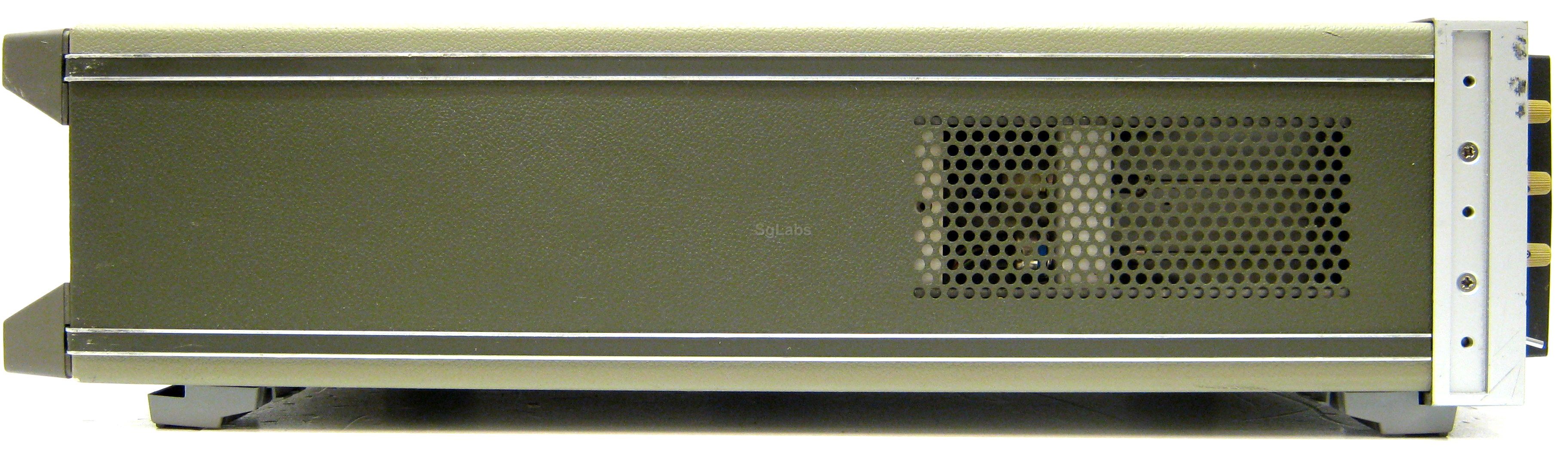

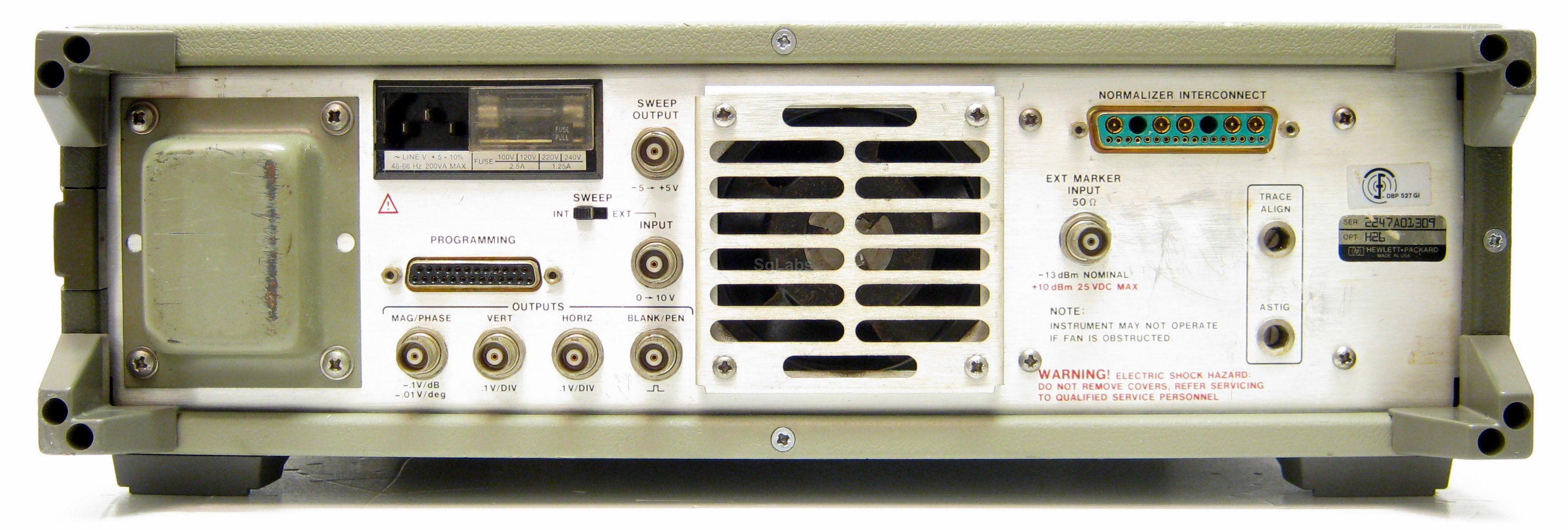

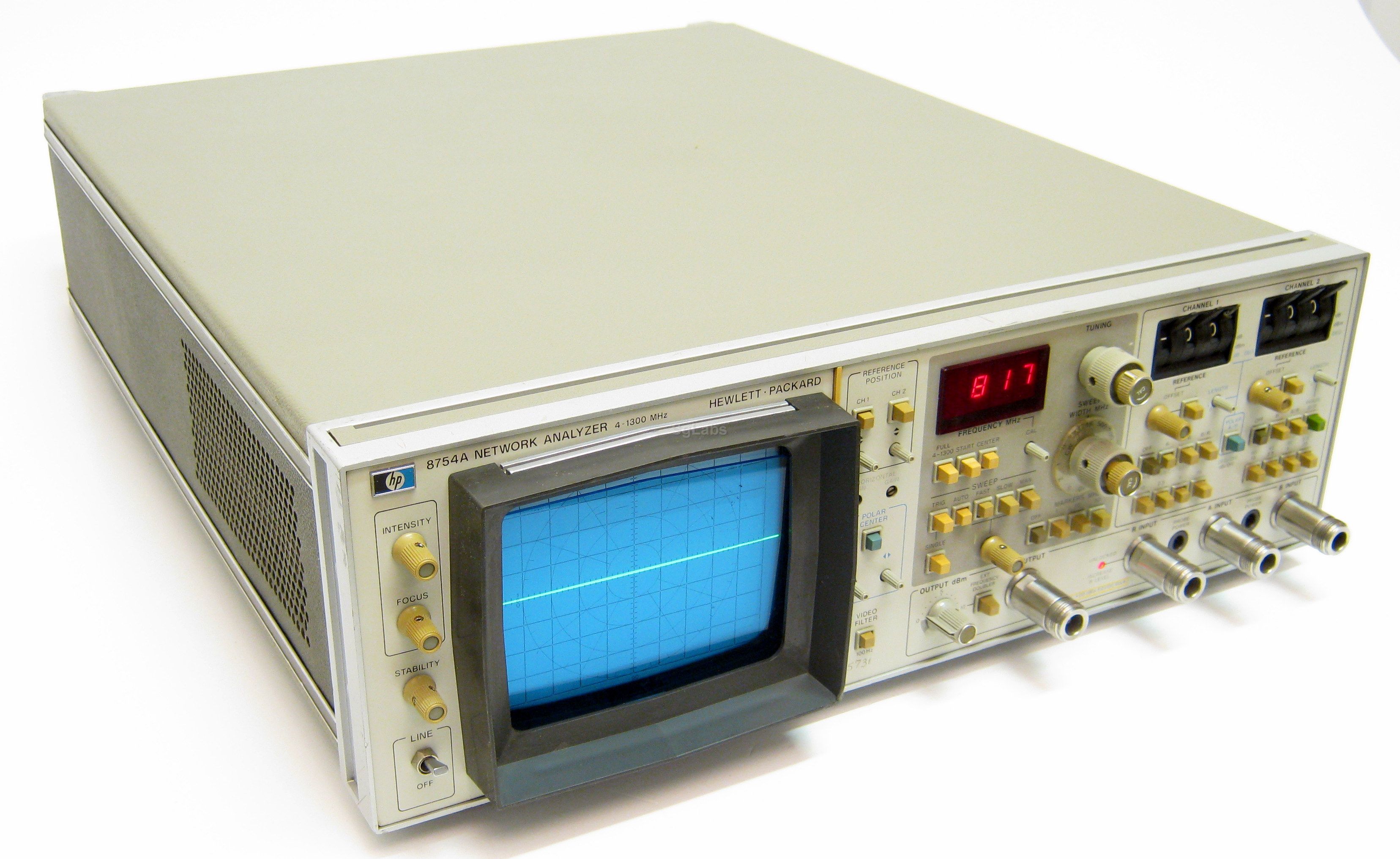

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
HP 8754A is a complete stimulus/response test system which combines a 4-1300 MHz swept source, three-input narrowband, tuned receiver, and both rectilinear and polar displays in a compact package.  The convenient built-in source incorporates digital display of the start or center frequency, the ability to sweep all or any portion of the 4-1300 range, and crystal markers at 1, 10, or 50 MHz intervals to enable accurate frequency calibration and measurement.
The receiver provides 80 dB dynamic range in two independent measurement channels to allow simultaneous measurement of any two transmission or reflection parameters using a single test setup. Measurements of absolute power, magnitude ratio, phase angle, and reflection coefficient (or return loss) are displayed on the fully calibrated CRT with resolutions up to 0.25 dB and 2.5 degrees per major division. With these features the HP 8754A offers a high level of operating convenience and technical performance to swept magnitude and phase measurements in laboratory, production, and field testing applications at an economical price.
  • Integrated source, receiver, and display
  • Lock to external source
  • Three inputs, two measurement channels
  • 80 dB dynamic range
  • Opt.H26: extension frequency to 2.6 GHz with external doubler (not included) (like HP 11721A)
  • Transmission / Reflection Test Set (not included): HP 8502A
  • Connector: N
  • Max. Frequency: 1300 MHz (2600 MHz w/extern doubler)
  • Min. Frequency: 4 MHz
  • Channels: 3
  • Source: internal
  • Test set: External accessory not included (8502A)
 € 1.200,00
