HP Agilent Keysight, 8720B

You are here: Network Analyzer » Vector

HP Agilent Keysight, 8720B

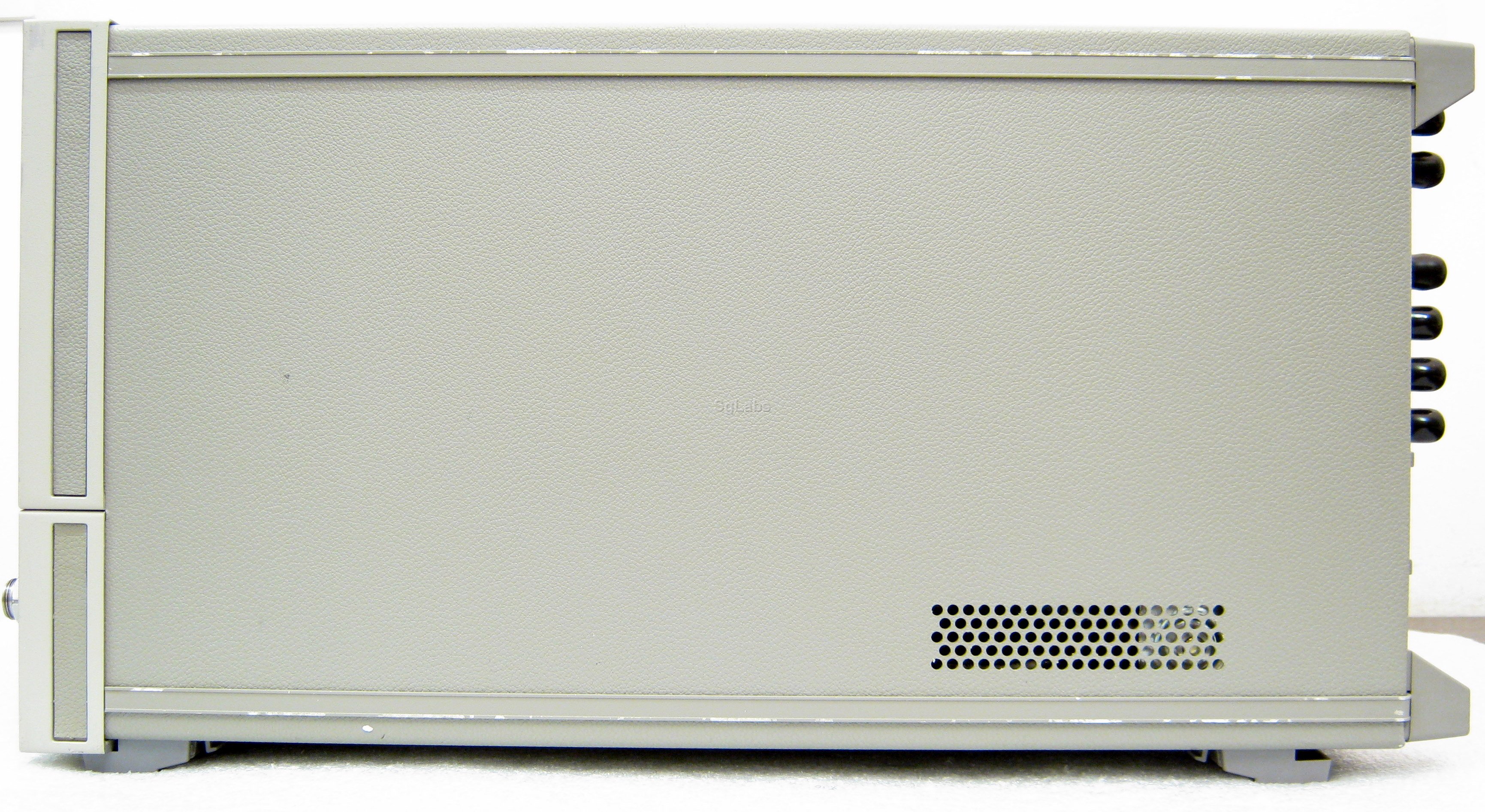

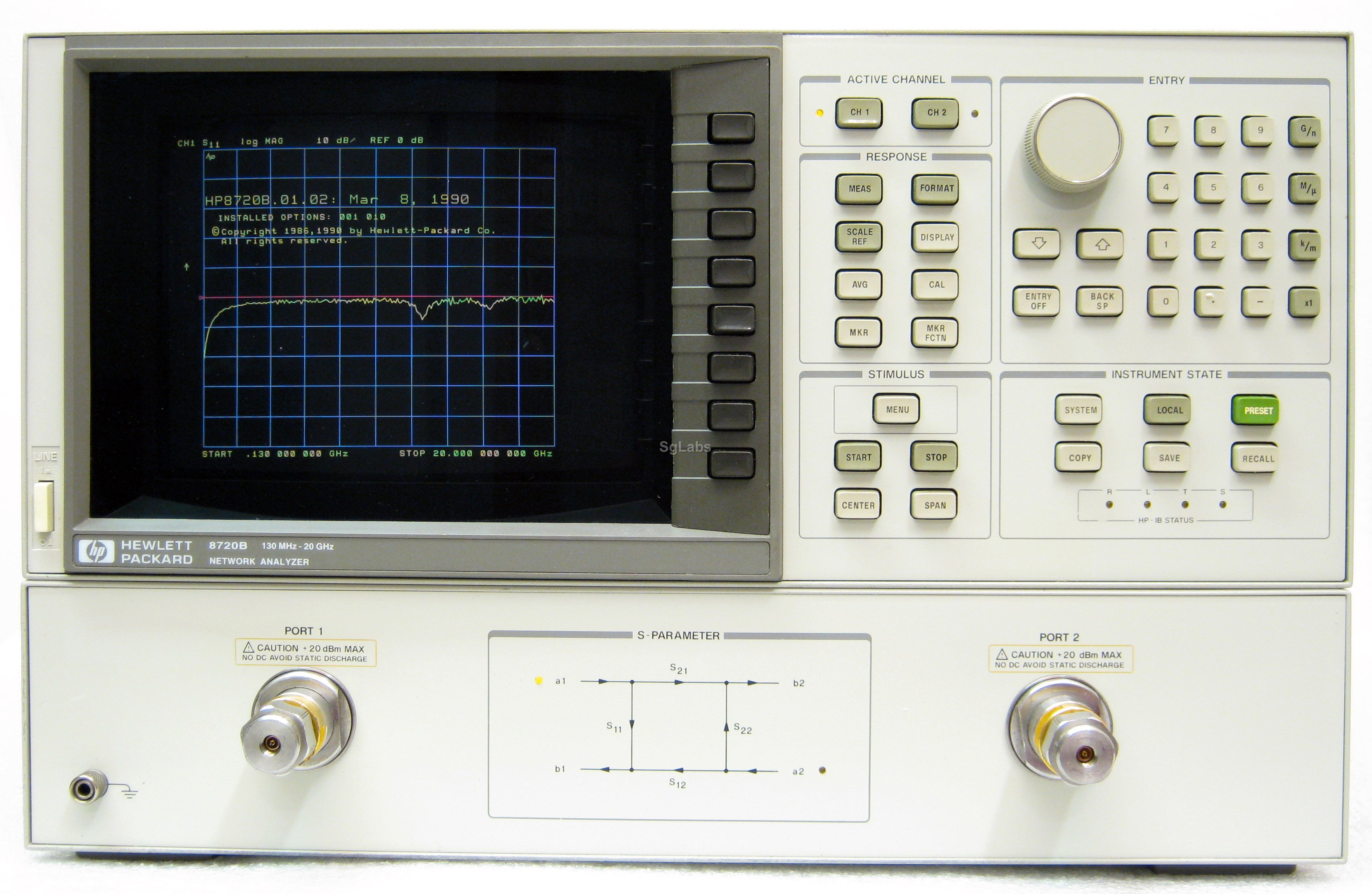

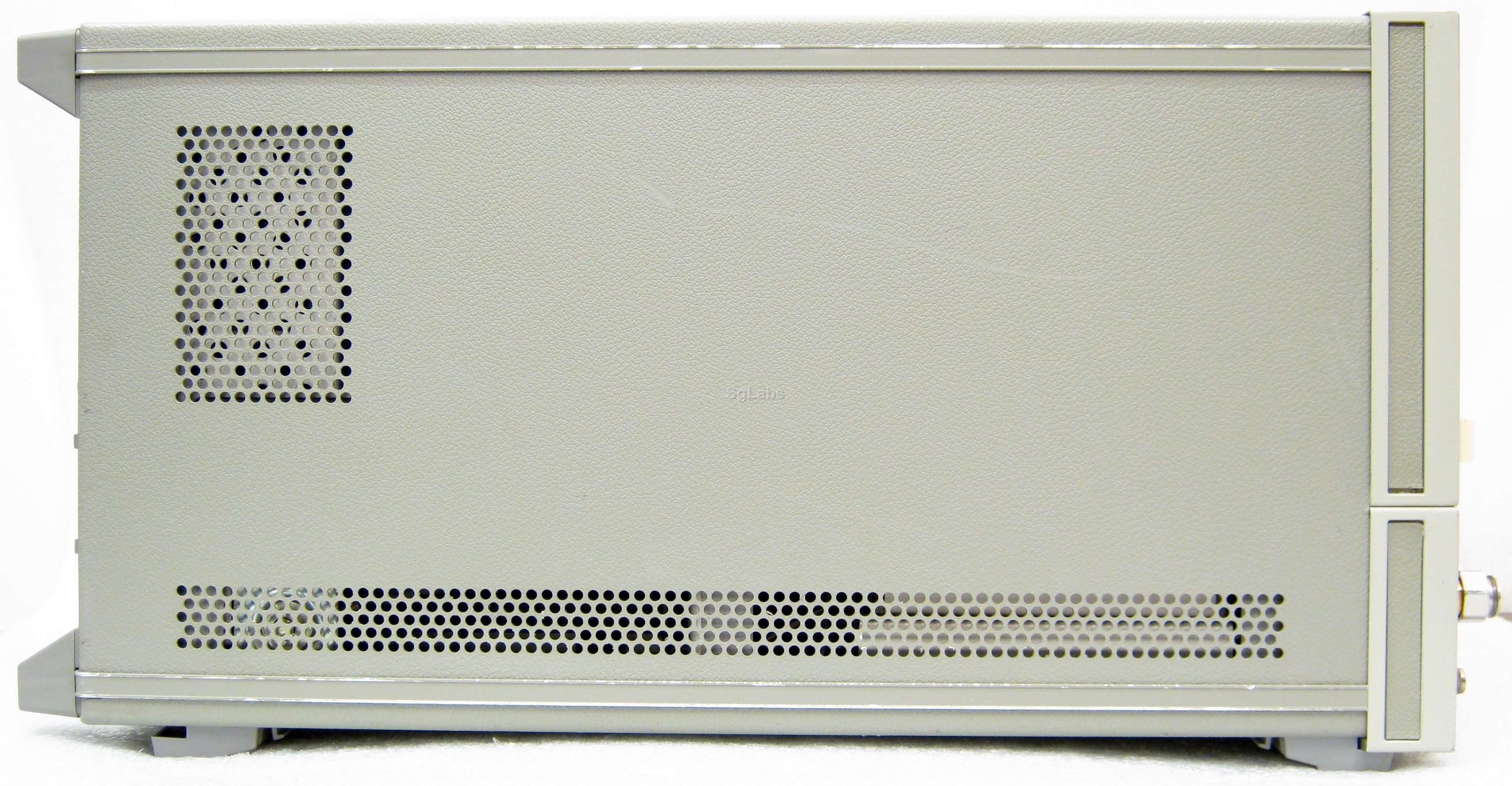

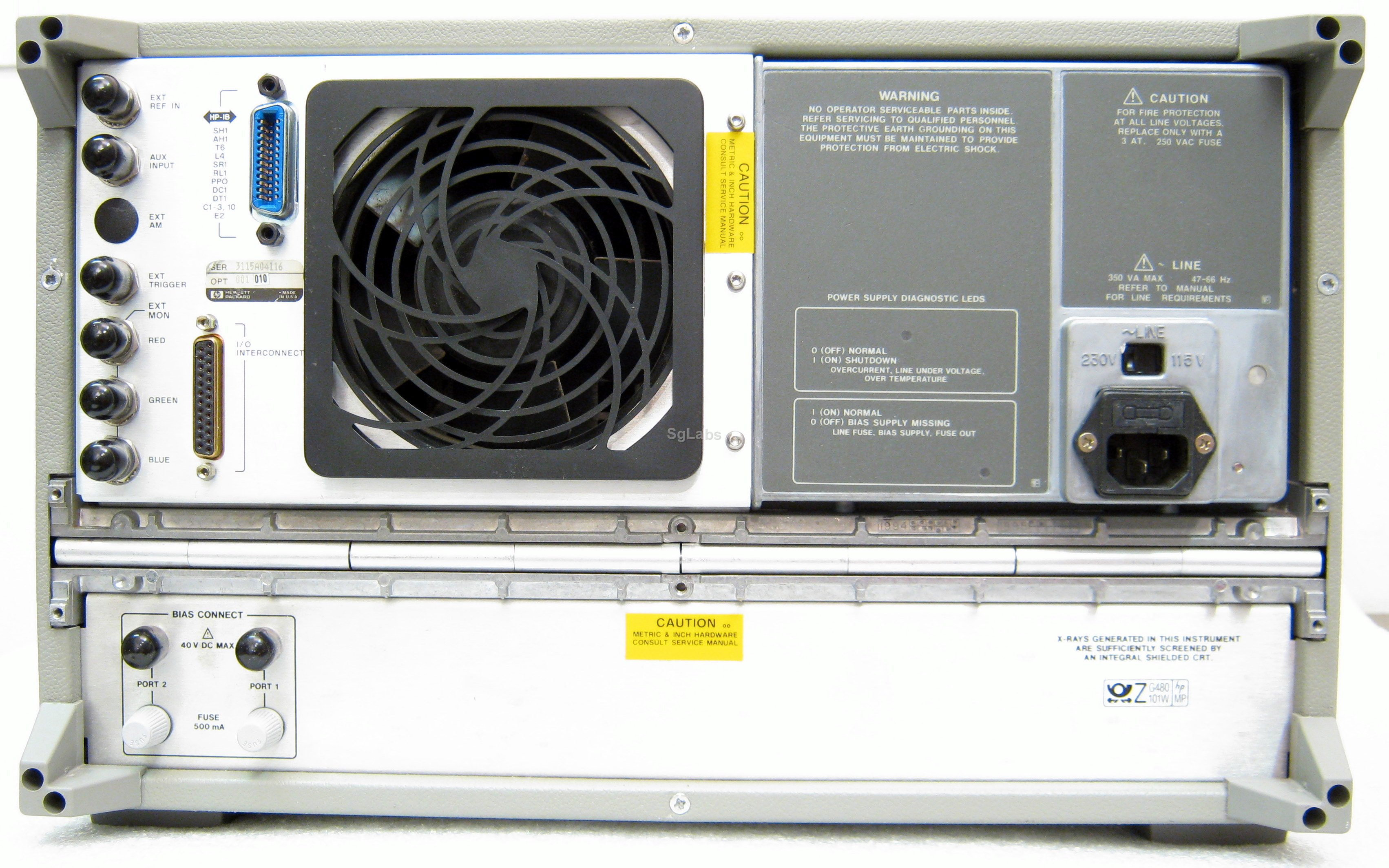

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8720B is a Microwave Network Analyzer. The 8720B network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain.

The 8720B samples the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port.

Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

Agilent 8720B network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.

Agilent 8720B network analyzers also can perform ratioed measurements (including phase), which require multiple receivers.

The Agilent 8720B can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
  • Frequency range 130 MHz - 20 GHz
  • Frequency resolution 1 Hz (Opt.001)
  • Integrated transmission/reflection test set
  • Color display
  • Output power range -65 to - 10 dBm
  • HP-IB interface
  • Connector: 3.5 mm
  • Max. Frequency: 20 GHz
  • Min. Frequency: 130 MHz
  • Channels: 2
  • Source: internal
  • Test set: S-parameter
