The

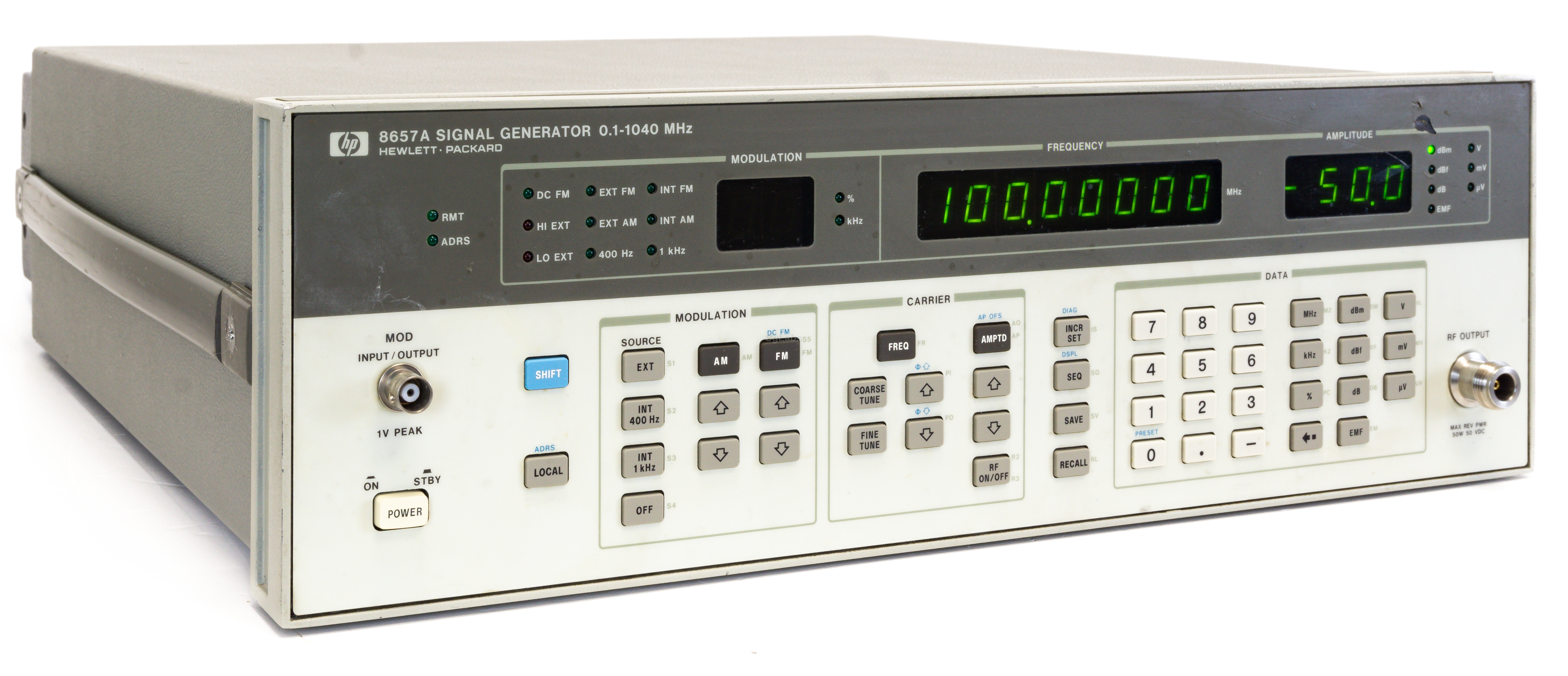

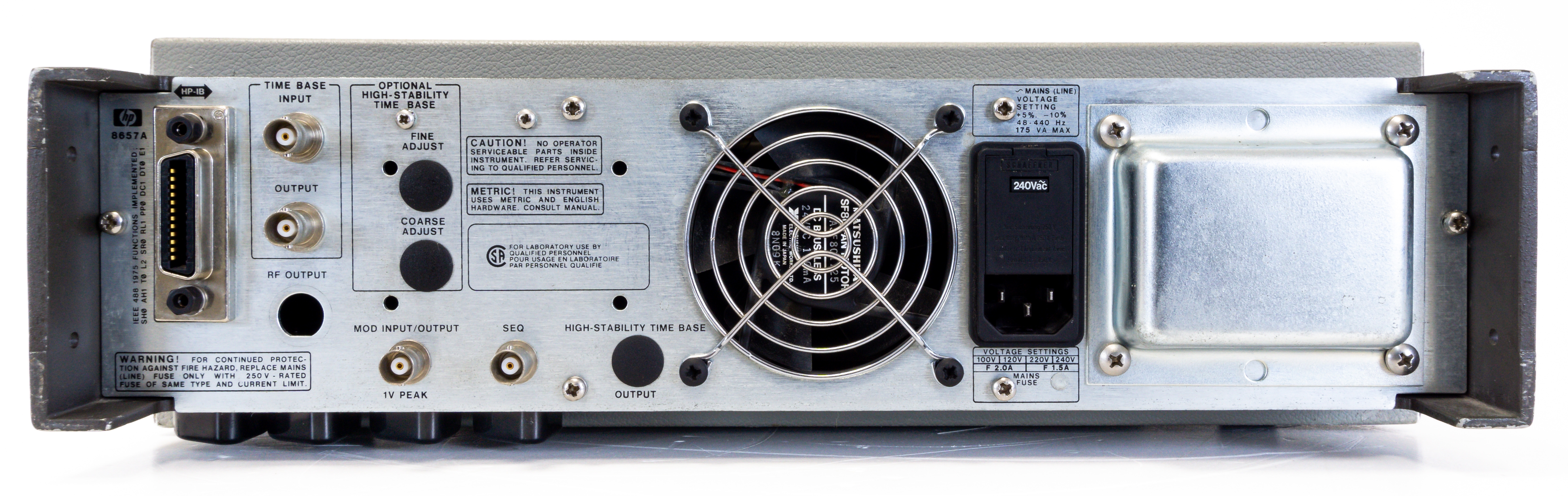

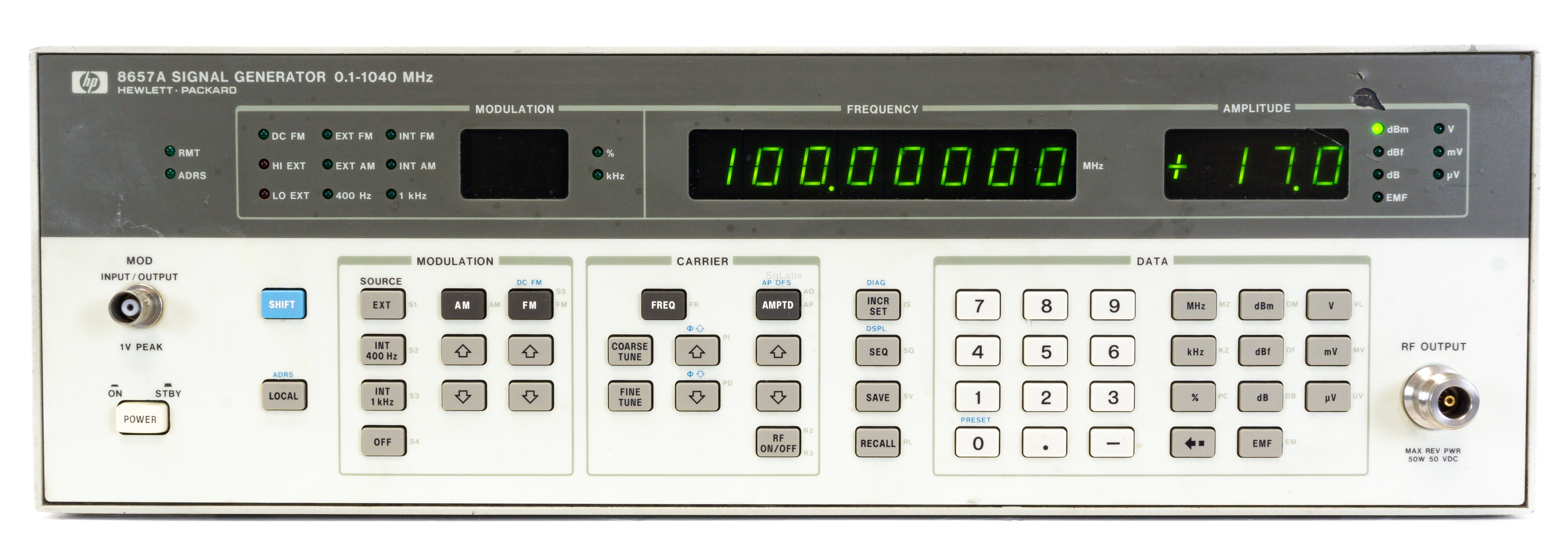

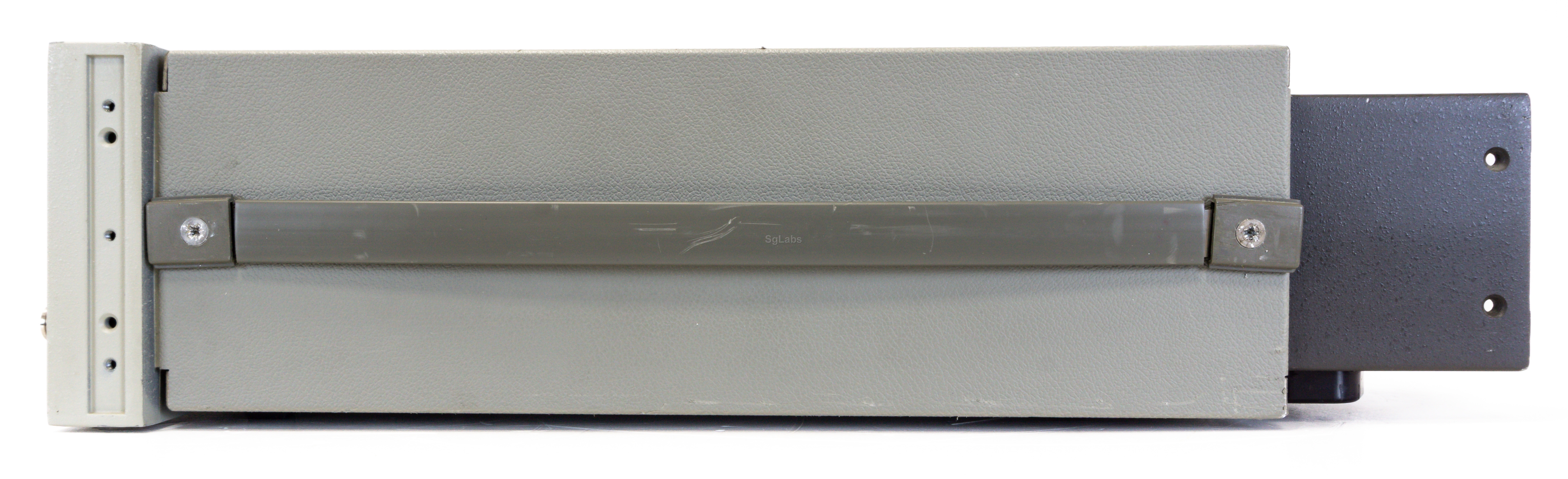

HP AGILENT 8657A offers excellent performance at an economical price. The low residual FM and excellent phase noise performance of the 8657A signal generator makes them ideal for many in-channel and even out-of-channel receiver tests. The 8657A is a versatile signal generator offering a variety of features, such as extended frequency coverage up to 1040 MHz, pulse modulation, simultaneous and mixed modulation combinations of AM and FM, as well as a carrier phase adjust capability that allows you to characterize phase-sensitive devices.
Technical details:
- Frequency range 100 kHz to 1.04GHz
- Frequency resolution: 10 Hz
- Output level + 13 dBm to - 143.5 dBm
- Output level RF resolution : 0.1 dBm
- Modulation: FM, AM, ΦM
- An electronic trip protects the generator output against reverse power of up to50 W
- Remote programming interface HP-IB
- Opt. 001: High-stability timebase
- Opt. 022: 0.3 GMSK
