HP Agilent Keysight, 8563E

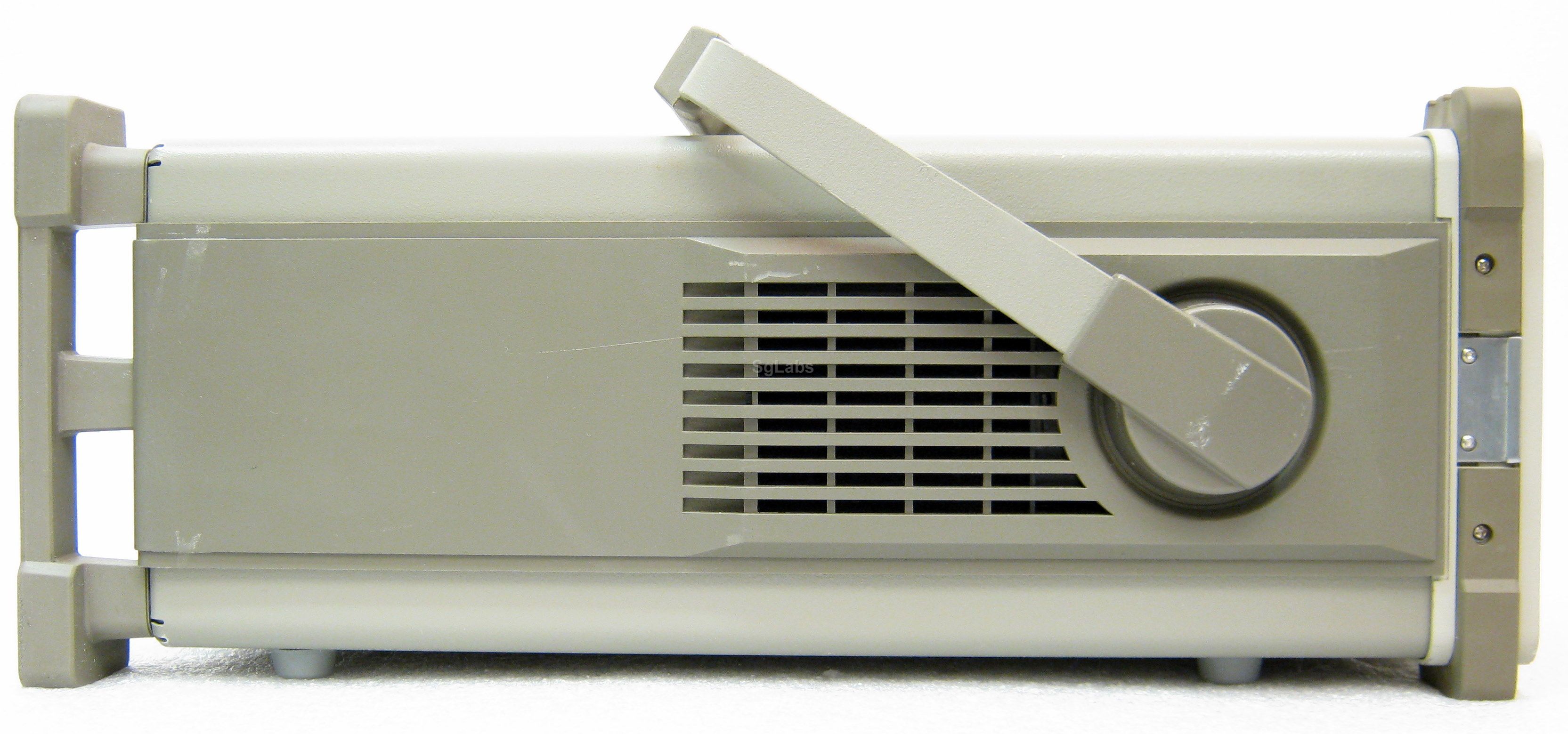

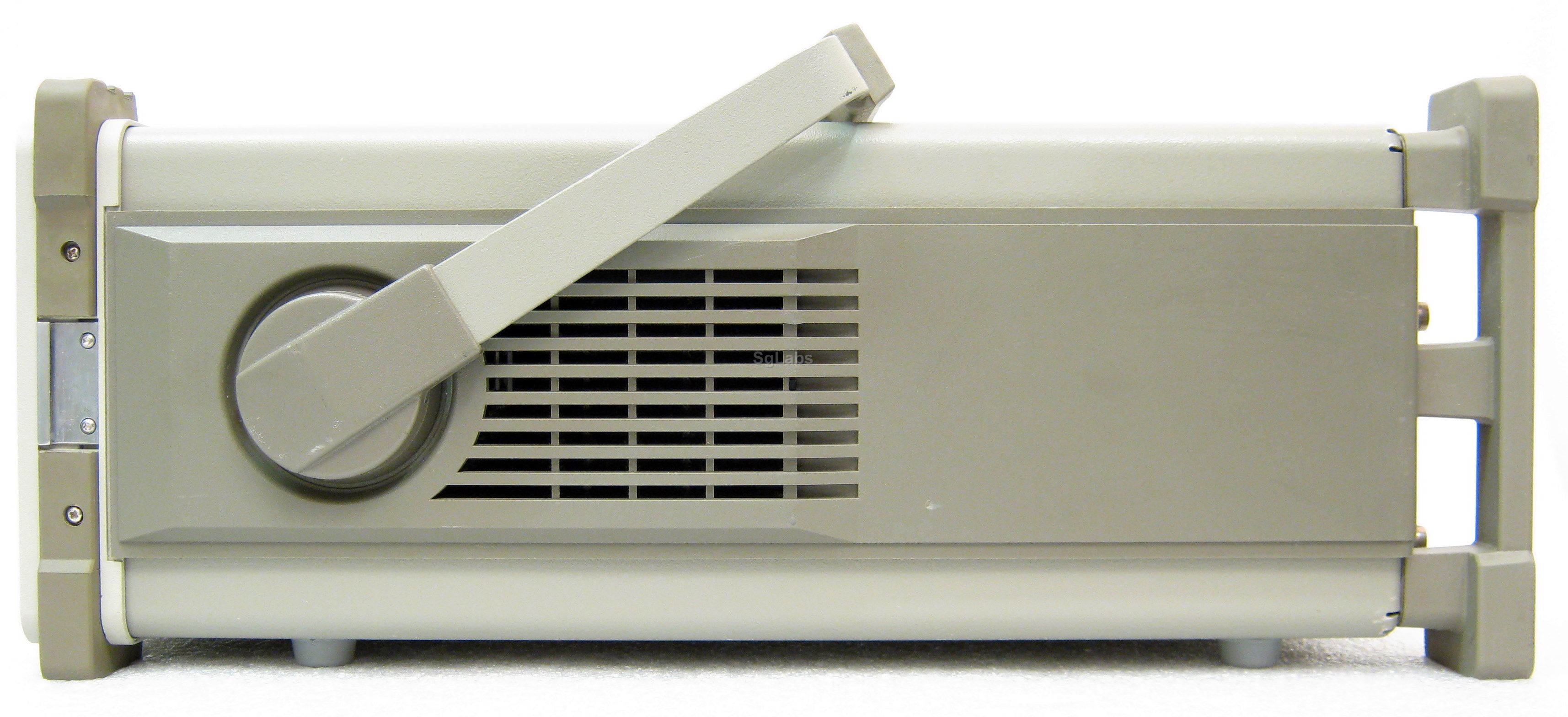

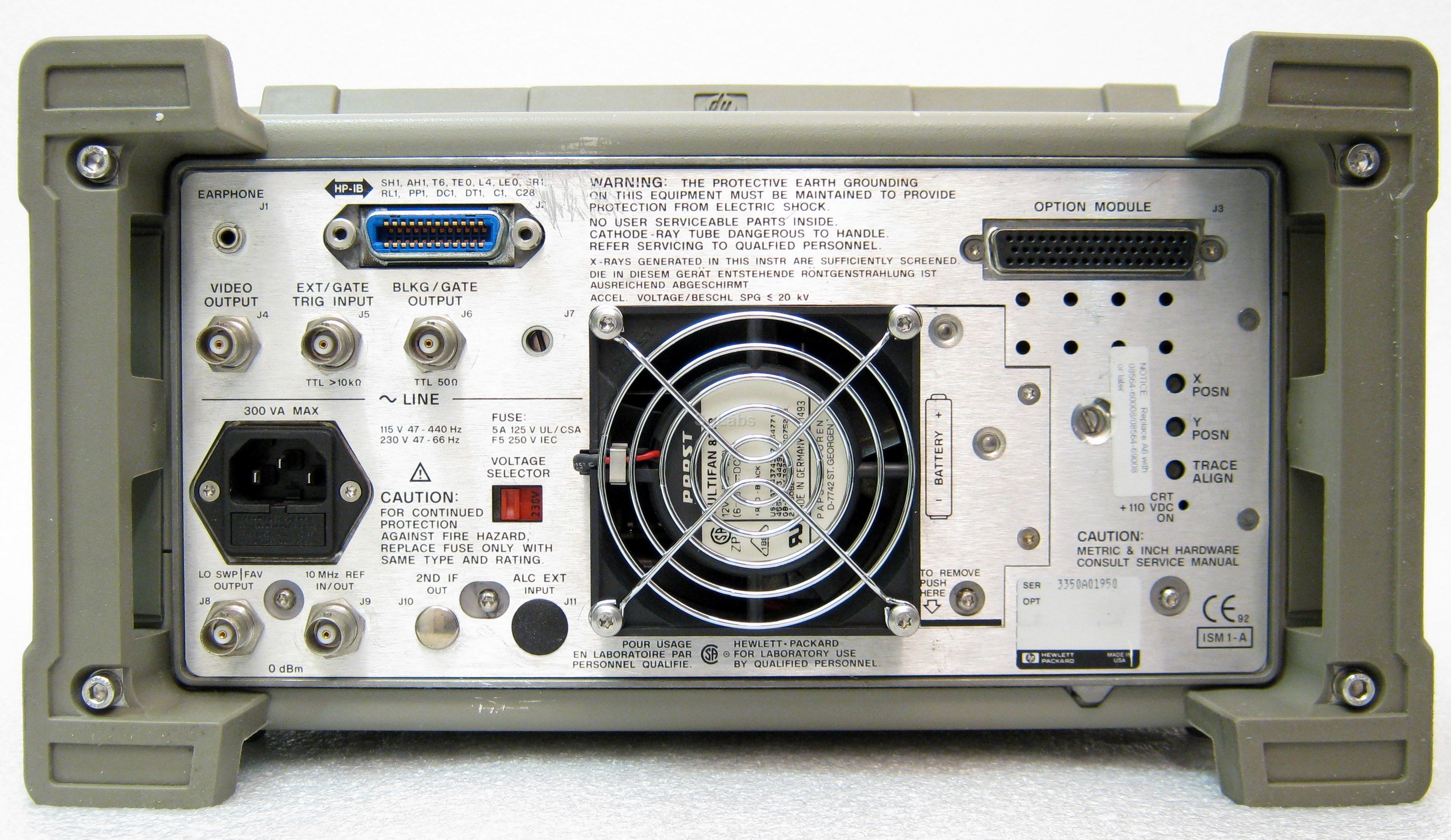

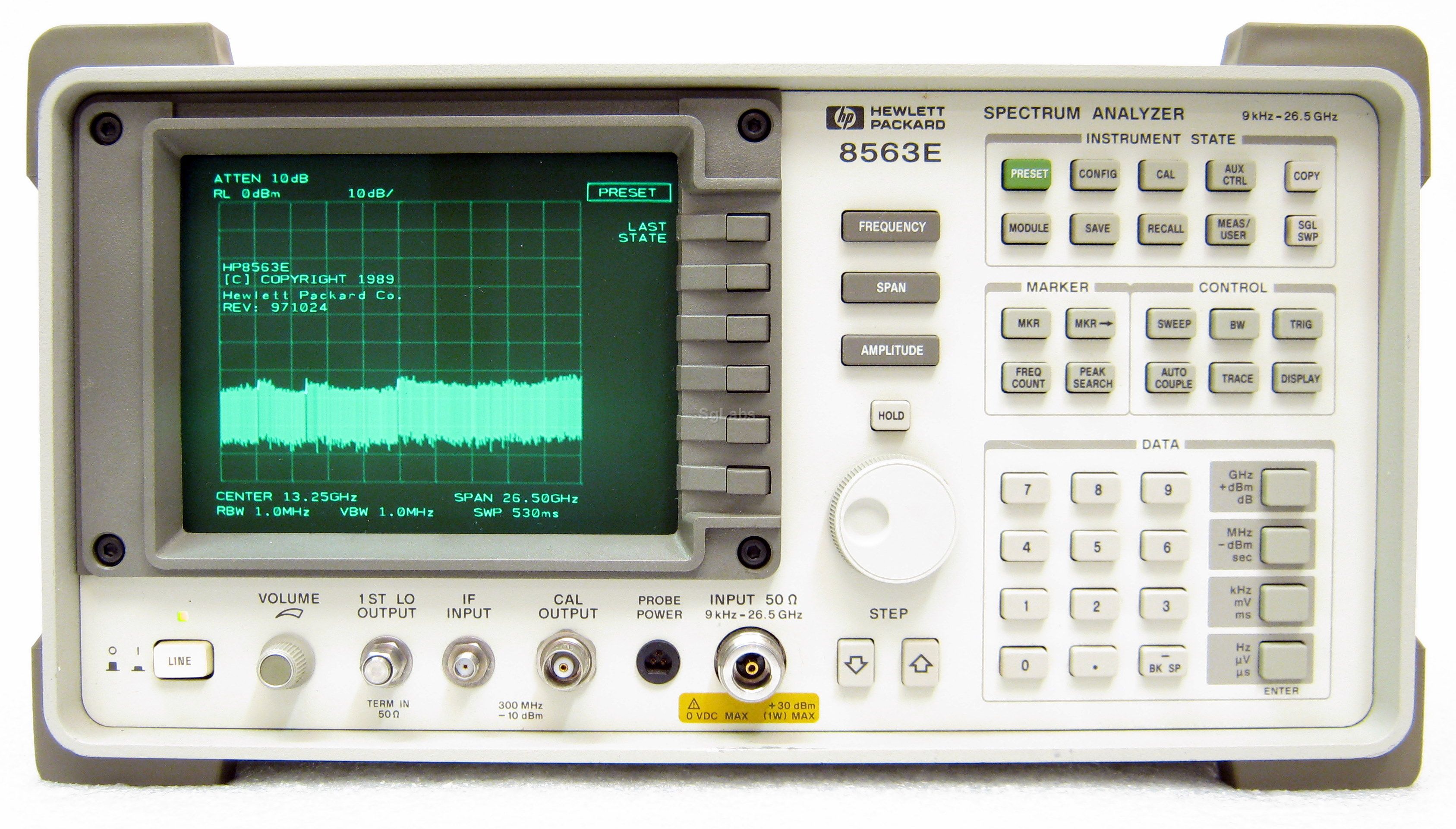

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Agilent 8560E portable RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

  • Continuous 30 Hz to 26.5 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
  • Precision timebase and 1 Hz counter resolution
  • MIL-T-28800 rugged
  • Measurement personalities for digital radio and phase noise measurements



Technical details:
  • Frequency range 30 Hz to 26.5 GHz(dc-coupled),100 KHz to 26.5 GHz(ac-coupled)
  • Range RBW1 Hz to 1 MHz
  • Maximum safe input+30 dBm
  • Modulation type AM e FM
  • Sweep time range 50 µs to 60 s
  • Display CRT monochrome
  • HP-IB Interface
  • HP 85620A mass memory module
  • Demodulator: AM-FM
  • Display: CRT monochrome
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 30 Hz (opt.006)
  • Min. Resolution: 1 Hz
