HP Agilent Keysight, 85024A

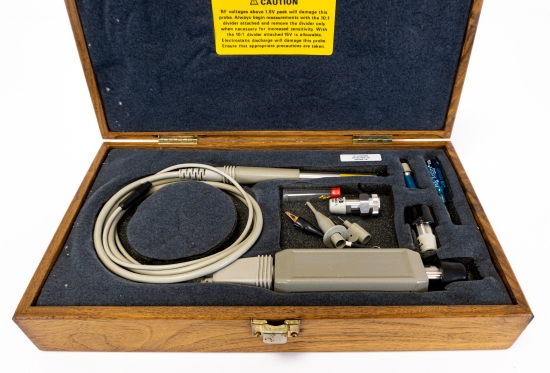

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 85024A high-frequency probe makes it easy to perform in-circuit measurements. An input capacitance of only 0.7 pF shunted by 1 megohm of resistance permits high frequency probing without adversely loading the circuit under test. Excellent frequency response and unity gain guarantee high accuracy in swept measurements with this probe. High probe sensitivity and low distortion levels allow measurements to be made while taking advantage of the full dynamic range of Agilent RF analyzers.
  • Input Resistance: 1 Mohm
  • Bandwidth: 300kHz 3 GHz (usable to 100kHz)
  • Average gain: 0dB +- 1.25 dB
  • Frequency Response +- 1.25 dB (up tp 1 GHz) +- 2.5 dB (1 to 3 GHz) Max input: +- 1.5V RF
  • Max. Frequency: 3 GHz
  • Min. Frequency: 300 KHz
