HP Agilent Keysight, 8482H

You are here: Power Meter / Sensor (RF) » Power sensor

HP Agilent Keysight, 8482H
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

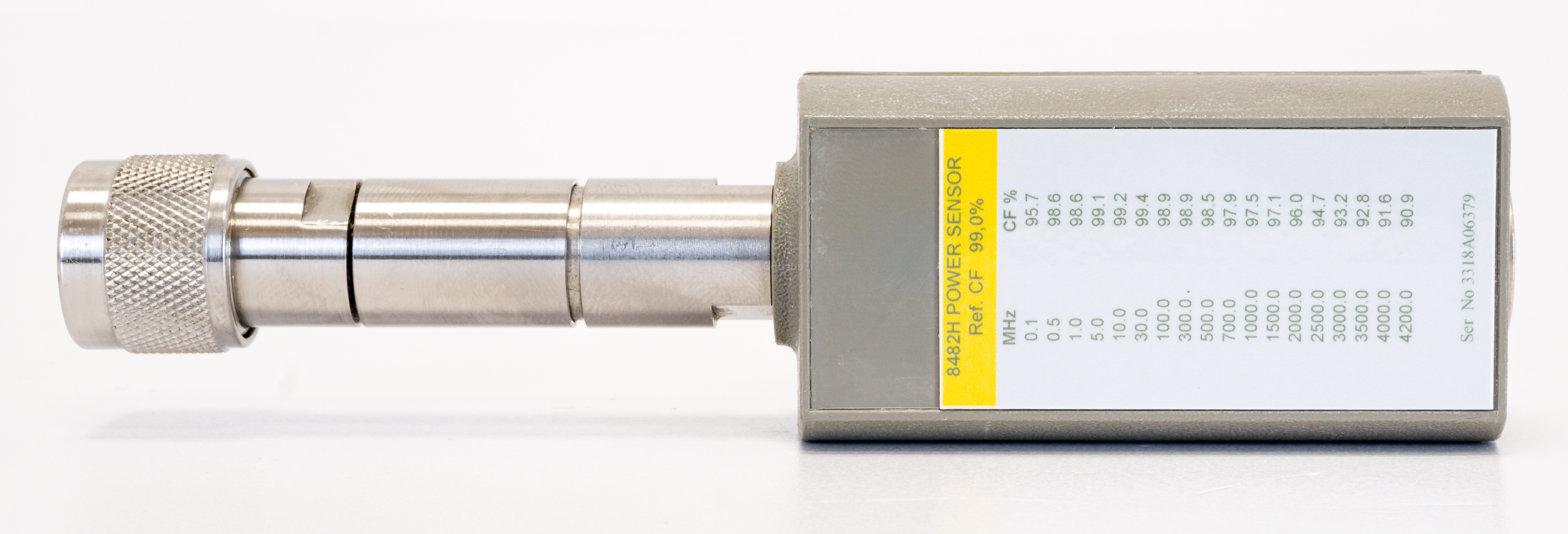

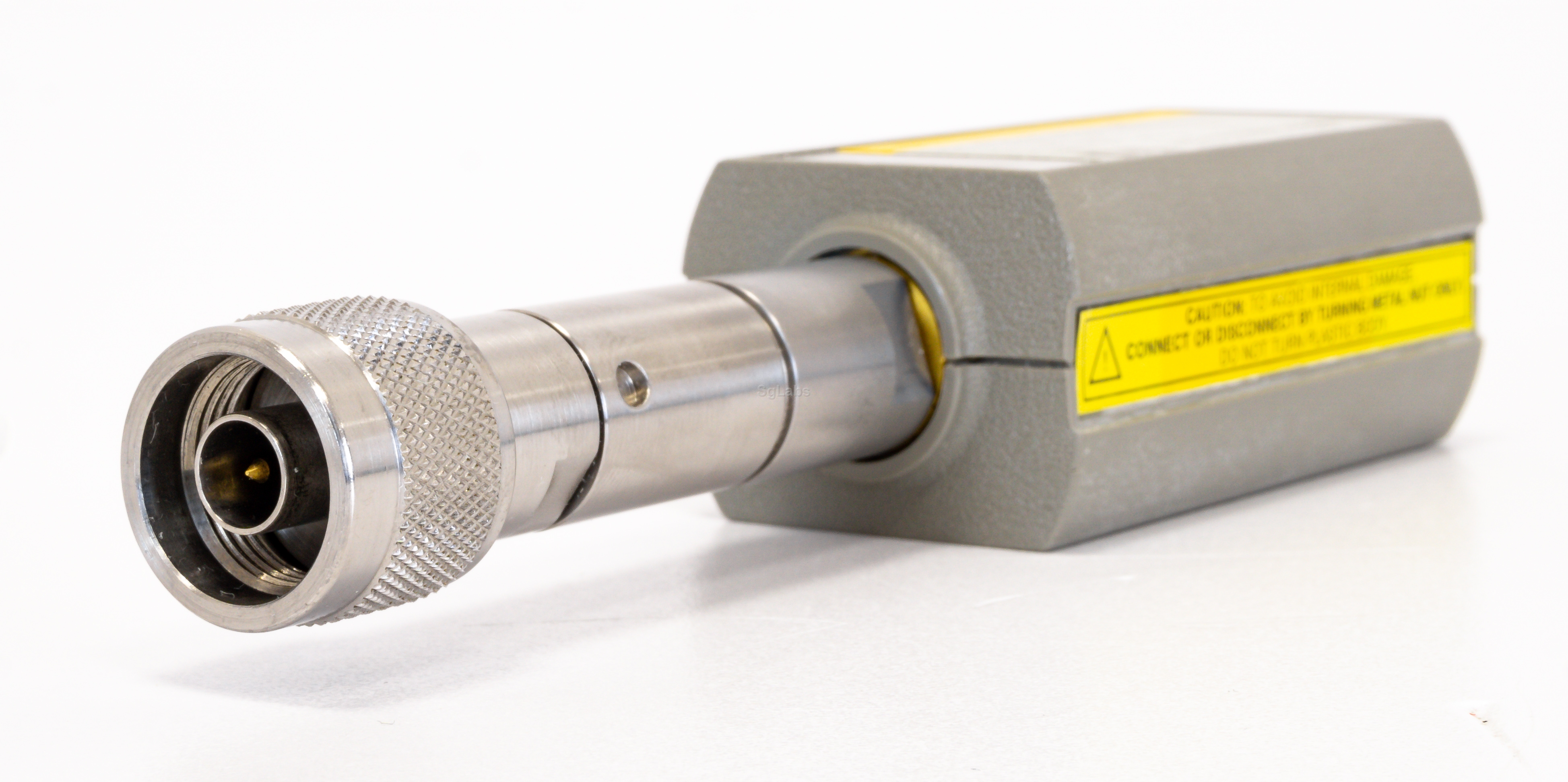

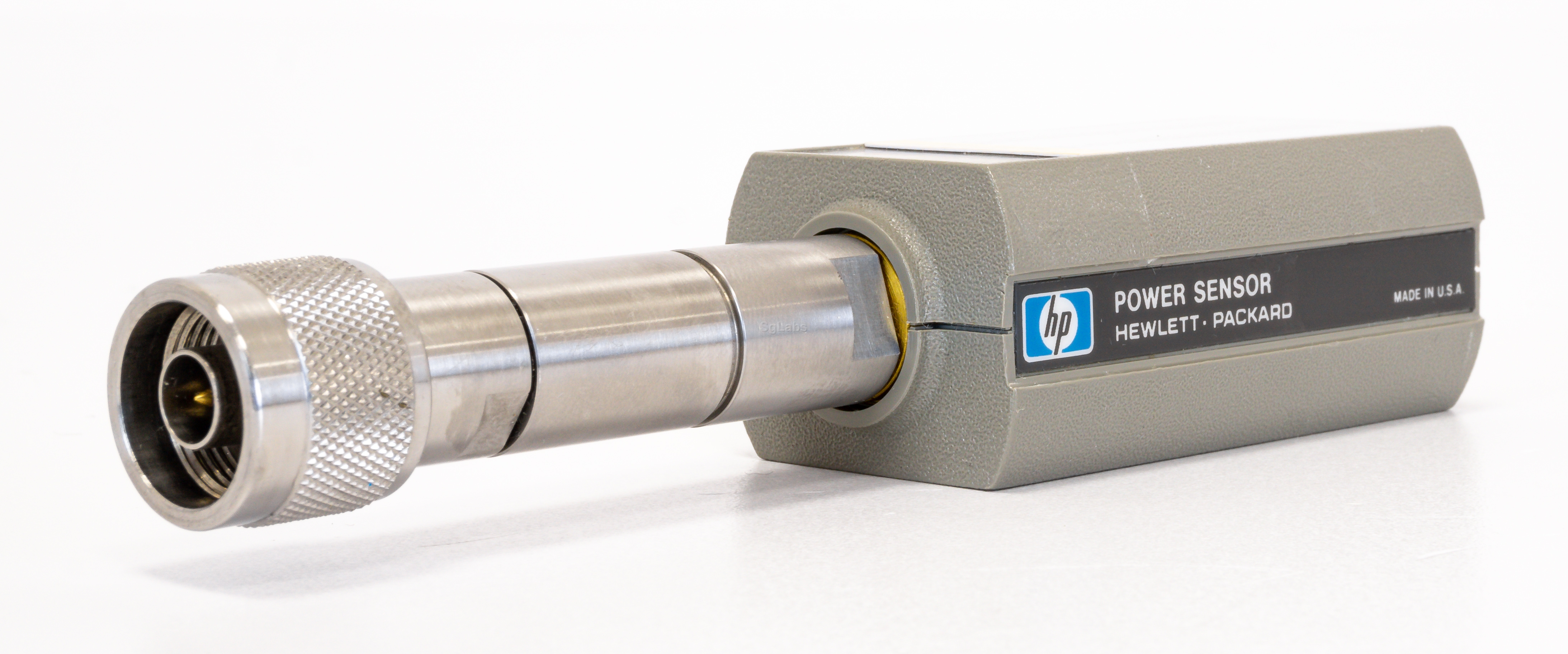

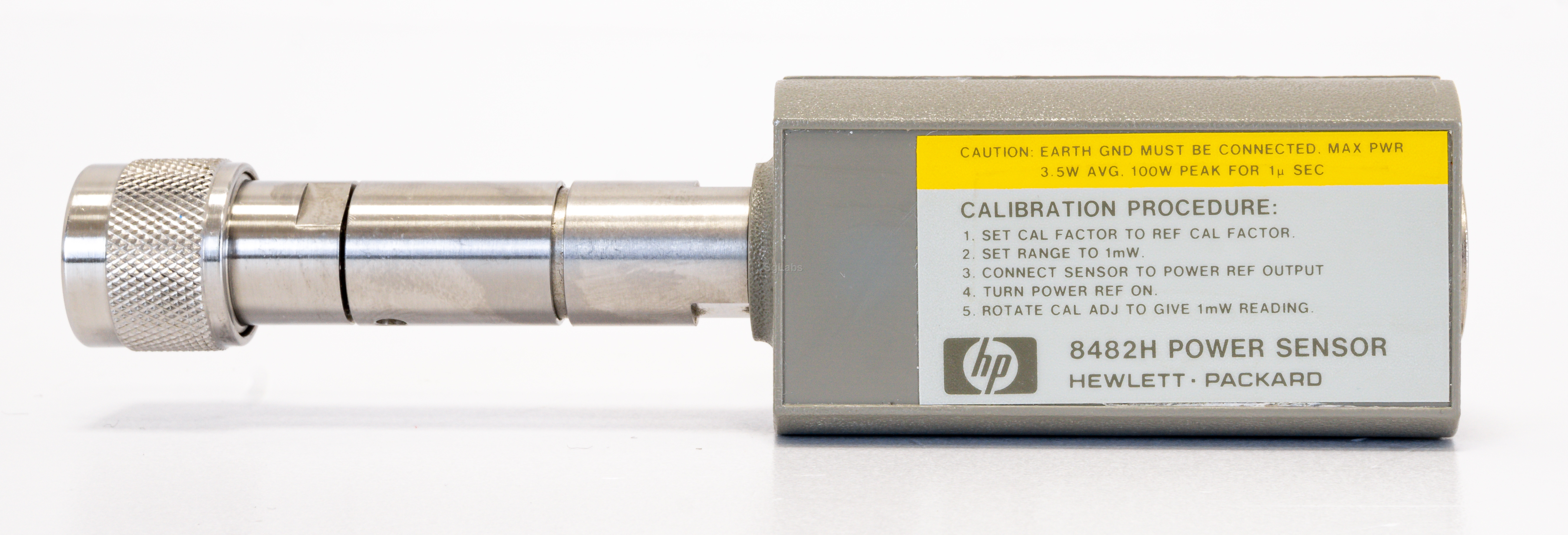

Agilent 8482H thermocouple power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 43x series power meters, and provides extraordinary accuracy and stability. It operates from 100 kHz to 4.2 GHz at levels from -10 to +35 dBm with exceptional accuracy and stability. The 8482H power sensor also gives you extremely low SWR. A calibration port is included with the above power meters for calibration with the power sensor. This calibration eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.
  • Max. Frequency: 4.2 GHz
  • Min. Frequency: 100 KHz
  • Max. power: 35 dBm
  • Min. Power: -10 dBm
