Product description

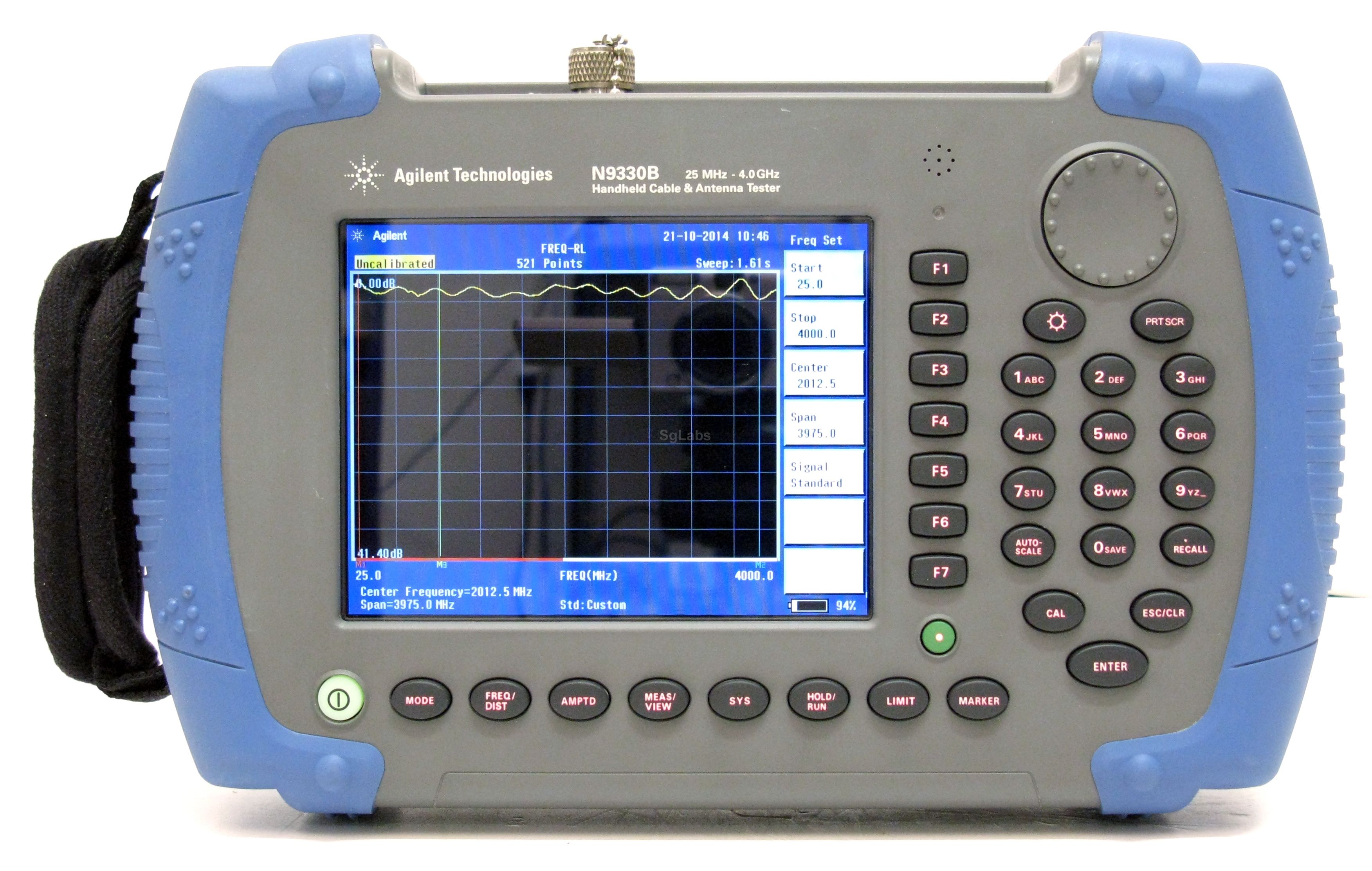

Keysight N9330B is a handheld, easy to use, battery operated cable and antenna tester for field installation and maintenance. It measures return loss, SWR, cable loss and distance-to-fault test functions for wireless service providers (WSPs), Aerospace & Defense customers, TV & Broadcasting customers and contractors for the above.
Features
Key Measurements & Applications
- Frequency range: 25 MHz to 4 GHz
- Frequency domain
- Return loss vs. frequency
- VSWR vs. frequency
- Cable loss test - Distance to Fault (DTF)
- Return loss vs. distance
- VSWR vs. distance
Standard Features
- Sweep time: 3.0 ms/data point (full span, 521 trace point, CW sweep, typically)

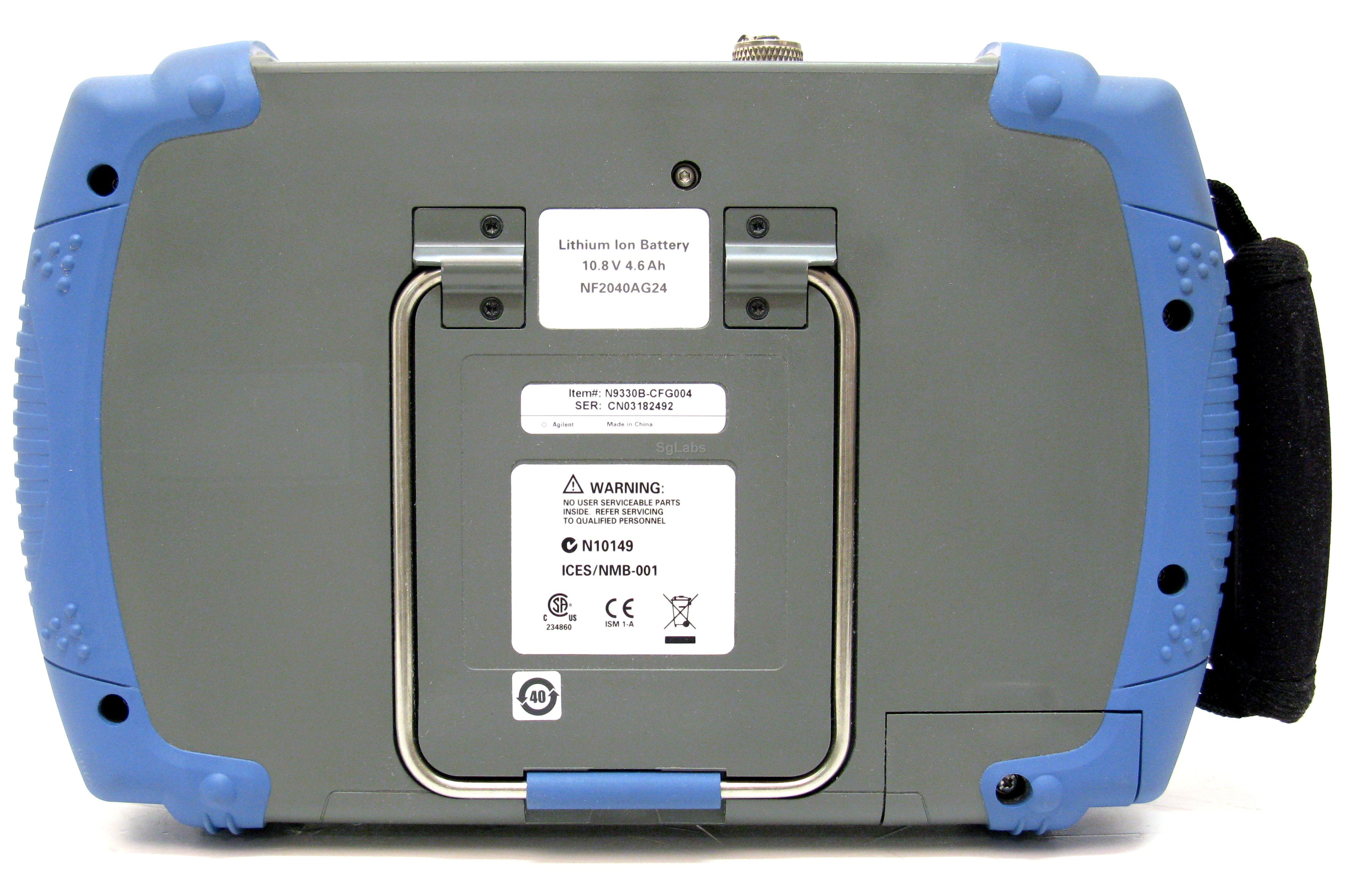

- Battery: Lithium-ion, 4 hours operating time
- Support USB connectivity for memory stick and PC connection
- 6.5" TFT color LCD for indoor and outdoor use
Optional Features
- Precision mechanical short/open/50 ohm load, DC to 4 GHz, N (M)
- Precision mechanical short/open/50 ohm load, DC to 4 GHz,7/16 DIN (M)
- Electronic calibrator
- Phase-stable extension cable 1.5 m, N (M) to N (F)

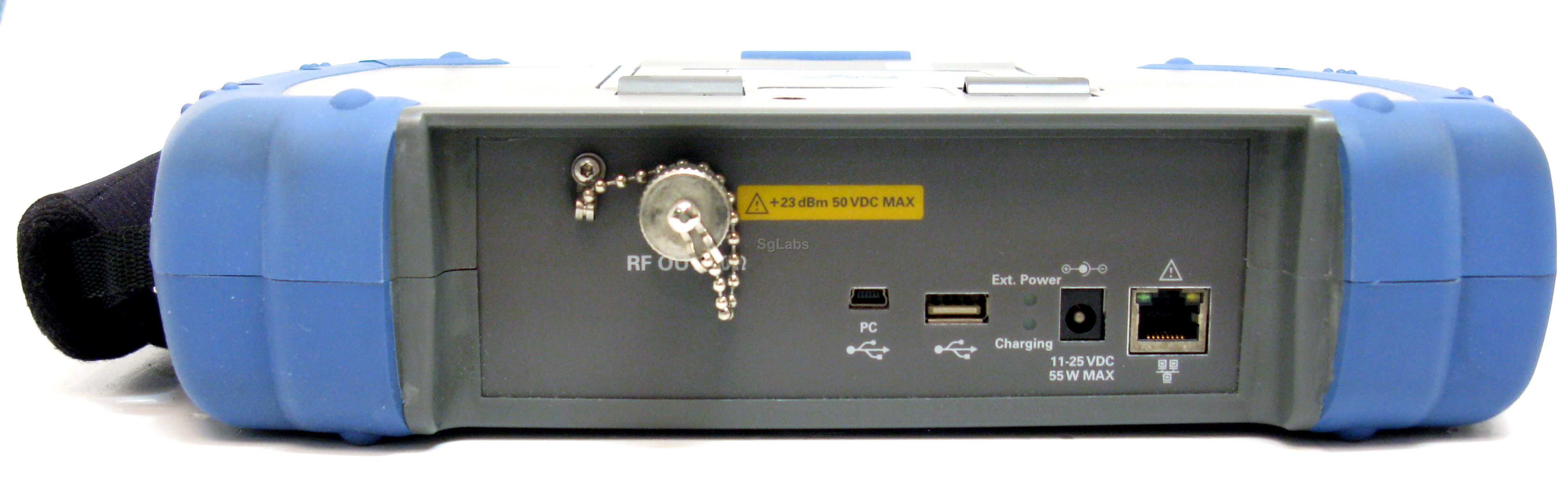

- Connector: N
- Max. Frequency: 4 GHz
- Min. Frequency: 25 MHz
