HP Agilent Keysight, N8973A

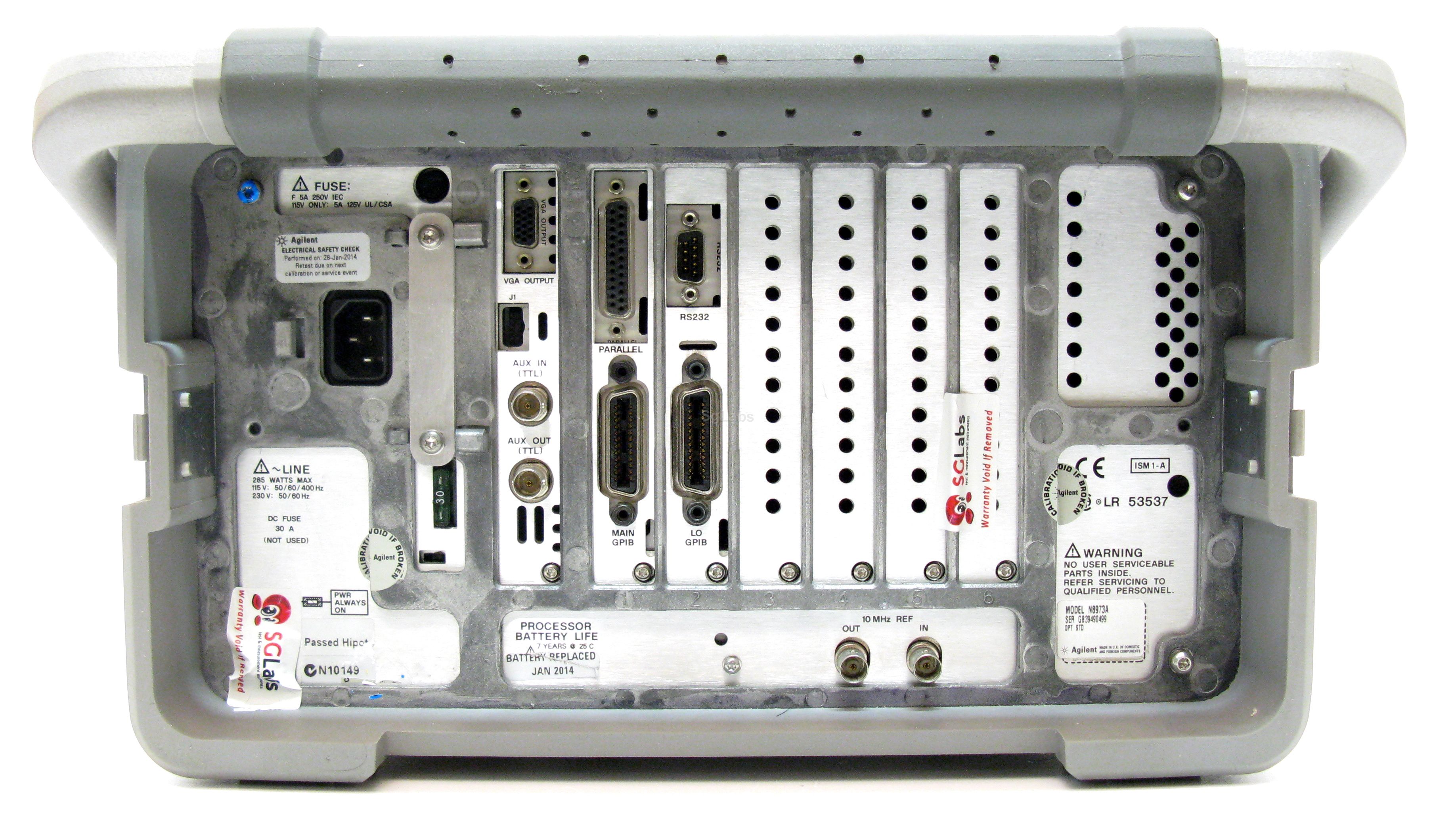

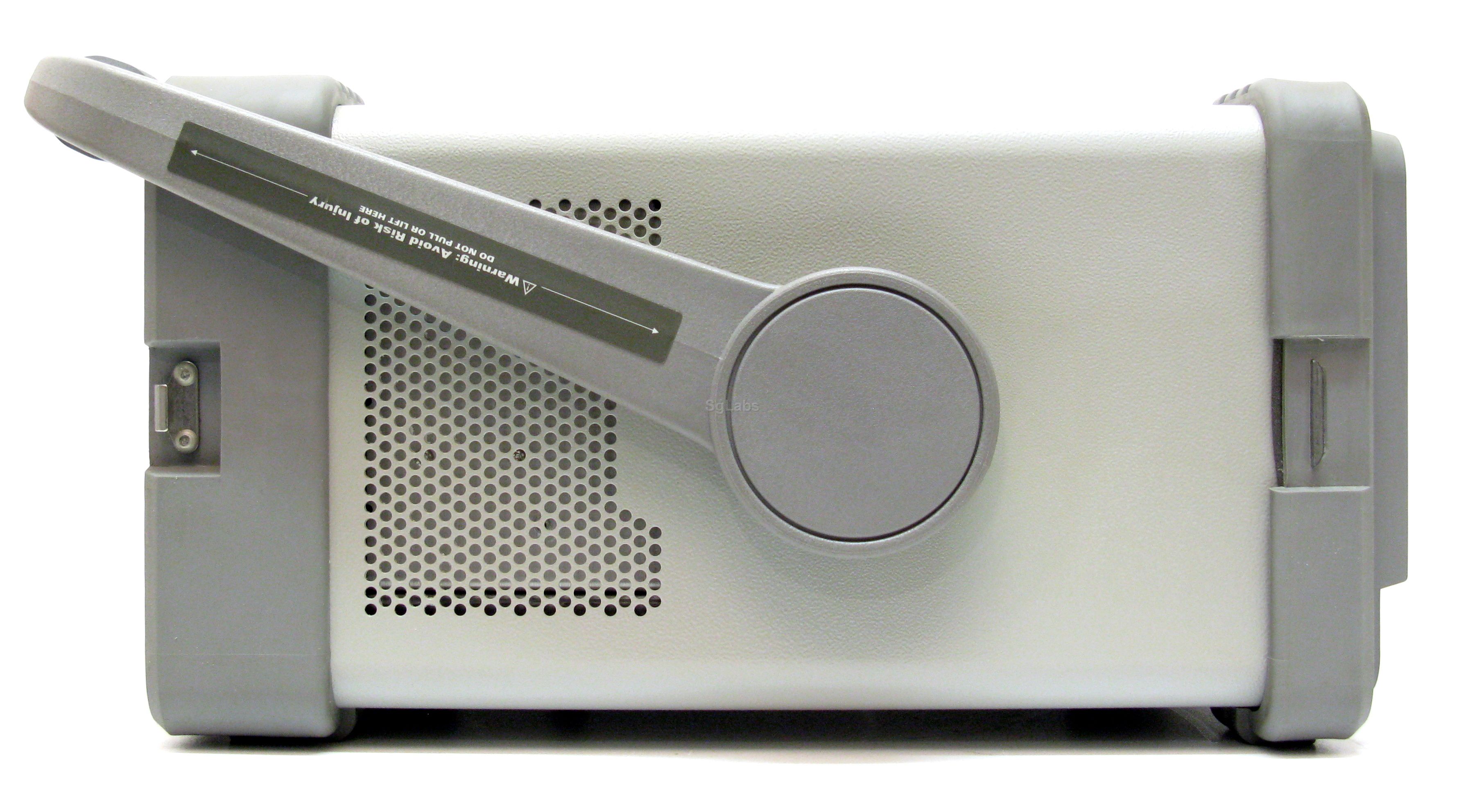

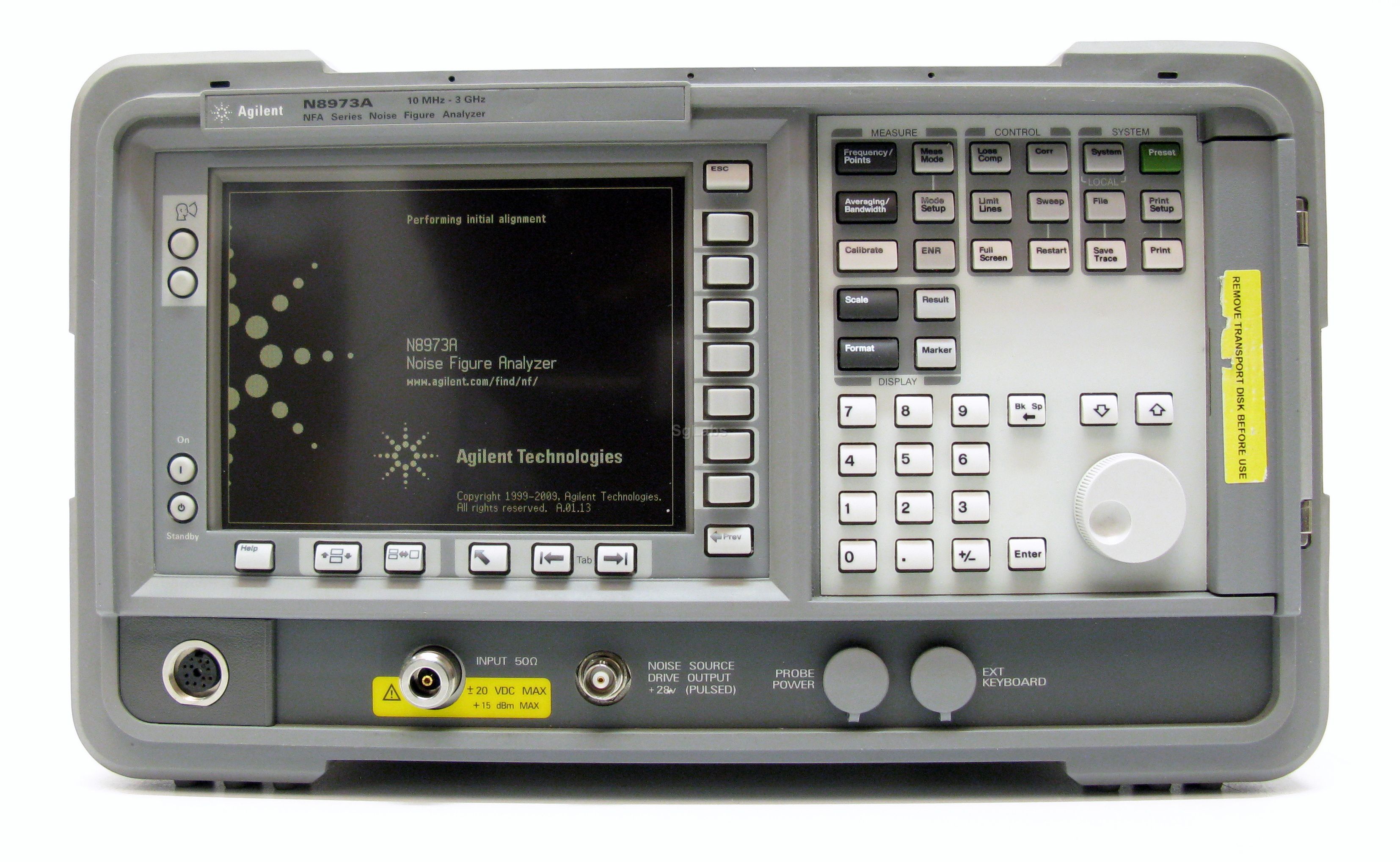

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
N8973A is a high performance noise figure analyzer designed to make fast, accurate and repeatable noise figure measurement.
With the N8973A ease of use features, you can set up complex measurements simply and easily giving you repeatable and reliable results you can trust.
The N8973A offers simultaneous noise figure and gain measurements with the ability to view, print and save the data/display in multiple formats.
The N8973A also has the ability to characterize amplifiers and frequency translating devices, including LO control over dedicated 2nd GPIB.
The N8973A offers increased measurement accuracy and faster measurement speed, as well as six user selectable measurement bandwidths.
  • Frequency range 10 MHz to 3.0 GHz in a one box solution
  • N-type (f) connector
  • SNS series noise source compatibility (346 series)
  • Connector: N
  • Max. Frequency: 3 GHz
  • Min. Frequency: 10 MHz
