HP Agilent Keysight, E9300A H24

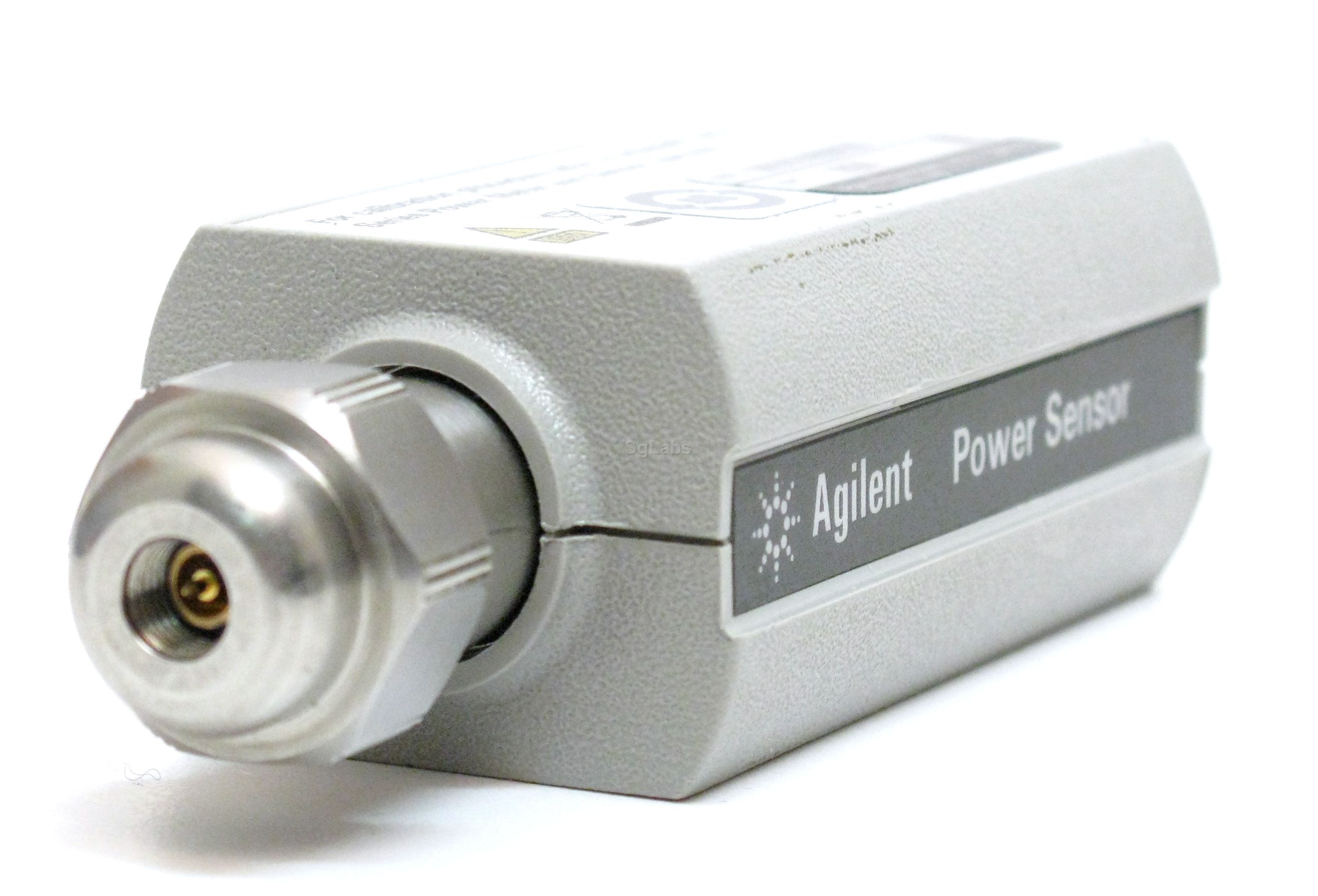

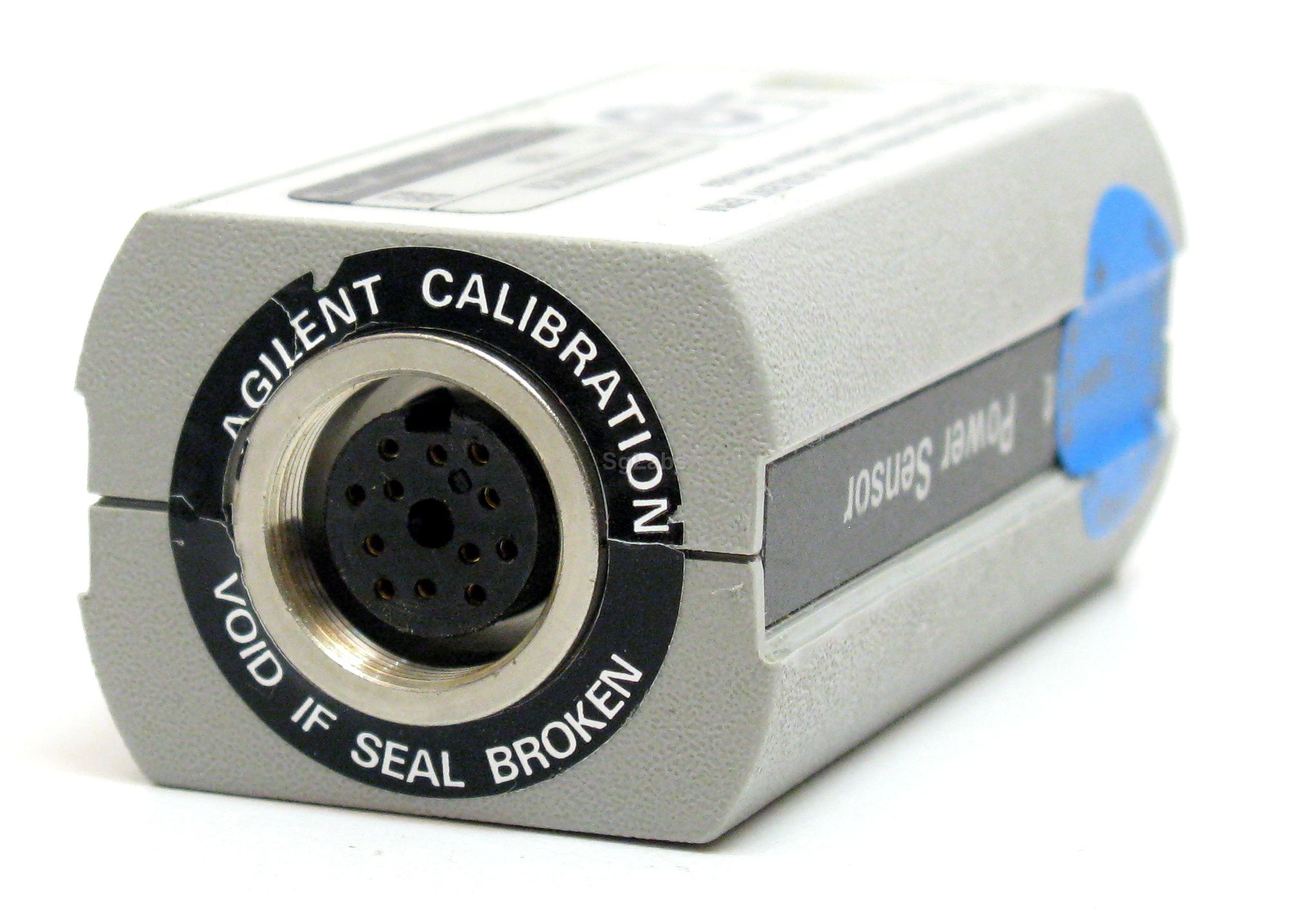

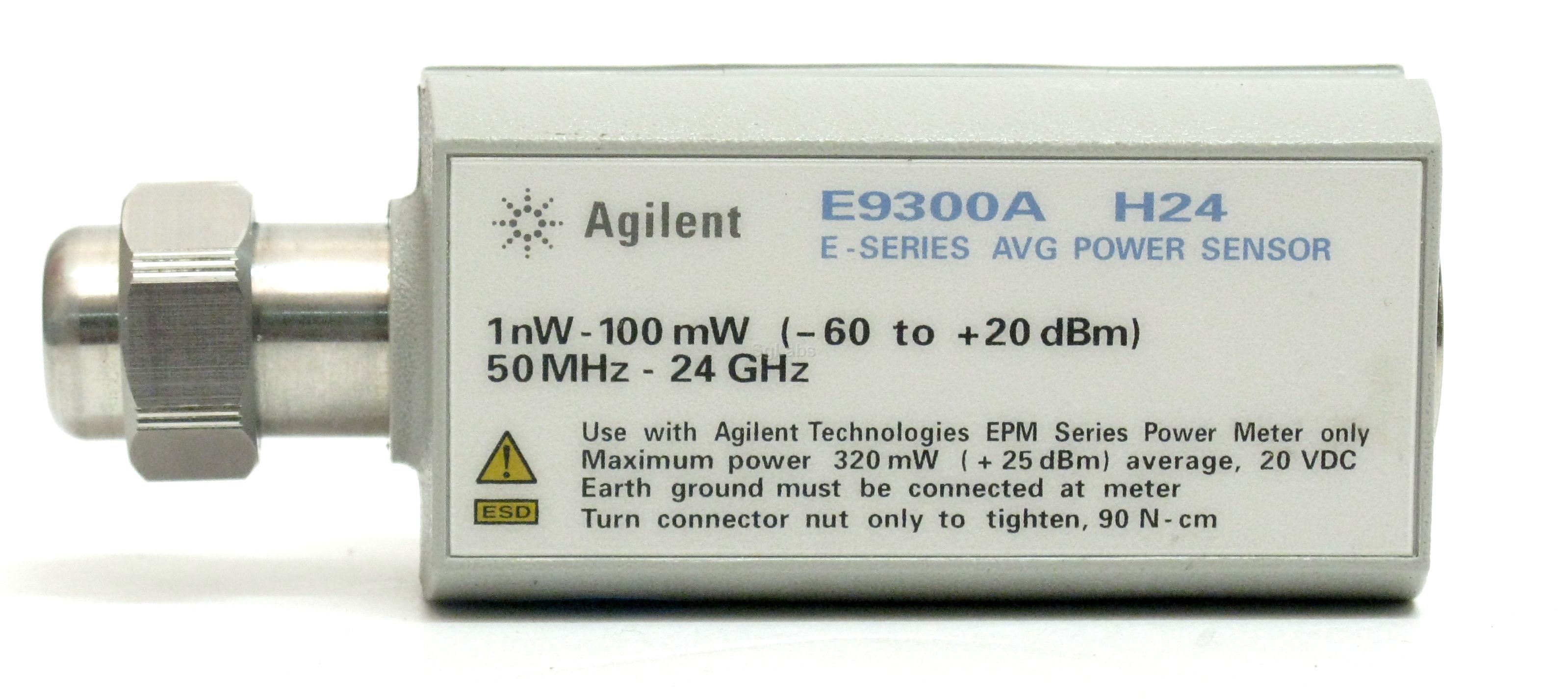

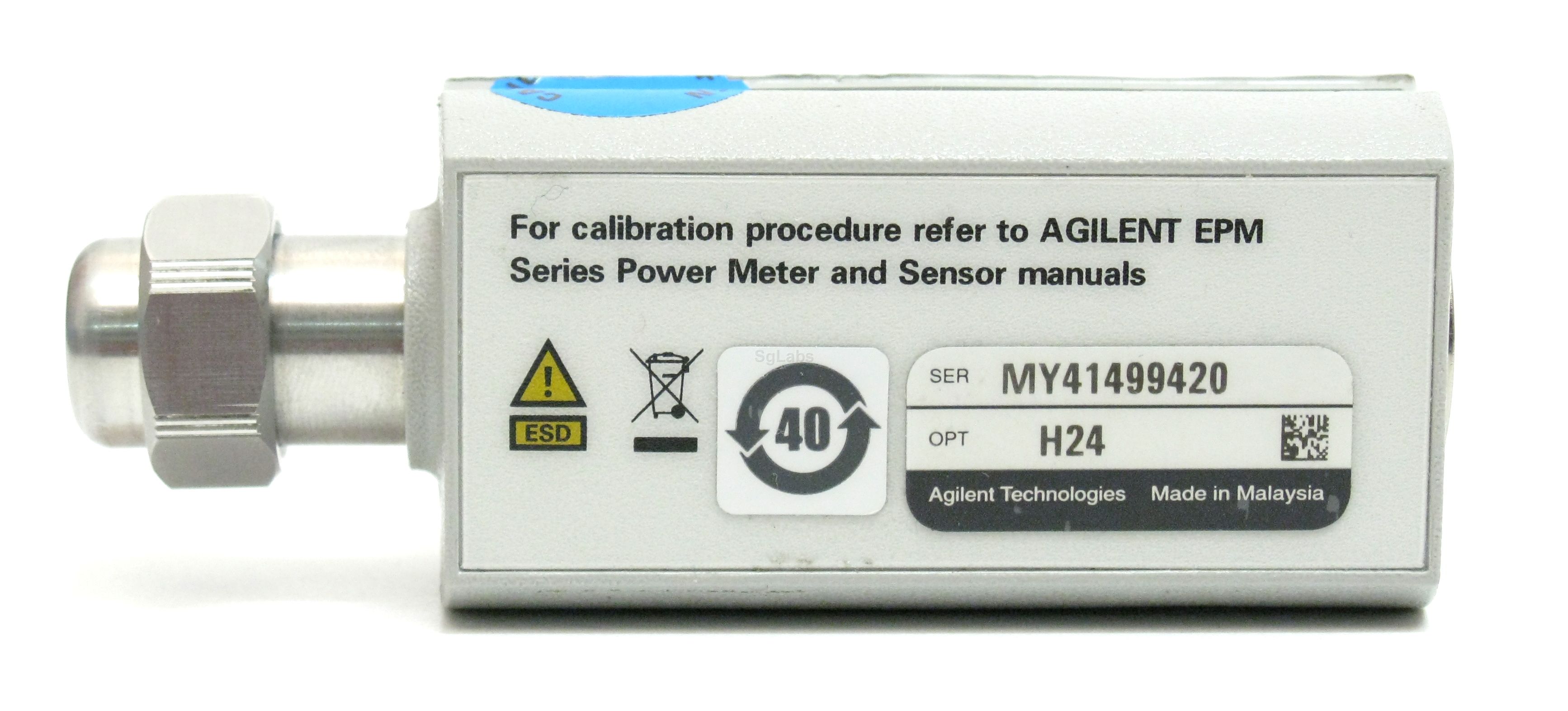

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The E9300A diode power sensor measures average power over the frequency range 10 MHz to 18 GHz and power range -60 to +20 dBm (80 dB dynamic range). With Option H24 the frequency range become 50 MHz to 24 GHz,
  • Measure the average power of all modulation formats
  • Wide dynamic range (-60 dBm to +20 dBm) and frequency range 10 MHz to 18 GHz (50 MHz - 24 GHz opt. H24)
  • Connector N (3.5mm Opt H24)
  • High maximum power specification
  • Low SWR for reducing mismatch uncertainty
  • Calibration factors, linearity and temperature compensation data stored in EEPROM
  • Fast measurement speeds (up to 400 readings per second with the E4416A)
  • Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters
  • Max. Frequency: 18 GHz (24 GHZ opt.H24)
  • Min. Frequency: 10 MHz (50 MHz opt. H24)
  • Max. power: +20 dBm
  • Min. Power: -60 dBm
  • Measure: Average
 € 600,00
