HP Agilent Keysight, 8753ES 006

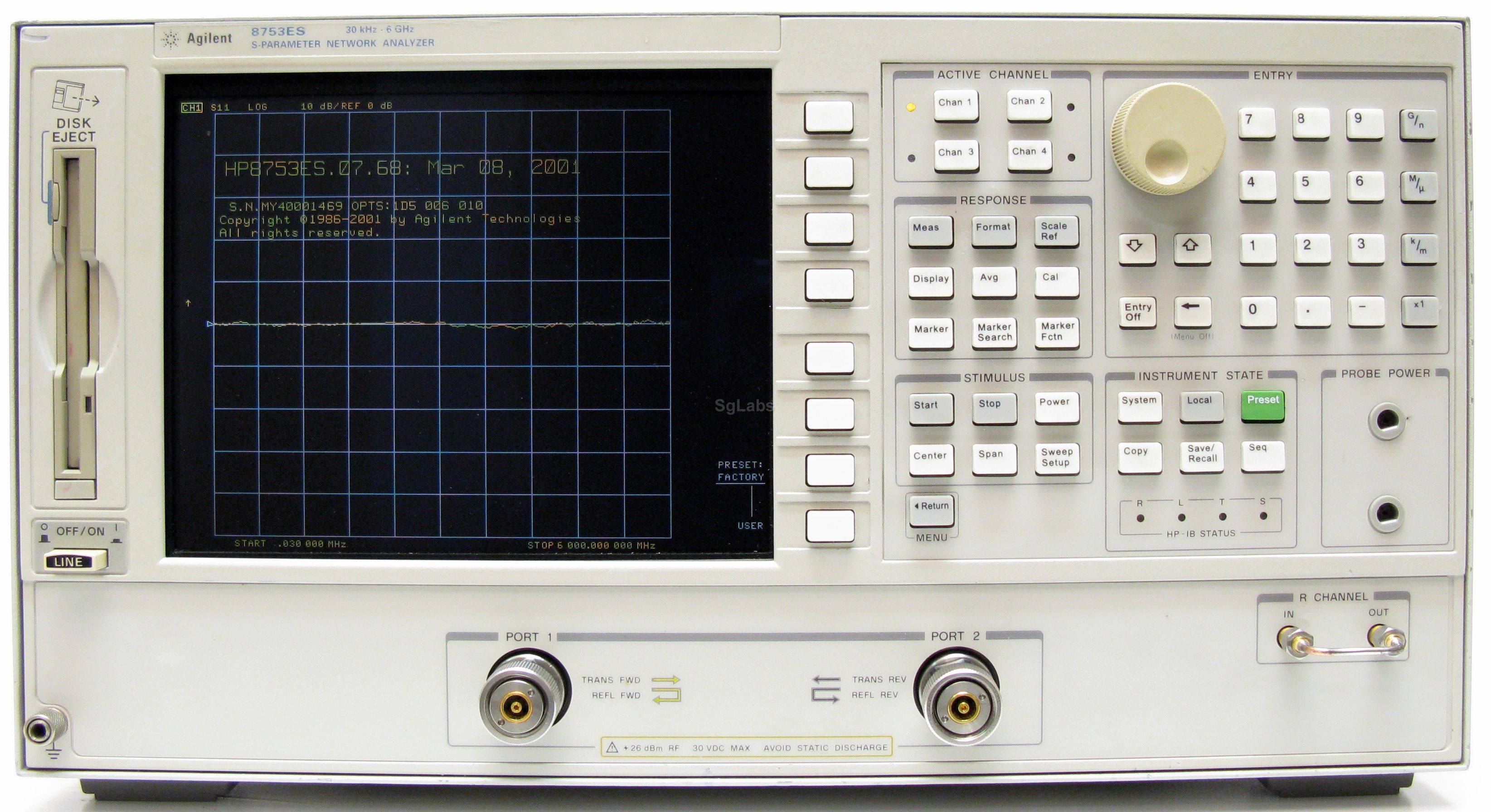

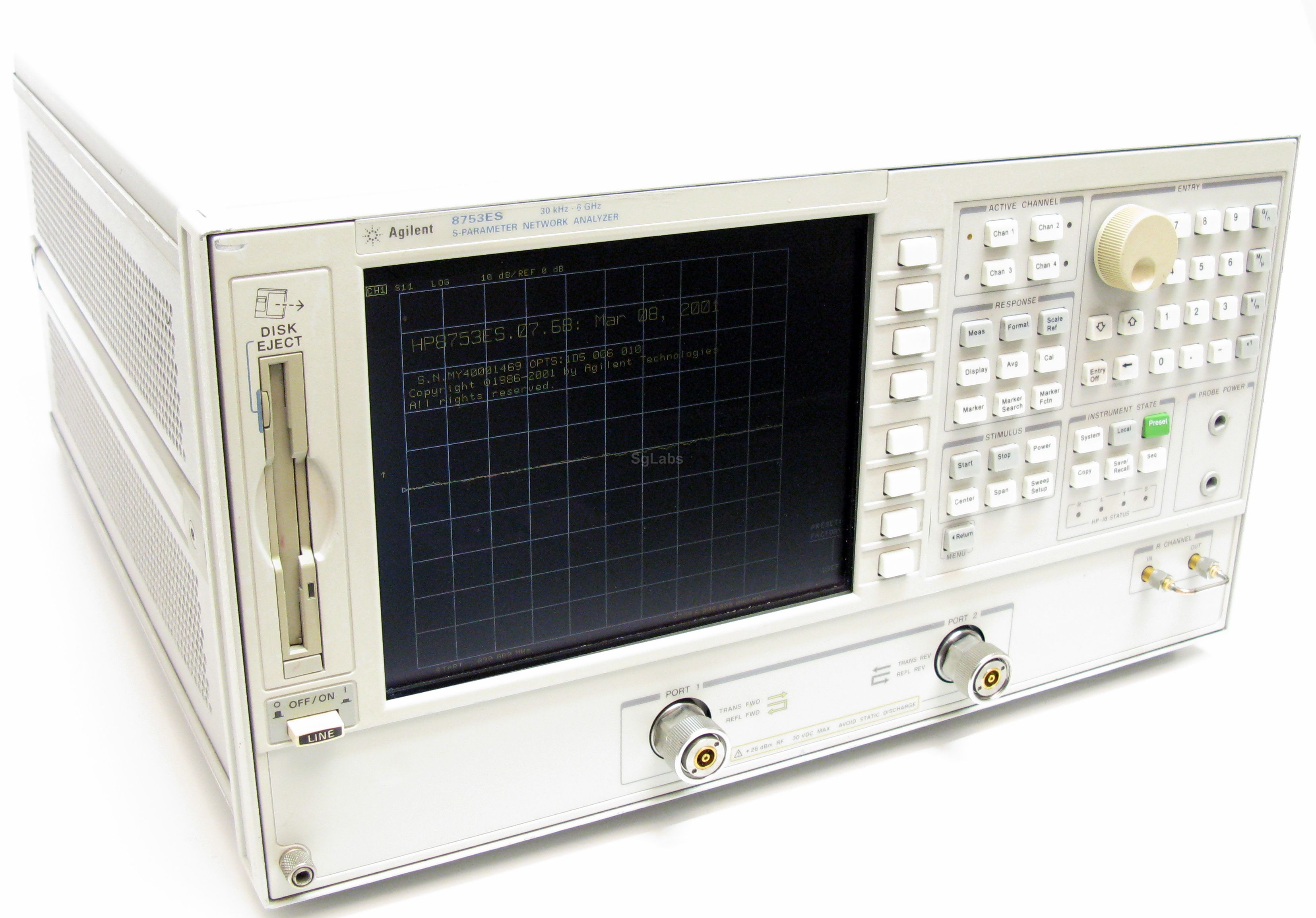

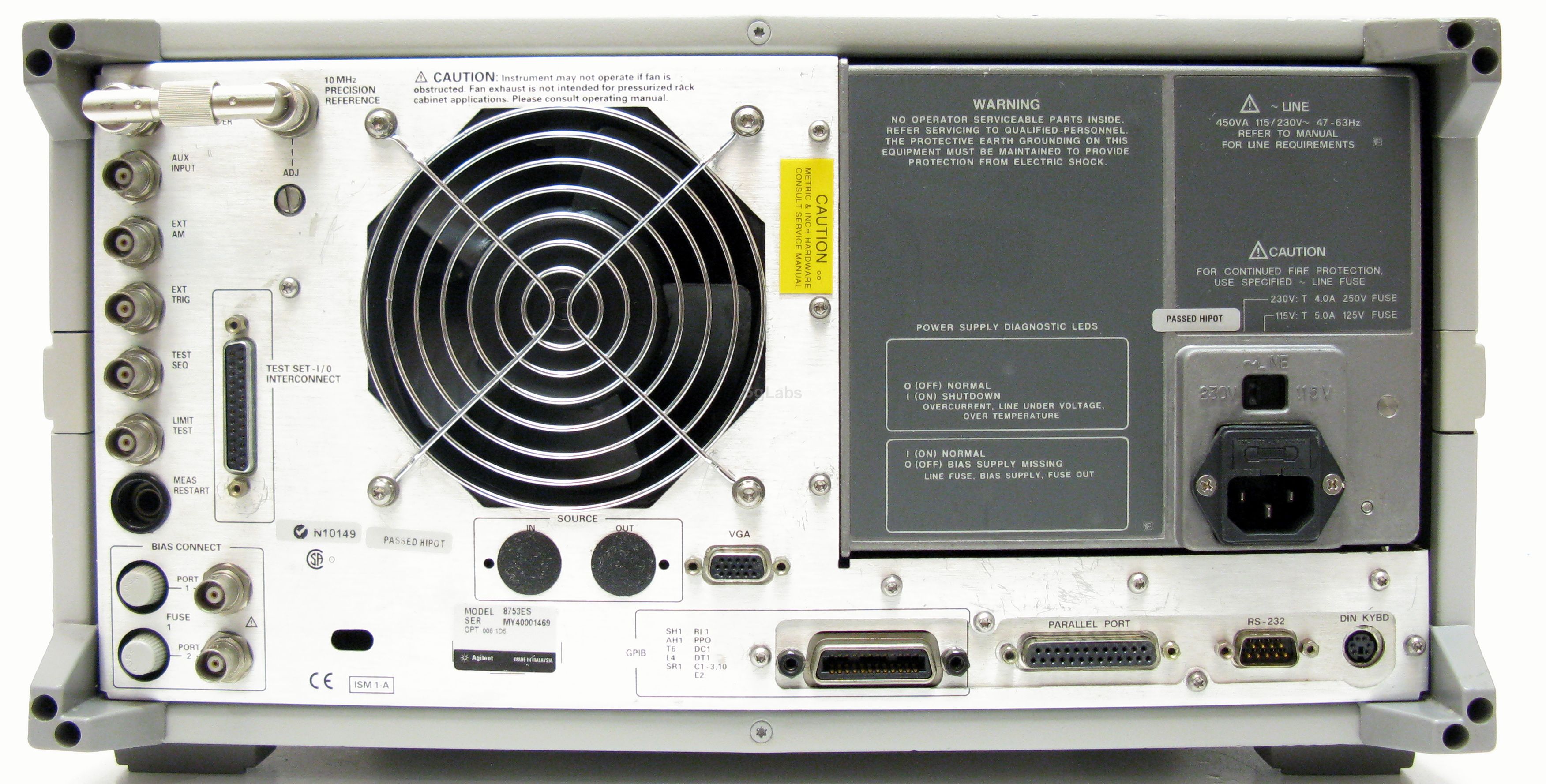

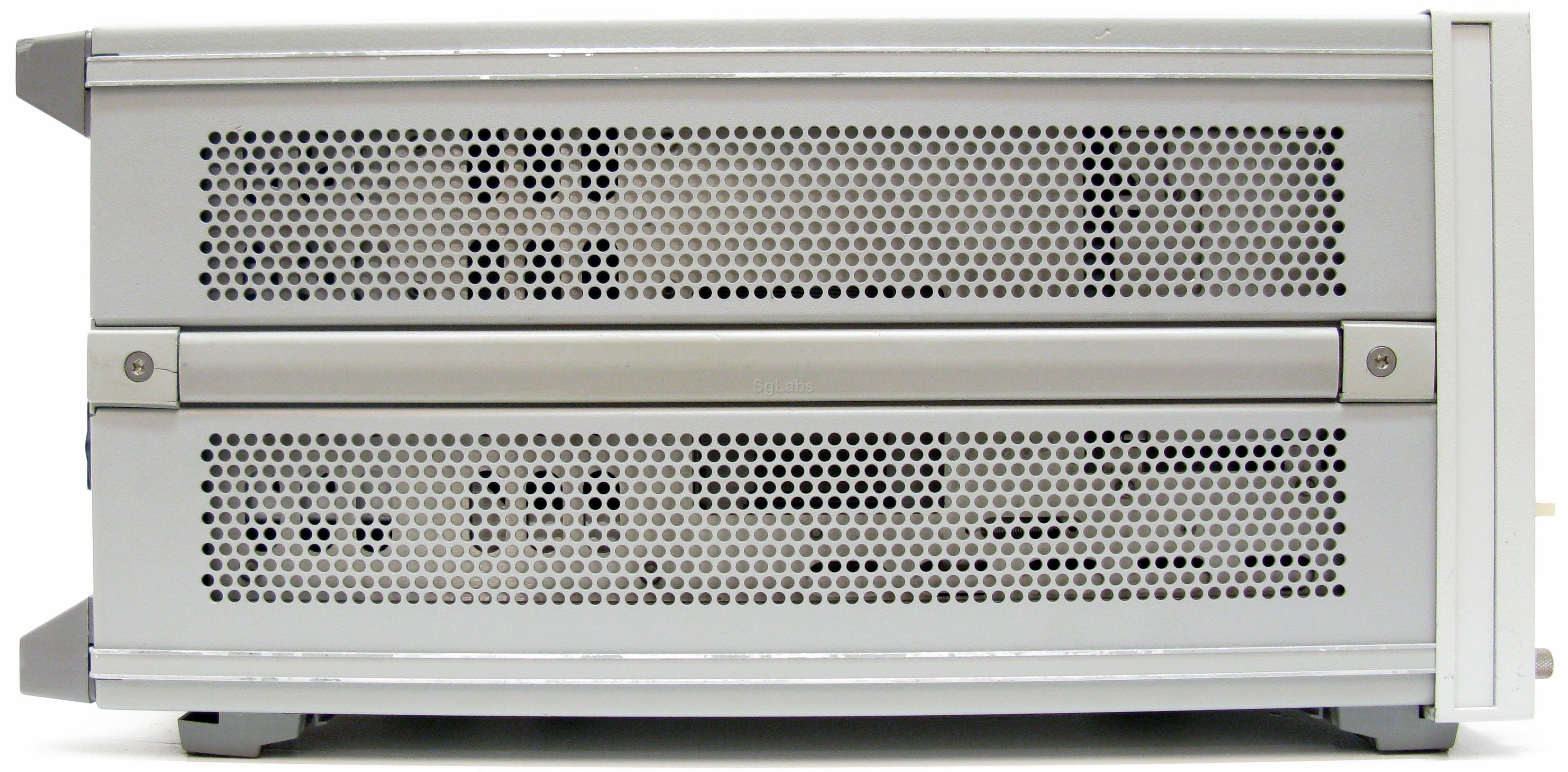

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent HP 8753ES RF Vector Network Analyzer features a built-in 50-ohm or 75-ohm S-parameter test set providing a full range of magnitude and phase measurements. Full two-port error correction capability provides the highest level of accuracy and the S-parameter test set provides the convenience of making both forward and reverse sweep measurements without reversing the device under test. Frequency range is 30kHz to 6 GHz with a 1Hz resolution.
Features
  • Frequency Accuracy +/- 10 ppm
  • Frequency Range 30 kHz - 6 GHz (Opt.006)
  • Frequency Resolution 1 Hz
  • Output Impedance 50 ohms
  • Output Power Range -85 dBm - +10 dBm
  • Output Resolution 1.0 dB

Description Possible Options:

  • Opt.1D5: High-stability frequency reference
  • Opt.010: Time Domain
  • Connector: APC7
  • Max. Frequency: 6 GHz (Opt.006)
  • Min. Frequency: 30 kHz
  • Channels: 2
  • Source: internal
  • Test set: included
  • Interface: GPIB
