HP Agilent Keysight 85037B Precision Detector 26.5 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

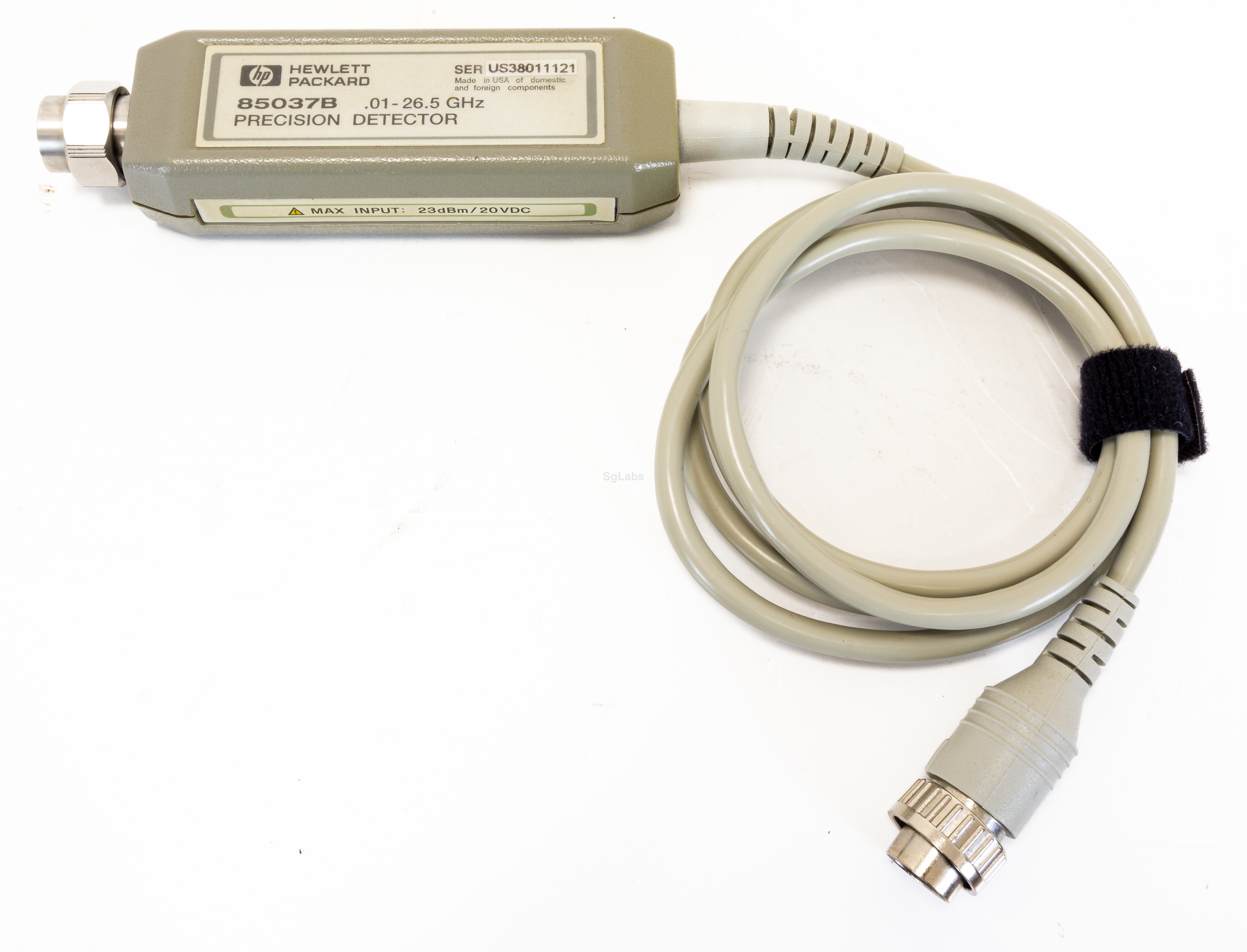

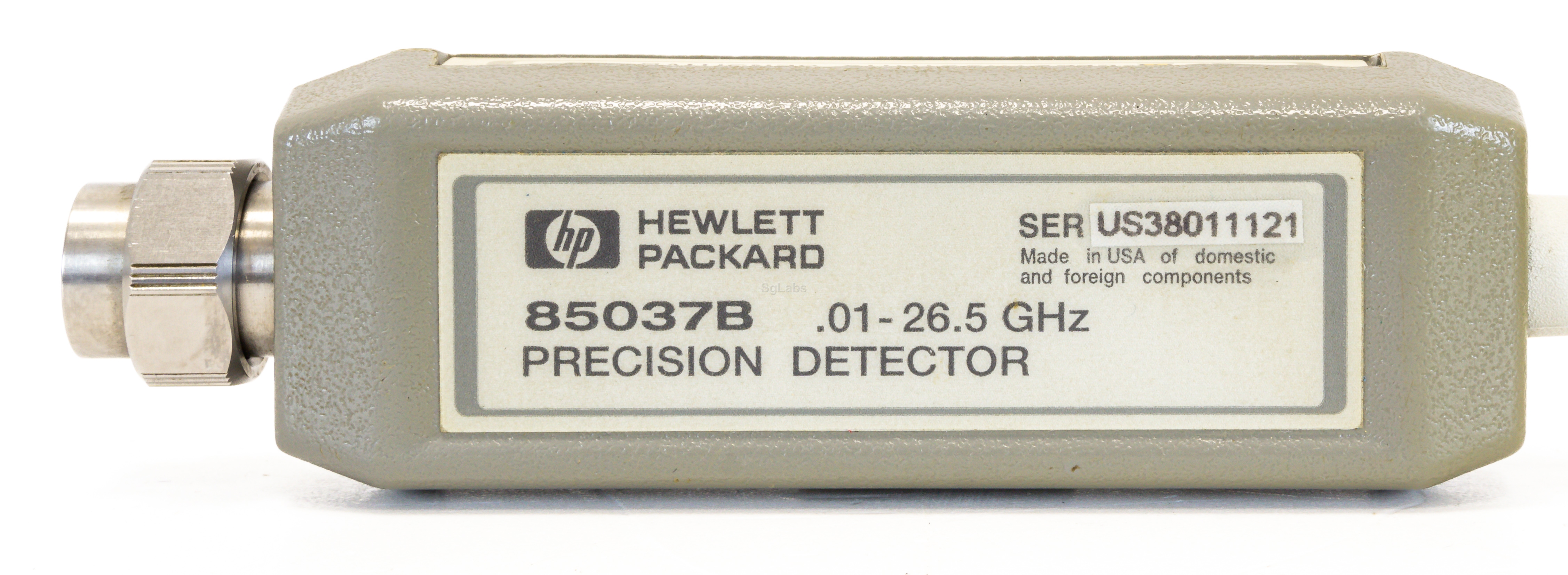

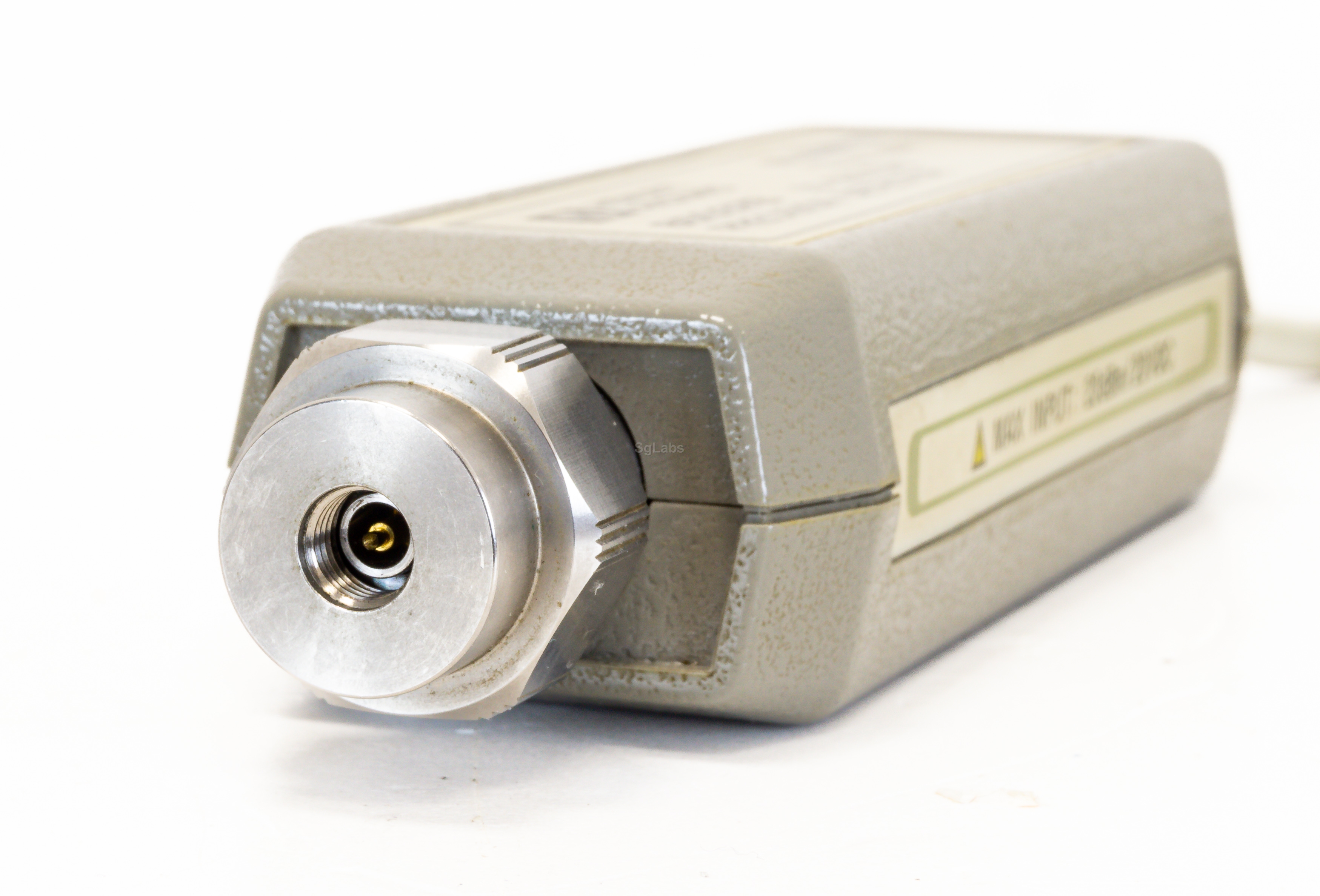

The Keysight Agilent HP 85037B Precision Detector is designed specifically for operation with the Keysight Agilent HP 8757D Scalar Network Analyzer and may be used in either AC or DC detection modes. This dual diode detector contains an internal frequency correction factor in an internal EE-PROM (read automatically by the Keysight Agilent HP 8757D) for improved measurement accuracy versus frequency.
Features
  • Frequency Range: 10 MHz to 26.5 GHz
  • Connector Type: 3.5 mm (m)
  • AC mode Dynamic Range: +20 to -55 dBm
  • DC mode Dynamic Range: +20 to -50 dBm
  • Connector: 3.5 mm
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 10 MHz
