HP Agilent Keysight 8494G STEP Attenuator

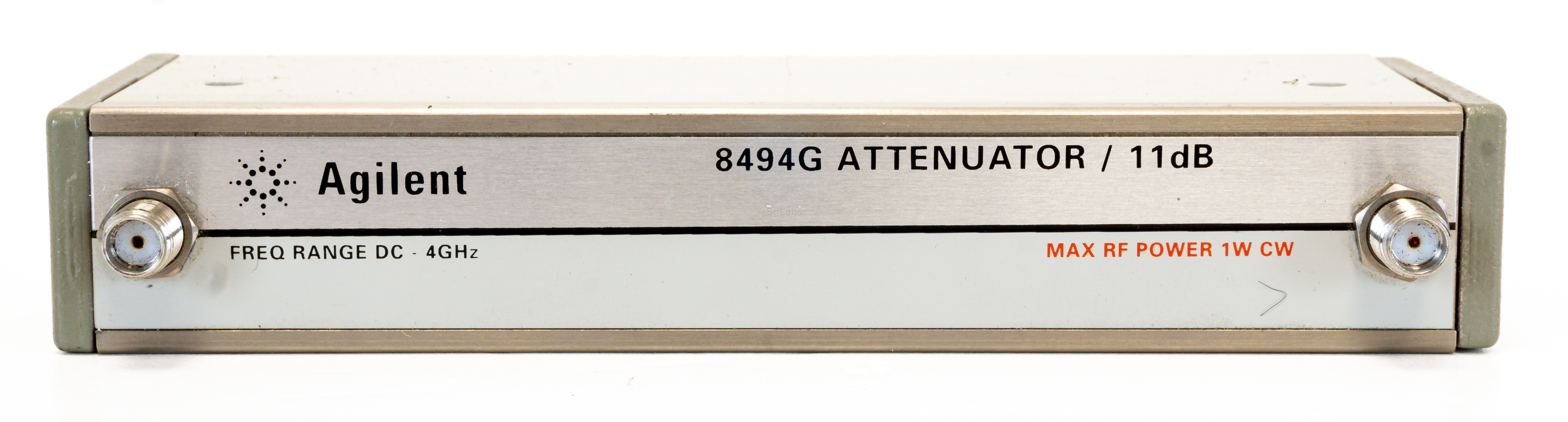

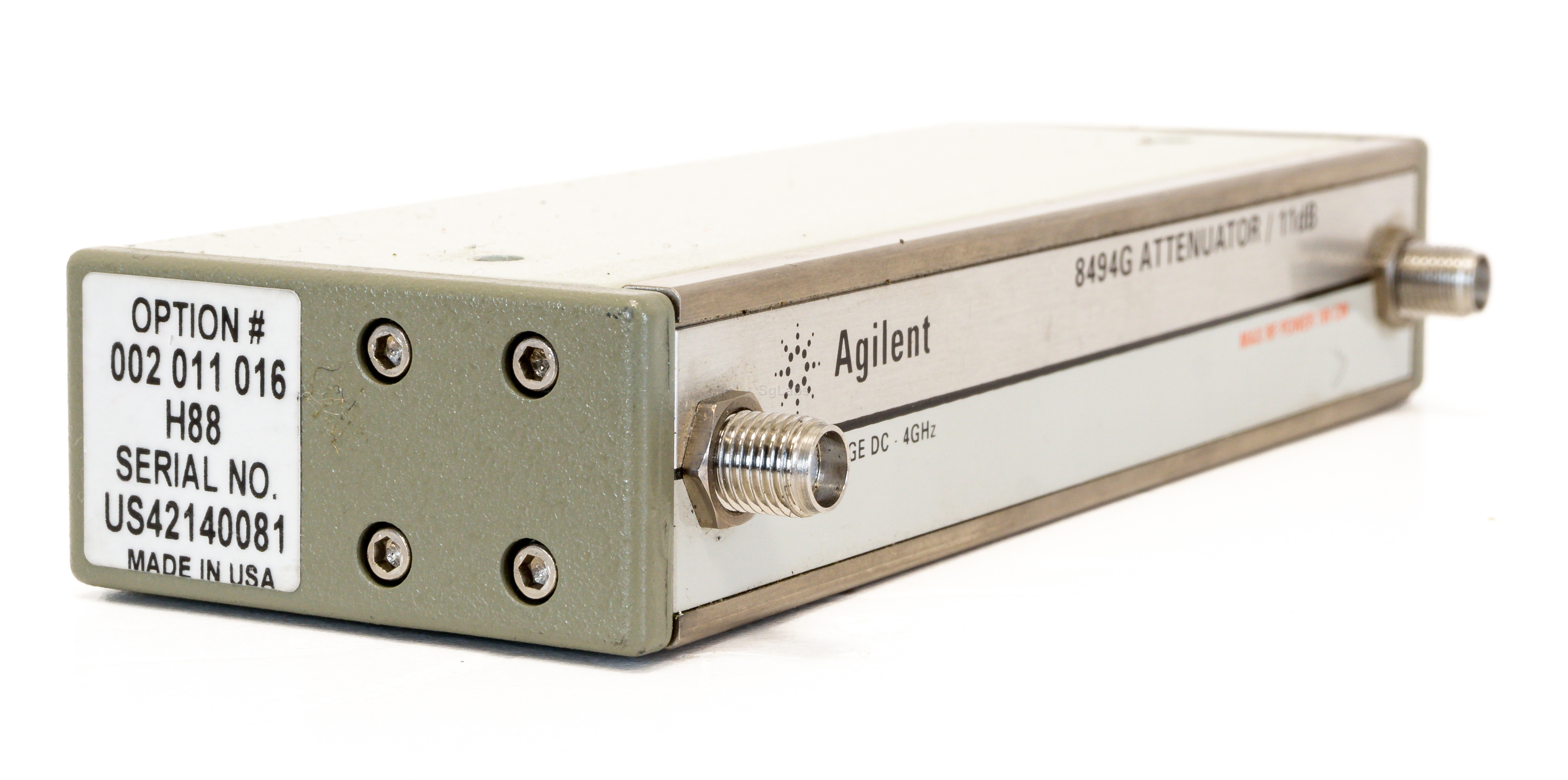

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 8494G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. It provides attenuation in 1-dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, Option UK6 provides NIST traceable data (SWR and attenuation). A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator / switch combinations are possible. The Keysight 11716A / B / C interconnect kits provide quick connection of Keysight 8494 / 5 / 6 / 7 1-dB and 10-dB step attenuators in series for greater dynamic range with 1-dB steps.
Features

Superior RF performance

  • Frequency range: dc to 4 GHz
  • Insertion loss at 0 dB: 0.6 dB + 0.09 dB / GHz
  • Maximum SWR: 1.5

Repeatability and life span

  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • 5 million cycles per section

Power handling

  • Maximum RF input power: 1 W (average), 100 W (peak)

Features

  • Connector type: choice of type-N female, SMA female, APC-7

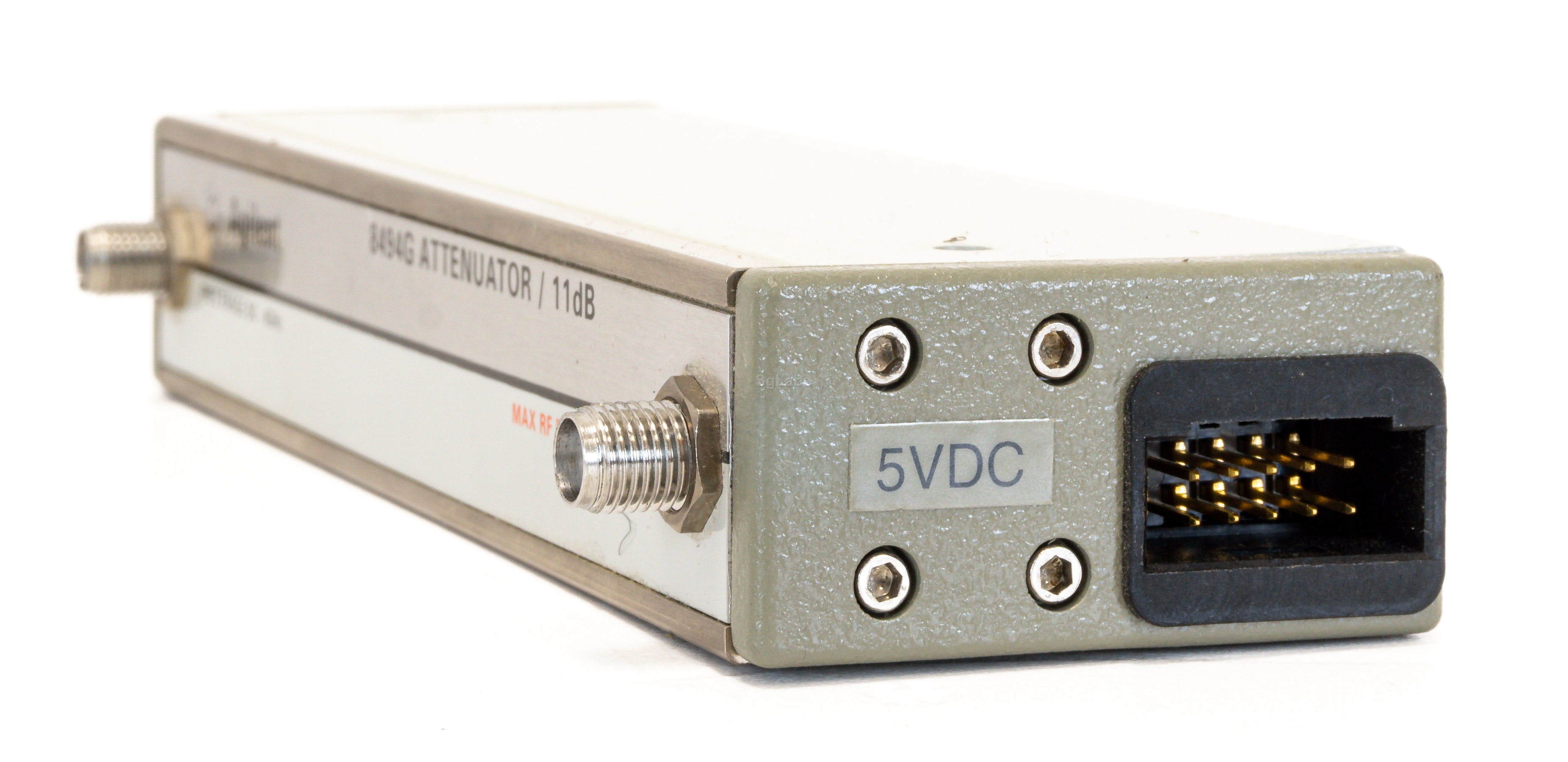

  • Programming connector: 12-pin Viking, optional 14-pin DIP
  • Attenuation: 11 dB/ 1dB
  • Connector: SMA
  • Max. Frequency: 4 GHz
  • Min. Frequency: DC
  • Max. power: 1 W
  • VSWR / RL: 1.5
